Wide band saw, Log cutting saw mills machine, Horizontal wood band saw

1 SET
MOQ
US $15,900 - 28,000 / Set
Price
Wide band saw, Log cutting saw mills machine, Horizontal wood band saw
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Band Saw
Use: Woodworking
Voltage: 380v, 3phaes, 50HZ Or As Customer Needs
Electric Motor: 30KW-55KW
Saw Head Walking: Variable Frequency Speed Adjustable
Quality Bearing: Sweden SKF Bearings
Operation: Taiwan Fatek PLC Touching Screen Auto Setworks
Basic Infomation
Place of Origin: shandong province
Brand Name: SH
Certification: ISO
Model Number: MJ1200 MJ1500 MJ2000 MJ2500
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1500sets/year
Product Description

Heavy Duty Large Size Horizontal Band Sawmill

Introduction:

Combined with the current automation technology, the heavy duty horizontal band saw machine is a high quality product .

It solves the difficulty of sawing lagrge diameter wood in the past and applies for national patents. A great many products are exported to Gabon, Angola , Fiji and Southeast Asian Countries.



Technical specifications:

Technical Parameter MJ1200 MJ1500 MJ2000 MJ2500
Max Sawing Wood Diameter (MM) 1200 1500 2000 2500
Saw wheel diameter (MM) 900 1000 1100 1100
Sawing thickness (MM) 400 450 480 480
Max Sawing wood Length (MM) 10000 10000 10000 10000
Main Motor Power (KW) 22 37 45 45
Total Power (6 Motors) (KW) 30 45 53 53
Total Weight (KG) 3800 4500 5000 5500
Electric & Screw Band Saw Blade Tension
Infinitely variable speeds forward and backward
Touch Screen sawing thickness setting
Control Cabinet and Seats built on the sawmill
4 group Mobile card wood file .

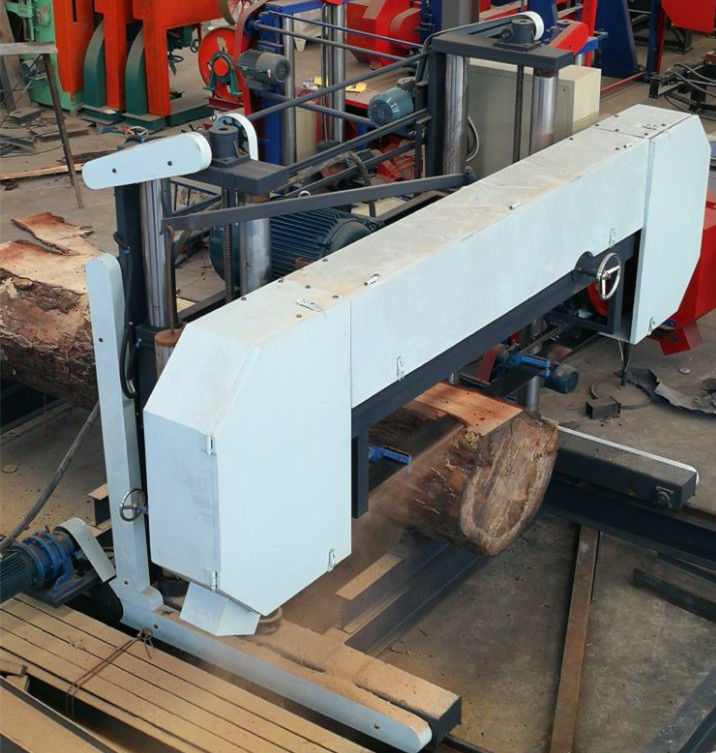

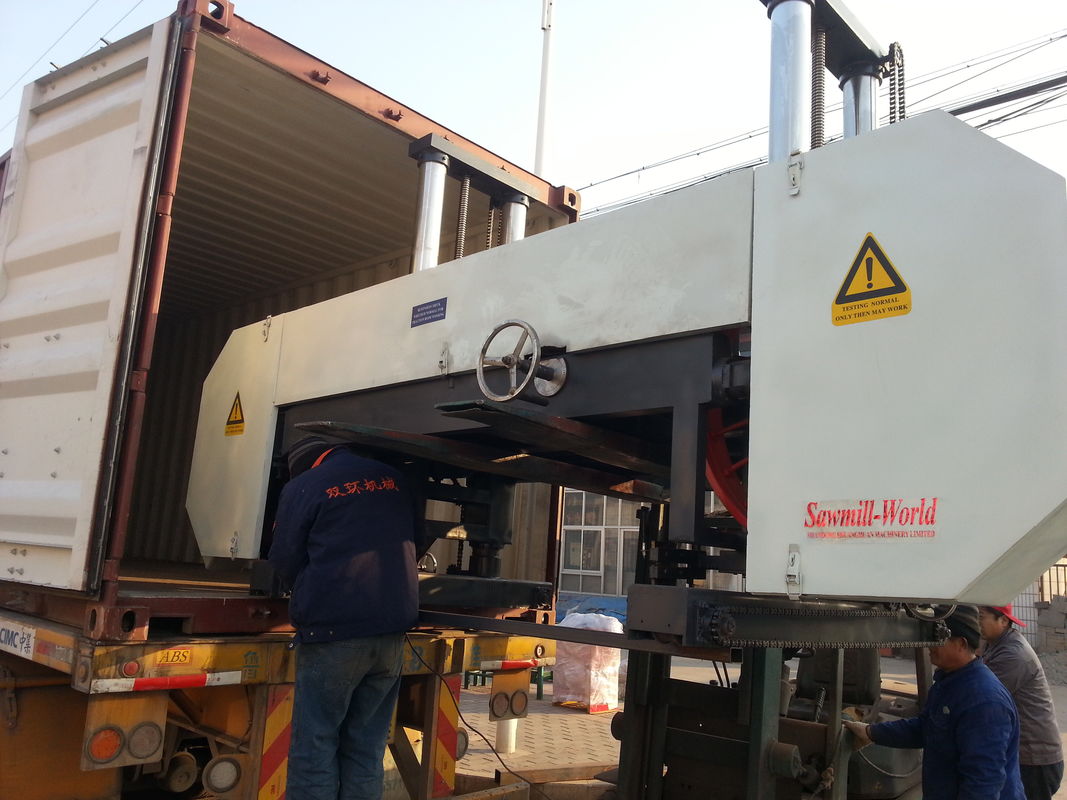

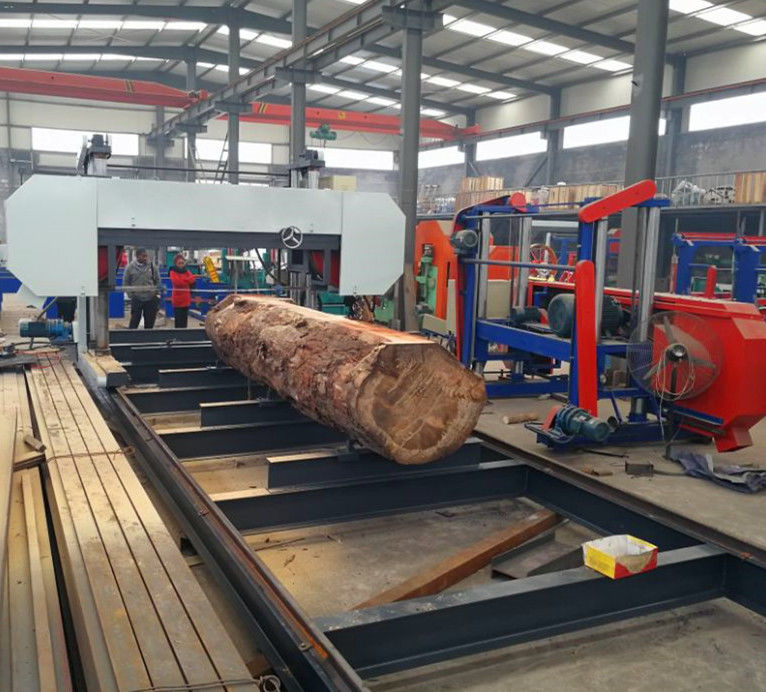

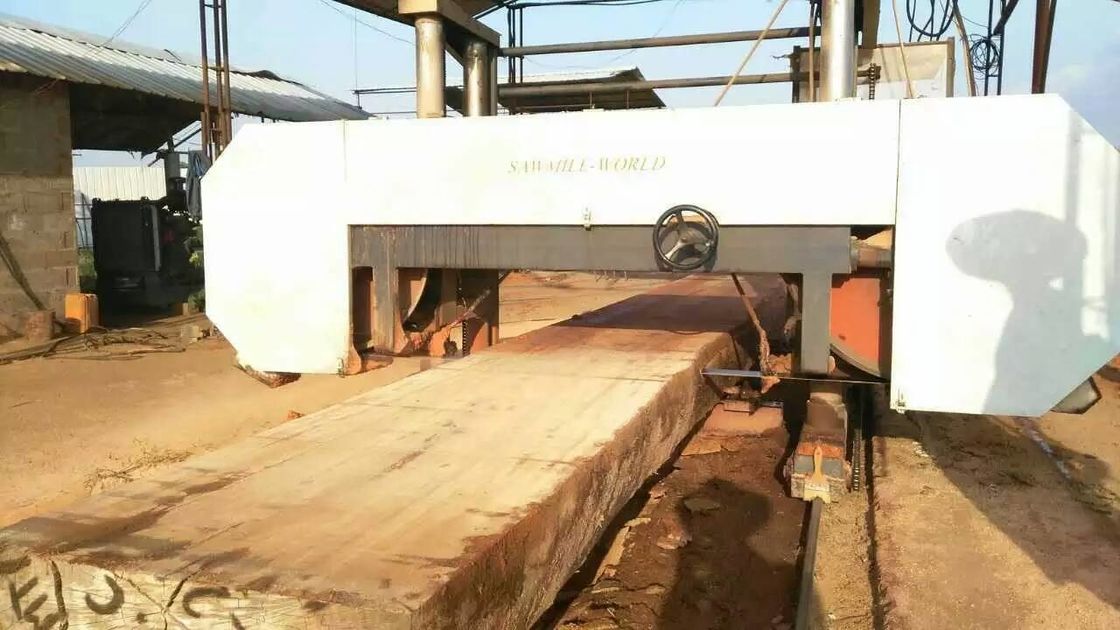

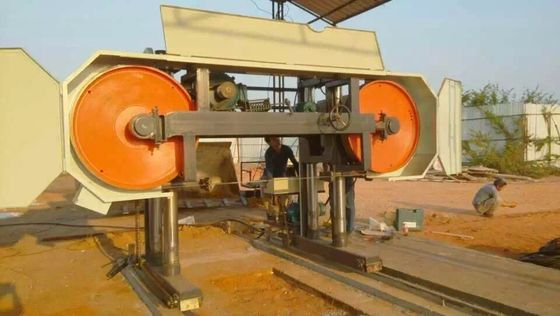

Photos:

Wide band saw, Log cutting saw mills machine, Horizontal wood band saw 0Wide band saw, Log cutting saw mills machine, Horizontal wood band saw 1
Wide band saw, Log cutting saw mills machine, Horizontal wood band saw 2
