Home /Products/Large Bandsaw Mill/Horizontal Bandsaw Log Mill 1070mm Lumber Mill Machine 45KW 55KW

Horizontal Bandsaw Log Mill 1070mm Lumber Mill Machine 45KW 55KW

1 SET
MOQ
US $12,000 - 31,000 / Set
Price
Horizontal Bandsaw Log Mill 1070mm Lumber Mill Machine 45KW 55KW
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Heavy Duty Horizontal Band Saw
Warranty: 12 Months
Power(w): 45kw, 55kw
Saw Wheel Diameter: 1070mm
Sawing Max. Width: 2500mm
Sawing Log Length: 6meters Or As Customer Needs
Operation: PLC Touching Screen Automatic
Weight: 5000kgs, 5500kgs
After-sales Service Provided: Online Support,commissioning And Training
Application: Horizontal Wood Band Saw Sawmill,sawmill Timber Lumber Factory,Furniture Factory,manufacturing Plant
Keyword: Horizontal Band Saw Machine,horizontal Band Sawmill Wood Cutting
Color: Customer Actual Requirements
Highlight:

Horizontal Bandsaw Log Mill

,

1070mm Lumber Mill Machine

,

Bandsaw Log Mill 1070mm
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: MJ1200 MJ1500 MJ2000 MJ2500
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 25 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1500sets/year
Product Description

Ajustable Speed Heavy Duty Horizontal Band Sawmill Machine, Large Electrical Saw

Heavy Duty Large Size Horizontal Band Sawmill

  • The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
  • It have large saw wheel and high power.
  • Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola.

Technical specifications:



Model  MJ1200 MJ1500 MJ2000 MJ2500
Max. sawing width  1200mm 1500mm 2000mm 2500mm
Height from blade to track 1100mm 1200mm 1700mm 2200mm
Saw wheel diameter  1070mm 1070mm 1070mm 1070mm
Max.sawn thickness 350mm 350mm 400mm 400mm
Sawing wood length max. 6meters 6meters  6meters  6meters
Saw blade length & width 7900 &125mm 8600&125mm 9700&125mm 10500&125,150mm
Main motor power 30kw  37kw 45kw 55kw
Weight 3800kgs 4500kg 5000kg 5500kg

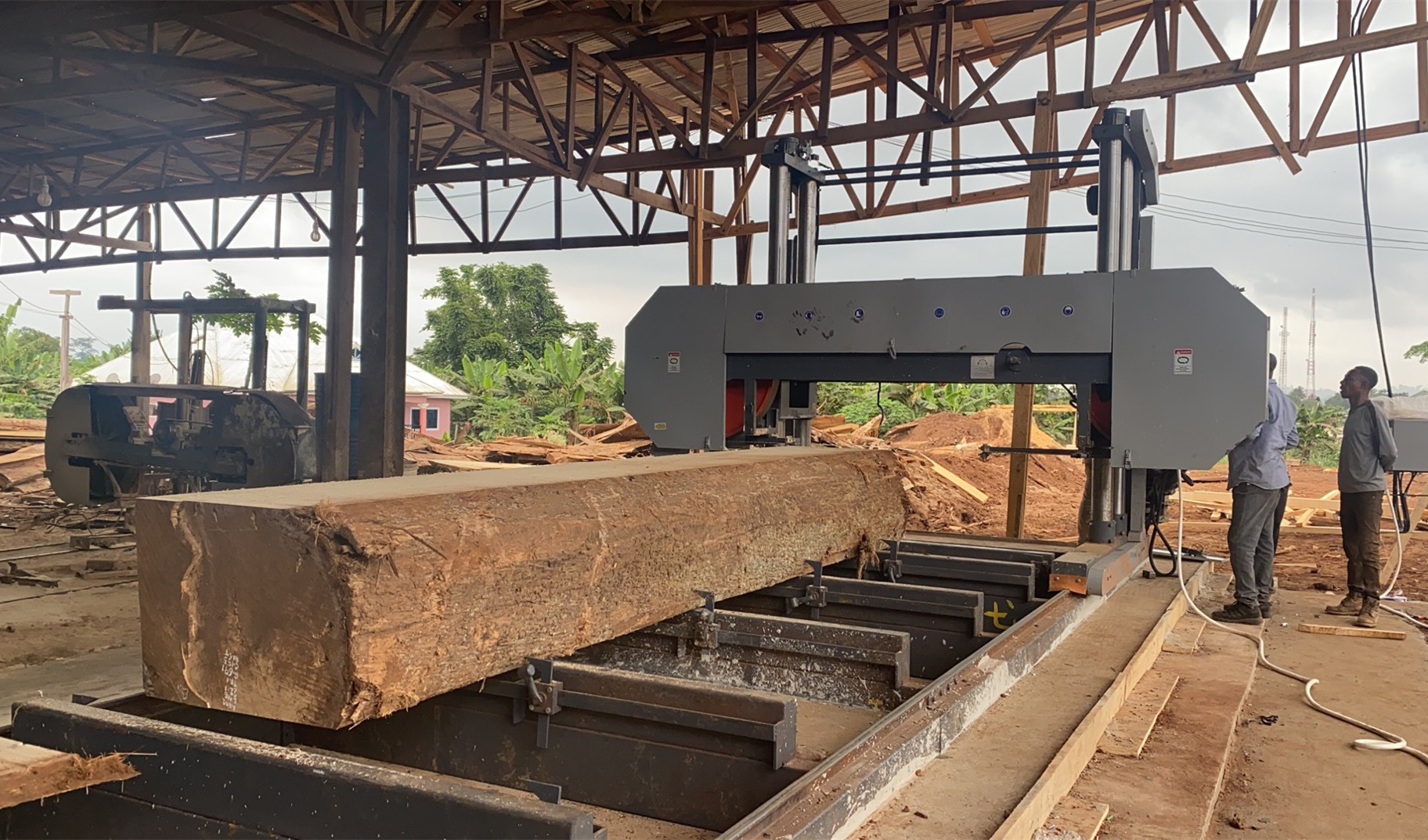

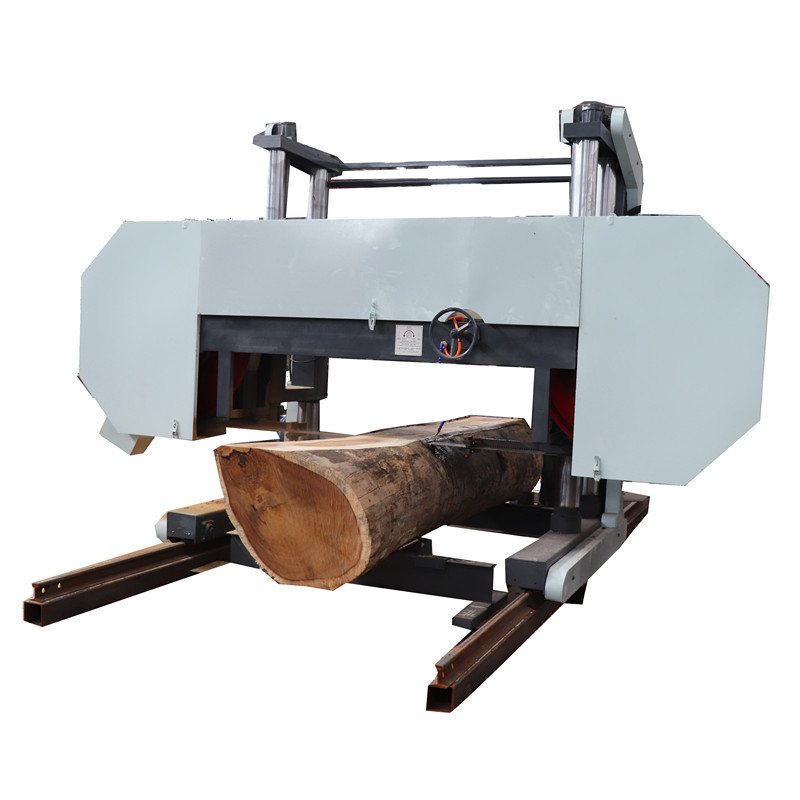

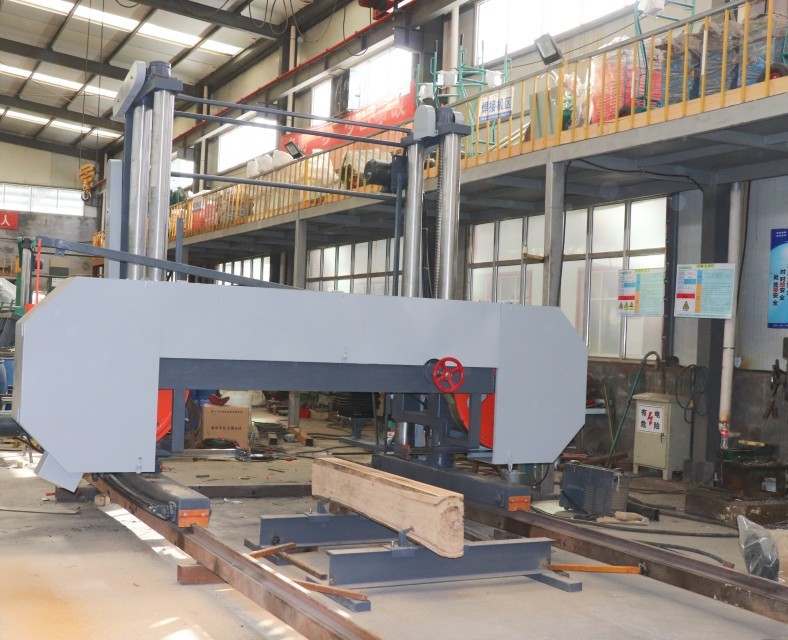

Photos:
Horizontal Bandsaw Log Mill 1070mm Lumber Mill Machine 45KW 55KW 0
Horizontal Bandsaw Log Mill 1070mm Lumber Mill Machine 45KW 55KW 1

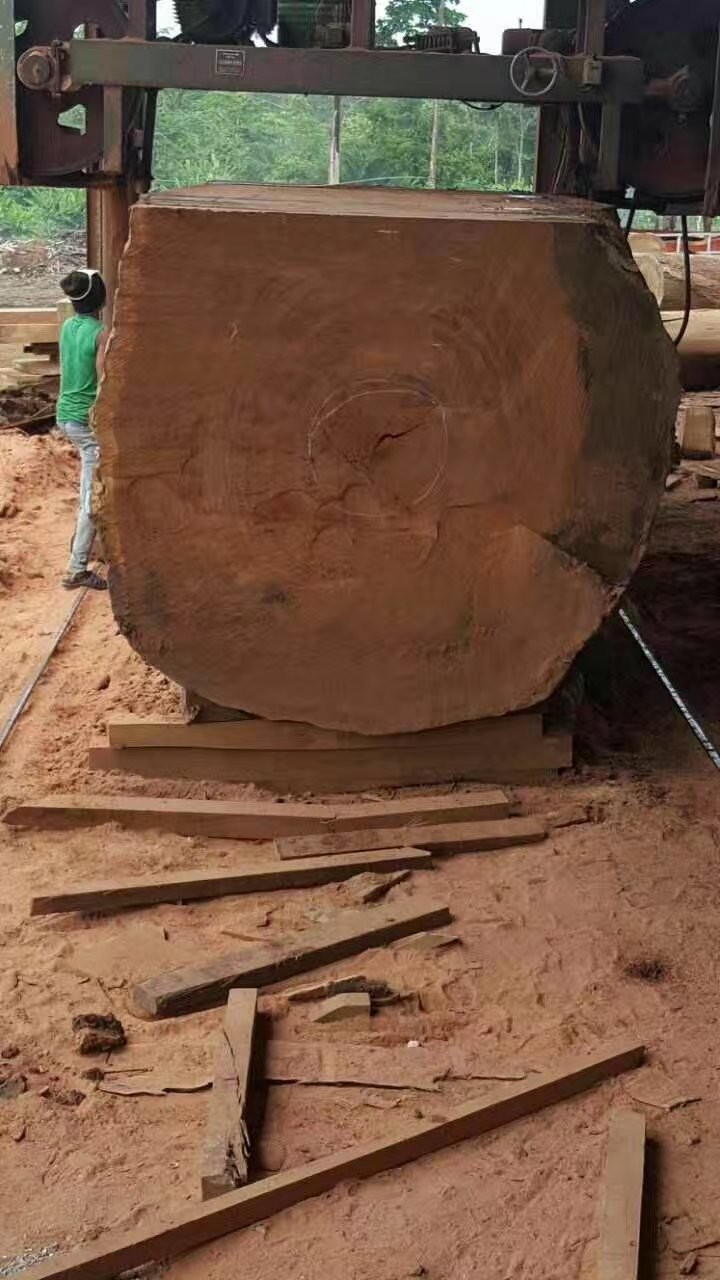

Feedback from users
Horizontal Bandsaw Log Mill 1070mm Lumber Mill Machine 45KW 55KW 2Horizontal Bandsaw Log Mill 1070mm Lumber Mill Machine 45KW 55KW 3

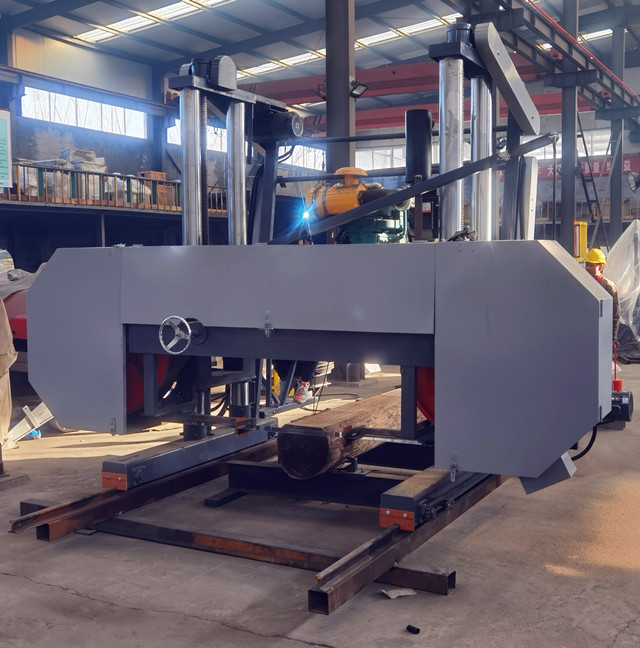

Diesel Engine Powered Large Size Horizontal Band Sawmill

Technical specification MJ2000D
Cut max. diameter (mm) 2000
Saw wheel diameter (mm) 1070
Cutting thickness (mm) 10-400
Cut length (m) 10m
Band saw blade size (mm) 1.25x125/150x9800
Saw Walking Frequency variable
Saw blade tension electrical
Saw Elevating Electrical
Main motor 80HP Diesel engine
Total weight (kgs) 4500

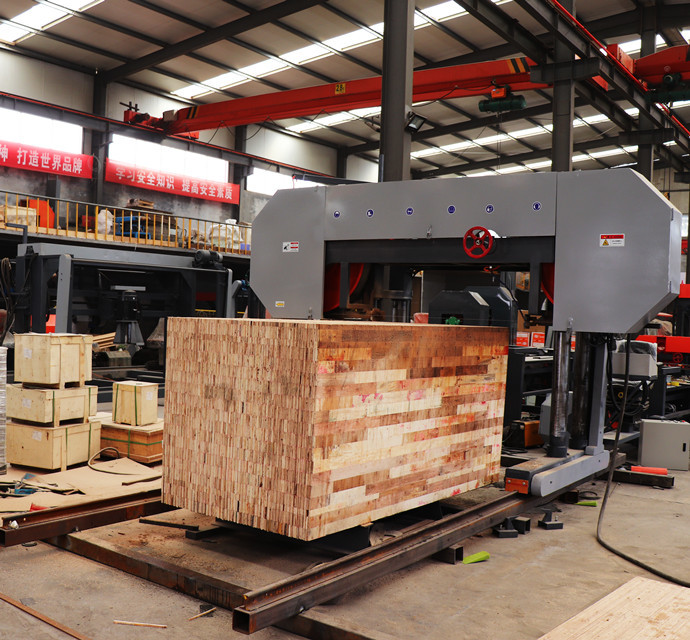

Horizontal Bandsaw Log Mill 1070mm Lumber Mill Machine 45KW 55KW 4Horizontal Bandsaw Log Mill 1070mm Lumber Mill Machine 45KW 55KW 5

Related Products

Big Board Edger Saw



Horizontal Bandsaw Log Mill 1070mm Lumber Mill Machine 45KW 55KW 6

Optional - sharpener

Horizontal Bandsaw Log Mill 1070mm Lumber Mill Machine 45KW 55KW 7
