Place of Origin: | shandong province |
Brand Name: | SH |
Certification: | ISO |
Model Number: | MJ1200MJ1500 MJ2000 MJ2500 |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | US $12,000 - 31,000 / Set |
Packaging Details: | container loading |
Delivery Time: | within 15 days |
Payment Terms: | T/T or L/C at sight, Western Union |
Supply Ability: | 1500sets/year |
Conditon: | New | Type: | Horizontal Band Saw |
---|---|---|---|
Use: | Woodworking | Voltage: | 380V/3phase/50HZ Or As Customer Needs |
Power: | 30KW- 53KW | Weight: | 2800kg To 4000kgs |
Warranty: | 12 Months | Operation: | PLC Touching Screen Automatic |
Engine: | Electrical Type Or Diesel Engine Powered |

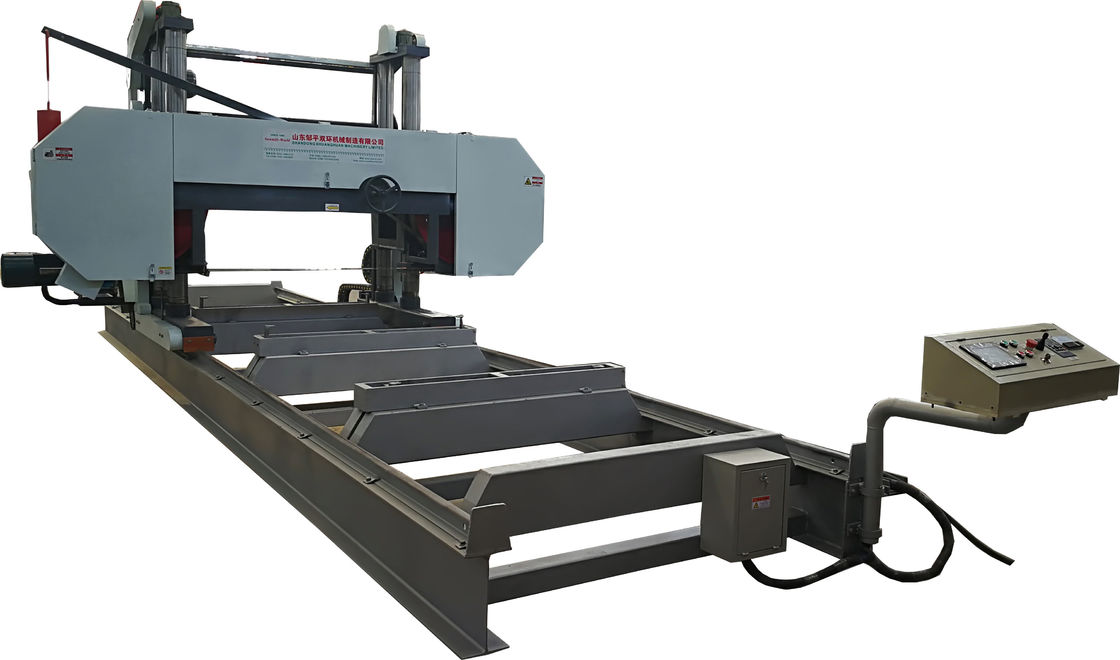

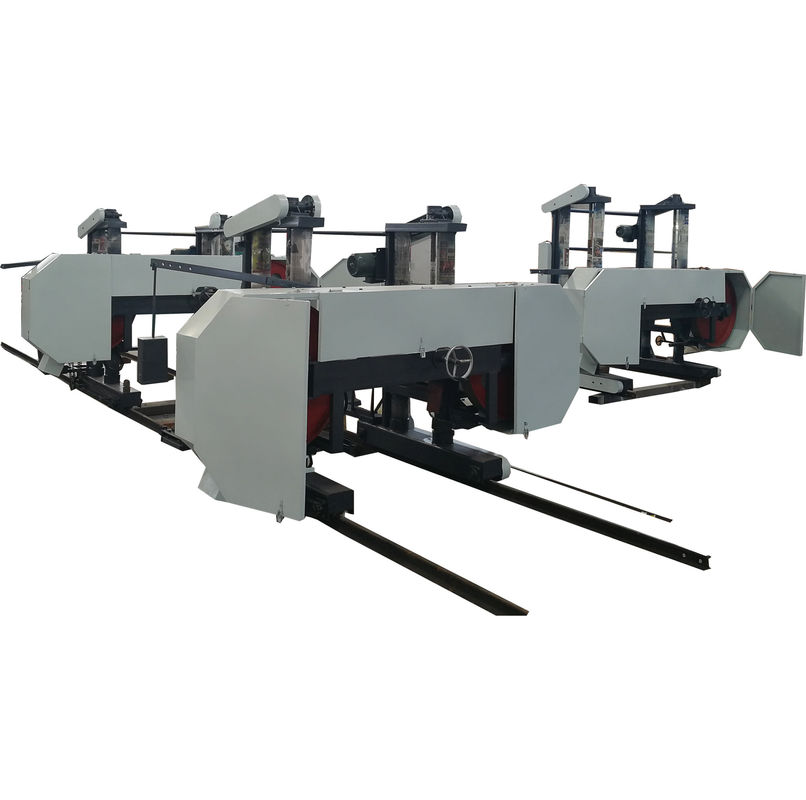

Heavy Duty Large Size Horizontal Band Sawmill
The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
It have large saw wheel and high power.
Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola.
Technical specifications:
Technical Parameter | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
Max Sawing Wood Diameter (MM) | 1200 | 1500 | 2000 | 2500 |
Saw wheel diameter (MM) | 900 | 1000 | 1100 | 1100 |
Sawing thickness (MM) | 400 | 450 | 480 | 480 |
Max Sawing wood Length (MM) | 10000 | 10000 | 10000 | 10000 |
Main Motor Power (KW) | 22 | 37 | 45 | 45 |
Total Power (6 Motors) (KW) | 30 | 45 | 53 | 53 |
Total Weight (KG) | 2800 | 3000 | 3800 | 4000 |
Electric & Screw Band Saw Blade Tension Infinitely variable speeds forward and backward Touch Screen sawing thickness setting Control Cabinet and Seats built on the sawmill 4 group Mobile card wood file . |

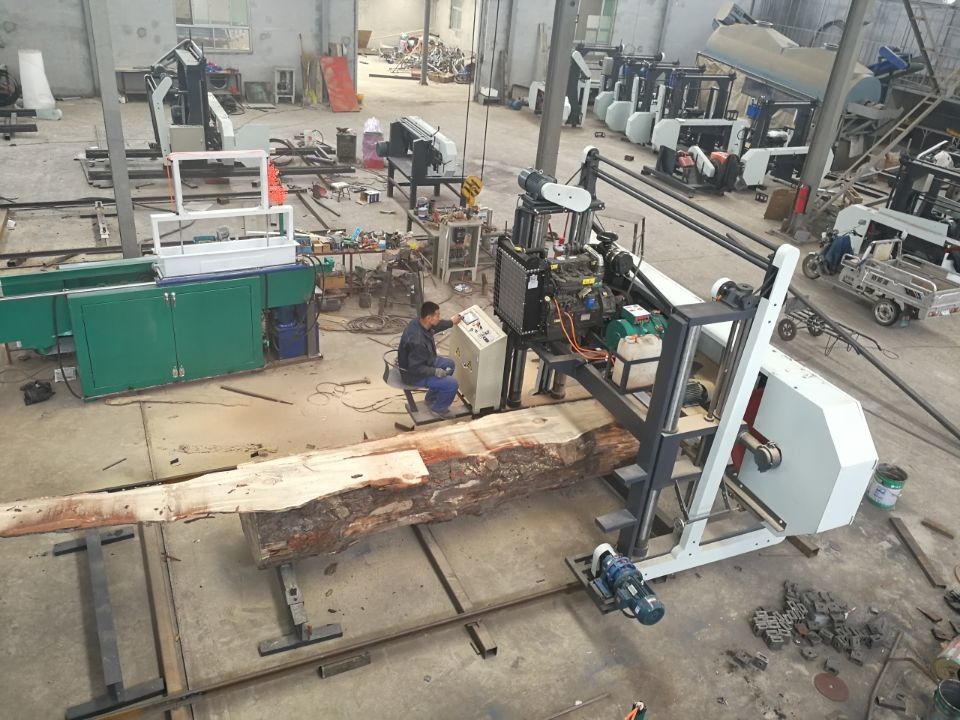

Diesel Engine Powered Large Size Horizontal Band Sawmill
