Detail Information

Name:	Big Horizontal Diesel Band Saw Mill	Max. Sawing Width Or Diameter:	1500mm
Max. Sawing Log Lenght:	6meter Or As Customer Needs	Engine:	80HP Diesel Engine ,Electric Start + 20kw Generator
Saw Wheel Diameter:	1070mm	Max. Sawing Thickness:	350mm
Saw Blade Length:	8600mm	Saw Blade Width:	125mm
Weight:	4500kgs	Guarantee:	1 Year
Color:	Optional
Highlight:	Horizontal Band Sawing Machine , MJ1500 Band Sawing Machine , 1500mm Band Saw Lumber Mill

Product Description

MJ1500 Diesel Horizontal Band Sawing Machine Big Heavy Duty Saw Mills for wood cutting

Heavy Duty Large Size Horizontal Band Sawmill

2. Technical specifications:

Technical Parameter	MJ1200	MJ1500	MJ2000	MJ2500
Max Sawing Wood Diameter (MM)	1200	1500	2000	2500
Height from blade to track(mm)	1100	1200	1700	2200
Saw wheel diameter & width (MM)	1070&125	1070&125	1070&125	1070&125
Max. Sawing thickness (MM)	400	400	400	400
Sawing wood Length (M)	6	6	6	6
Diesel engine power	80HP	80HP	80HP	80HP
Bandsaw blade length (M)	8	8.6	9.7	10.5
Total Weight (KG)	3800	4500	5000	5500
Structure Feature Electric Band Saw Blade Tension Infinitely variable speeds forward and backward Touch Screen sawing thickness setting Control Cabinet and Seats built on the sawmill 4 group Mobile card wood file .

Photos:

Electrical Type

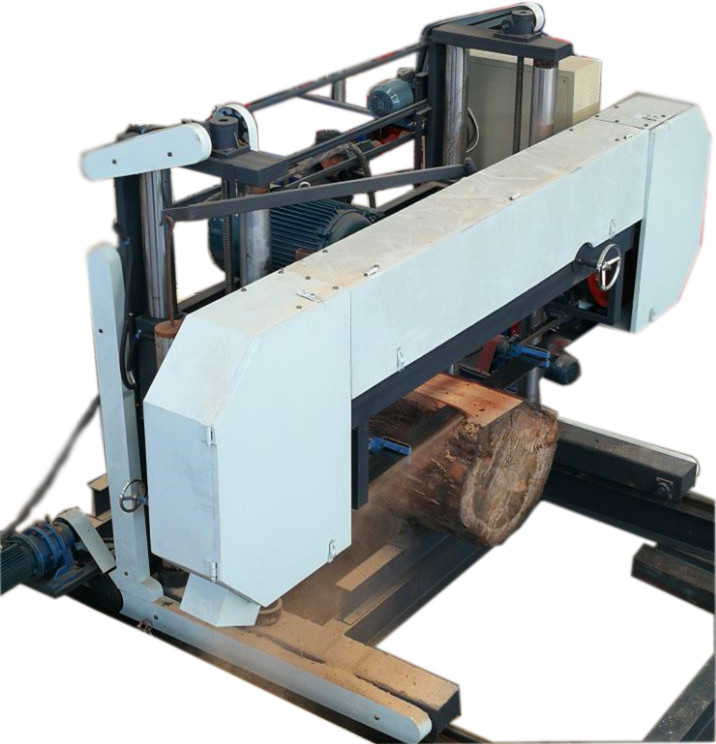

MJ1500 Horizontal Band Sawing Machine 1500mm Band Saw Lumber Mill 1

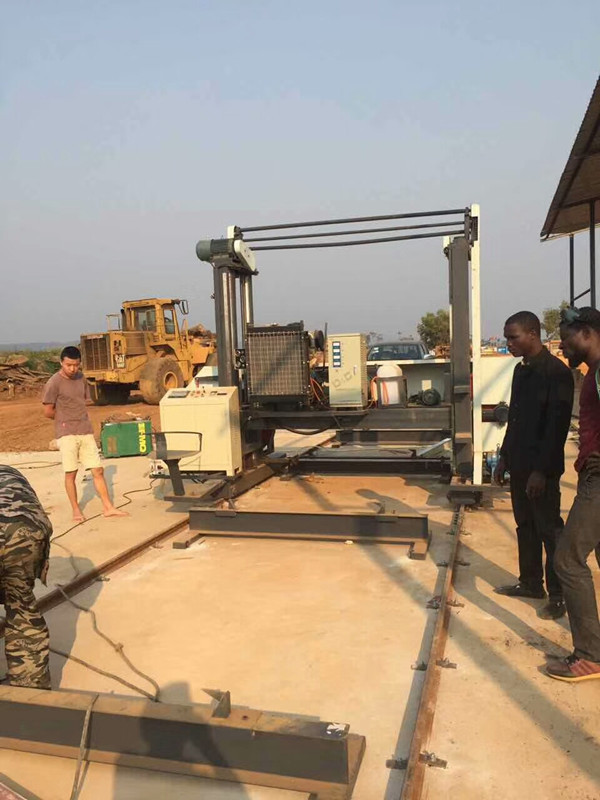

MJ1500 Horizontal Band Sawing Machine 1500mm Band Saw Lumber Mill 2

Related Saw Machine

Hydraulic automatic sawmill

Technical Data:

Model	MJH1200	MJH1500
Max Sawing Wood Diameter	1200mm	1500mm
Saw Wheel Diameter	1000mm	1070mm
Max Sawing Wood Thickness	400mm	400mm
Standard Sawing Wood Length	4500mm	4500mm
Electric Motor Power	37kw	45kw
Up/Down Electric Motor	2.2kw	2.2kw
Forward/Backward Electric Motor	3kw	3kw
Band Saw Blade Width	125-150mm	125-150mm
Band Saw Blade Tension	Electric
Machine Length	7000mm	7000mm
Weight	7000kg	8500kg

Place of Origin:	shandong province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	MJ1200 MJ1500 MJ2000 MJ2500

Minimum Order Quantity:	1 SET
Price:	US $12,000 - 35,000 / Set
Packaging Details:	container loading
Delivery Time:	within 15 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	500sets/year

MJ1500 Horizontal Band Sawing Machine 1500mm Band Saw Lumber Mill

Horizontal Band Sawing Machine
