Diesel Powered Large Bandsaw Mill 1500mm 80HP Bandsaw Wood Mill

1 SET
MOQ
US $12,000 - 31,000 / Set
Price
Diesel Powered Large Bandsaw Mill 1500mm 80HP Bandsaw Wood Mill
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Diesel Big Wood Saw Sawmill Machines
Diesel Engine: 80HP
Sawn Sizes Setting: PLC Touching Screen Auto Setworks
Feeding: Frequency Auto Feeding And Speed Adjustable
Sawing Log Max. Diameter: 1500mm
Sawing Log Max. Length: 6meters Or Extend Sawmill Track
Blade Tension: Electrical
Saw Wheel Diameter: 1070mm
Bandsaw Blade Width: 125mm Carbide Teethed
Sawing Wood Type: Hardwood Logs Like BUBINGA,MOPANE
Highlight:

Diesel Powered Large Bandsaw Mill

,

80HP Bandsaw Wood Mill

,

80HP Bandsaw Mill
Basic Infomation
Place of Origin: shandong province, China
Brand Name: SH
Certification: ISO9001
Model Number: MJ1200 MJ1500 MJ2000 MJ2500
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1500sets/year
Product Description

Big Long Wood Horizontal Bandsaw Sawmill with Diesel engine powered



Heavy Duty Large Size Horizontal Band Sawmill

  1. Configuration:
  • cutting wood max. width: 1500mm
  • cutting length: 6meters or extending track
  • main motor power :80HP diesel engine, electrical start
  • weight: 4500kgs

2. Technical specifications:



Technical Parameter MJ1200 MJ1500 MJ2000 MJ2500
Max Sawing Wood Diameter (MM) 1200 1500 2000 2500
Height from blade to track(mm) 1100 1200 1700 2200
Saw wheel diameter & width (MM) 1070&125 1070&125 1070&125 1070&125
Max. Sawing thickness (MM) 400 400 400 400
Sawing wood Length (M) 6 6 6 6
Motor Power 80HP 80HP 80HP 80HP
Bandsaw blade length (M) 8 8.6 9.7 10.5
Total Weight (KG) 3800 4500 5000 5500
Electric Band Saw Blade Tension
Infinitely variable speeds forward and backward
Touch Screen sawing thickness setting
Control Cabinet and Seats built on the sawmill
4 group Mobile card wood file .

Detailed Image

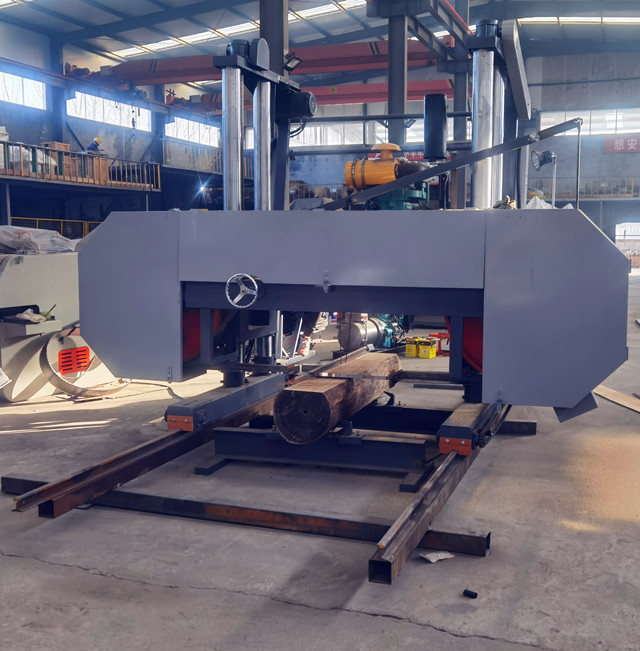

Diesel Powered Large Bandsaw Mill 1500mm 80HP Bandsaw Wood Mill 0

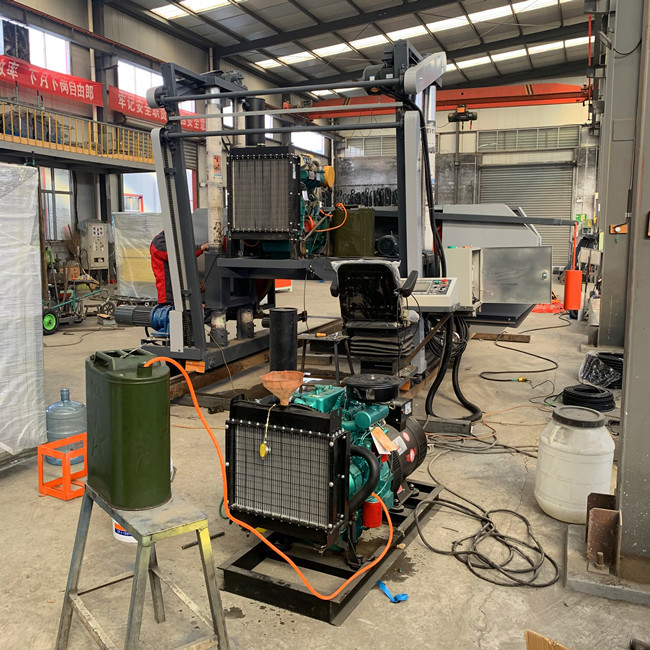

Diesel Powered Large Bandsaw Mill 1500mm 80HP Bandsaw Wood Mill 1

Electrical type

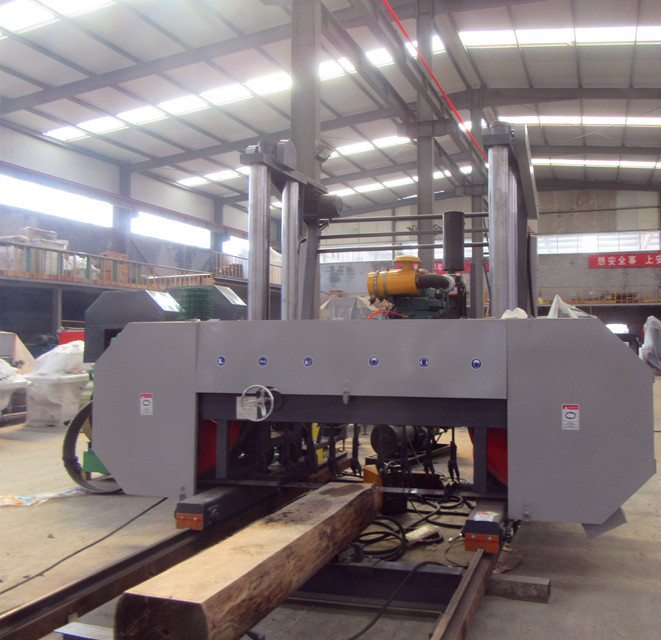

Diesel Powered Large Bandsaw Mill 1500mm 80HP Bandsaw Wood Mill 2

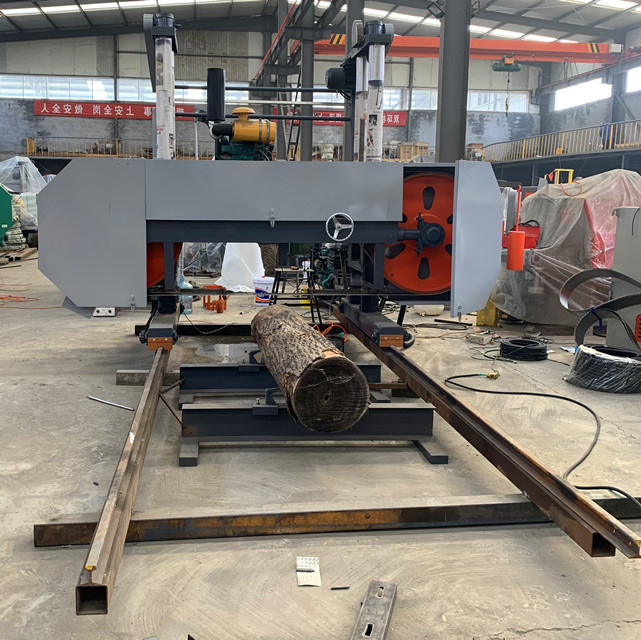

Diesel Powered Large Bandsaw Mill 1500mm 80HP Bandsaw Wood Mill 3

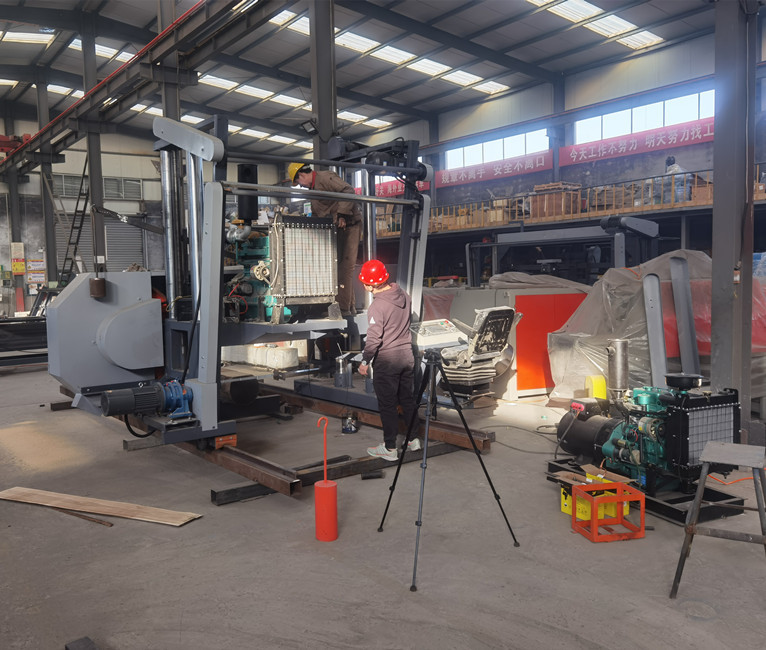

Diesel Powered Large Bandsaw Mill 1500mm 80HP Bandsaw Wood Mill 4

Optional - Board Edger

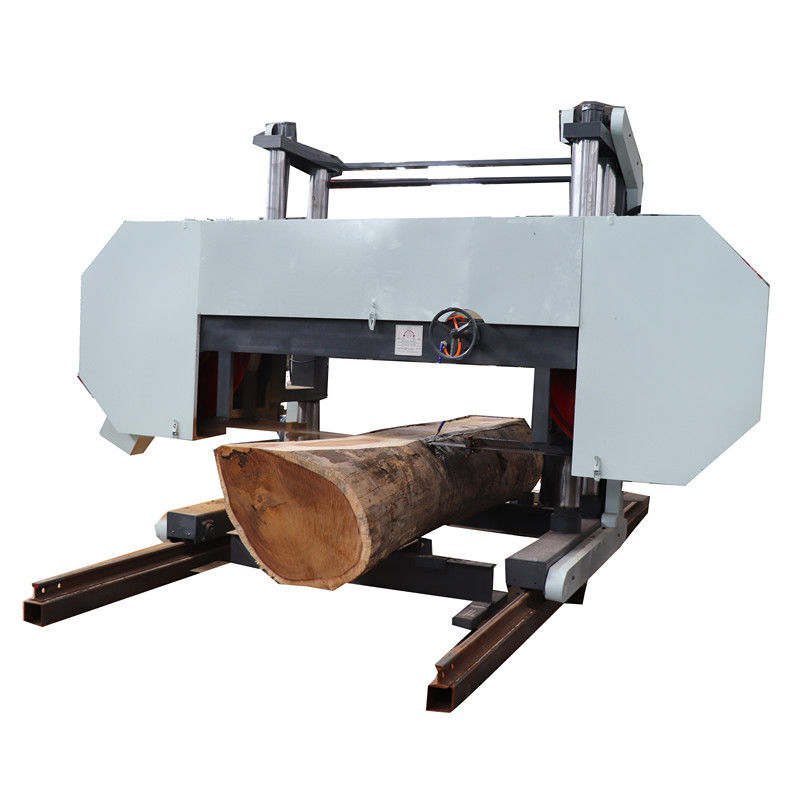

Diesel Powered Large Bandsaw Mill 1500mm 80HP Bandsaw Wood Mill 5

Diesel Powered Large Bandsaw Mill 1500mm 80HP Bandsaw Wood Mill 6
