Home /Products/Large Bandsaw Mill/2500mm Timber Sawmill Machine Automatic Wood Sawmill Machine

2500mm Timber Sawmill Machine Automatic Wood Sawmill Machine

1 SET
MOQ
US $12,000 - 31,000 / Set
Price
2500mm Timber Sawmill Machine Automatic Wood Sawmill Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Large Size Wood Cutting Horizontal Band Sawmill
Max. Sawing Log Width: 2500mm
Max. Sawing Log Length: 6meters Or Extending Rail For Free
Power: 55KW/3phase/380v Or As Customer Needs
Log Feeding: Frequency Auto Feeding
Sawn Sizes Setting: PLC Touching Screen Auto Setworks
Saw Wheel Diameter: 1070mm
Saw Blade Width: 125mm, 150mm
Machine Weight: 5500kgs
After-sales Service: Video Technical Support, Spare Parts
Keywords: Sawmill, Wood Cutting Machine
Highlight:

2500mm Timber Sawmill Machine

,

2500mm Automatic Wood Sawmill Machine

,

Automatic Timber Sawmill Machine
Basic Infomation
Place of Origin: shandong province, China
Brand Name: SH
Certification: ISO9001
Model Number: MJ1200 MJ1500 MJ2000 MJ2500
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 20 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 500sets/year
Product Description

2500mm heavy duty horizontal Band saw timber sawmill machine made in China



Heavy Duty Large Size Horizontal Band Sawmill

Introduction:

  • Sawing log max. diameter or width: 2500mm
  • sawing log  length: 6meters or extend rail for free
  • log feeding : frequency
  • sawn sizes setting : PLC touching screen

Technical specifications:



Model MJ1200 MJ1500 MJ2000 MJ2500
Max. sawing width 1200mm 1500mm 2000mm 2500mm
Height from blade to track 1100mm 1200mm 1700mm 2200mm
Saw wheel diameter 1070mm 1070mm 1070mm 1070mm
Max.sawn thickness 350mm 350mm 400mm 400mm
Sawing wood length max. 6meters 6meters 6meters 6meters
Saw blade length & width 7900 &125mm 8600&125mm 9700&125mm 10500&125,150mm
Main motor power 30kw 37kw 45kw 55kw
Weight 3800kgs 4500kg 5000kg 5500kg

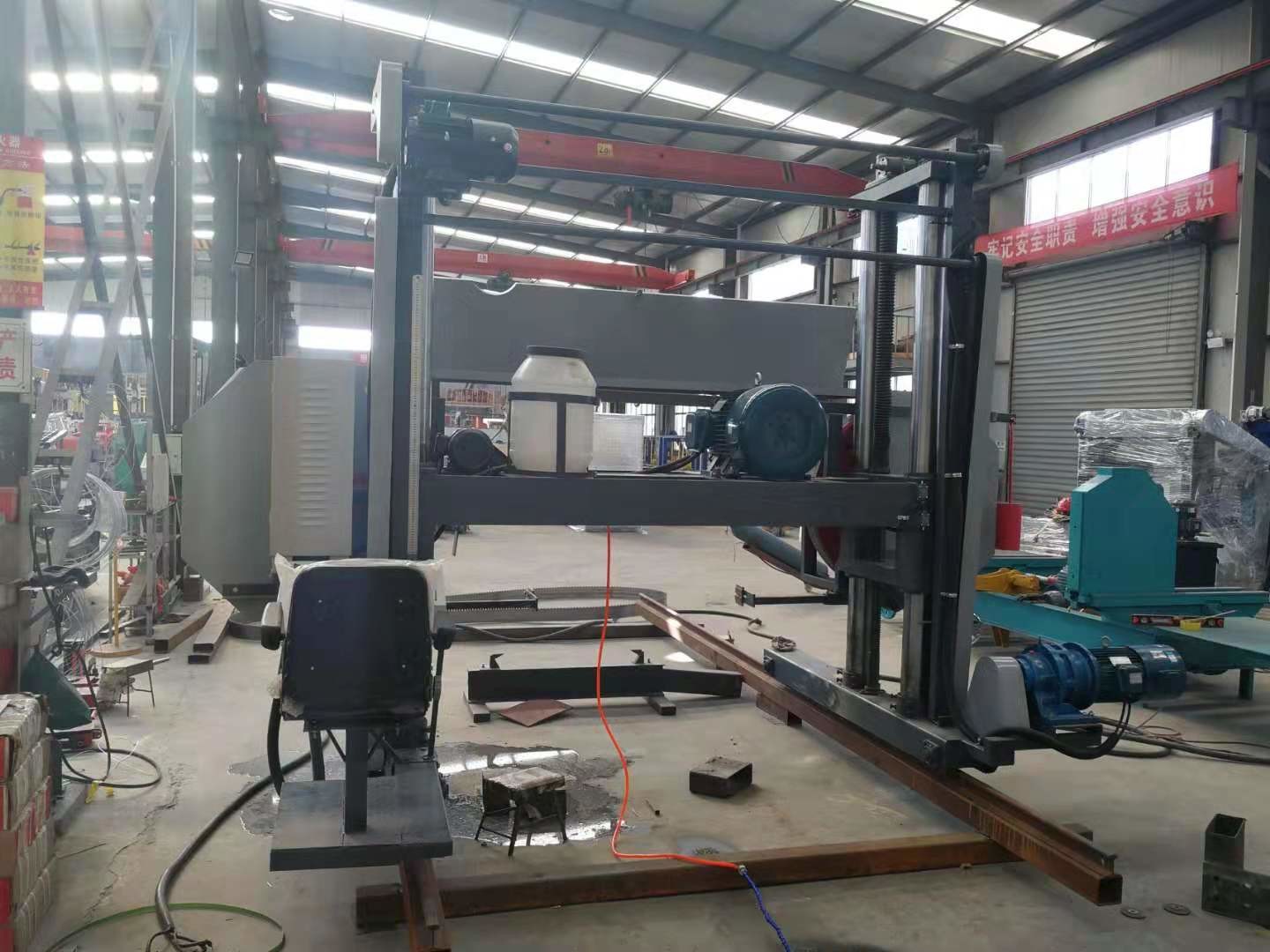

2500mm Timber Sawmill Machine Automatic Wood Sawmill Machine 0

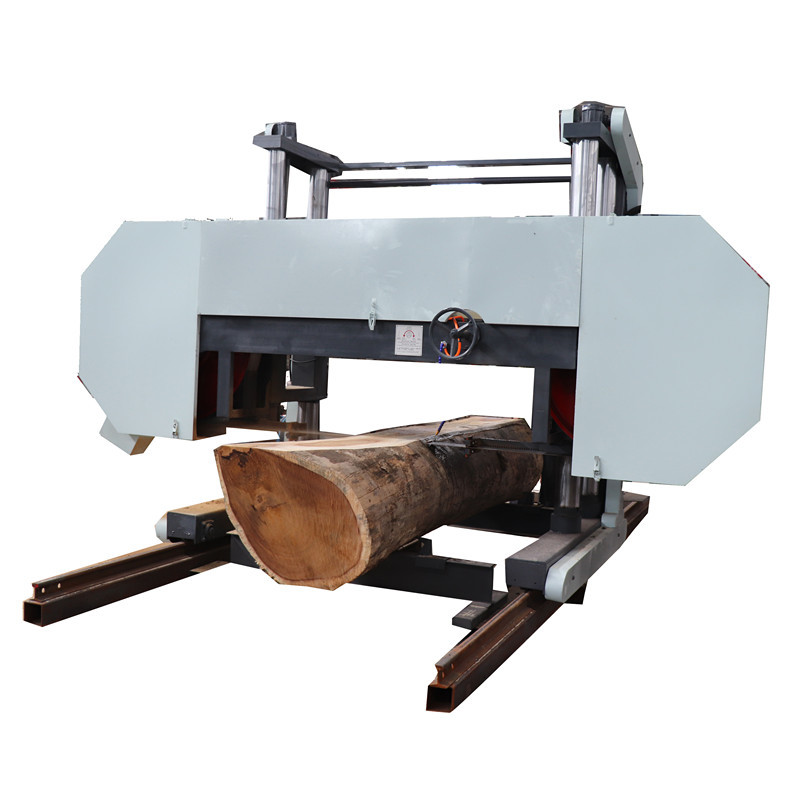

2500mm Timber Sawmill Machine Automatic Wood Sawmill Machine 1

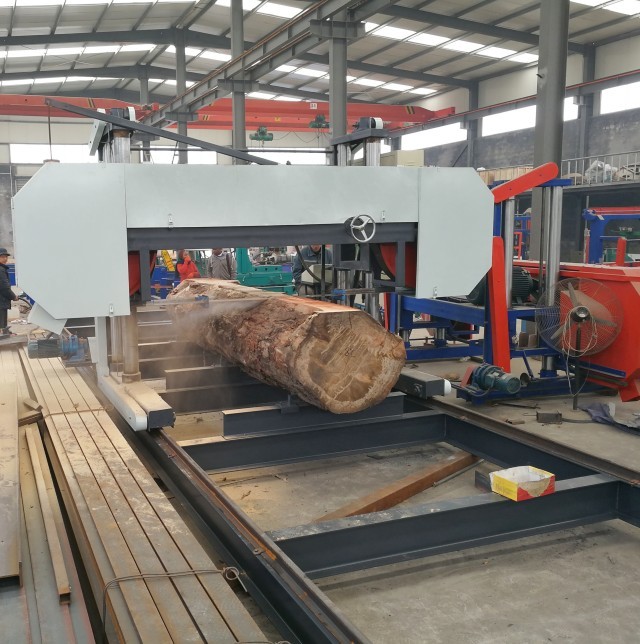

2500mm Timber Sawmill Machine Automatic Wood Sawmill Machine 2

Optional Parts- free base ground track

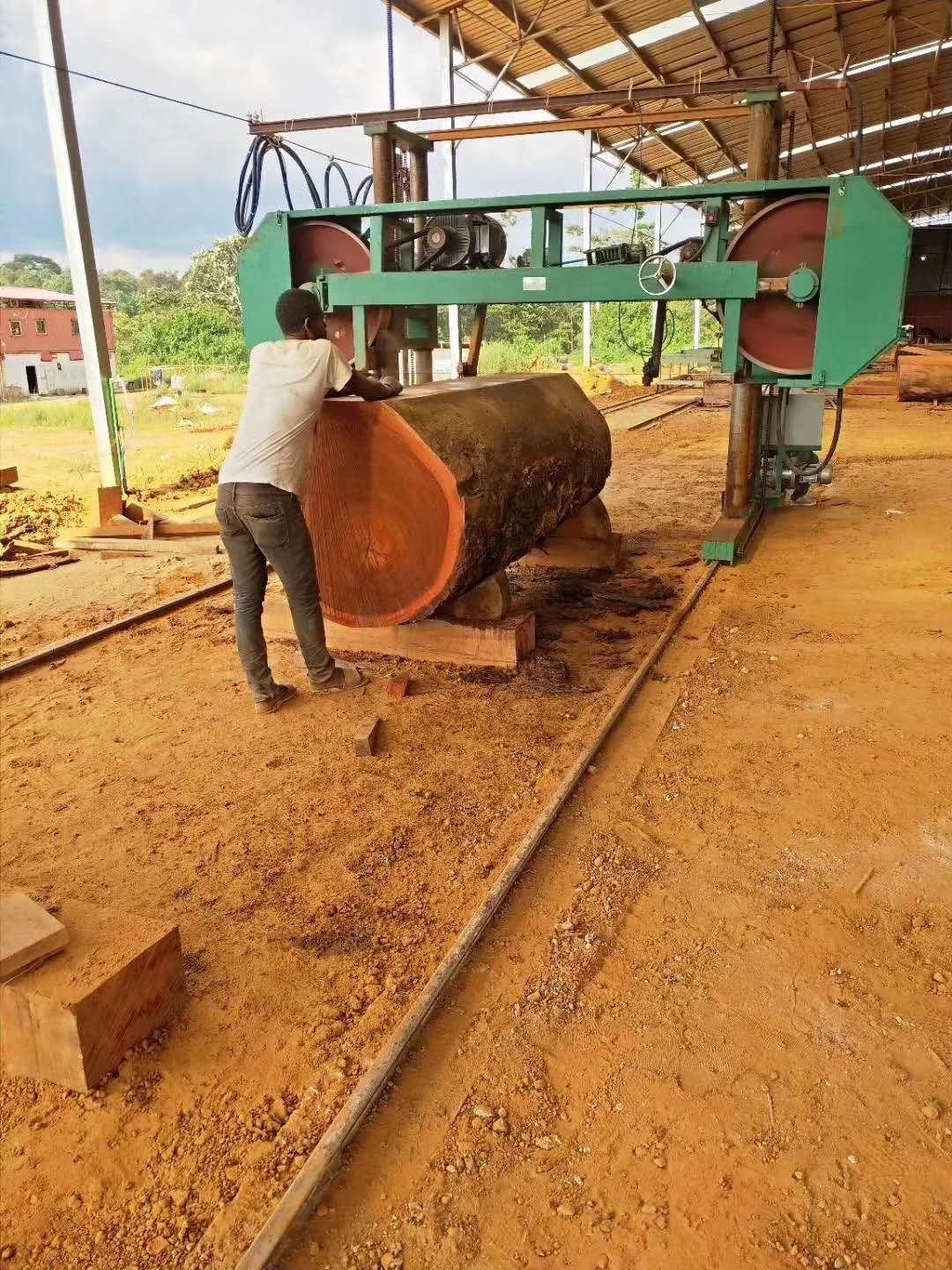

2500mm Timber Sawmill Machine Automatic Wood Sawmill Machine 3
Optional Parts- pre-cut

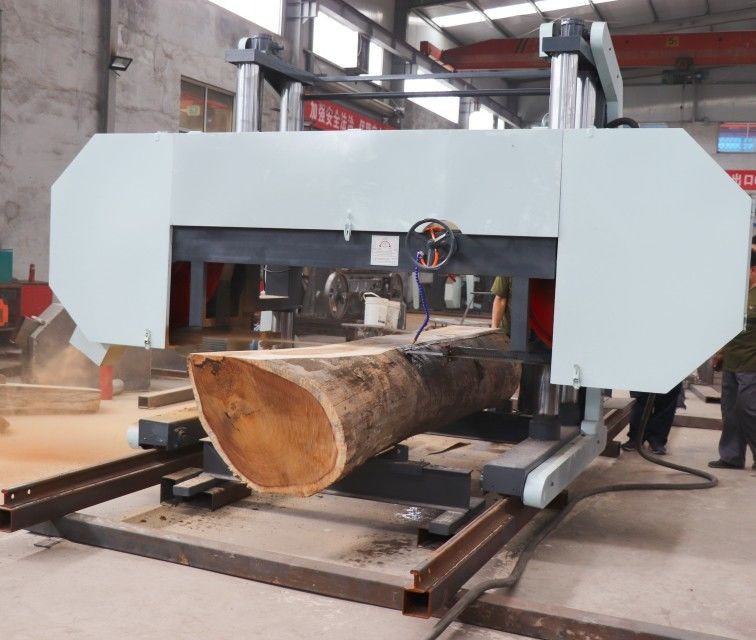

2500mm Timber Sawmill Machine Automatic Wood Sawmill Machine 4


Diesel Engine Powered Large Size Horizontal Band Sawmill

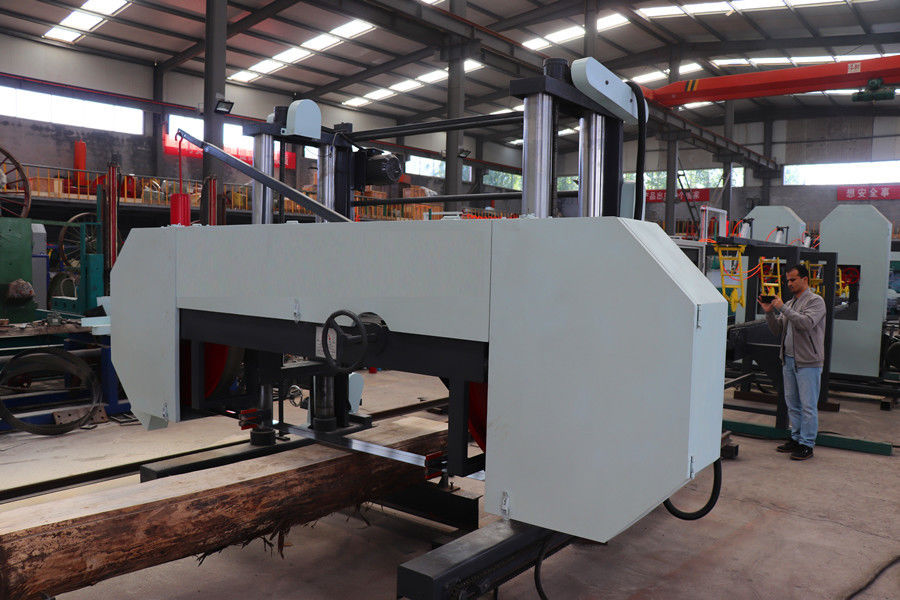

2500mm Timber Sawmill Machine Automatic Wood Sawmill Machine 52500mm Timber Sawmill Machine Automatic Wood Sawmill Machine 6
