MJ2000 Heavy Duty Horizontal Wood Cutting Saw Machine Big Size Band Sawmill

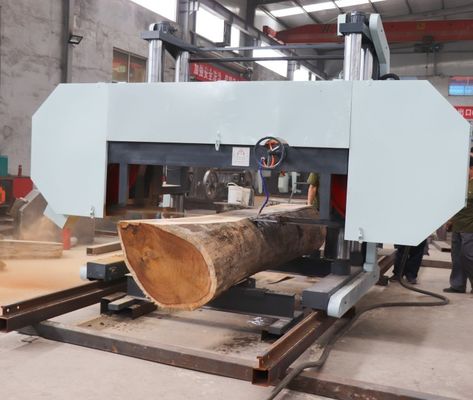

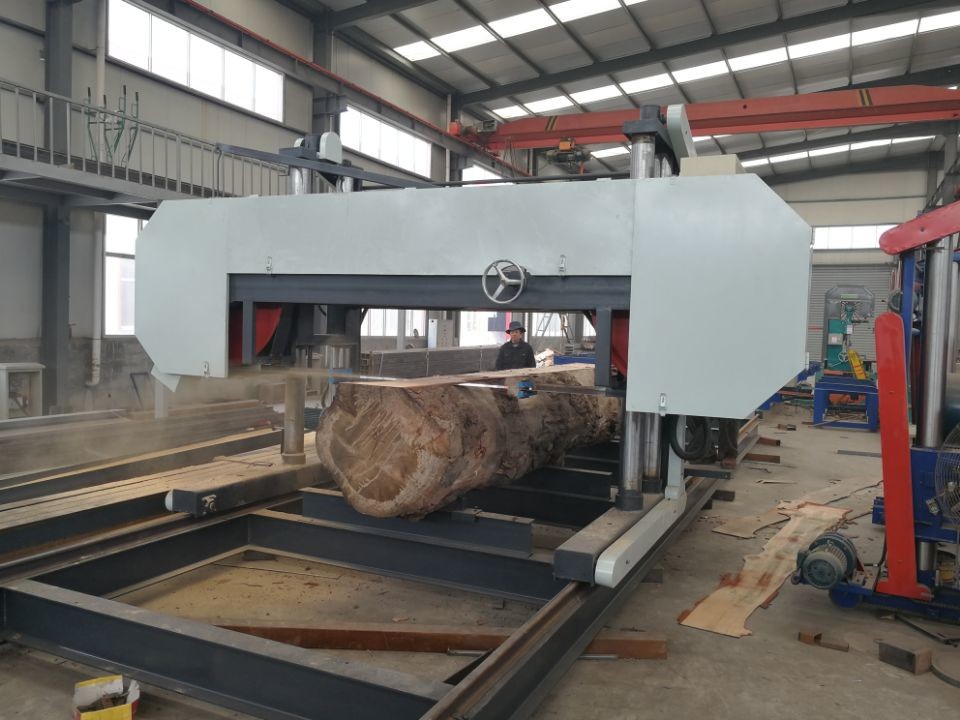

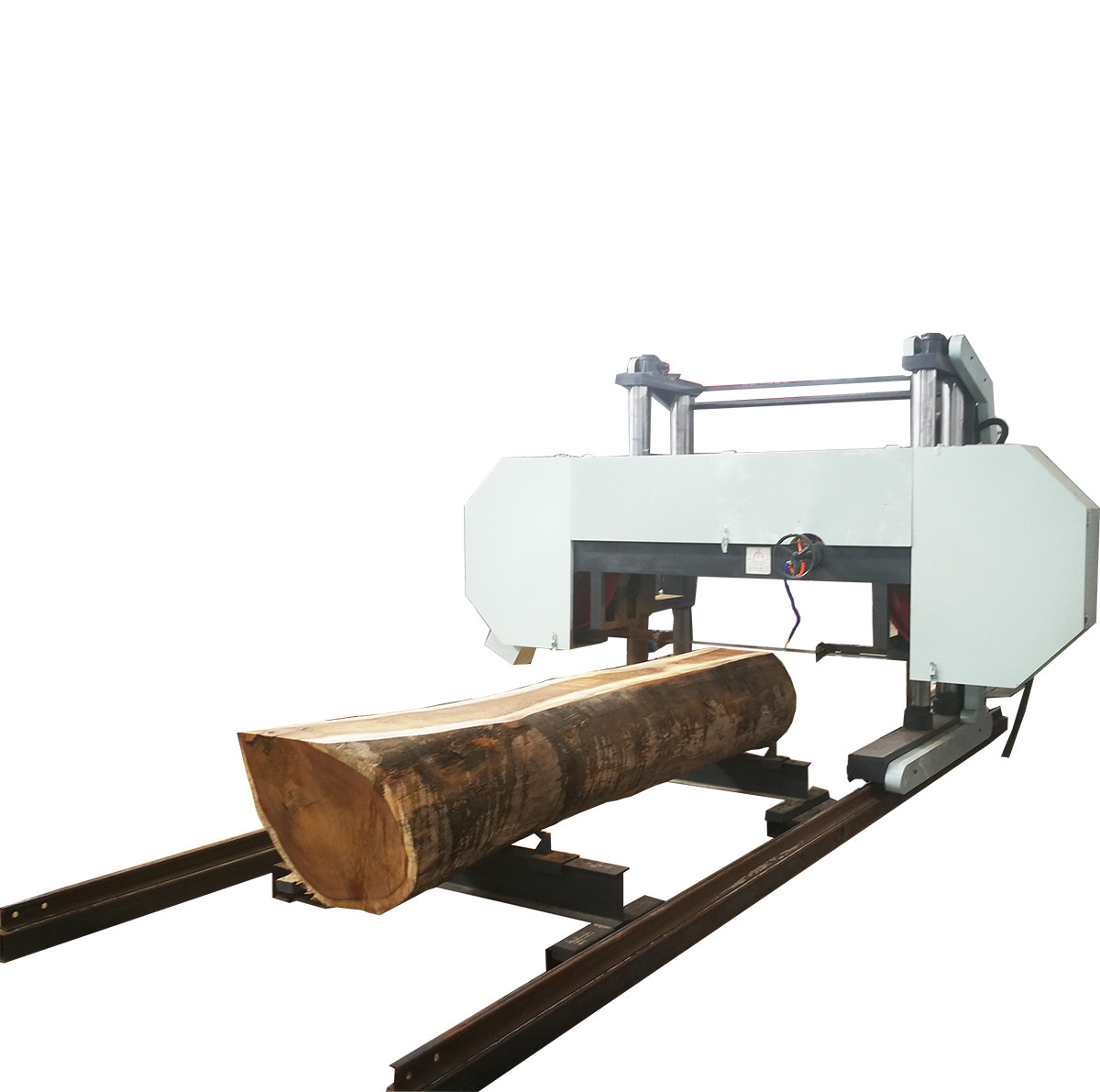

Heavy Duty Large Size Horizontal Band Sawmill
The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
It have large saw wheel and high power.
Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola, Fiji and Southeast Asian countries .
Technical specifications:
| Technical Parameter | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max Sawing Wood Diameter (MM) | 1200 | 1500 | 2000 | 2500 |
| Saw wheel diameter (MM) | 900 | 1000 | 1100 | 1100 |
| Sawing thickness (MM) | 400 | 450 | 480 | 480 |
| Max Sawing wood Length (MM) | 10000 | 10000 | 10000 | 10000 |
| Main Motor Power (KW) | 22 | 37 | 45 | 45 |
| Total Power (6 Motors) (KW) | 30 | 45 | 53 | 53 |
| Total Weight (KG) | 3800 | 4500 | 5000 | 5500 |
| Electric & Screw Band Saw Blade Tension Infinitely variable speeds forward and backward Touch Screen sawing thickness setting Control Cabinet and Seats built on the sawmill 4 group Mobile card wood file . | ||||
Diesel Engine Powered Large Size Horizontal Band Sawmill
| Technical specification | MJ2000D |
| Cut max. diameter (mm) | 2000 |
| Saw wheel diameter (mm) | 1070 |
| Cutting thickness (mm) | 10-400 |
| Cut length (m) | 10m |
| Band saw blade size (mm) | 1.25x125/150x9800 |
| Saw Walking | Frequency variable |
| Saw blade tension | electrical |
| Saw Elevating | Electrical |
| Main motor | 70HP Diesel engine |
| Total weight (kgs) | 4500 |
Optional - board returning hook
Related Saw Machine
Wood Edger Cutting Circular Blade Table Sawmill
Introduction:
1.Used to cut edges of wood boards in high efficiency or cut boards into small timbers.
2.Sawing max width is upto 1.5meters
3.The saw equipped with carbide blade for hardwood cutting .
4.The saw machine is with auto feeding .
Technical data:
| Model | BT3000-600 | BT3000-1000 | BT3000-1500 |
| Sawing thickness | 10-180mm | 10-180mm | 10-180mm |
| Sawing maximum length | 3000mm | 3000mm | 3000mm |
| Sawing maximum width | 600mm | 1000mm | 1500mm |
| Circular blade diameter | 500mm | 500mm | 500mm |
| Motor power | 11KW | 15KW | 15KW |
| Track length | 5800mm | 5800mm | 5800mm |
| Wood grasp type | Pneumatic | Pneumatic | Pneumatic |
| Feeding | Manual | Manual | Manual |
| Operation | Manual | Manual | Manual |
Optional parts: | |||
