Detail Information

Conditon:	New	Type:	Horizontal Band Saw
Use:	Woodworking	Power:	55KW
Warranty:	12 Months	Operation:	PLC Touching Screen Automatic
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support,commissioning And Training	Saw Wheel Diameter:	1000mm(40inch),1070mm
Highlight:	Woodworking Timber Bandsaw , Timber Bandsaw Mill 55KW , 55KW bandsaw wood mill

Product Description

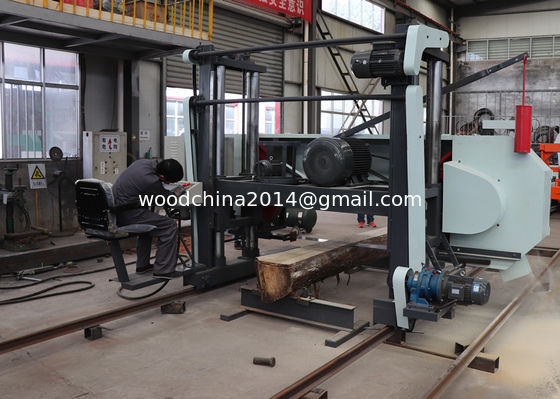

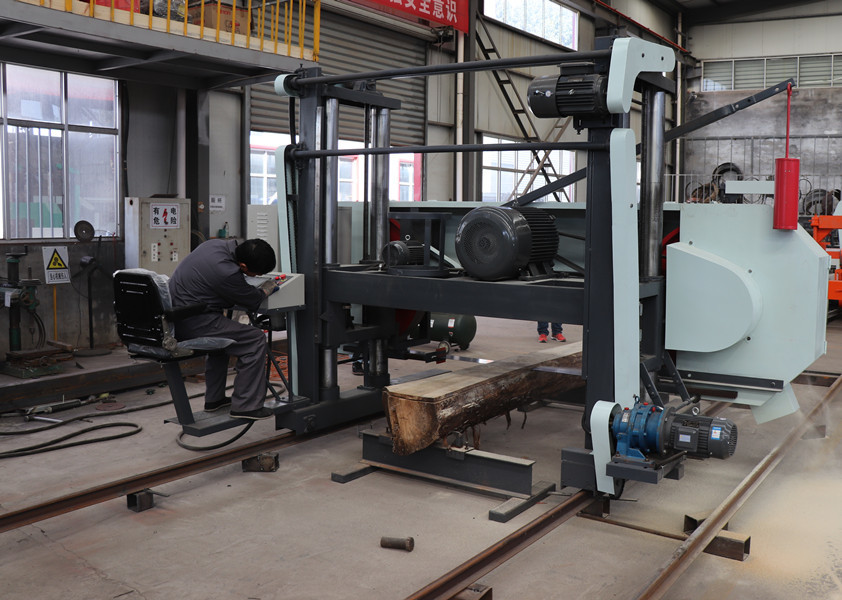

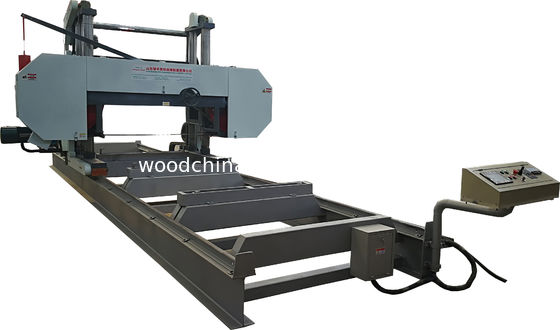

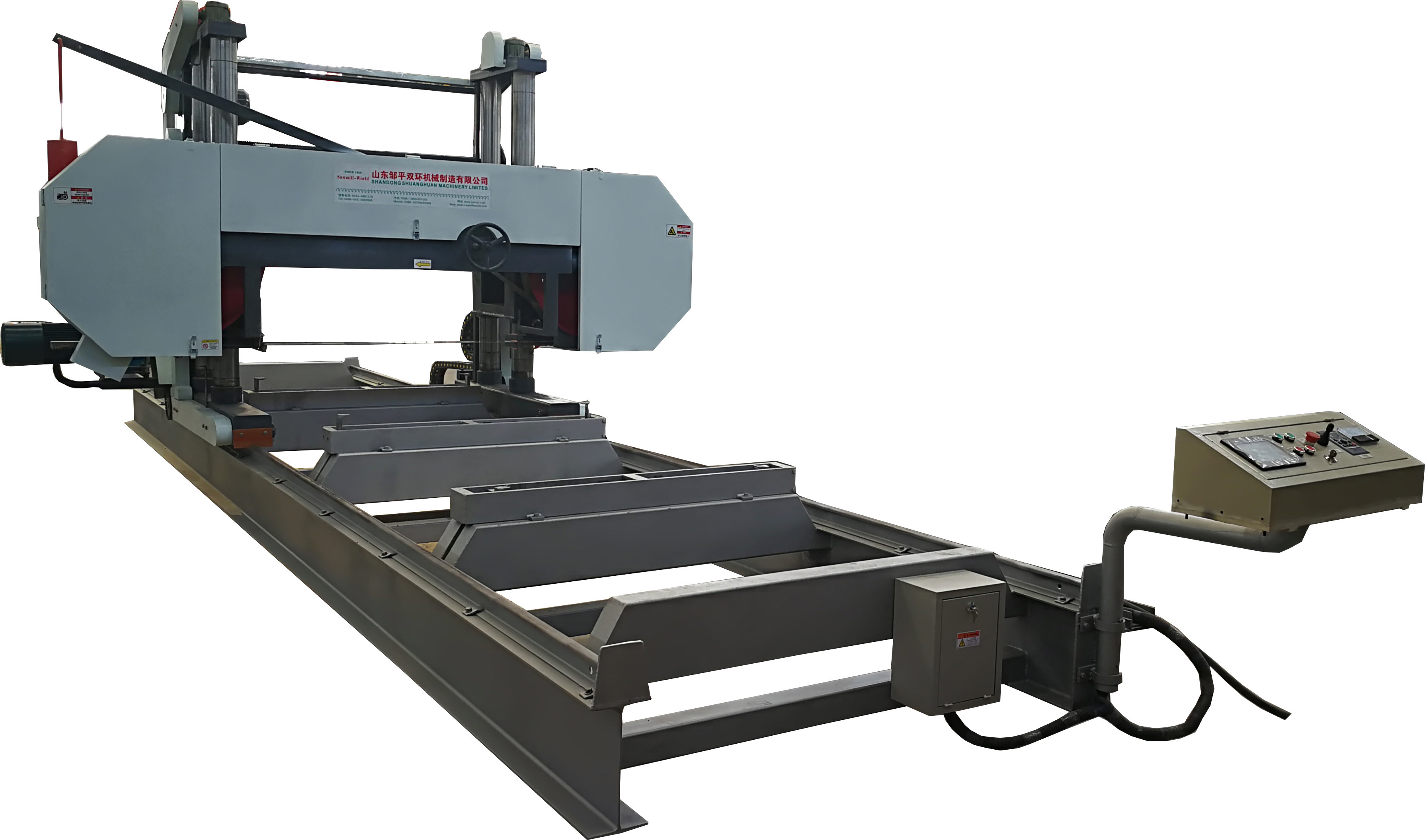

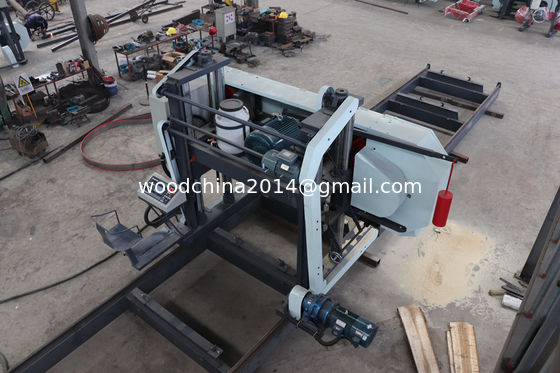

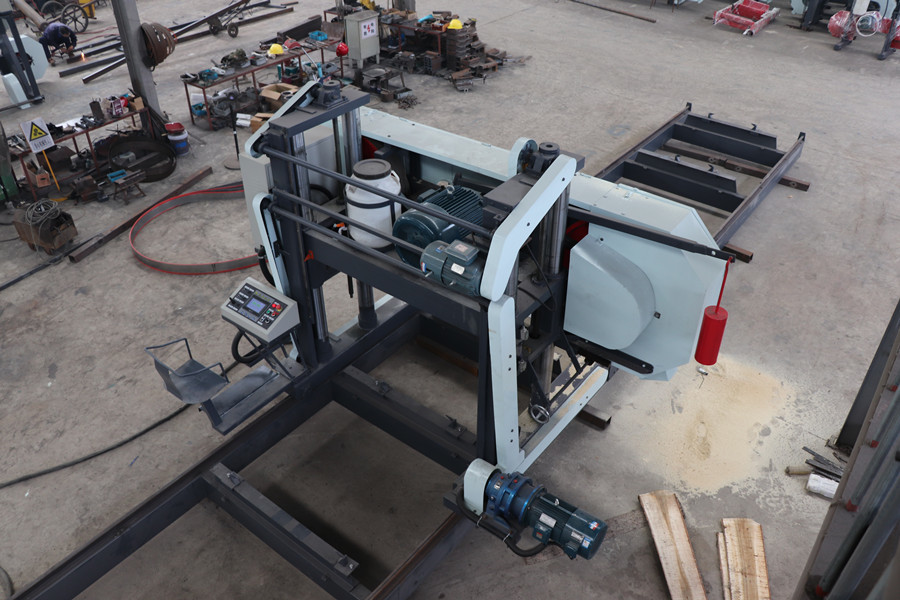

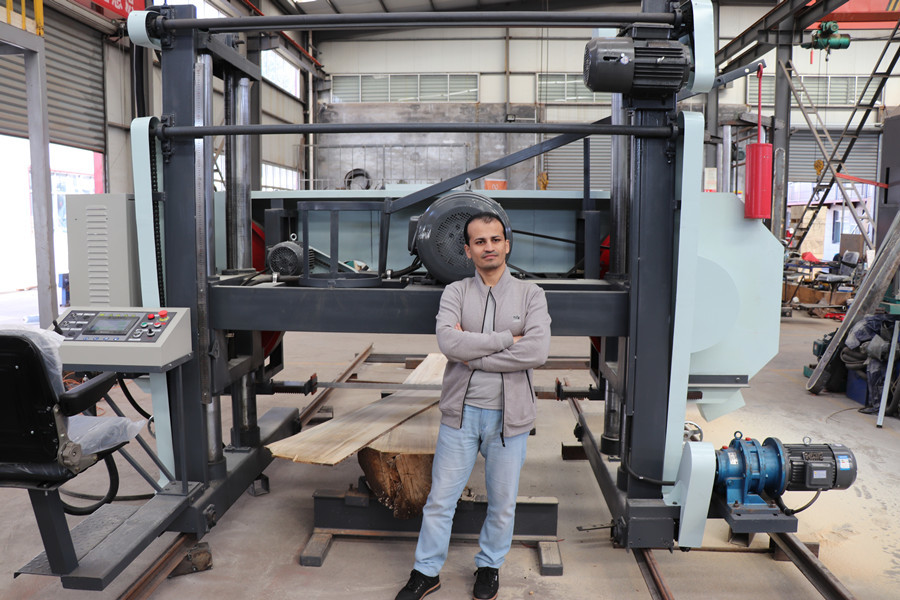

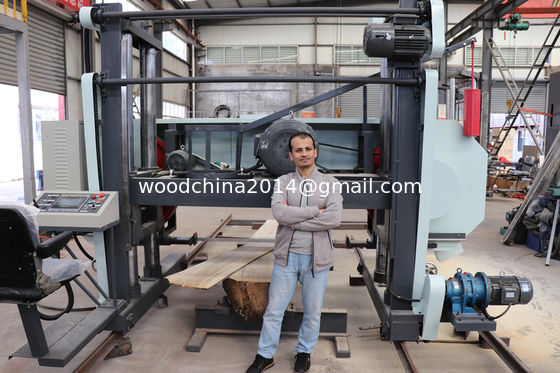

Heavy duty MJ2500 Large Timber Band Sawmill Electric Log Bandsaw Mill with big saw wheel

Heavy Duty Large Size Horizontal Band Sawmill

1. Combined with the current automation technology, the heavy duty horizontal band saw machine is a high quality product .

2. It solves the difficulty of sawing lagrge diameter wood in the past and applies for national patents. A great many products are exported to Gabon, Angola , Fiji and Southeast Asian Countries.

3. Diesel engine powered big sawmill is workable

4.Working video link : https://youtu.be/f6KLyUnMFf0

Structure Features:

1.High quality parts, SKF bearings from Sweden

2.Variable frequency speed adjustable walking forward/back. The walking speed is 1-20meters/minute .

Technical specifications:

Technical Parameter	MJ1200	MJ1500	MJ2000	MJ2500
Max Sawing Wood Diameter (MM)	1200	1500	2000	2500
Saw wheel diameter (MM)	900	1000	1100	1100
Sawing thickness (MM)	400	450	480	480
Max Sawing wood Length (MM)	10000	10000	10000	10000
Main Motor Power (KW)	22	37	45	45
Total Power (6 Motors) (KW)	30	45	53	53
Total Weight (KG)	3800	4500	5000	5500
Electric & Screw Band Saw Blade Tension Infinitely variable speeds forward and backward Touch Screen sawing thickness setting Control Cabinet and Seats built on the sawmill 4 group Mobile card wood file .

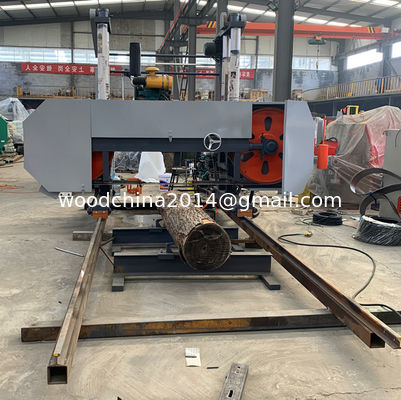

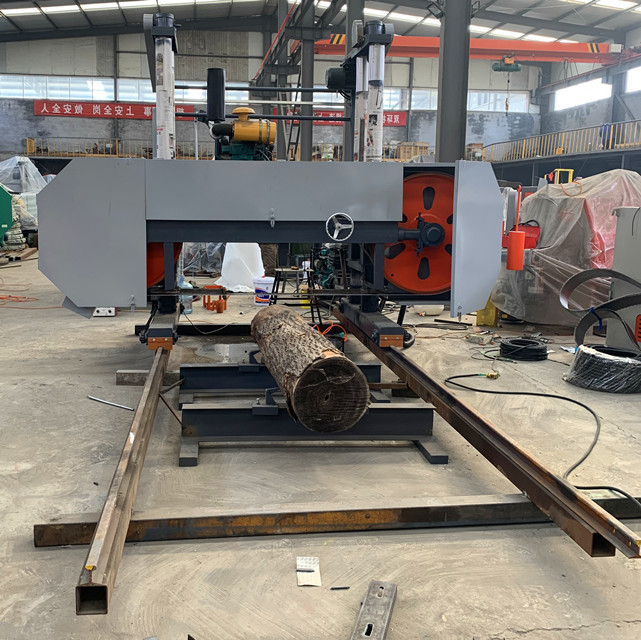

Diesel Engine Powered Large Size Horizontal Band Sawmill

Technical specification	MJ2000D
Cut max. diameter (mm)	2000
Saw wheel diameter (mm)	1070
Cutting thickness (mm)	10-400
Cut length (m)	10m
Band saw blade size (mm)	1.25x125/150x9800
Saw Walking	Frequency variable
Saw blade tension	electrical
Saw Elevating	Electrical
Main motor	70HP Diesel engine
Total weight (kgs)	4500

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	MJ1200 MJ1500 MJ2000 MJ2500

Minimum Order Quantity:	1 SET
Price:	US $11,000 - 31,000 / Set
Packaging Details:	container loading
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	500sets/year
