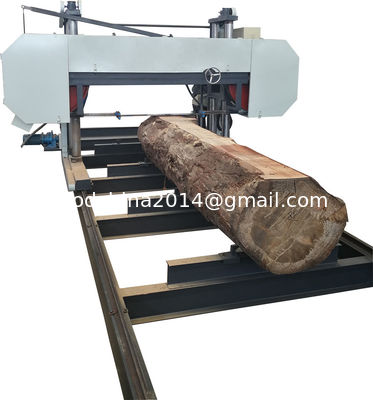

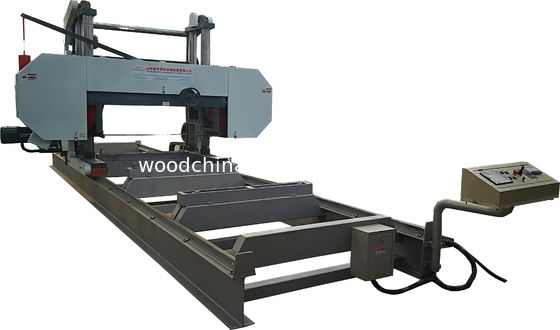

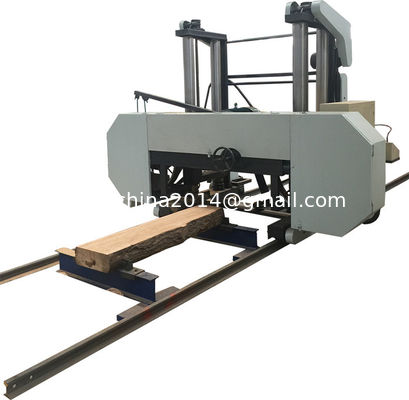

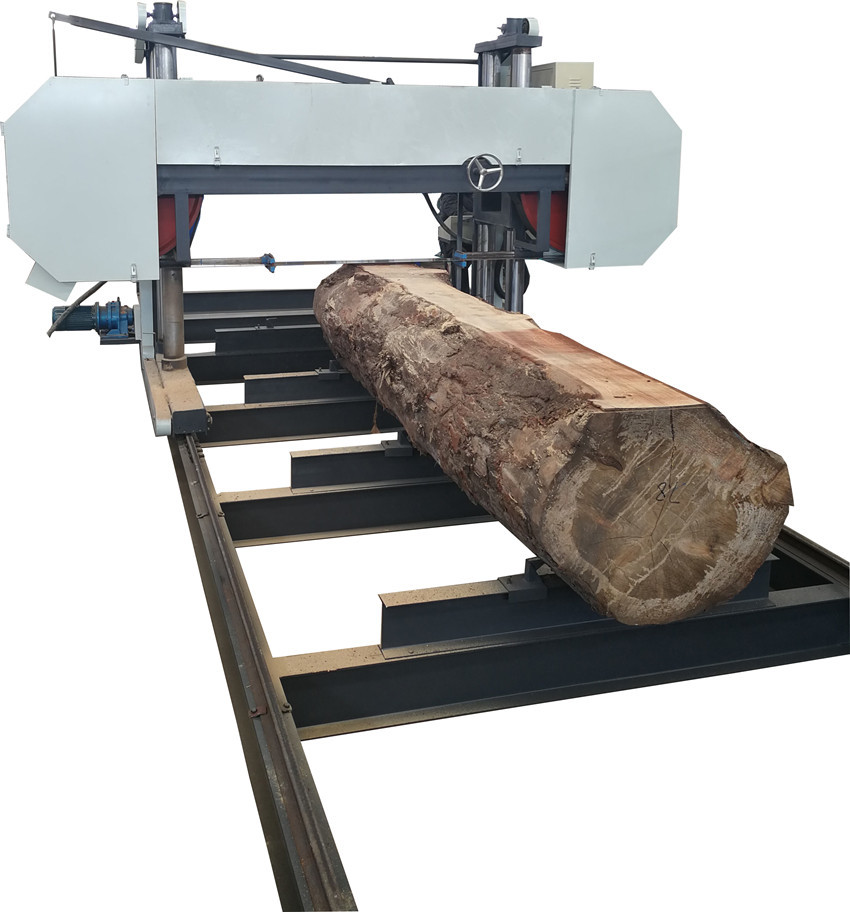

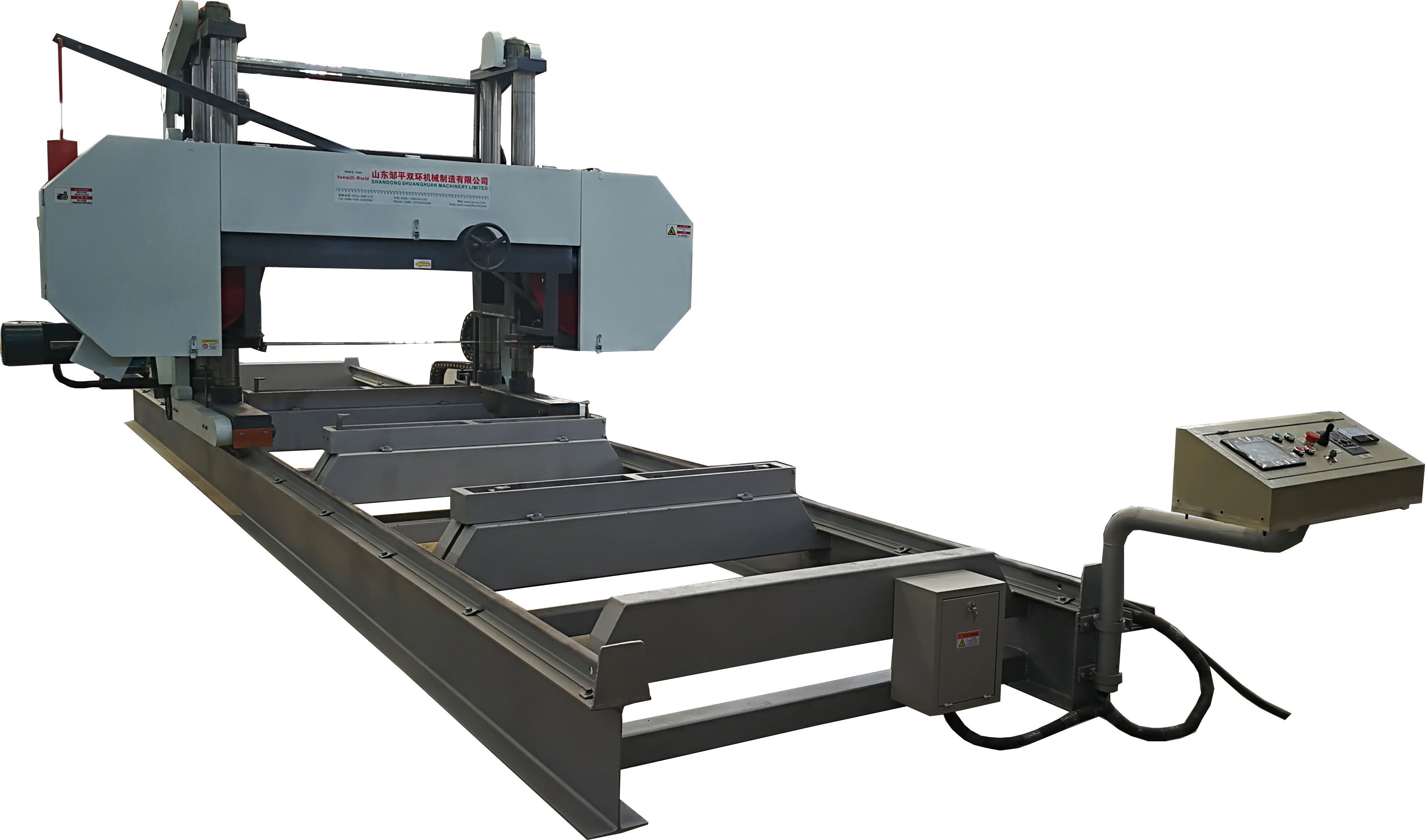

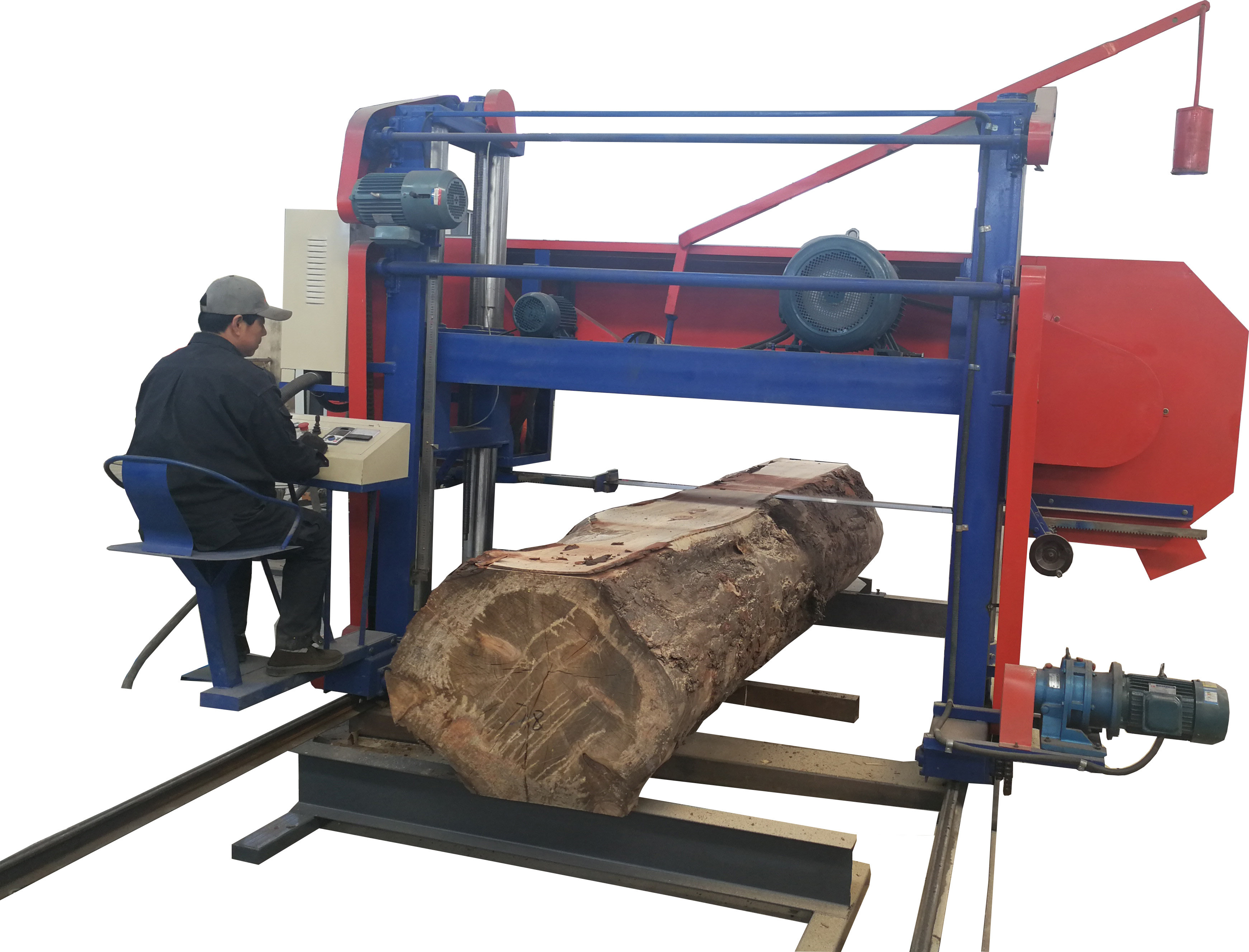

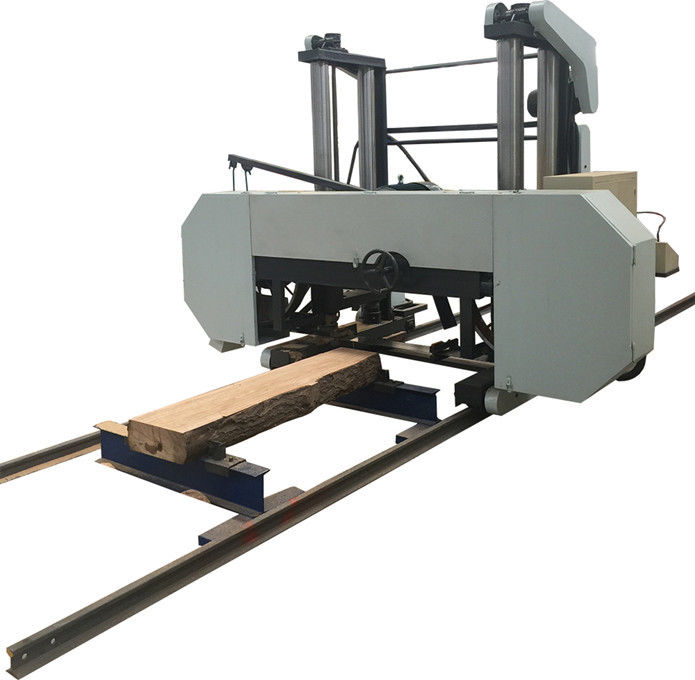

MJ2500 Diesel Engine Horizontal Heavy Duty Band Saw Cutting Machine For Wood

Place of Origin shandong province
Brand Name SH
Certification ISO
Model Number MJ1200 MJ1500 MJ2000 MJ2500
Minimum Order Quantity 1 SET
Price US $17,000 - 31,000 / Set
Packaging Details container loading
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Band Saw
Usage Woodworking Warranty 12 Months
Diesel Engine 60HP Weight 5500kgs
Operation PLC Touching Screen Automatic Max. Sawing Log Width 2500mm
Leave a Message
Product Description

Heavy Duty Large Size Horizontal Band Sawmill



1. Combined with the current automation technology, the heavy duty horizontal band saw machine is a high quality product .

2. It solves the difficulty of sawing lagrge diameter wood in the past and applies for national patents. A great many products are exported to Gabon, Angola , Fiji and Southeast Asian Countries.

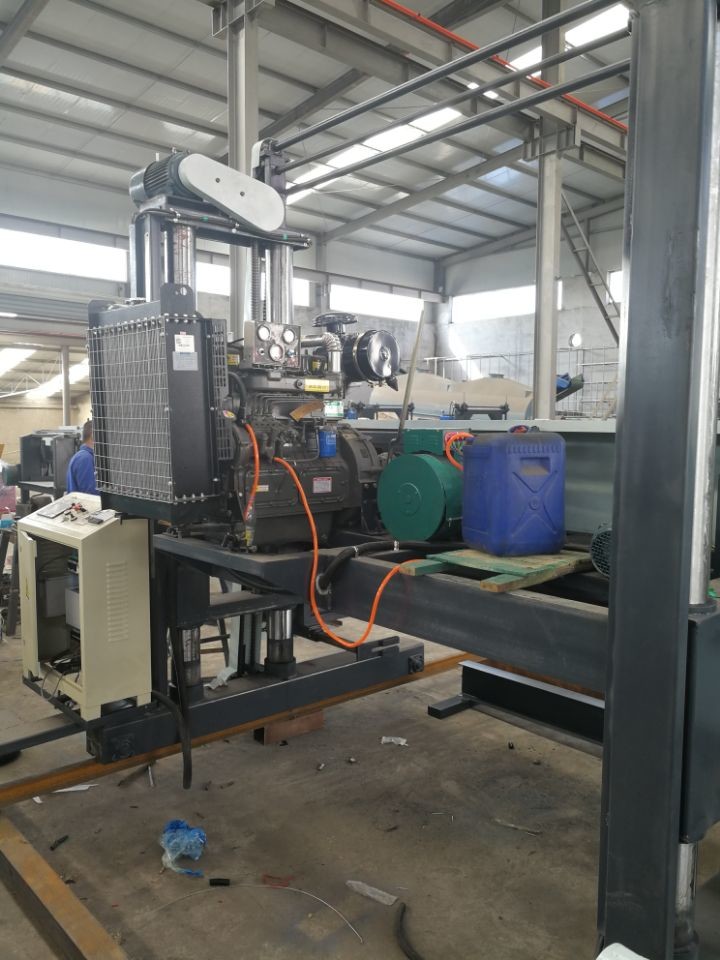

3. Diesel engine powered big sawmill is workable

Structure Features:

1.High quality parts, SKF bearings from Sweden

2.Variable frequency speed adjustable walking forward/back. The walking speed is 1-20meters/minute .

Technical specifications:

Technical Parameter MJ1200 MJ1500 MJ2000 MJ2500
Max Sawing Wood Diameter (MM) 1200 1500 2000 2500
Saw wheel diameter (MM) 900 1000 1100 1100
Sawing thickness (MM) 400 450 480 480
Max Sawing wood Length (MM) 10000 10000 10000 10000
Main Motor Power (KW) 22 37 45 45
Total Power (6 Motors) (KW) 30 45 53 53
Total Weight (KG) 3800 4500 5000 5500

Electric & Screw Band Saw Blade Tension
Infinitely variable speeds forward and backward
Touch Screen sawing thickness setting
Control Cabinet and Seats built on the sawmill
4 group Mobile card wood file .



MJ2500 Diesel Engine Horizontal Heavy Duty Band Saw Cutting Machine For Wood 0
MJ2500 Diesel Engine Horizontal Heavy Duty Band Saw Cutting Machine For Wood 1
Working video link : https://youtu.be/f6KLyUnMFf0
