Working video link : https://youtu.be/f6KLyUnMFf0

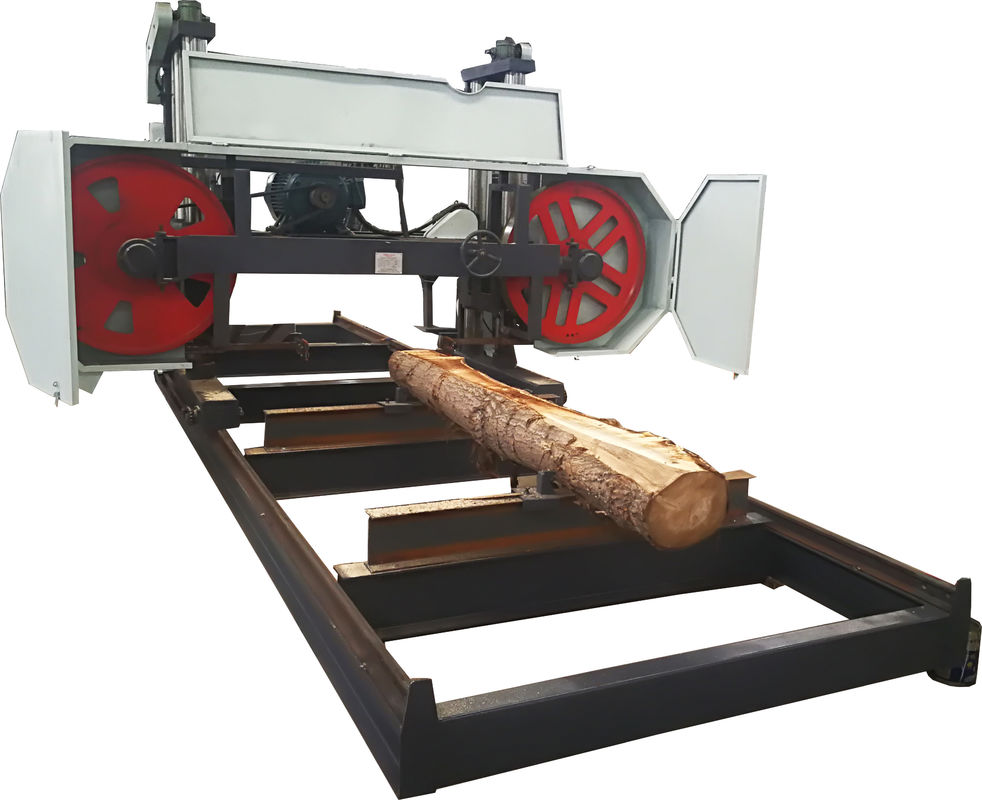

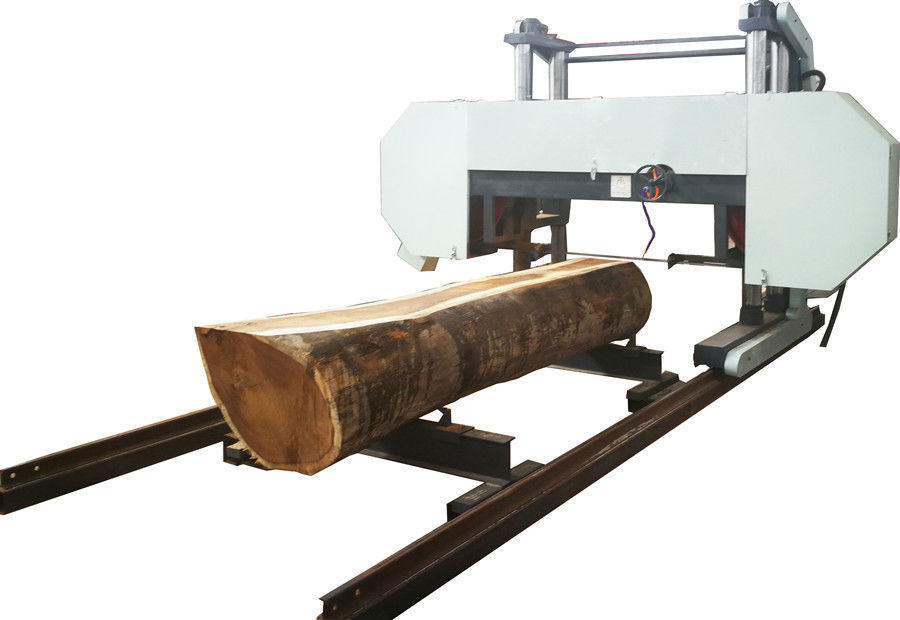

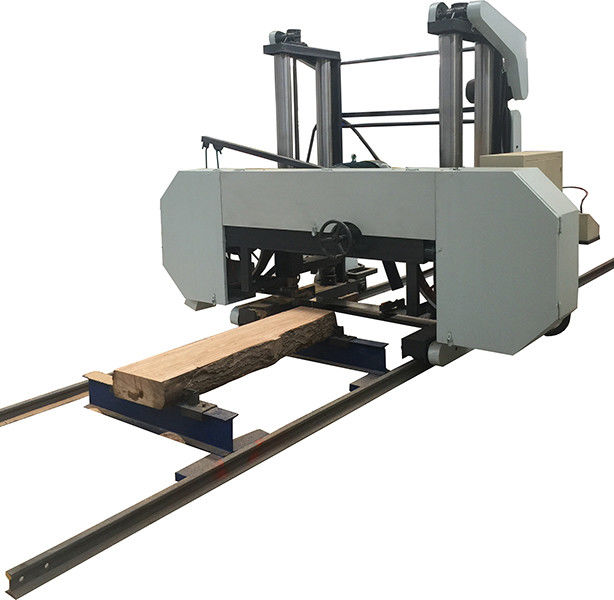

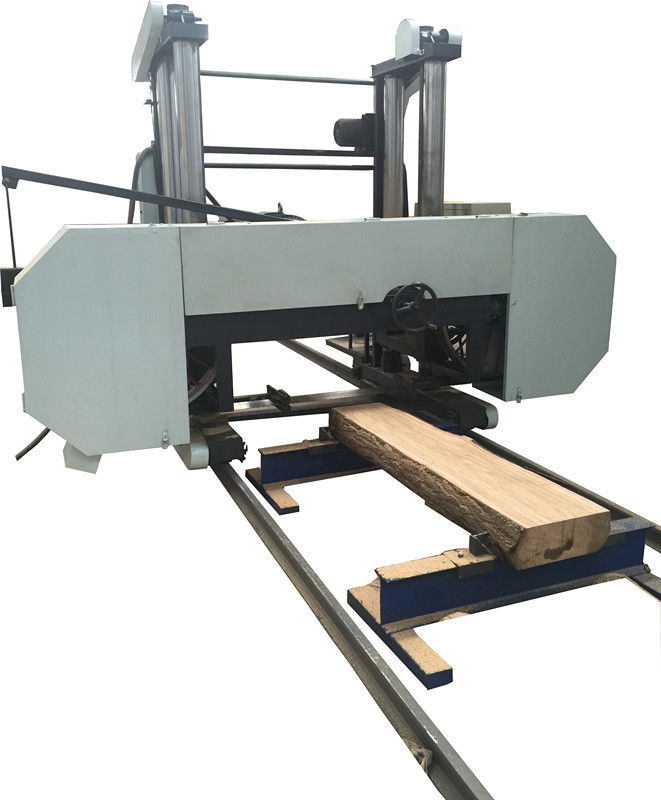

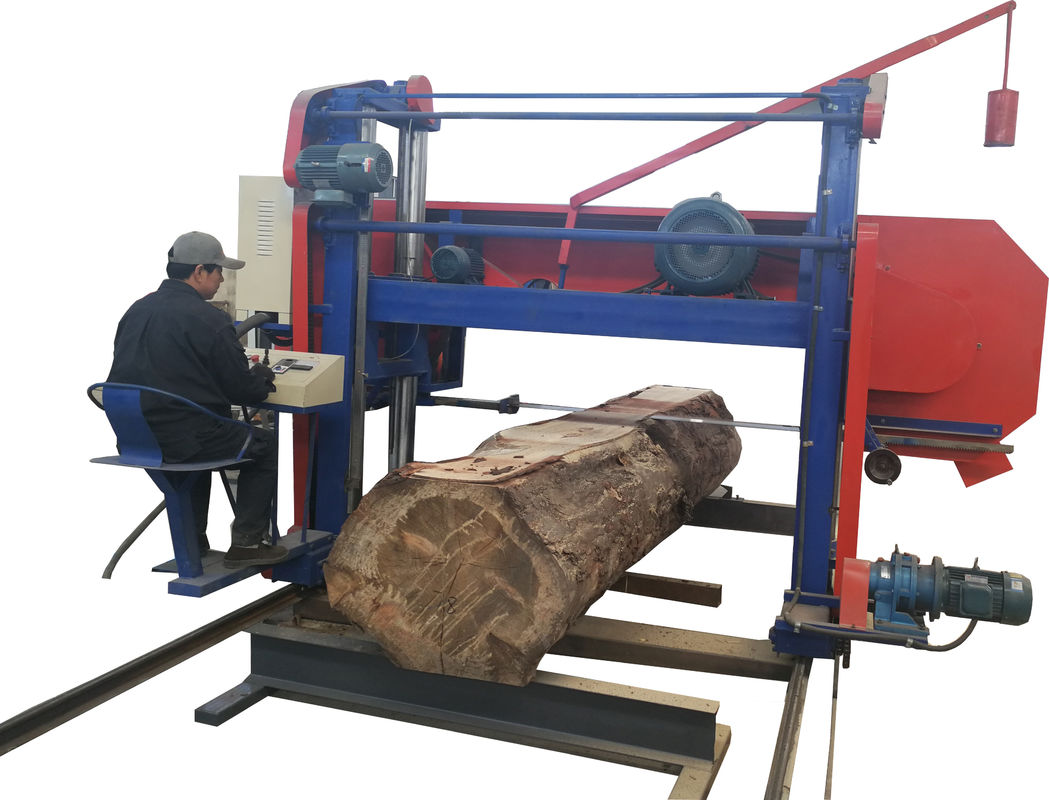

Heavy Duty Large Size Horizontal Band Sawmill
1. Combined with the current automation technology, the heavy duty horizontal band saw machine is a high quality product .
2. It solves the difficulty of sawing lagrge diameter wood in the past and applies for national patents. A great many products are exported to Gabon, Angola , Fiji and Southeast Asian Countries.
Technical specifications:
| Technical Parameter | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max Sawing Wood Diameter (MM) | 1200 | 1500 | 2000 | 2500 |
| Saw wheel diameter (MM) | 900 | 1000 | 1100 | 1100 |
| Sawing thickness (MM) | 400 | 450 | 480 | 480 |
| Max Sawing wood Length (MM) | 10000 | 10000 | 10000 | 10000 |
| Main Motor Power (KW) | 22 | 37 | 45 | 45 |
| Total Power (6 Motors) (KW) | 30 | 45 | 53 | 53 |
| Total Weight (KG) | 3800 | 4500 | 5000 | 5500 |
| Electric & Screw Band Saw Blade Tension Infinitely variable speeds forward and backward Touch Screen sawing thickness setting Control Cabinet and Seats built on the sawmill 4 group Mobile card wood file . |
||||
Diesel Engine Powered Large Size Horizontal Band Sawmill
| Technical specification | MJ2000D |
| Cut max. diameter (mm) | 2000 |
| Saw wheel diameter (mm) | 1070 |
| Cutting thickness (mm) | 10-400 |
| Cut length (m) | 10m |
| Band saw blade size (mm) | 1.25x125/150x9800 |
| Saw Walking | Frequency variable |
| Saw blade tension | electrical |
| Saw Elevating | Electrical |
| Main motor | 60HP Diesel engine |
| Total weight (kgs) | 5500 |
