Large Horizontal Diesel Powered Log Cutting Band Sawmill Automatic Operation

Basic Information
Place of Origin: shandong province
Brand Name: SH
Certification: ISO
Model Number: MJ1200MJ1600MJ1800 MJ2000 MJ2500
Minimum Order Quantity: 1 SET
Price: US $17,000 - 31,000 / Set
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight
Supply Ability: 1500sets/year
Detail Information
Conditon: New Type: Horizontal Band Saw
Use: Woodworking Voltage: 380V/3phase/50HZ Or As Customer Needs
Power: 30KW- 53KW Weight: 2800kg To 4000kgs
Warranty: 12 Months Operation: PLC Touching Screen Automatic
Engine: Electrical Type Or Diesel Engine Powered
Highlight:

large horizontal diesel band sawmill

,

automatic log cutting bandsaw mill

,

diesel powered horizontal sawmill


Product Description

Heavy Duty Large Size Horizontal Band Sawmill
The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
It have large saw wheel and high power.
Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola.
Technical specifications:


Technical Parameter
MJ950MJ1200MJ1600MJ1800MJ2000MJ2500

Max Sawing Wood Diameter (MM)
95012001600180020002500

Saw wheel diameter (MM)
9009001000100011001100

Sawing thickness (MM)
400400450450480480

Max Sawing wood Length (MM)
100001000010000100001000010000

Main Motor Power (KW)
222237374545

Total Power (6 Motors) (KW)
303045455353

Total Weight (KG)
250028003000350038004000
Electric & Screw Band Saw Blade Tension
Infinitely variable speeds forward and backward
Touch Screen sawing thickness setting
Control Carbinet and Seats built on the sawmill
4 group Mobile card wood file .

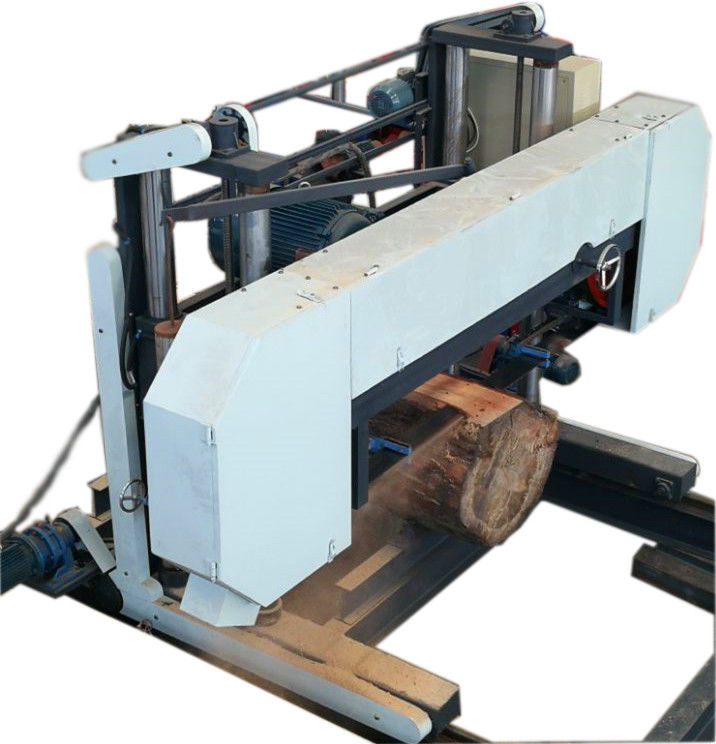

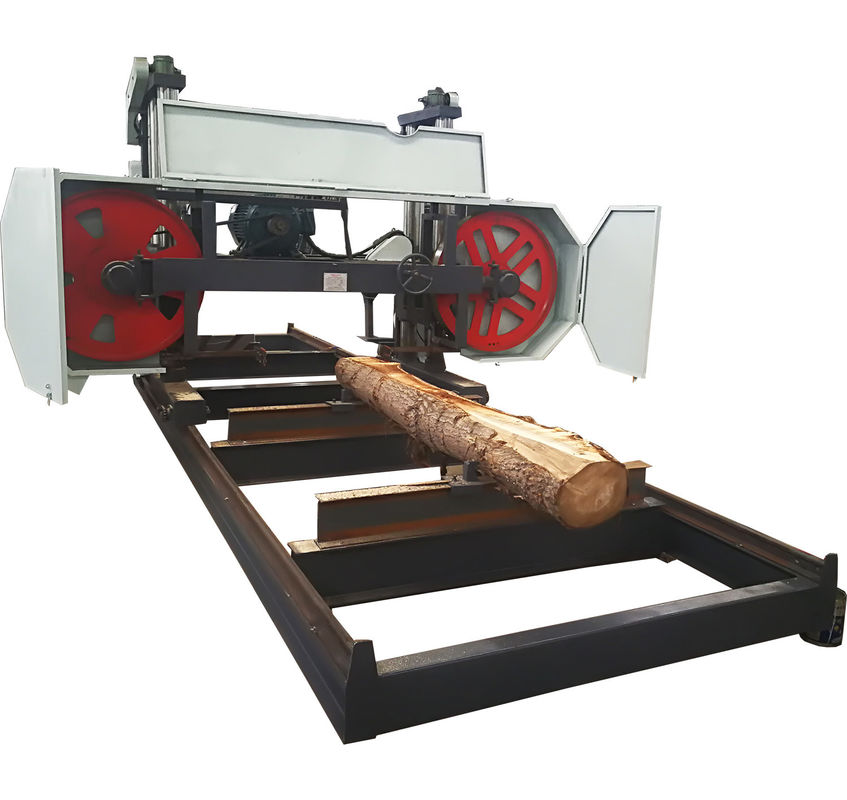

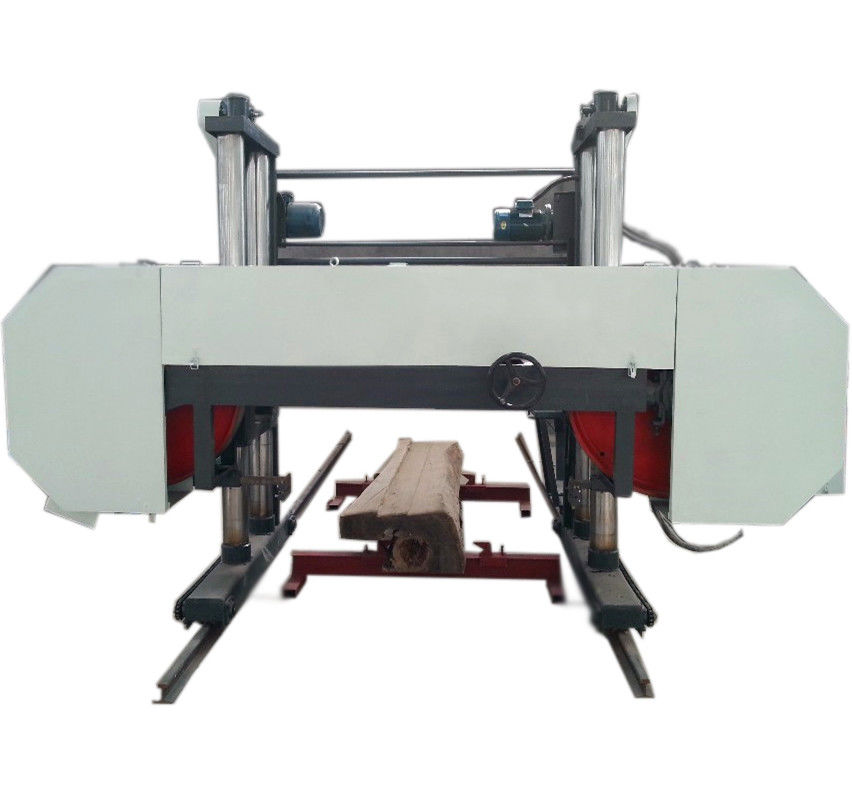

Large Horizontal Diesel Powered Log Cutting Band Sawmill Automatic Operation 0Large Horizontal Diesel Powered Log Cutting Band Sawmill Automatic Operation 1Large Horizontal Diesel Powered Log Cutting Band Sawmill Automatic Operation 2

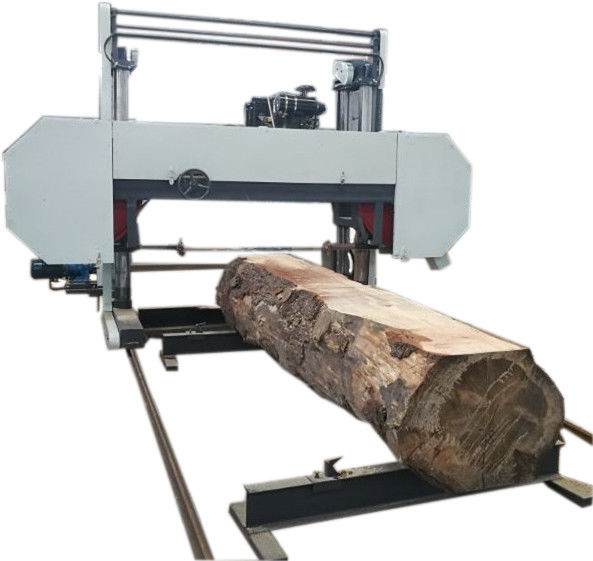

Diesel Engine Powered Large Size Horizontal Band Sawmill

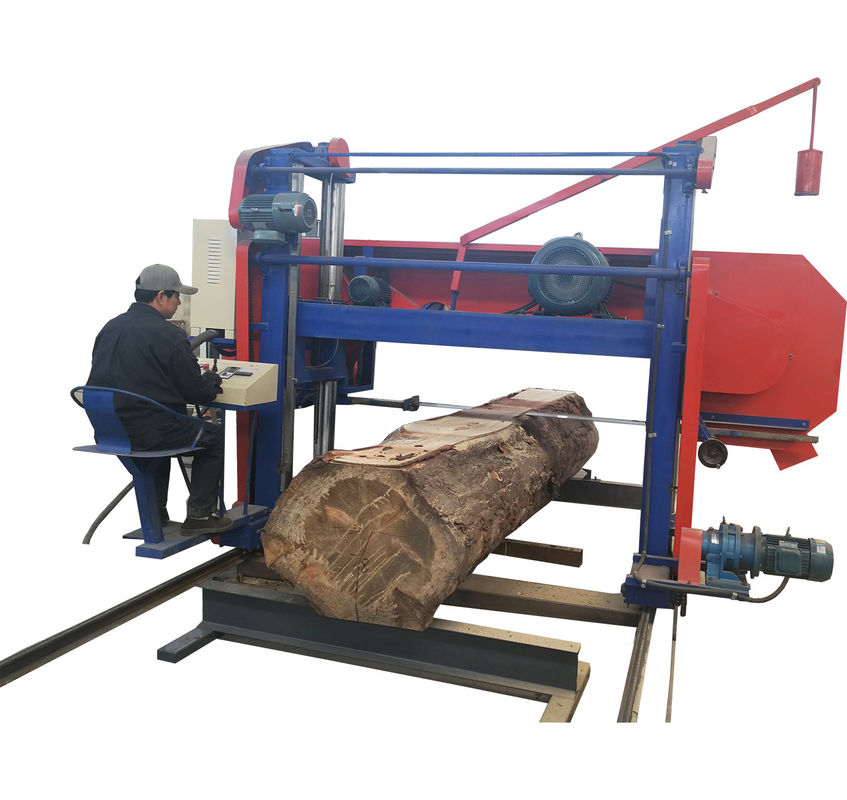

Large Horizontal Diesel Powered Log Cutting Band Sawmill Automatic Operation 3
