Pallet Grinding Chips Making Machine, Pallet Reclaiming Crusher with magnetic machine

Basic Information
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: SHTF1350, SH1300-600
Minimum Order Quantity: 1 SET
Price: US $8,900-12,900 / Set
Packaging Details: wooden crates or iron frame packings
Delivery Time: within 20 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1000sets/year
Detail Information
Product Name: Wood Pallet Crusher Condition: New
Application: Grinding Wooden Pallets Into Chippers, And Nails Suck Out Capacity: 60pallets/hour To 30tons/hour
Using: Power Plant Or Biomass Feeding Inlet Size: 1350*230mm
Blades Quantity: 16pcs Warranty: With In 12 Months Since You Get
Power(w): 37KW After-sales Service Provided: Online Support,commissioning And Training
Voltage: 380V Or As Customer Needs

Product Description

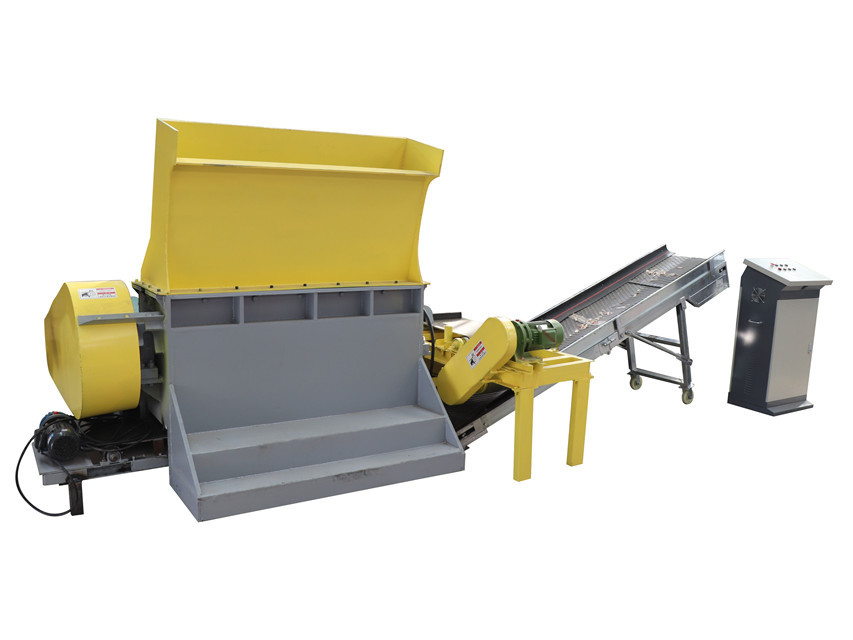

Wood Pallet Crusher

Model SHTF1350
Feeding Inlet 1350*230mm
Blade Shaft Diameter 450mm
Blade Quantity1 16pcs
Motor Power 37KW

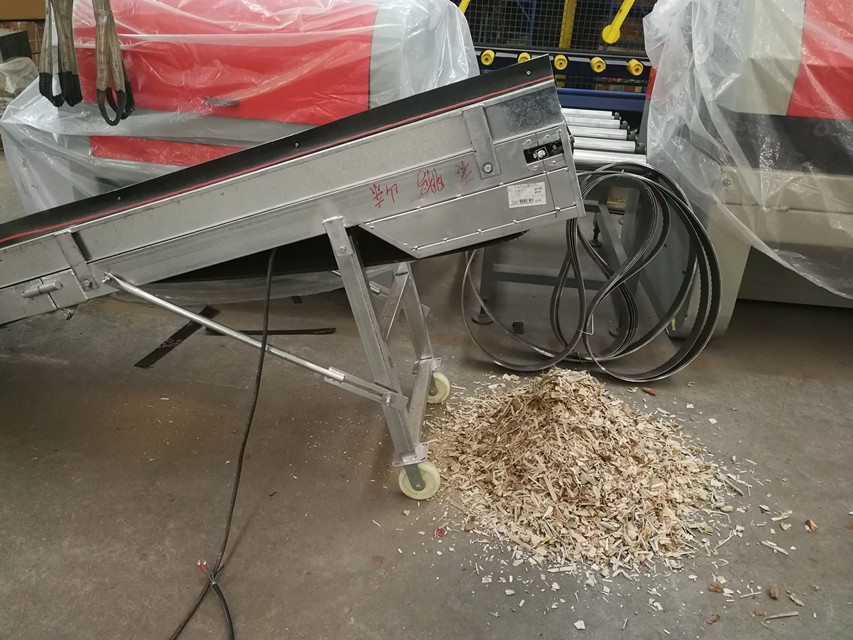

Conveyor belt length 3000mm
Production Capacity 60 Pallets/Hour
Weight 3200KG

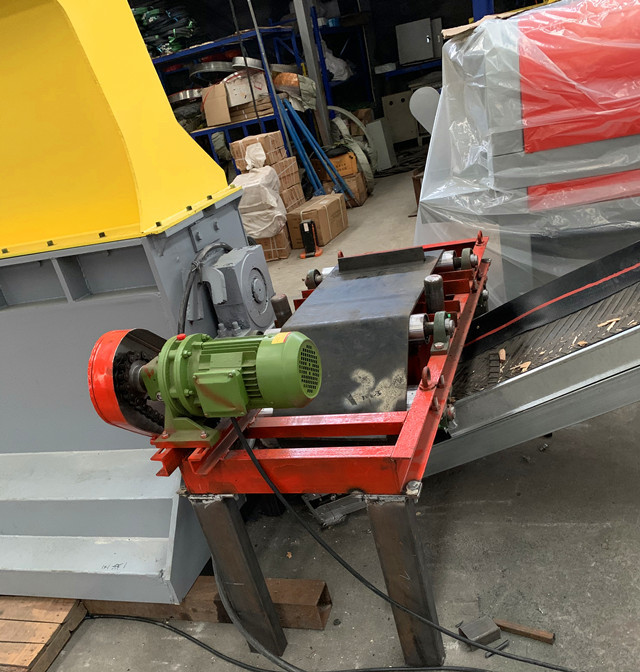

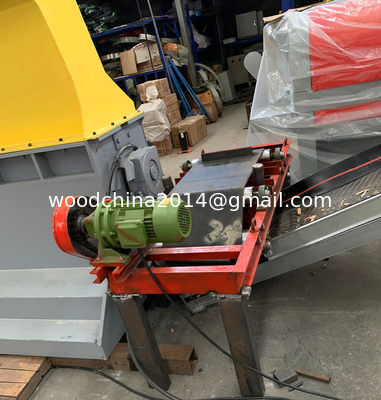

Optional part: Magnetic machine for sucking nails ,etc iron products

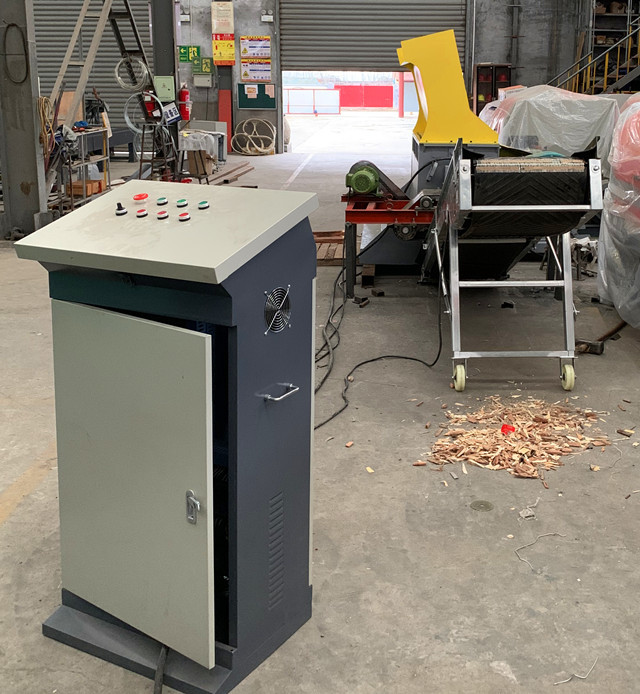

Pallet Grinding Chips Making Machine, Pallet Reclaiming Crusher with magnetic machine 0

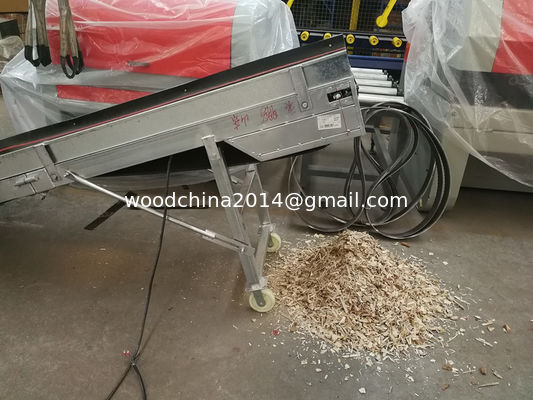

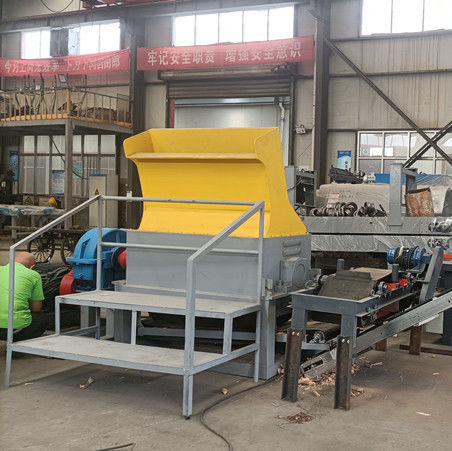

Pallet Grinding Chips Making Machine, Pallet Reclaiming Crusher with magnetic machine 1Pallet Grinding Chips Making Machine, Pallet Reclaiming Crusher with magnetic machine 2

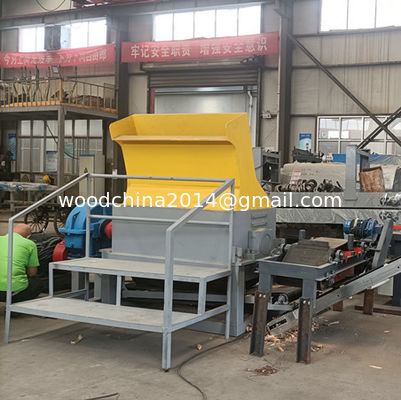

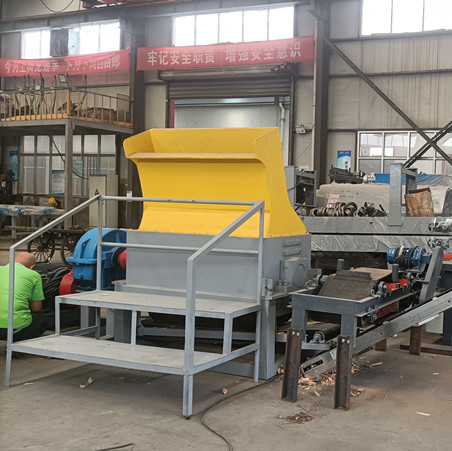

SH1300-600 Series Wood Crusher Machine is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.



Technical Parameter Of Host System Equipment



Model SH1300-600
Feeding Inlet 1300*600MM
Blade Roller Diameter 850MM
Blade Roller Speed 850RPM
Capacity 15-20T/Hour
YG8 Hammer Blade Quantity OR Blades 22 pcs hammers or 2sets blades
Max Processing Wood Diameter 450MM
Electric motor power 160KW
Wood Chipper Size 20-40MM
Working Life Of THE Hammer Blades 4000T-6000T

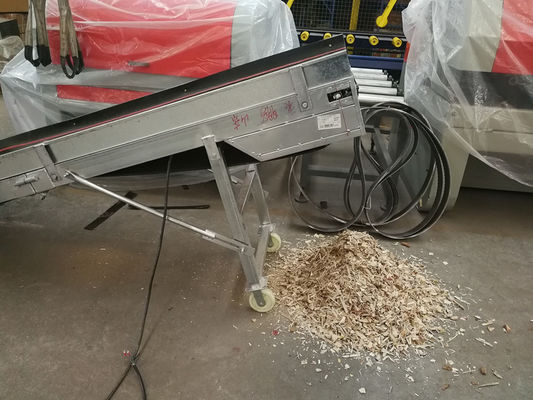

Pallet Grinding Chips Making Machine, Pallet Reclaiming Crusher with magnetic machine 3

Pallet Grinding Chips Making Machine, Pallet Reclaiming Crusher with magnetic machine 4
