MJ3210 Vertical Woodworking Bandsaw Mill With Electric Log Carriage

1 SET
MOQ
US $5,000 - 50,000 / Set
Price
MJ3210 Vertical Woodworking Bandsaw Mill With Electric Log Carriage
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Vertical Band Saw Machine With Trolley
Type: Band Sawmill
Max. Cutting Log Diameter: 800mm
Band Wheel Diameter: 1000mm
Blade Size: 125x1.05mm
Saw Wheel Diameter: 1000mm
Cutting Log Max. Length: 6meters Or As Customer Needs
Carriage Walking: Manual Or Electric Or Inverter
Main Motor: 22kw
Warranty: 12 Months
Highlight:

Vertical Woodworking Bandsaw

,

MJ3210 Woodworking Bandsaw Mill

,

MJ3210 Vertical Bandsaw Mill
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: MJ329-ST3000, MJ329-5000, MJ3210-3000, MJ3210-5000
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1500sets/year
Product Description

MJ3210 Wood Cutting Vertical Band Sawmill with Log Carriage for sale

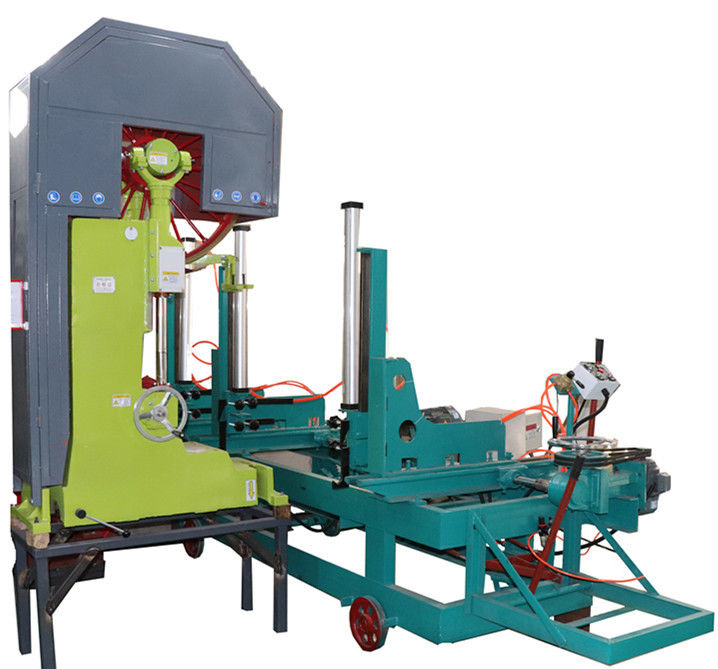

MJ3210 Vertical band sawmill with electric log carriage

  • Manual log clamp or pneumatic log clamping
  • Electrical log feeding
  • Electrical setting sawn sizes
  • Cutting log max. diameter 800mm , cutting length 4meters, 6meters or as customer needs
Technical dataMJ3210-DD3000MJ3210-DD5000
Saw wheel diameter1000mm1000mm
Maximum sawing log diameter800mm800mm
Maximum sawing log length4meters6meters
Main motor22KW22KW
Carriage clip stake quantity3sets4sets
Saw blade L*W*T6850x125x1.05mm6850x125x1.05mm
Wood grasp modeManualManual
Carriage walking/advanceElectricElectric
Setting sawn sizeElectricElectric
Carriage length3meters5meters
Rail length10meters18meters
Weight3000kgs4000kgs

MJ3210 Vertical Woodworking Bandsaw Mill With Electric Log Carriage 0
2.MJ3210 Vertical band sawmill with CNC auto log carriage

  • Pneumatic log clamping
  • Automatic log feeding, frequency variable so speed adjustable
  • Touching screen setting sawn sizes
  • Cutting log max. diameter 800mm , cutting length 4meters, 6meters or as customer needs
  • Working video link: https://youtu.be/rX7VEPHzDxE
Technical dataMJ3210-ZD3000MJ3210-ZD5000
Saw wheel diameter1000mm1000mm
Maximum sawing log diameter800mm800mm
Maximum sawing log length4meters6meters
Main motor22KW22KW
Carriage clip stake quantity3sets4sets
Saw blade L*W*T6850x125x1.05mm6850x125x1.05mm
Wood grasp modeElectricElectric
Carriage walking/advanceFrequency converterFrequency converter
Setting sawn sizePLC touching screenPLC touching screen
Carriage length3meters5meters
Rail length10meters18meters
Weight3000kgs4000kgs

MJ3210 Vertical Woodworking Bandsaw Mill With Electric Log Carriage 1
MJ3210 Vertical Woodworking Bandsaw Mill With Electric Log Carriage 2
MJ3210 Vertical Woodworking Bandsaw Mill With Electric Log Carriage 3
MJ3212B Vertical Band Saw with CNC Automatic Log Carriage


Technical dataMJ3212B-ZD3000MJ3212B-ZD5000
Saw wheel diameter1250mm1250mm
Maximum sawing log diameter1500mm1500mm
Maximum sawing log length4meters6meters
Main motor45KW45KW
Saw blade L*W*T9200x150x1.25mm9200x150x1.25mm
Carriage clip stake quantity3sets4sets
Wood grasp modeElectricElectric
Carriage walking/advanceFrequency converterFrequency converter
Setting sawn sizePLC touching screenPLC touching screen
Carriage length3meters5meters
Rail length10meters18meters
Weight11000kgs12000kgs


MJ3210 Vertical Woodworking Bandsaw Mill With Electric Log Carriage 4
MJ3210 Vertical Woodworking Bandsaw Mill With Electric Log Carriage 5

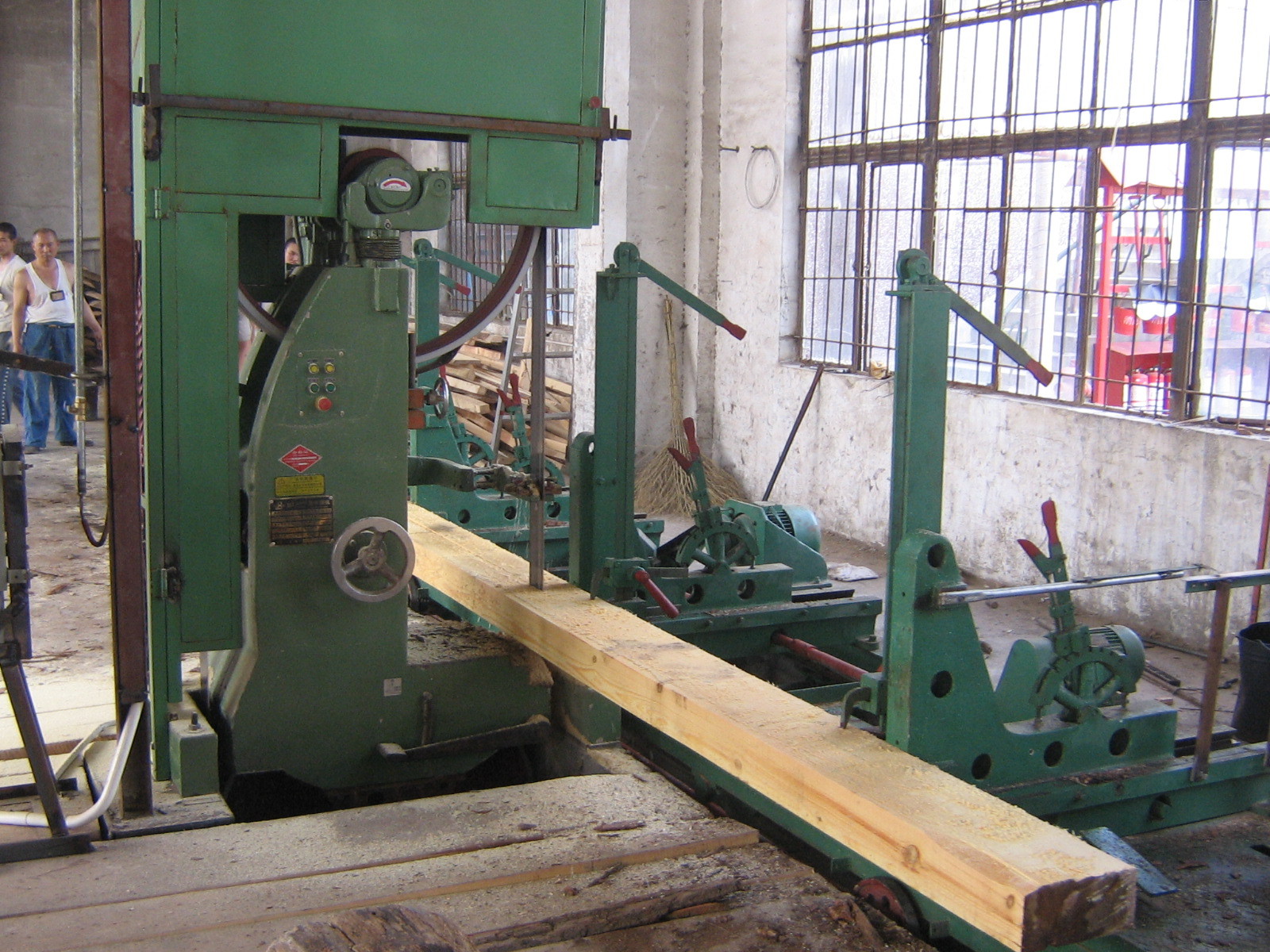

Feedback from Users
MJ3210 Vertical Woodworking Bandsaw Mill With Electric Log Carriage 6MJ3210 Vertical Woodworking Bandsaw Mill With Electric Log Carriage 7
