MJ3212B Woodworking Vertical Band Saw Mill With CNC Carriage

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number MJ3212B-Z5000,MJ3212-Z3000,
Minimum Order Quantity 1 SET
Price US $19,900 - 50,000 / Set
Packaging Details container loading
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Big Vertical Wood Band Sawmill Machine Condition New
Type Band Saw Cutting Log Maximum Diameter 1500mm
Cutting Log Length 4m/6meters Or As Customer Needs Saw Walking Frequency Variable Speed Adjustable
Operation PLC Touching Screen Auto Setworks Wood Grasp Electric
Saw Blade Size 9200x150mm Main Motor 45kw/3phase
Guarantee 1 Year
High Light

Woodworking Vertical Band Saw Mill

,

MJ3212B Vertical Band Saw Mill

,

CNC Carriage Vertical Band Sawmill

Leave a Message
Product Description

Big MJ3212B Woodworking vertical band sawmill sawing machines with CNC carriage



Descriptions of vertical band saw wood machine



Vertical Band Sawmill With CNC Log Carriage

  • This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.
  • In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
  • Applications:Processing large and middle logs and square logs together with large-or middle-size wood band saws.
  • Features:Automatic micro-computer control,feeding,and automatic dimensioning;high efficiency and low labor intensity;high precision,and easy operation.

MJ3212B Vertical Band Sawmill with CNC Log Carriage

Specifications :

Technical data MJ3212B-ZD3000 MJ3212B-ZD5000
Saw wheel diameter 1250mm 1250mm
Maximum sawing log diameter 1500mm 1500mm
Maximum sawing log length 4meters 6meters
Main motor 45KW 45KW
Saw blade L*W*T 9200x150x1.25mm 9200x150x1.25mm
Carriage clip stake quantity 3sets 4sets
Wood grasp mode Electric Electric
Carriage walking/advance Frequency converter Frequency converter
Setting sawn size PLC touching screen PLC touching screen
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 11000kgs 12000kgs

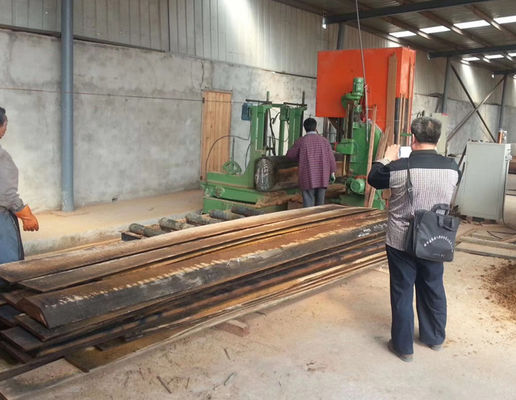

Photos :

MJ3212B Woodworking Vertical Band Saw Mill With CNC Carriage 0

MJ3212B Woodworking Vertical Band Saw Mill With CNC Carriage 1

MJ3212B Woodworking Vertical Band Saw Mill With CNC Carriage 2

Optional - Log loading deck

MJ3212B Woodworking Vertical Band Saw Mill With CNC Carriage 3

Optional - Hydraulic log carriage

MJ3212B Woodworking Vertical Band Saw Mill With CNC Carriage 4

Related Saw Machine

Heavy Duty Large Size Horizontal Band Sawmill

  • The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
  • It have large saw wheel and high power.
  • Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola, Fiji and Southeast Asian countries .

Technical specifications:



Model MJ1200 MJ1500 MJ2000 MJ2500
Max. sawing width 1200mm 1500mm 2000mm 2500mm
Height from blade to track 1100mm 1200mm 1700mm 2200mm
Saw wheel diameter 1070mm 1070mm 1070mm 1070mm
Max.sawn thickness 350mm 350mm 400mm 400mm
Sawing wood length max. 6meters 6meters 6meters 6meters
Saw blade length & width 7900 &125mm 8600&125mm 9700&125mm 10500&125,150mm
Main motor power 30kw 37kw 45kw 55kw
Weight 3800kgs 4500kg 5000kg 5500kg

MJ3212B Woodworking Vertical Band Saw Mill With CNC Carriage 5
