Detail Information

Condition:	New	Type:	Band Saw
Use:	Woodworking	Style:	Vertical
Voltage:	380V,3PH,50hz OR Customized	Power(W):	30 Kw - 45 Kw
Warranty:	1 Year	After-sales Provided:	Engineers Available To Service Overseas
Max.cutting Wood Diameter/height:	1.5meter	Carriage Walking:	Manual Or Electrical Or PLC Numerical
Highlight:	vertical CNC bandsaw for wood , vertical cutting bandsaw with carriage , wood saw machine with warranty

Product Description

Descriptions of vertical band saw wood machine

Vertical Band Sawmill With CNC Log Carriage

This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

Applications:Processing large and middle logs and square logs together with large-or middle-size wood band saws.
Features:Automatic micro-computer control,feeding,and automatic dimensioning;high efficiency and low labor intensity;high precision,and easy operation.

Technical Parameter	MJ3212-5000	MJ3212-3000	MJ3310-5000	MJ3310-3000
Saw Wheel Diameter (MM)	1250	1250	1070	1000
Saw Wheel Speed RPM	650	650	650	650
Saw Blade Length (MM)	8600	8600	7400	7400
Saw Blade Width(MM)	150	150	150	150
Saw Clip Movement Motor( KW)	0.75	0.75	0.75	0.75
Saw Wheel Movement Motor( KW)	0.75	0.75	0.75	0.75
Main Motor Power( KW)	37	37	30	30
Carriage Clip Stake Quantity	4	4	4	3
Carriage Wheel Quantity	3	3	3	2
forward and backward	Electric	Electric	Electric	Electric
Sawing Thickness Setting	Electric	Electric	Electric	Electric
Max Sawing Wood Diameter(MM)	1200	1200	1000	1000
Max Sawing Wood Length(MM)	6000	4000	6000	4000
Track Length(MM)	16000	12000	16000	12000
Weight (KG)	7200	6500	4900	4200

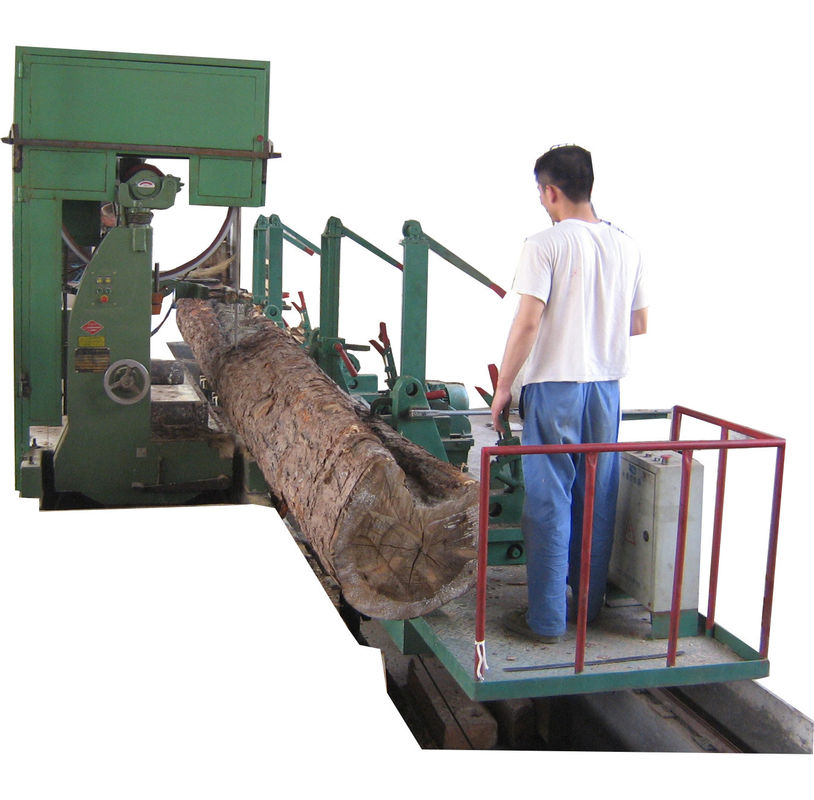

MJ3210 Vertical CNC Bandsaw ,Saw Machine for Wood,Vertical Cutting Bandsaw with Carriage 0

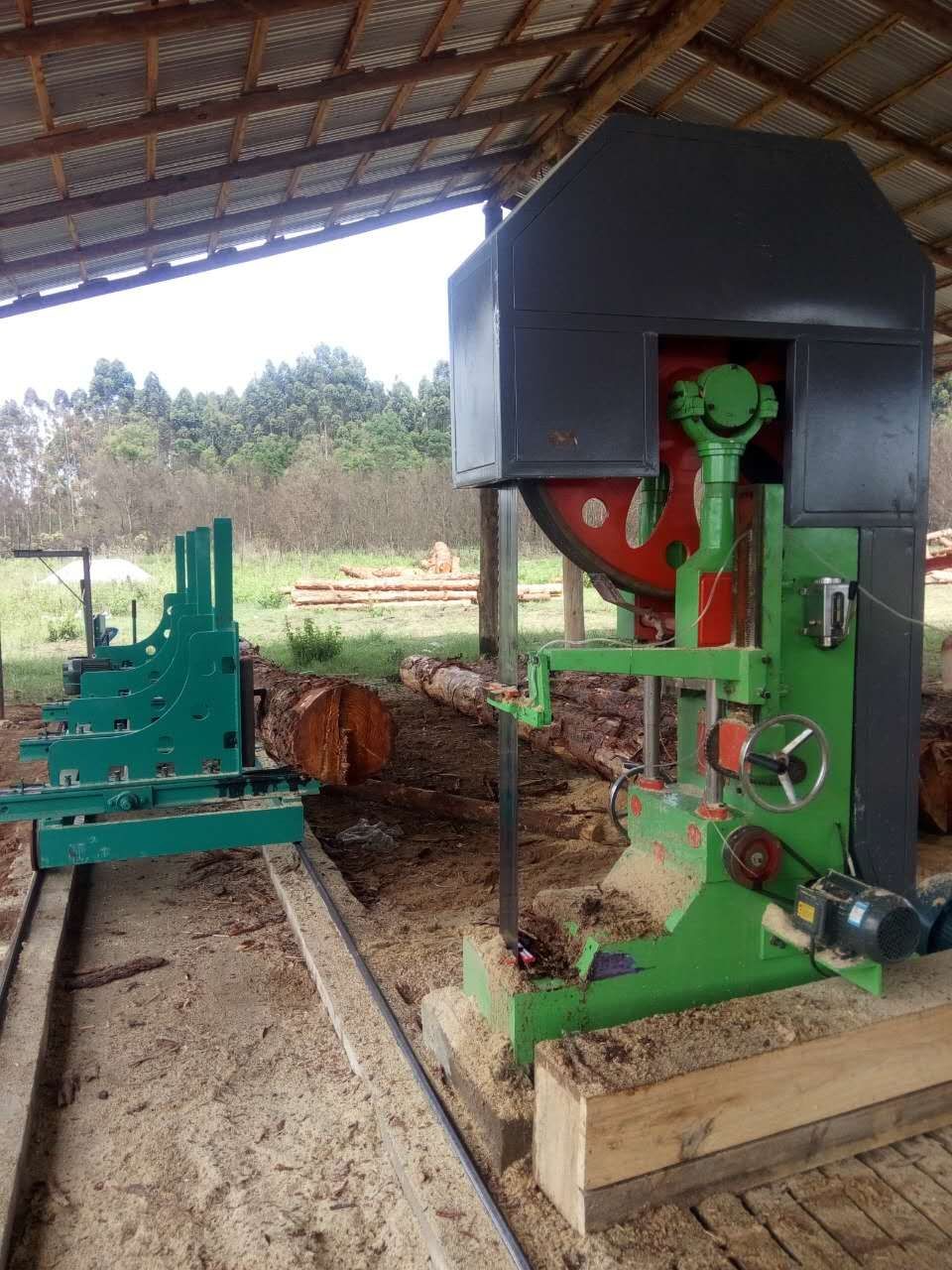

MJ3210 Vertical CNC Bandsaw ,Saw Machine for Wood,Vertical Cutting Bandsaw with Carriage 1

Technical Parameter		MJ328	MJ329	MJ3210	MJ3310	MJ3212
Saw Wheel Diameter	800mm		900mm	1000mm	1070mm	1250mm
Saw Wheel Width	110mm		120mm	120mm	120mm	140mm
Saw Wheel Speed	750r·p·m		750r·p·m	750r·p·m	750r·p·m	750r·p·m
Saw Wheel& Clip Model	Manual		Manual	Automatic	Automatic	Automatic
Saw Wheel Length	5700mm		6400mm	6800mm	7400mm	8600mm
Max Sawing Wood Diameter	650mm		750mm	900mm	1000mm	1200mm
Main Motor Power	11kw		15kw	22kw	30kw	37kw
Weight	1000kg		1300kg	1600kg	1800kg	3200kg

Include main motor

Include iron-made safe protective casing

Include manual lubrication

Include foundry work platform

MJ3210 Vertical CNC Bandsaw ,Saw Machine for Wood,Vertical Cutting Bandsaw with Carriage 2

Tag:

Place of Origin:	shandong province
Brand Name:	SH
Certification:	ISO
Model Number:	MJ3212-Z5000,MJ3212-Z3000,MJ3210-Z5000,MJ3310-Z3000

Minimum Order Quantity:	1 SET
Price:	US $6,000 - 50,000 / Set
Packaging Details:	container loading
Delivery Time:	within 15 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1500sets/year
