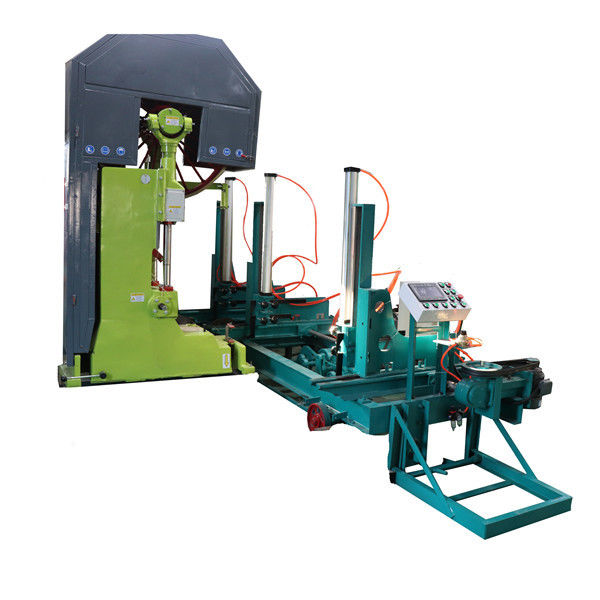

MJ3310 42'' woodworking vertical log band saw with CNC Automatic Log trolly
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | MJ3310-Z5000,MJ3310-Z3000, MJ3310-D5000, etc |
| Minimum Order Quantity | 1 SET |
| Price | US $3,000 - 50,000 / Set |
| Packaging Details | container loading |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Wood Cutting Vertical Band Saw Mill Machine | Condition | New |
|---|---|---|---|
| Style | Vertical | Usage | Woodcutting |
| Voltage | 380V/50Hz/3Phase | Power(w) | 30KW, 37kw, 45kw |
| Saw Wheel Diameter | 1070mm | Max. Sawing Log Diameter | 1000mm |
| Warranty | 1 Year | After-sales Service Provided | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support |
| Applicable Industries | Sawmill | Keyword | Cnc Cut,band Saw Machine |
Product Description
Descriptions of vertical band saw wood machine
Vertical Band Sawmill With CNC Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
Technical Specifications:
| Technical data | MJ3310-DD3000 | MJ3310-DD5000 |
| Saw wheel diameter | 1070mm | 1070mm |
| Maximum sawing log diameter | 1000mm | 1000mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 30KW | 30KW |
| Saw blade L*W*T | 7400x150x1.05mm | 6850x125x1.05mm |
| Carriage clip stake quantity | 3sets | 4sets |
| Wood grasp mode | Manual | Manual |
| Carriage walking/advance | Electric | Electric |
| Setting sawn size | Electric | Electric |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 4500kgs | 6000kgs |
| Technical data | MJ3310-ZD3000 | MJ3310-ZD5000 |
| Saw wheel diameter | 1070mm | 1070mm |
| Maximum sawing log diameter | 1000mm | 1000mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 30KW | 30KW |
| Saw blade L*W*T | 7400x150x1.05mm | 7400x150x1.05mm |
| Carriage clip stake quantity | 3sets | 4sets |
| Wood grasp mode | Electric | Electric |
| Carriage walking/advance | Frequency converter | Frequency converter |
| Setting sawn size | PLC touching screen | PLC touching screen |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 4500kgs | 6000kgs |
Heavy Duty Large Size Horizontal Band Sawmill
- The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
- It have large saw wheel and high power.
- Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola, Fiji and Southeast Asian countries .
Technical specifications:
| Model | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max. sawing width | 1200mm | 1500mm | 2000mm | 2500mm |
| Height from blade to track | 1100mm | 1200mm | 1700mm | 2200mm |
| Saw wheel diameter | 1070mm | 1070mm | 1070mm | 1070mm |
| Max.sawn thickness | 350mm | 350mm | 400mm | 400mm |
| Sawing wood length max. | 6meters | 6meters | 6meters | 6meters |
| Saw blade length & width | 7900 &125mm | 8600&125mm | 9700&125mm | 10500&125,150mm |
| Main motor power | 30kw | 37kw | 45kw | 55kw |
| Weight | 3800kgs | 4500kg | 5000kg | 5500kg |
