MJ329/MJ3212/MJ3210/MJ3310 wood vertical bandsaw mill with log carraige

  • MJ329/MJ3212/MJ3210/MJ3310 wood vertical bandsaw mill with log carraige
  • MJ329/MJ3212/MJ3210/MJ3310 wood vertical bandsaw mill with log carraige
  • MJ329/MJ3212/MJ3210/MJ3310 wood vertical bandsaw mill with log carraige
  • MJ329/MJ3212/MJ3210/MJ3310 wood vertical bandsaw mill with log carraige
  • MJ329/MJ3212/MJ3210/MJ3310 wood vertical bandsaw mill with log carraige
  • MJ329/MJ3212/MJ3210/MJ3310 wood vertical bandsaw mill with log carraige
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number MJ3212-Z5000,MJ3212-Z3000,MJ3210-Z5000,MJ3310-Z3000
Minimum Order Quantity 1 SET
Price US $16,000 - 50,000 / Set
Packaging Details container loading
Delivery Time within 15 days
Payment Terms T/T or L/C at sight
Supply Ability 500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name MJ3210 Timber Working Wood Cutting Vertical Band Saw Machine Condition New
Type Band Saw Power(W) 30 Kw - 45 Kw
Max.cutting Wood Diameter/height 1.5meter Carriage Walking Manual Or Electrical Or PLC Numerical
After-sales Service Provided Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support Keyword Band Sawing Machine | Band Saw Machine | Wood Cutting Band Saw Machine,Cnc Cut
Warranty 1 Year
Leave a Message
Product Description

Vertical Band Sawmill With CNC Log Carriage

1.MJ3210 Vertical band sawmill with electric log carriage

  • Manual log clamp or pneumatic log clamping
  • Electrical log feeding
  • Electrical setting sawn sizes
  • Cutting log max. diameter 800mm , cutting length 4meters, 6meters or as customer needs
Technical data MJ3210-DD3000 MJ3210-DD5000
Saw wheel diameter 1000mm 1000mm
Maximum sawing log diameter 800mm 800mm
Maximum sawing log length 4meters 6meters
Main motor 22KW 22KW
Carriage clip stake quantity 3sets 4sets
Saw blade L*W*T 6850x125x1.05mm 6850x125x1.05mm
Wood grasp mode Manual Manual
Carriage walking/advance Electric Electric
Setting sawn size Electric Electric
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 3000kgs 4000kgs

MJ329/MJ3212/MJ3210/MJ3310 wood vertical bandsaw mill with log carraige 0

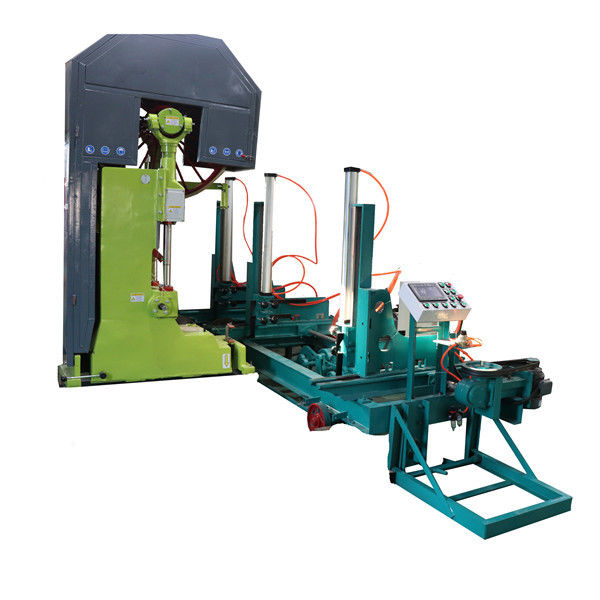

2.MJ3210 Vertical band sawmill with CNC auto log carriage

  • Pneumatic log clamping
  • Automatic log feeding, frequency variable so speed adjustable
  • Touching screen setting sawn sizes
  • Cutting log max. diameter 800mm , cutting length 4meters, 6meters or as customer needs
  • Working video link: https://youtu.be/rX7VEPHzDxE
Technical data MJ3210-ZD3000 MJ3210-ZD5000
Saw wheel diameter 1000mm 1000mm
Maximum sawing log diameter 800mm 800mm
Maximum sawing log length 4meters 6meters
Main motor 22KW 22KW
Carriage clip stake quantity 3sets 4sets
Saw blade L*W*T 6850x125x1.05mm 6850x125x1.05mm
Wood grasp mode Electric Electric
Carriage walking/advance Frequency converter Frequency converter
Setting sawn size PLC touching screen PLC touching screen
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 3000kgs 4000kgs

MJ329/MJ3212/MJ3210/MJ3310 wood vertical bandsaw mill with log carraige 1MJ329/MJ3212/MJ3210/MJ3310 wood vertical bandsaw mill with log carraige 2



Platform Woodwork Band Saw

Technical parameters MJ328 MJ329 MJ3210 MJ3310 MJ3212
Diameter of saw wheel 800mm 900mm 1000mm 1070mm 1250mm
Width of saw wheel 110mm 120mm 120mm 120mm 140mm
Rotational speed of saw wheel 750r·p·m 750r·p·m 750r·p·m 750r·p·m 750r·p·m
saw wheel, saw clip elevation Manual Manual Automatic Automatic Automatic
Length of blade 5700mm 6400mm 6800mm 7400mm 8600mm
Max. diameter of log sawed 650mm 750mm 900mm 1000mm 1200mm
Main motor power 11kw 15kw 22kw 30kw 37kw
weight 1000kg 1300kg 1600kg 1800kg 3200kg
1,include Main motor power
2,include band saw blade 1 Article
3,include Iron-made safe protective casing
4,include Manual lubrication system
5,include Foundry work platform

MJ329/MJ3212/MJ3210/MJ3310 wood vertical bandsaw mill with log carraige 3
