| Place of Origin: | shandong province, China |
| Brand Name: | SH |
| Certification: | ISO9001 |
| Model Number: | MJ3212-Z5000,MJ3212-Z3000,MJ3210-Z5000,MJ3310-Z3000 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $6,000 - 50,000 / Set |
| Packaging Details: | container loading |
| Delivery Time: | within 15 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 1500sets/year |
| Name: | Wood Cutting Vertical Band Saw Machine | Condition: | New |
|---|---|---|---|
| Application: | Wood Working | Saw Wheel Diameter: | 1000mm(40inch),1070mm |
| Max. Sawing Log Diameter: | 800mm | Sawing Log Max Length: | 6meters |
| Log Feeding: | Electric Or Frequency Auto Feeding | Wood Grasp: | Pneumatic Or Electric |
| Sawn Sizes Setting: | Electric Button Or CNC Touching Screen | Keyword: | Band Sawing Machine | Band Saw Machine | Wood Cutting Band Saw Machine |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support |
Descriptions of vertical band saw wood machine

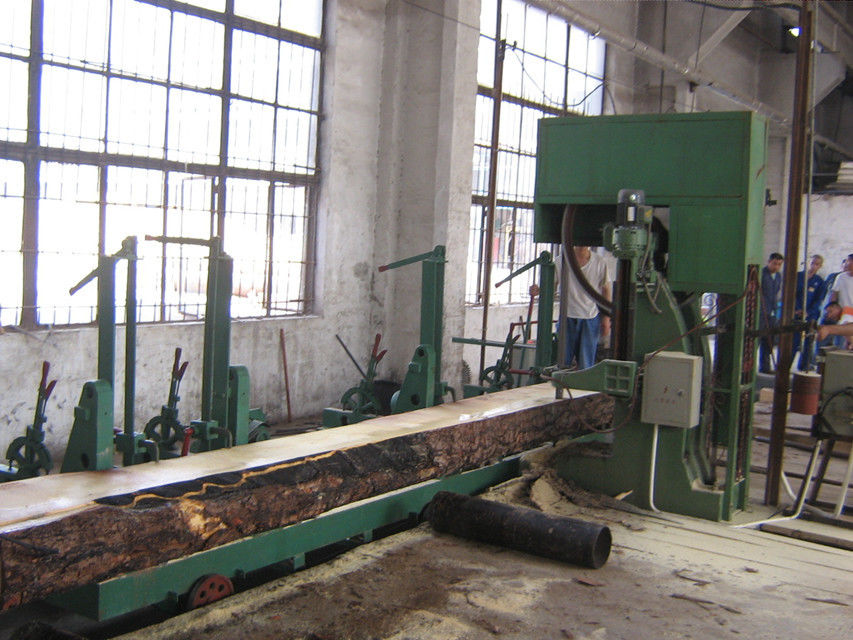

Vertical Band Sawmill With CNC Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
Applications:Processing large and middle logs and square logs together with large-or middle-size wood band saws.
Features:Automatic micro-computer control,feeding,and automatic dimensioning;high efficiency and low labor intensity;high precision,and easy operation.
1.MJ3210 Vertical band sawmill with electric log carriage
| Technical data | MJ3210-DD3000 | MJ3210-DD5000 |
| Saw wheel diameter | 1000mm | 1000mm |
| Maximum sawing log diameter | 800mm | 800mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 22KW | 22KW |
| Carriage clip stake quantity | 3sets | 4sets |
| Saw blade L*W*T | 6850x125x1.05mm | 6850x125x1.05mm |
| Wood grasp mode | Manual | Manual |
| Carriage walking/advance | Electric | Electric |
| Setting sawn size | Electric | Electric |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 3000kgs | 4000kgs |
2.MJ3210 Vertical band sawmill with CNC auto log carriage
| Technical data | MJ3210-ZD3000 | MJ3210-ZD5000 |
| Saw wheel diameter | 1000mm | 1000mm |
| Maximum sawing log diameter | 800mm | 800mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 22KW | 22KW |
| Carriage clip stake quantity | 3sets | 4sets |
| Saw blade L*W*T | 6850x125x1.05mm | 6850x125x1.05mm |
| Wood grasp mode | Electric | Electric |
| Carriage walking/advance | Frequency converter | Frequency converter |
| Setting sawn size | PLC touching screen | PLC touching screen |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 3000kgs | 4000kgs |
