Descriptions of vertical band saw wood machine
Vertical Band Sawmill With CNC Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
Applications:Processing large and middle logs and square logs together with large-or middle-size wood band saws.
Features:Automatic micro-computer control,feeding,and automatic dimensioning;high efficiency and low labor intensity;high precision,and easy operation.
MJ3212B Vertical Band Sawmill with CNC Log Carriage
Specifications :
| Technical data | MJ3212B-ZD3000 | MJ3212B-ZD5000 |
| Saw wheel diameter | 1250mm | 1250mm |
| Maximum sawing log diameter | 1500mm | 1500mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 45KW | 45KW |
| Saw blade L*W*T | 9200x150x1.25mm | 9200x150x1.25mm |
| Carriage clip stake quantity | 3sets | 4sets |
| Wood grasp mode | Electric | Electric |
| Carriage walking/advance | Frequency converter | Frequency converter |
| Setting sawn size | PLC touching screen | PLC touching screen |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 11000kgs | 12000kgs |

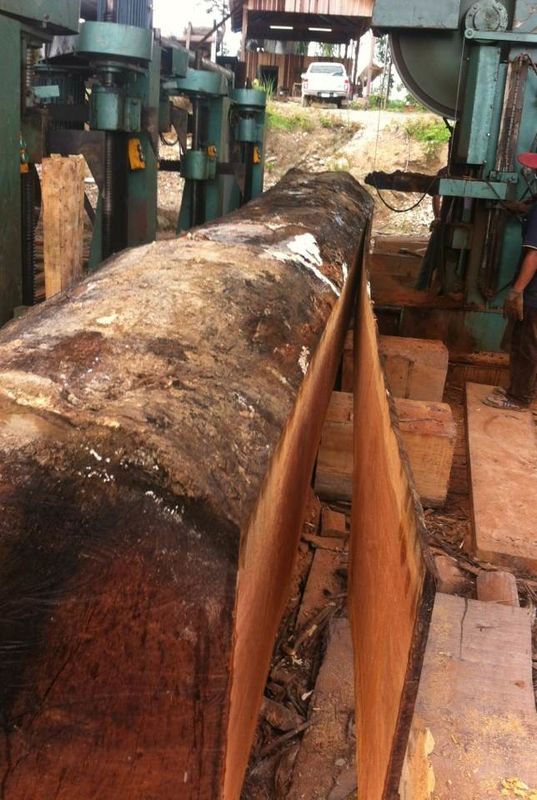

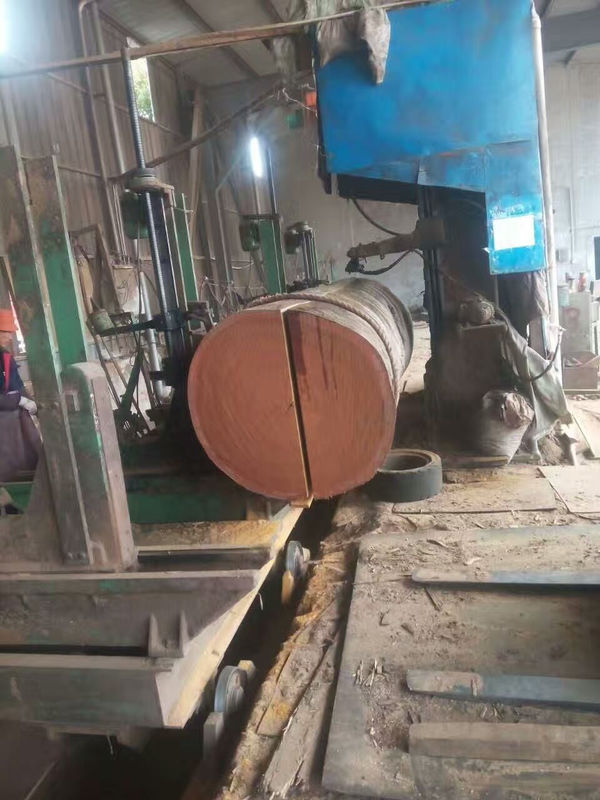

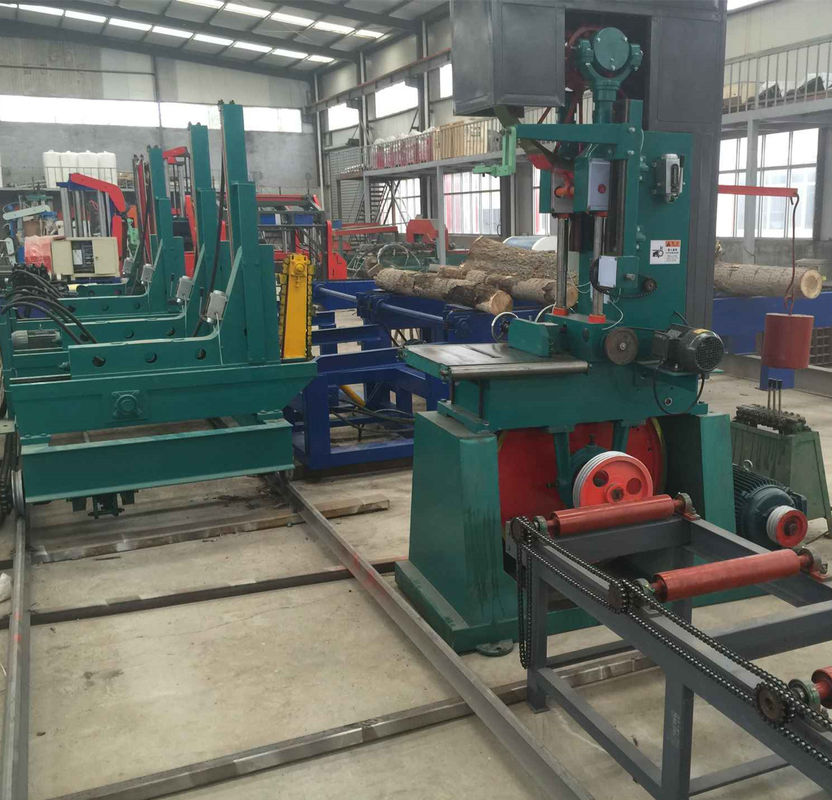

Photos :
MJ3212 Vertical Band Sawmill With CNC Log Carriage
| Technical data | MJ3212-ZD3000 | MJ3212-ZD5000 |
| Saw wheel diameter | 1250mm | 1250mm |
| Maximum sawing log diameter | 1200mm | 1200mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 37KW | 37KW |
| Saw blade L*W*T | 8600x150x1.25mm | 8600x150x1.25mm |
| Carriage clip stake quantity | 3sets | 4sets |
| Wood grasp mode | Electric | Electric |
| Carriage walking/advance | Frequency converter | Frequency converter |
| Setting sawn size | PLC touching screen | PLC touching screen |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 7500kgs | 8000kgs |
