Home /Products/Vertical Band Sawmill/MJ3310 Vertical Band Sawmill with Automatic Log Carriage for log diameter 1000mm

MJ3310 Vertical Band Sawmill with Automatic Log Carriage for log diameter 1000mm

1 SET
MOQ
US $5,000 - 50,000 / Set
Price
MJ3310 Vertical Band Sawmill with Automatic Log Carriage for log diameter 1000mm
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Vertical Band Saw
Usage: Woodcutting
Voltage: 380V /3ph/50hz
Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machines Overseas
Saw Wheel Diameter: 1070mm
Band Saw Blade Size: 7400x 150x 1.05m
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001,CE
Model Number: MJ3210-Z5000,MJ3310-Z3000
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1500sets/year
Product Description

Vertical Band Sawmill With CNC Log Carriage

This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

Technical data MJ3310-DD3000 MJ3310-DD5000
Saw wheel diameter 1070mm 1070mm
Maximum sawing log diameter 1000mm 1000mm
Maximum sawing log length 4meters 6meters
Main motor 30KW 30KW
Saw blade L*W*T 7400x150x1.05mm 6850x125x1.05mm
Carriage clip stake quantity 3sets 4sets
Wood grasp mode Manual Manual
Carriage walking/advance Electric Electric
Setting sawn size Electric Electric
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 4500kgs 6000kgs

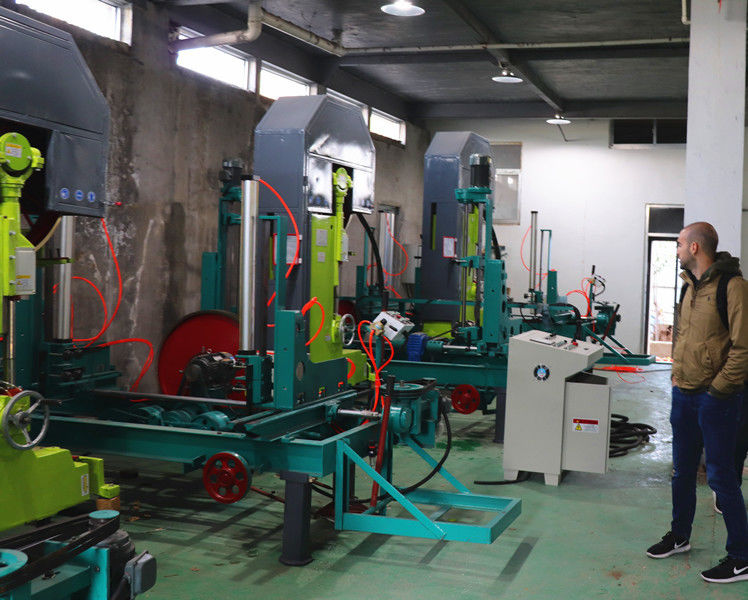

MJ3310 Vertical Band Sawmill with Automatic Log Carriage for log diameter 1000mm 0

Technical data MJ3310-ZD3000 MJ3310-ZD5000
Saw wheel diameter 1070mm 1070mm
Maximum sawing log diameter 1000mm 1000mm
Maximum sawing log length 4meters 6meters
Main motor 30KW 30KW
Saw blade L*W*T 7400x150x1.05mm 7400x150x1.05mm
Carriage clip stake quantity 3sets 4sets
Wood grasp mode Electric Electric
Carriage walking/advance Frequency converter Frequency converter
Setting sawn size PLC touching screen PLC touching screen
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 4500kgs 6000kgs

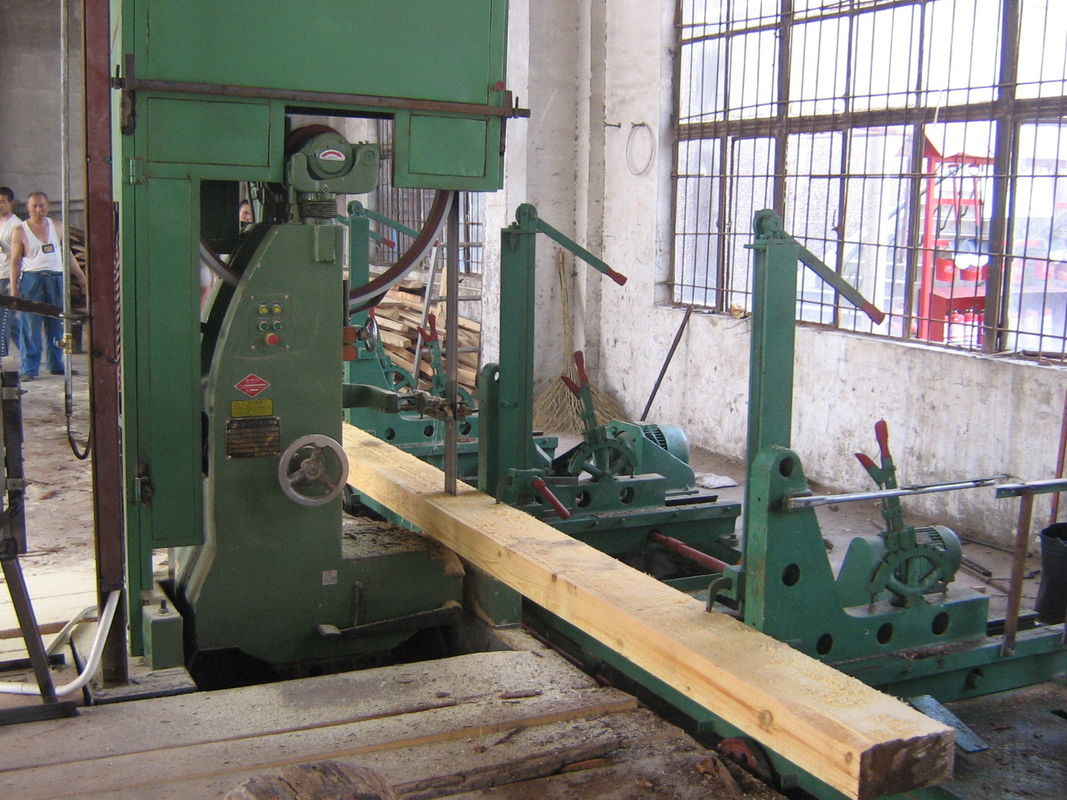

MJ3310 Vertical Band Sawmill with Automatic Log Carriage for log diameter 1000mm 1

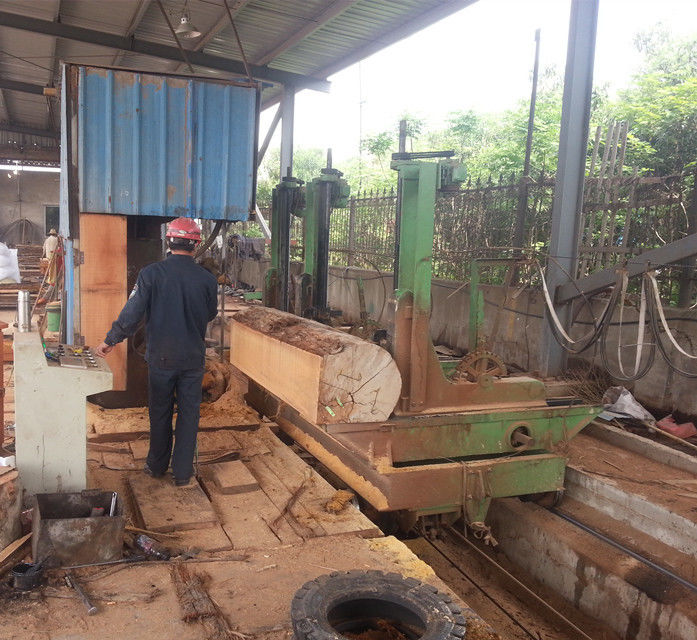

MJ3310 Vertical Band Sawmill with Automatic Log Carriage for log diameter 1000mm 2

Optional - Log turner

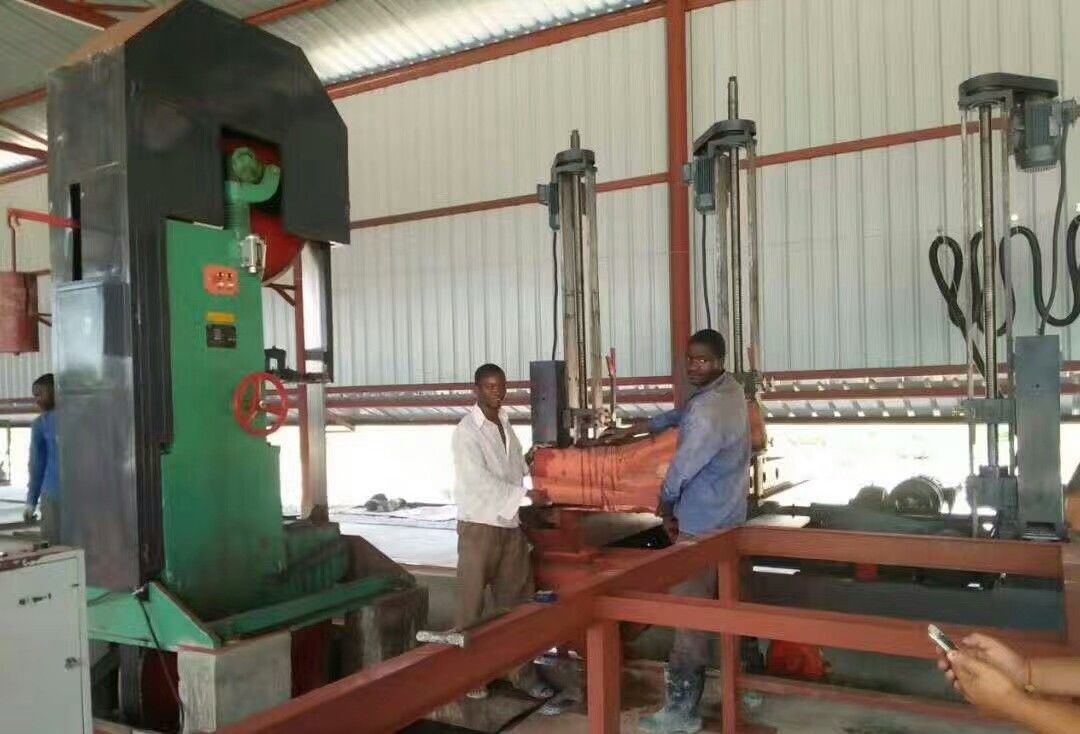

MJ3310 Vertical Band Sawmill with Automatic Log Carriage for log diameter 1000mm 3

Optional - Log loading deck

MJ3310 Vertical Band Sawmill with Automatic Log Carriage for log diameter 1000mm 4

Optional - Vertical band saw with Electrical or manual log carriage

MJ3310 Vertical Band Sawmill with Automatic Log Carriage for log diameter 1000mm 5
