MJ3212B Big Vertical Band Saw With CNC Log Carriage Band Sawing Machine

Place of Origin shandong province
Brand Name SH
Certification ISO
Model Number MJ3212-Z5000,MJ3212-Z3000,MJ3210-Z5000,MJ3310-Z3000
Minimum Order Quantity 1 SET
Price US $16,000 - 50,000 / Set
Packaging Details container loading
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Vertical Band Saw
Usage Woodcutting Voltage 380v/3phase/50HZ Or As Customer Needs
Warranty 12 Months After-sale Service Provided Engineers Available To Service Machines Overseas
Max. Sawing Log Diameter 1500mm Max. Sawing Length 6meters Or As Customer Needs
Leave a Message
Product Description

Descriptions of vertical band saw wood machine



Vertical Band Sawmill With CNC Log Carriage

This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

Applications:Processing large and middle logs and square logs together with large-or middle-size wood band saws.
Features:Automatic micro-computer control,feeding,and automatic dimensioning;high efficiency and low labor intensity;high precision,and easy operation.

MJ3212B Vertical Band Sawmill with CNC Log Carriage

Specifications :

Technical data MJ3212B-ZD3000 MJ3212B-ZD5000
Saw wheel diameter 1250mm 1250mm
Maximum sawing log diameter 1500mm 1500mm
Maximum sawing log length 4meters 6meters
Main motor 45KW 45KW
Saw blade L*W*T 9200x150x1.25mm 9200x150x1.25mm
Carriage clip stake quantity 3sets 4sets
Wood grasp mode Electric Electric
Carriage walking/advance Frequency converter Frequency converter
Setting sawn size PLC touching screen PLC touching screen
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 11000kgs 12000kgs



Photos :

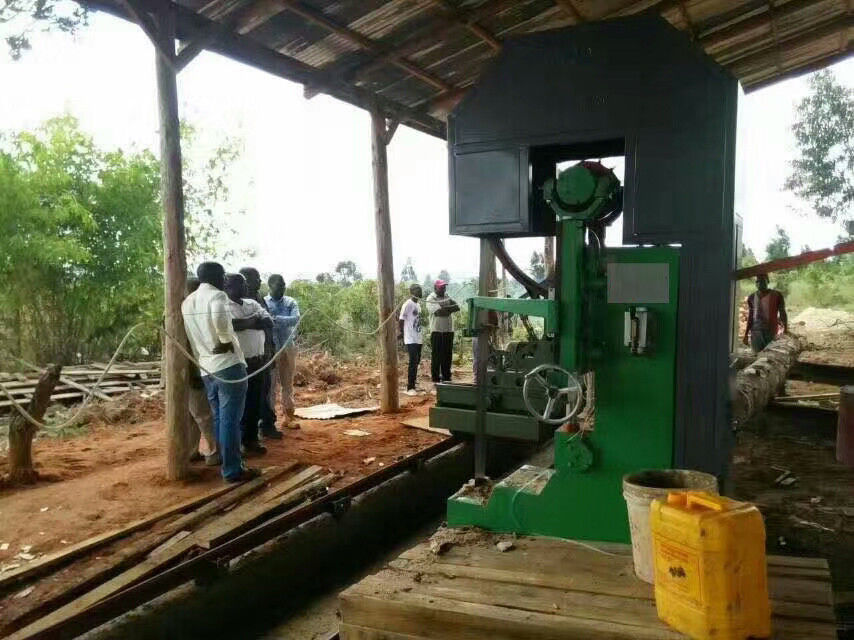

MJ3212B Big Vertical Band Saw With CNC Log Carriage Band Sawing Machine 0

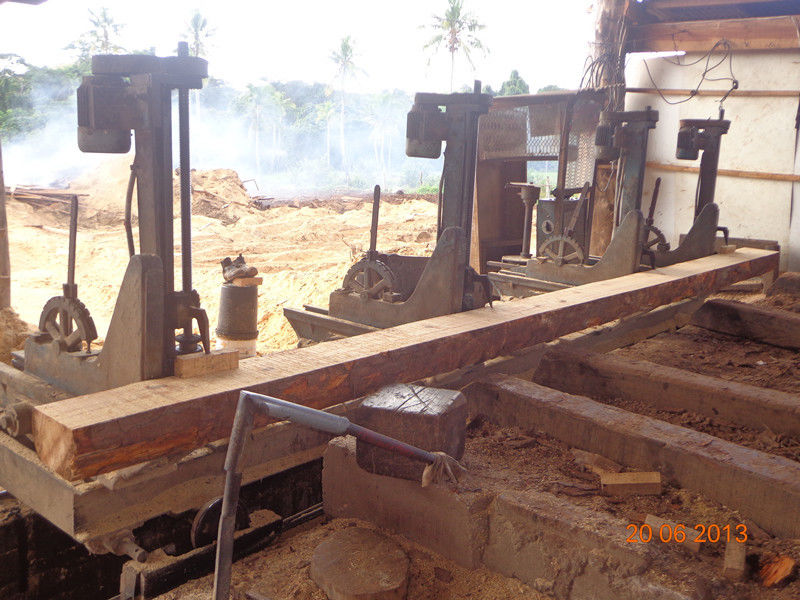

MJ3212B Big Vertical Band Saw With CNC Log Carriage Band Sawing Machine 1

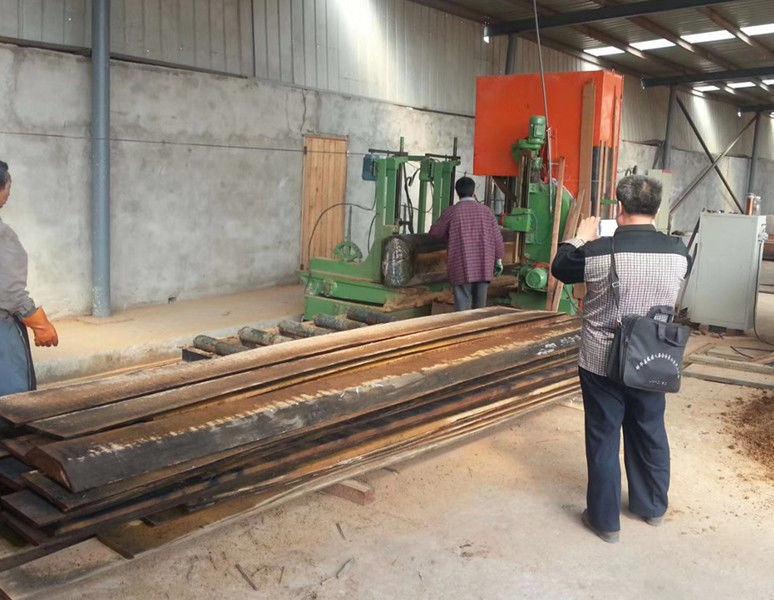

MJ3212B Big Vertical Band Saw With CNC Log Carriage Band Sawing Machine 2

MJ3212 Vertical Band Sawmill With CNC Log Carriage



Technical data MJ3212-ZD3000 MJ3212-ZD5000
Saw wheel diameter 1250mm 1250mm
Maximum sawing log diameter 1200mm 1200mm
Maximum sawing log length 4meters 6meters
Main motor 37KW 37KW
Saw blade L*W*T 8600x150x1.25mm 8600x150x1.25mm
Carriage clip stake quantity 3sets 4sets
Wood grasp mode Electric Electric
Carriage walking/advance Frequency converter Frequency converter
Setting sawn size PLC touching screen PLC touching screen
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 7500kgs 8000kgs

MJ3212B Big Vertical Band Saw With CNC Log Carriage Band Sawing Machine 3MJ3212B Big Vertical Band Saw With CNC Log Carriage Band Sawing Machine 4
