Descriptions of vertical band saw wood machine

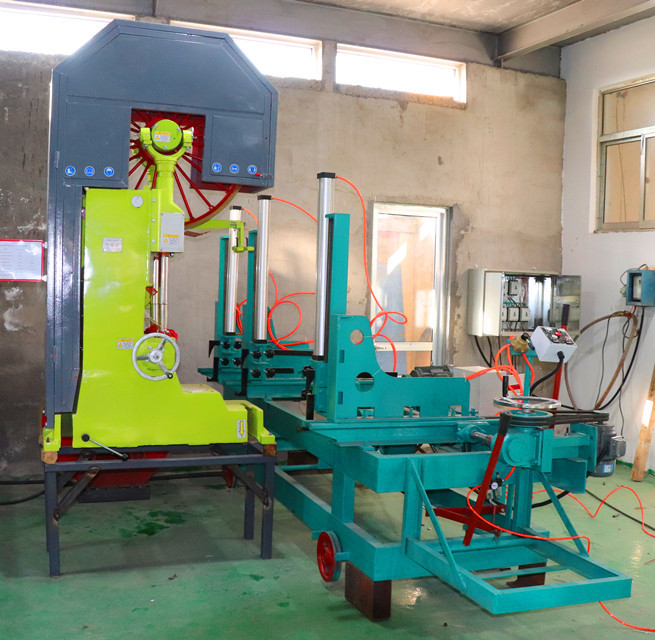

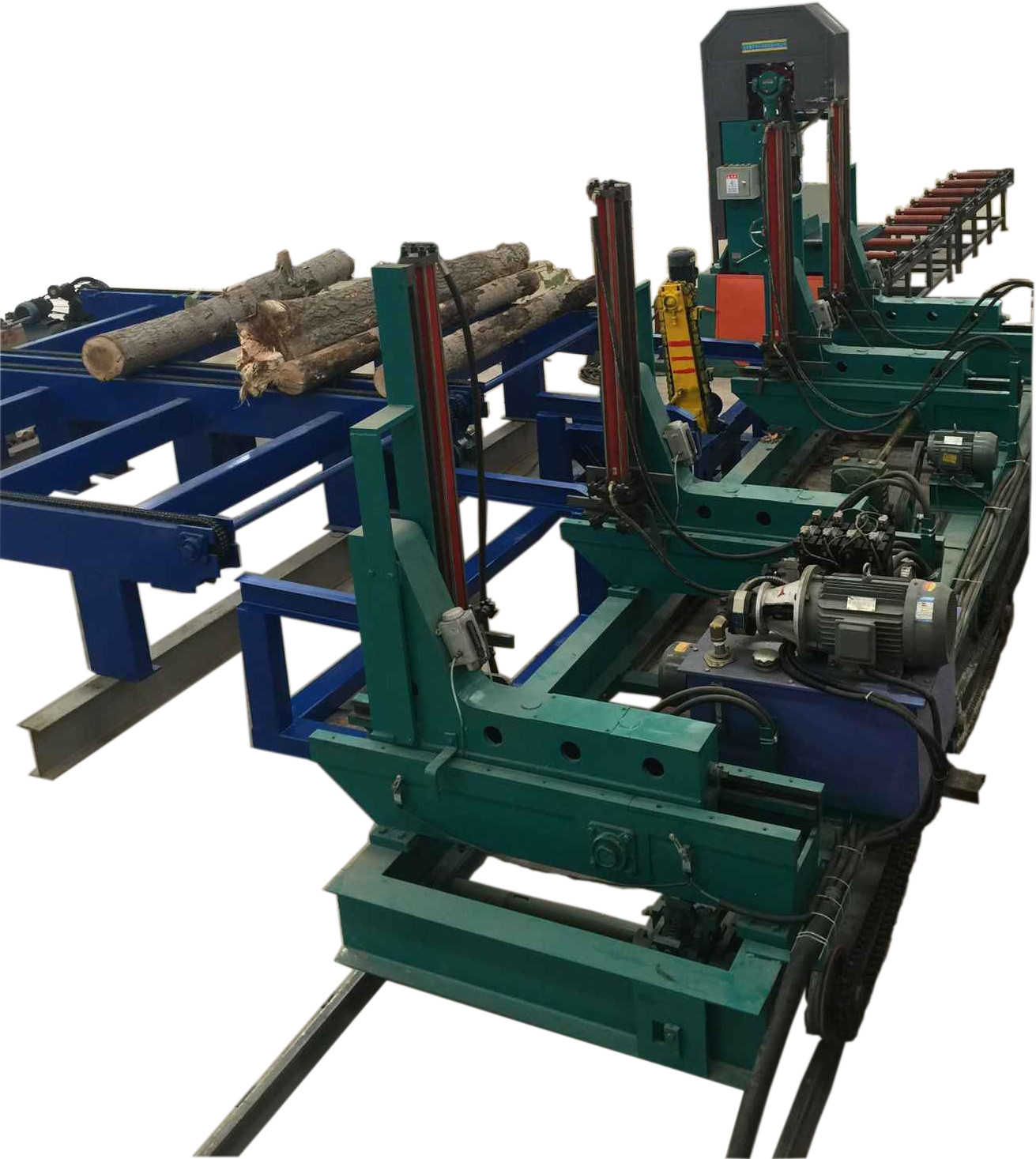

Vertical Band Sawmill With CNC Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
Applications:Processing large and middle logs and square logs together with large-or middle-size wood band saws.
Features:Automatic micro-computer control,feeding,and automatic dimensioning;high efficiency and low labor intensity;high precision,and easy operation.
|
Technical Parameter |
MJ3212-Z5000 | MJ3212-Z3000 | MJ3310-Z5000 | MJ3310-Z3000 |
|
Saw Wheel Diameter (MM) |
1250 | 1250 | 1070 | 1000 |
|
Saw Wheel Speed RPM |
650 | 650 | 650 | 650 |
|
Saw Blade Length (MM) |
8600 | 8600 | 7400 | 7400 |
|
Saw Blade Width(MM) |
150 | 150 | 150 | 150 |
|
Saw Clip Movement Motor( KW) |
0.75 | 0.75 | 0.75 | 0.75 |
|
Saw Wheel Movement Motor( KW) |
0.75 | 0.75 | 0.75 | 0.75 |
|
Main Motor Power( KW) |
37 | 37 | 30 | 30 |
|
Carriage Clip Stake Quantity |
4 | 4 | 4 | 3 |
|
Carriage Wheel Quantity |
3 | 3 | 3 | 2 |
|
forward and backward |
Electric | Electric | Electric | Electric |
|
Sawing Thickness Setting |
Electric | Electric | Electric | Electric |
|
Max Sawing Wood Diameter(MM) |
1200 | 1200 | 1000 | 1000 |
|
Max Sawing Wood Length(MM) |
6000 | 4000 | 6000 | 4000 |
|
Track Length(MM) |
16000 | 12000 | 16000 | 12000 |
|
Weight (KG) |
7200 | 6500 | 4900 | 4200 |
Vertical Bandsaw with Working Table
| Technical Parameter | MJ328 | MJ329 | MJ3210 | MJ3310 | MJ3212 | |
| Saw Wheel Diameter | 800mm | 900mm | 1000mm | 1070mm | 1250mm | |
| Saw Wheel Width | 110mm | 120mm | 120mm | 120mm | 140mm | |
| Saw Wheel Speed | 750r·p·m | 750r·p·m | 750r·p·m | 750r·p·m | 750r·p·m | |
| Saw Wheel& Clip Model | Manual | Manual | Automatic | Automatic | Automatic | |
| Saw Wheel Length | 5700mm | 6400mm | 6800mm | 7400mm | 8600mm | |
| Max Sawing Wood Diameter | 650mm | 750mm | 900mm | 1000mm | 1200mm | |
| Main Motor Power | 11kw | 15kw | 22kw | 30kw | 37kw | |
| Weight | 1000kg | 1300kg | 1600kg | 1800kg | 3200kg | |
Include main motor
Include iron-made safe protective casing
Include manual lubrication
Include foundry work platform
Portable Horizontal Band Sawmill (Electric Model )
| Specifications: | ||||
|
Model |
MJ700E | MJ1000E | MJ1300E | MJ1600E |
|
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
|
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
|
Sawn Thickness |
2-250MM | 2-300MM | 2-300MM | 2-300MM |
|
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Main Motor Power |
15KW | 18.5KW | 22KW | 30KW |
|
Lifting Motor Power |
1.5KW | 1.5KW | 1.5KW | 1.5KW |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |

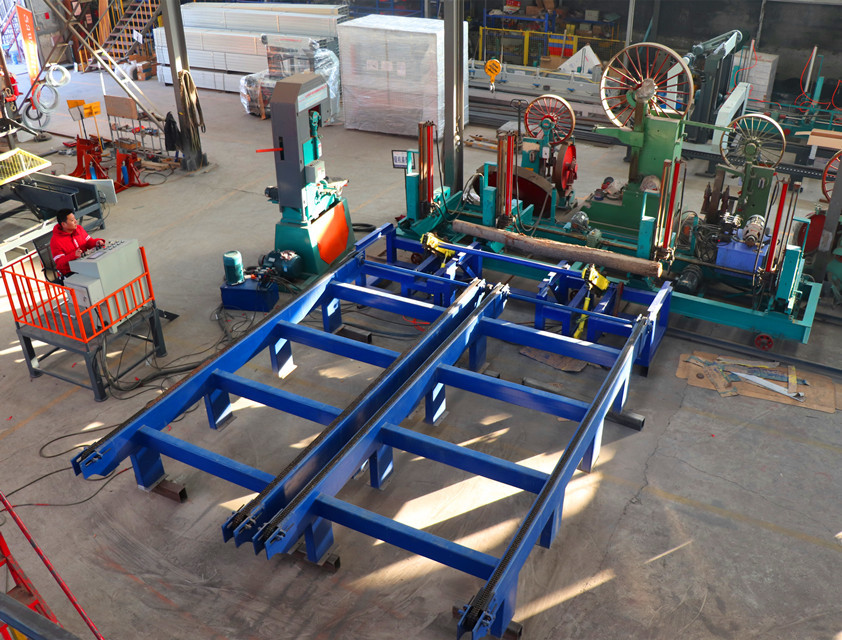

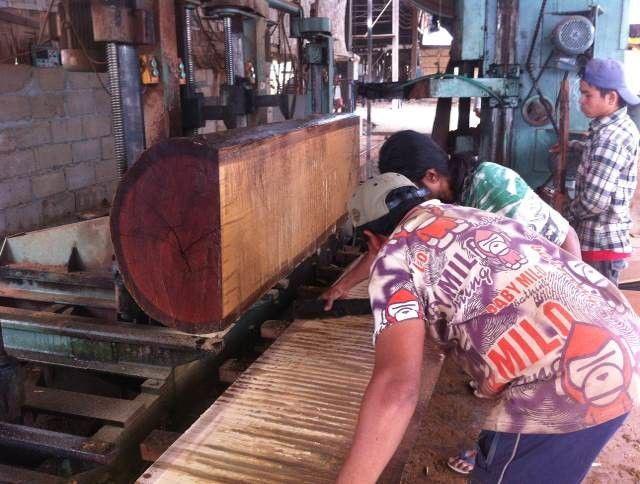

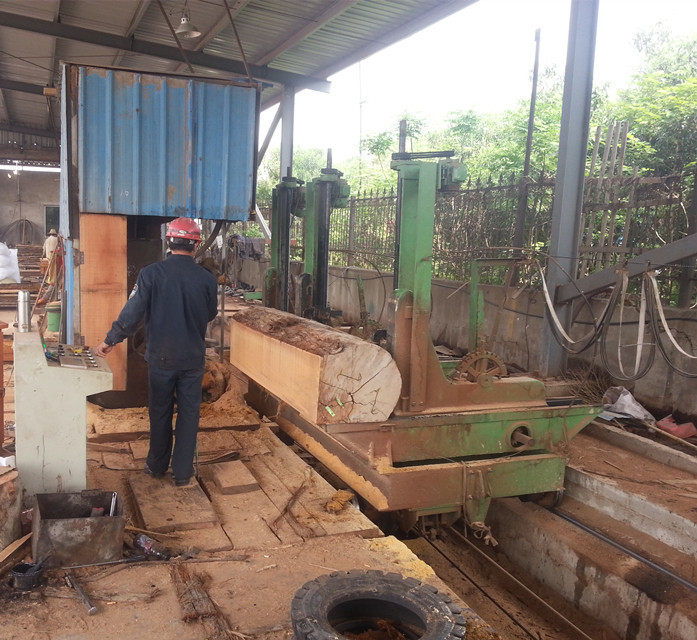

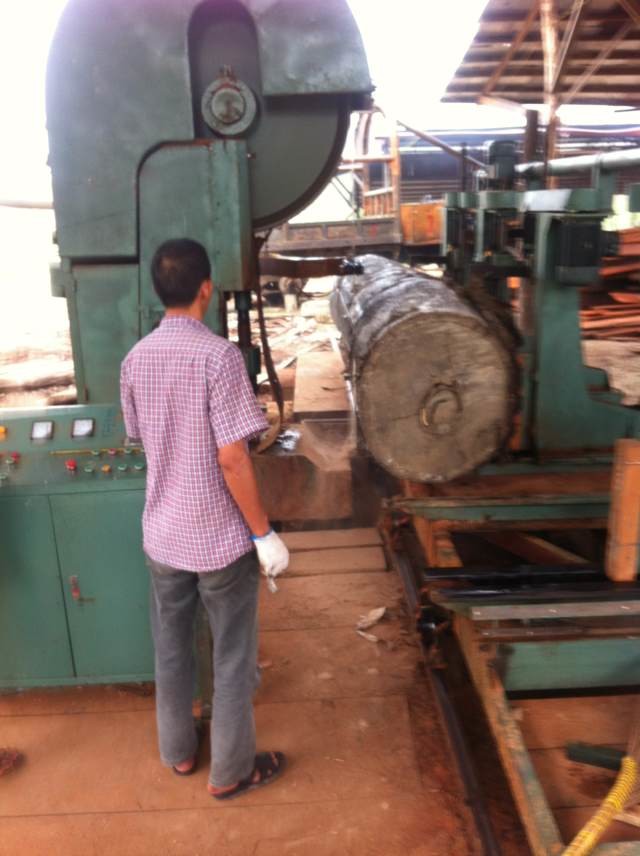

Detailed Images of stanard model:
