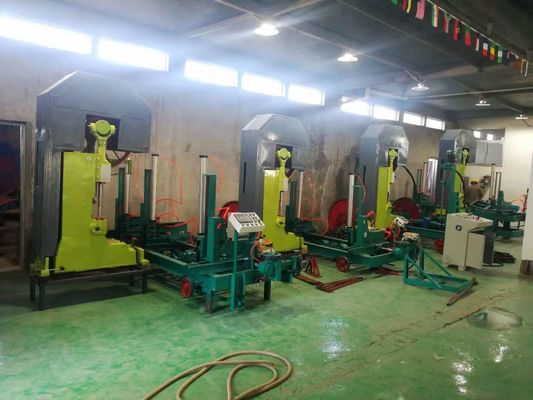

Popular MJ3210 Vertical Band Sawmill with Log Carriage /Automatic feeding Vertical bandsaw Mill
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | MJ3210-DD3000,MJ3210-DD5000,MJ3210-ZD5000 |
| Minimum Order Quantity | 1 SET |
| Price | US $6,700 - 12,000 / Set |
| Packaging Details | container loading |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Vertical Sawmill | Type | Vertical Band Saw |
|---|---|---|---|
| Use | Woodworking | Voltage | 380v,50HZ/3PH Or As Customer Needs |
| Cutting Log Maximum Diameter | 800mm | Main Motor Power | 22KW |
| Cutting Length | 4m/6m Or As Customer Needs | Walking | Electric Or Frequency Variable |
| Operation | ELectric Or Touching Screen Auto Setworks | Log Grasp | Manual Or Electric |
| Warranty | 12 Months | After-sales Service Provided | Engineers Available To Service Machine Overseas |
Product Description
MJ3210 Vertical Band Sawmill with Log Carriage
1.MJ3210 Vertical band sawmill with electric log carriage
- Manual log clamp or pneumatic log clamping
- Electrical log feeding
- Electrical setting sawn sizes
- Cutting log max. diameter 800mm , cutting length 4meters, 6meters or as customer needs
| Technical data | MJ3210-DD3000 | MJ3210-DD5000 |
| Saw wheel diameter | 1000mm | 1000mm |
| Maximum sawing log diameter | 800mm | 800mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 22KW | 22KW |
| Carriage clip stake quantity | 3sets | 4sets |
| Saw blade L*W*T | 6850x125x1.05mm | 6850x125x1.05mm |
| Wood grasp mode | Manual | Manual |
| Carriage walking/advance | Electric | Electric |
| Setting sawn size | Electric | Electric |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 3000kgs | 4000kgs |
2.MJ3210 Vertical band sawmill with CNC auto log carriage
- Pneumatic log clamping
- Automatic log feeding, frequency variable so speed adjustable
- Touching screen setting sawn sizes
- Cutting log max. diameter 800mm , cutting length 4meters, 6meters or as customer needs
- Working video link: https://youtu.be/rX7VEPHzDxE
| Technical data | MJ3210-ZD3000 | MJ3210-ZD5000 |
| Saw wheel diameter | 1000mm | 1000mm |
| Maximum sawing log diameter | 800mm | 800mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 22KW | 22KW |
| Carriage clip stake quantity | 3sets | 4sets |
| Saw blade L*W*T | 6850x125x1.05mm | 6850x125x1.05mm |
| Wood grasp mode | Electric | Electric |
| Carriage walking/advance | Frequency converter | Frequency converter |
| Setting sawn size | PLC touching screen | PLC touching screen |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 3000kgs | 4000kgs |
Portable Horizontal Band Sawmill (Electric Model )
- Portable horizontal band saw which is easy to install and operate.
- Finished with Carbide band saw blade for hard wood cutting .
- The sawing kerf is small, reduce the waste to high output.
- The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .
| Specifications: | ||||
|
Model |
MJ700E | MJ1000E | MJ1300E | MJ1600E |
|
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
|
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
|
Sawn Thickness |
2-250MM | 2-300MM | 2-300MM | 2-300MM |
|
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Main Motor Power |
15KW | 18.5KW | 22KW | 30KW |
|
Lifting Motor Power |
1.5KW | 1.5KW | 1.5KW | 1.5KW |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
Detailed Images of stanard model:
