MJ329 Vertical Band Sawmill with Log Carriage /Manual or electric feeding vertical band saw
| Place of Origin | shandong province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | MJ329-ST3000,MJ329-ST5000,MJ329-DD5000 |
| Minimum Order Quantity | 1 SET |
| Price | US $3,900 - 8,900 / Set |
| Packaging Details | container loading |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Vertical Band Saw |
|---|---|---|---|
| Usage | Woodworking | Warranty | 12 Months |
| Voltage | 380V/3PH/50HZ Or As Customer Needs | After-sale Service Provide | Engineer Available To Service Machine Overseas |
| Main Motor Power | 18.5KW | Cutting Log Maximum Diameter | 700mm |
| Cutting Length | 5meters Or As Customer Needs | Feeding | Manual Or Electric Walking |
| Operation | Manual Or Electric Setting Sawn Sizes |
Product Description
Vertical Band Sawmill with Log Carriage

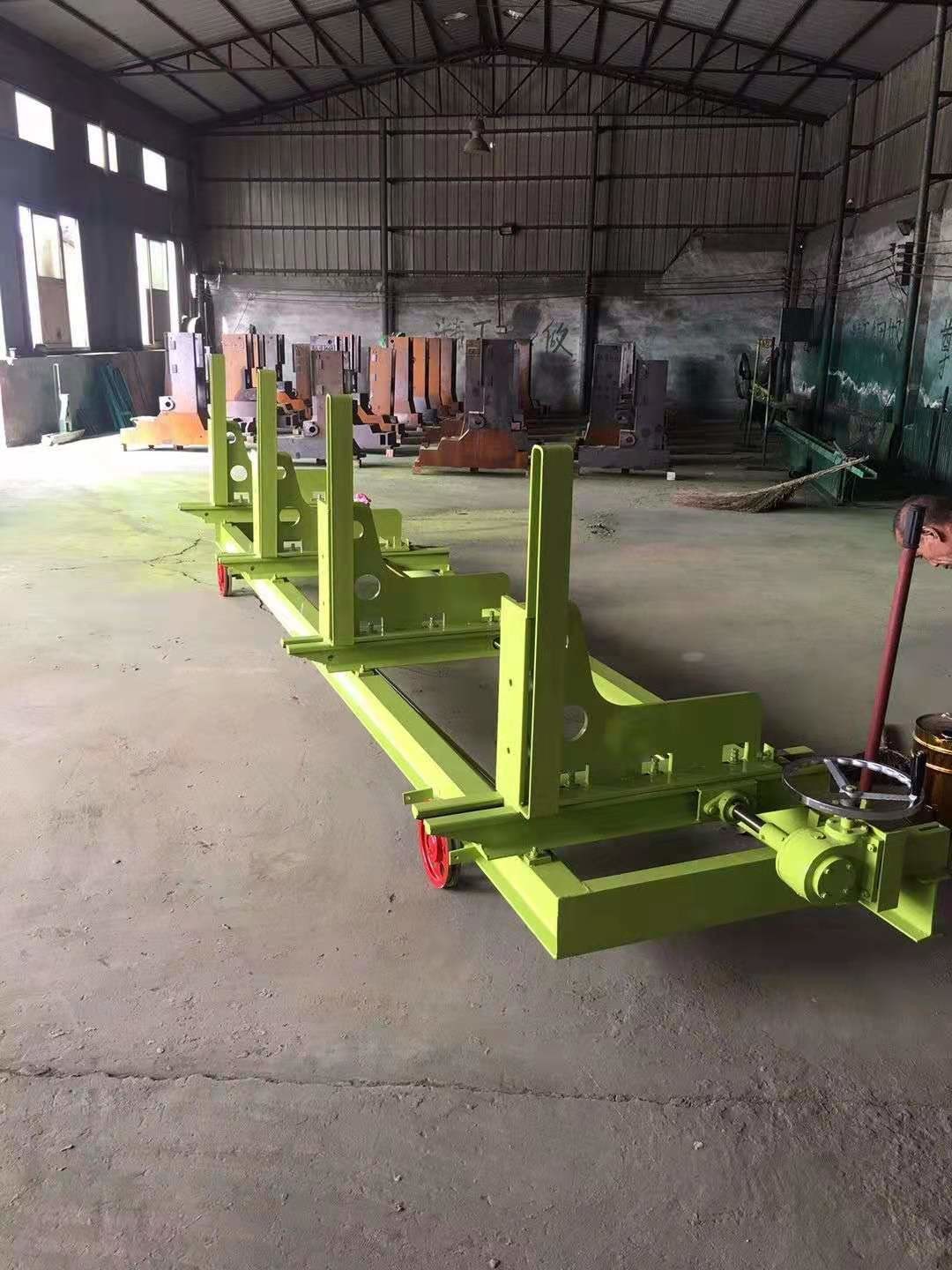

1.MJ329 vertical band sawmill with manual log carriage
- cutting log max. diameter : 700mm
- cutting log length : 4meters, 6meters or as customer needs
- manual log feeding
- manaul log clamp
- manual setting saw sizes
| Technical data | MJ329-ST3000 | MJ329-ST5000 |
| Saw wheel diameter | 900mm | 900mm |
| Maximum sawing log diameter | 700mm | 700mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 18.5KW | 18.5KW |
| Carriage clip stake quantity | 3sets | 4sets |
| Saw blade L*W*T | 6400x125x1.05mm | 6400x125x1.05mm |
| Wood grasp mode | Manual | Manual |
| Carriage walking/advance | Manual | Manual |
| Setting sawn size | Manual | Manual |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 2000kgs | 2500kgs |

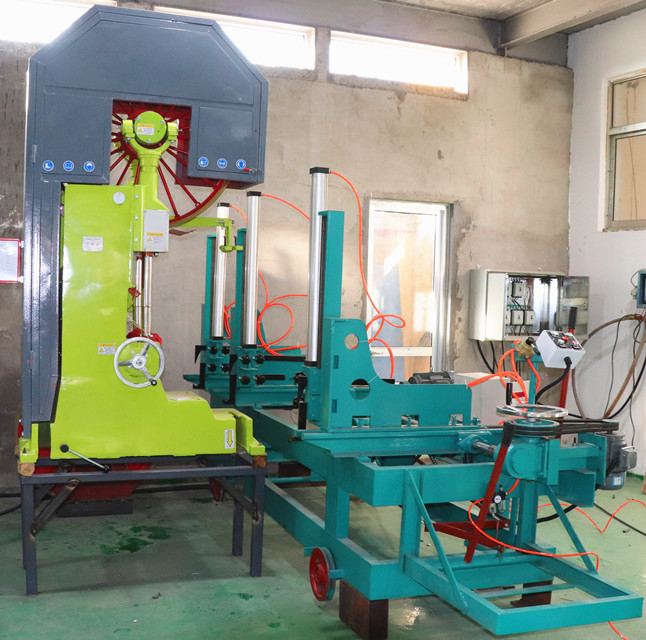

2. MJ329 Vertical band sawmill with Electric Log Carriage
- Pneumatic log clamp
- Electrical log feeding
- Electrical setting sawn sizes
- Optional parts : Computer touching screen setting sawing sizes ; Frequency auto feeding ; Hydraulic log rotation
- Working video link : https://youtu.be/955DpvhpPtk or https://youtu.be/rX7VEPHzDxE or https://youtu.be/WCwNR31QEcw
| Technical data | MJ329-DD3000 | MJ329-DD5000 |
| Saw wheel diameter | 900mm | 900mm |
| Maximum sawing log diameter | 700mm | 700mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 18.5KW | 18.5KW |
| Carriage clip stake quantity | 3sets | 4sets |
| Saw blade L*W*T | 6400x125x1.05mm | 6400x125x1.05mm |
| Wood grasp mode | Manual | Manual |
| Carriage walking/advance | Electric | Electric |
| Setting sawn size | Electric | Electric |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 2000kgs | 2500kgs |
