Timber Sawmill Machine Wood Cutting Vertical Band Saw Machine Band Saw Carriage

1 SET
MOQ
US $3,000 - 50,000 / Set
Price
Timber Sawmill Machine Wood Cutting Vertical Band Saw Machine Band Saw Carriage
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Vertical Band Saw
Use: Woodworking
Usage: Wood Logs Cutting
Voltage: 380v,50HZ/3phase Or As Requested
Power(W): 30kw To 50kw
Opertion: Manual Or Electric Button Or CNC Digital Controlling
Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machine Overseas
Basic Infomation
Place of Origin: shandong province
Brand Name: SH
Certification: ISO
Model Number: MJ3212-Z5000,MJ3212-Z3000,MJ3210-Z5000,MJ3310-Z3000
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1500sets/year
Product Description

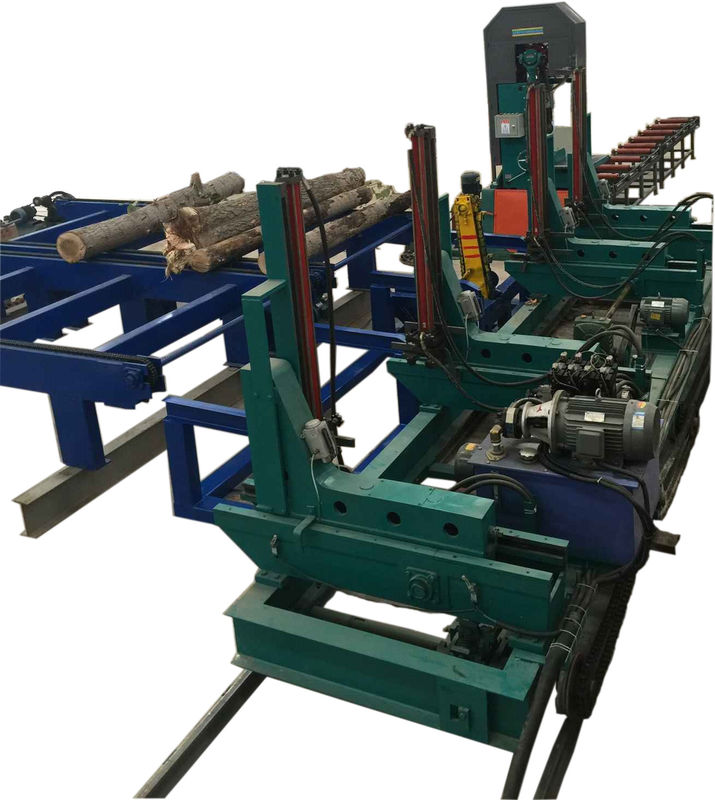

Vertical Band Sawmill With CNC Log Carriage

This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.





Technical Parameter

MJ3212-Z5000 MJ3212-Z3000 MJ3310-Z5000 MJ3310-Z3000



Saw Wheel Diameter (MM)

1250 1250 1070 1000



Saw Wheel Speed RPM

650 650 650 650



Saw Blade Length (MM)

8600 8600 7400 7400



Saw Blade Width(MM)

150 150 150 150



Saw Clip Movement Motor( KW)

0.75 0.75 0.75 0.75



Saw Wheel Movement Motor( KW)

0.75 0.75 0.75 0.75



Main Motor Power( KW)

37 37 30 30



Carriage Clip Stake Quantity

4 4 4 3



Carriage Wheel Quantity

3 3 3 2



forward and backward

Electric Electric Electric Electric



Sawing Thickness Setting

Electric Electric Electric Electric



Max Sawing Wood Diameter(MM)

1200 1200 1000 1000



Max Sawing Wood Length(MM)

6000 4000 6000 4000



Track Length(MM)

16000 12000 16000 12000



Weight (KG)

7200 6500 4900 4200

Timber Sawmill Machine Wood Cutting Vertical Band Saw Machine Band Saw Carriage 0

Timber Sawmill Machine Wood Cutting Vertical Band Saw Machine Band Saw Carriage 1

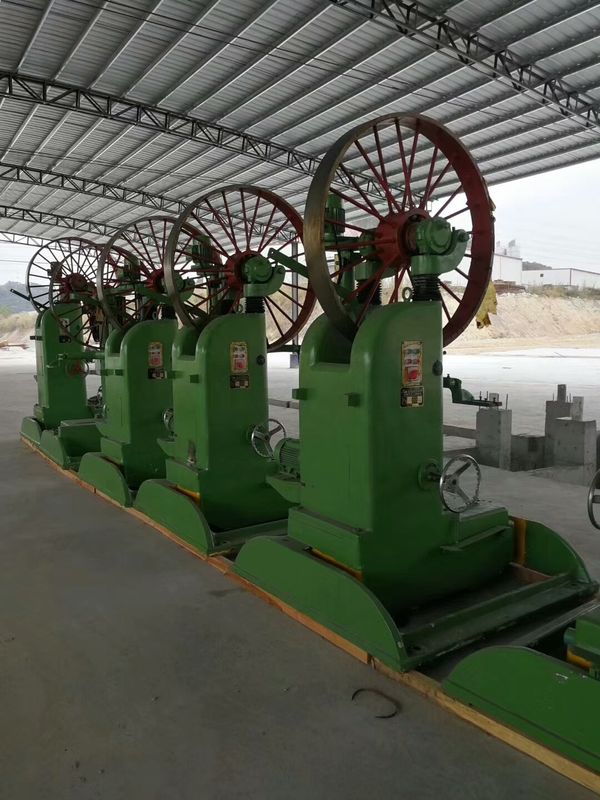

Platform Woodwork Band Saw

Technical parameters MJ328 MJ329 MJ3210 MJ3310 MJ3212
Diameter of saw wheel 800mm 900mm 1000mm 1070mm 1250mm
Width of saw wheel 110mm 120mm 120mm 120mm 140mm
Rotational speed of saw wheel 750r·p·m 750r·p·m 750r·p·m 750r·p·m 750r·p·m
saw wheel, saw clip elevation Manual Manual Automatic Automatic Automatic
Length of blade 5700mm 6400mm 6800mm 7400mm 8600mm
Max. diameter of log sawed 650mm 750mm 900mm 1000mm 1200mm
Main motor power 11kw 15kw 22kw 30kw 37kw
weight 1000kg 1300kg 1600kg 1800kg 3200kg
1,include Main motor power
2,include band saw blade 1 Article
3,include Iron-made safe protective casing
4,include Manual lubrication system
5,include Foundry work platform

Timber Sawmill Machine Wood Cutting Vertical Band Saw Machine Band Saw Carriage 2

Timber Sawmill Machine Wood Cutting Vertical Band Saw Machine Band Saw Carriage 3
