Twin Vertical Band Saw Log Edges Cutting Sawmill,Multisaw Edge Cutting Saw

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001:2008
Model Number SLSP400,SLS350, SLS500
Minimum Order Quantity 1 SET
Price US $12,000 - 50,000 / Set
Packaging Details container loading
Delivery Time within 25 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Twin Vertical Band Sawmill Type Band Saw
Use Woodworking Style Vertical
Power(W) 2*18.5KW-2*22KW Dimension 12000*2300*3500mm
Application Cut Four Side Of Log,produce Timber Saw Wheel Diameter 700MM , 760MM
Max. Sawing Wood Diameter 500MM Control CNC Digital
Feeding Speed Variable Frequency Speed Adjustable Voltage 380V, 50HZ, 3PH Or As Customer Needs
Weight 1500KG Warranty 12 Months
Leave a Message
Product Description

Block Bandsaw/ Twin Vertical Band Saw (Flat bottom)
Designed to receive logs with at least one straight bottom, making two vertical cuts, removing a slab from each side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· Block 100% Square

· High-production continuous feed system.

· Production up to 4,000 m³ per month.

· Highly efficient use of wood, with the thinnest kerf on the market.

· Motorization and automatic electric panel included.

· Automatic feeding, inverter speed adjustable .



Technical data :

Model SLSP400
Maximum log diameter 400mm
Minimum log diameter 100mm
Wood length 1000~3000mm
Feed speed 9~25m/min
Conveyor length 7000mm
Bandwheel diameter 700mm
Blade width 50~80mm
Saw motor 18.5KW X 2
Feed motor 5.5kw
Weight 2500kg



Deatiled Image

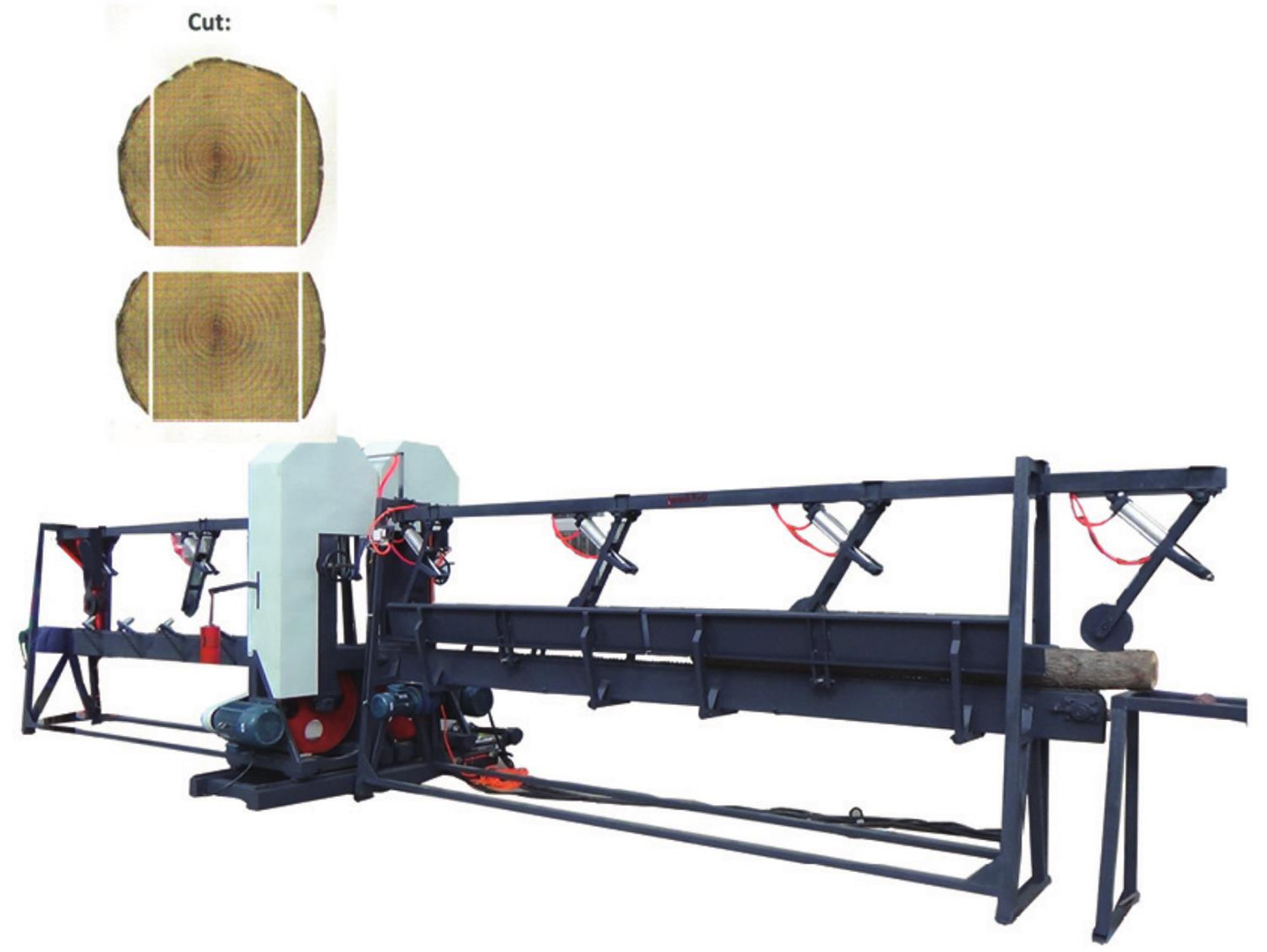

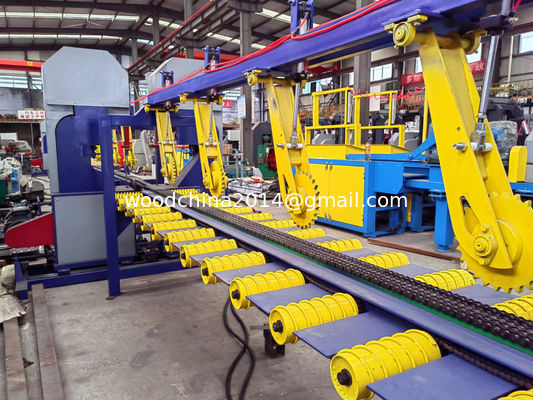

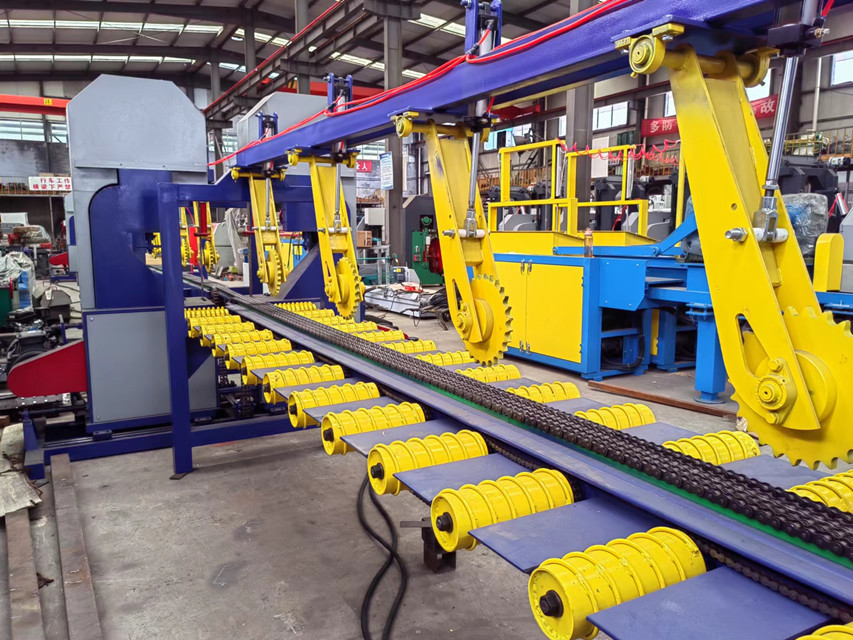

Twin Vertical Band Saw Log Edges Cutting Sawmill,Multisaw Edge Cutting Saw 0Twin Vertical Band Saw Log Edges Cutting Sawmill,Multisaw Edge Cutting Saw 1Twin Vertical Band Saw Log Edges Cutting Sawmill,Multisaw Edge Cutting Saw 2

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed



Technical Specifications:

Technical data SLS350 SLS500
Maximum log diameter 350mm 500mm
Minimum log diameter 100mm 100mm
Wood length 1000 to 3000mm 1000 to 3000mm
Feed speed 9-25m/min (inverter) 9-25m/min (inverter)
Conveyor length 7000mm 3500mm x 2
Band wheel diameter 700mm 760mm
Width of saw blade 50-80mm 50-100mm
Length of saw blade 4850 5200mm
Thickness of saw blade 0.9mm 0.9mm
Saw motor 2x18.5kw 2x22kw
Feed motor 5.5kw 4kw x 2
Sawn sizing control Touching screen auto setworks Touching screen auto setworks



Photos

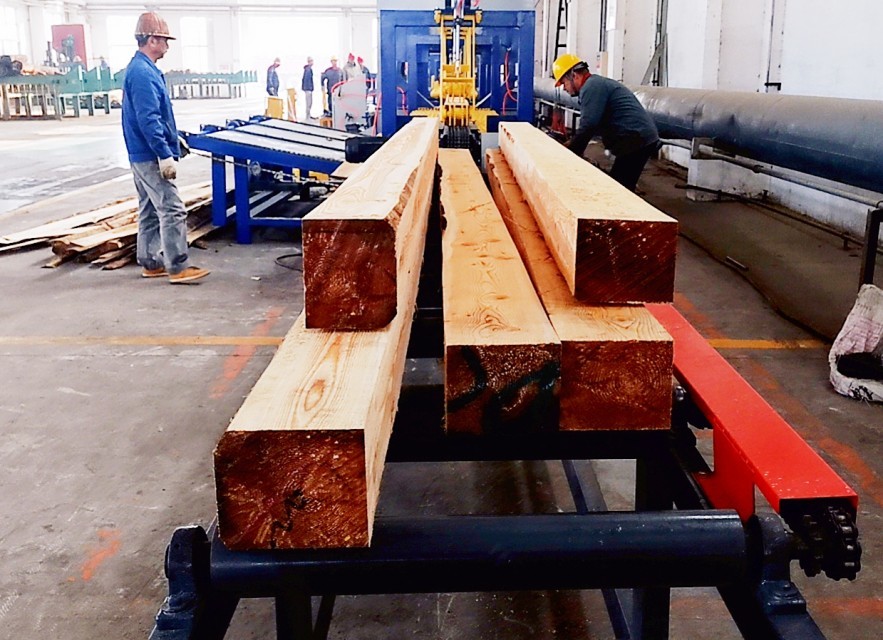

Twin Vertical Band Saw Log Edges Cutting Sawmill,Multisaw Edge Cutting Saw 3Twin Vertical Band Saw Log Edges Cutting Sawmill,Multisaw Edge Cutting Saw 4

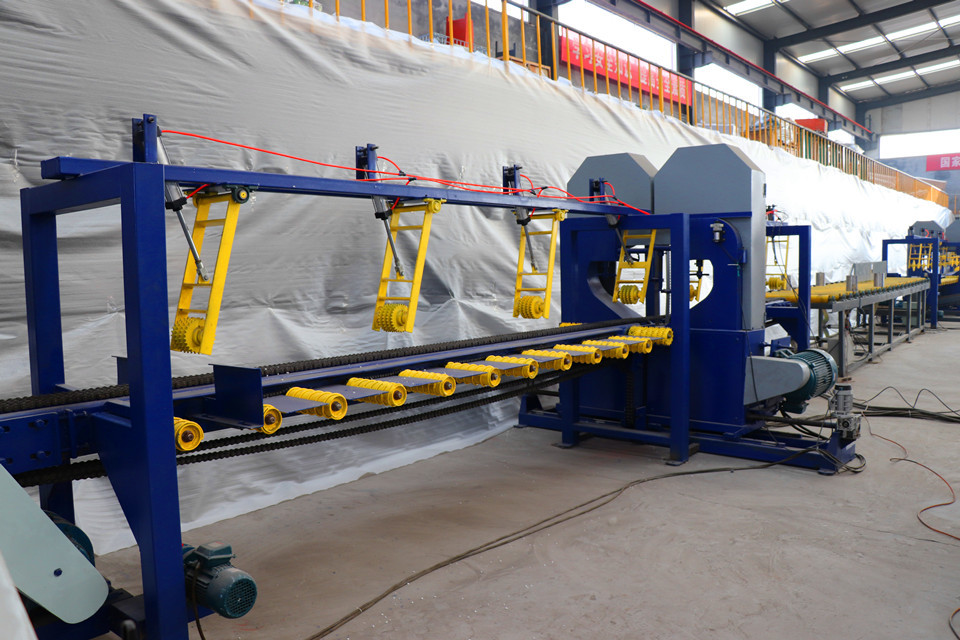

Automatic Twin bandsaw Production Line

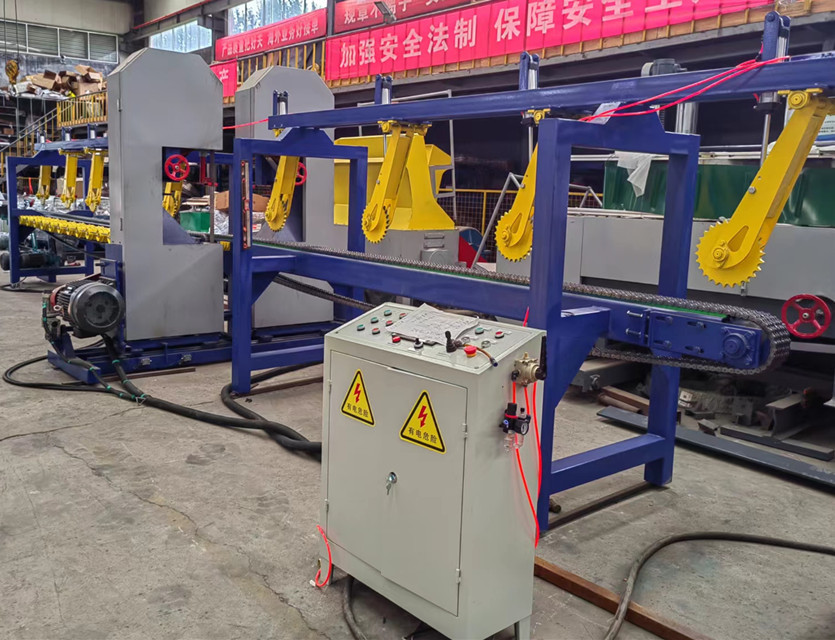

Twin Vertical Band Saw Log Edges Cutting Sawmill,Multisaw Edge Cutting Saw 5

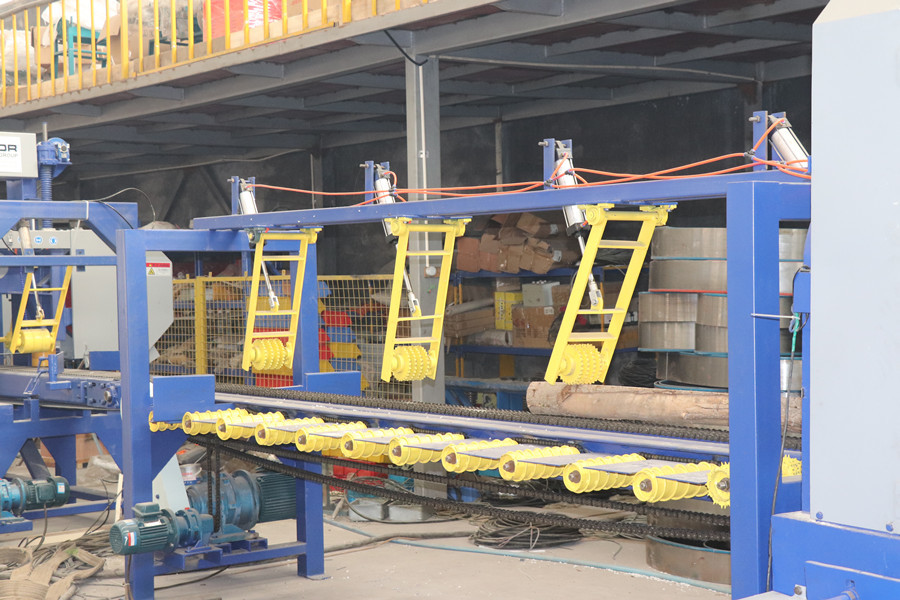

Twin Vertical Band Saw Log Edges Cutting Sawmill,Multisaw Edge Cutting Saw 6
