Twin vertical wood band saw, log sawing sawmill machine with frequency feeding
TWIN BANDSAW FOR LOG EDGES CUTTING
Designed to receive logs and make two vertical cuts removing a slab from either side of the log.
· Ideal to cut pine, eucalyptus, and teak.
· High-precision cutting.
· Laterally-supported chain.
· High-production continuous feed system.
· Produces up to 4,000 m³ per month.
· Highly efficient use of wood, with the finest cut on the market.
· Motorization and control panel included.
· Automatic feed
Technical Specifications:
| Technical data | SLS350 | SLS500 |
| Maximum log diameter | 350mm | 500mm |
| Minimum log diameter | 100mm | 100mm |
| Wood length | 1000 to 3000mm | 1000 to 3000mm |
| Feed speed | 9-25m/min (inverter) | 9-25m/min (inverter) |
| Conveyor length | 7000mm | 3500mm x 2 |
| Band wheel diameter | 700mm | 760mm |
| Width of saw blade | 50-80mm | 50-100mm |
| Length of saw blade | 4850 | 5200mm |
| Thickness of saw blade | 0.9mm | 0.9mm |
| Saw motor | 2x18.5kw | 2x22kw |
| Feed motor | 5.5kw | 4kw x 2 |
| Sawn sizing control | Touching screen auto setworks | Touching screen auto setworks |

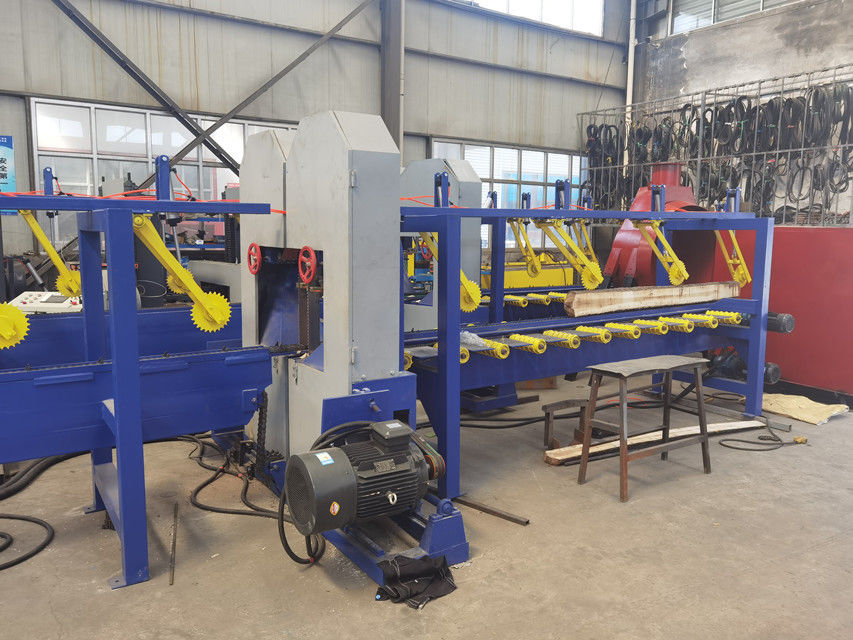

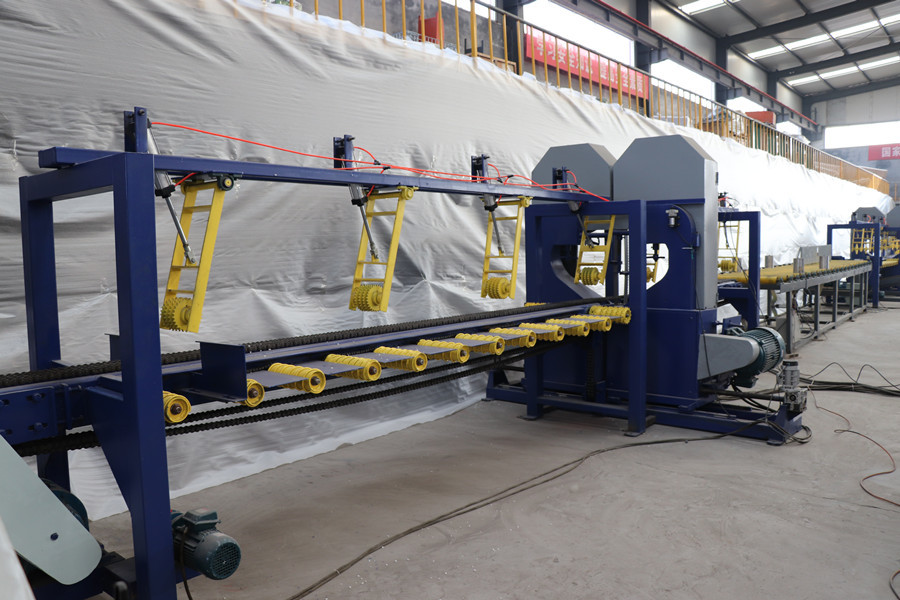

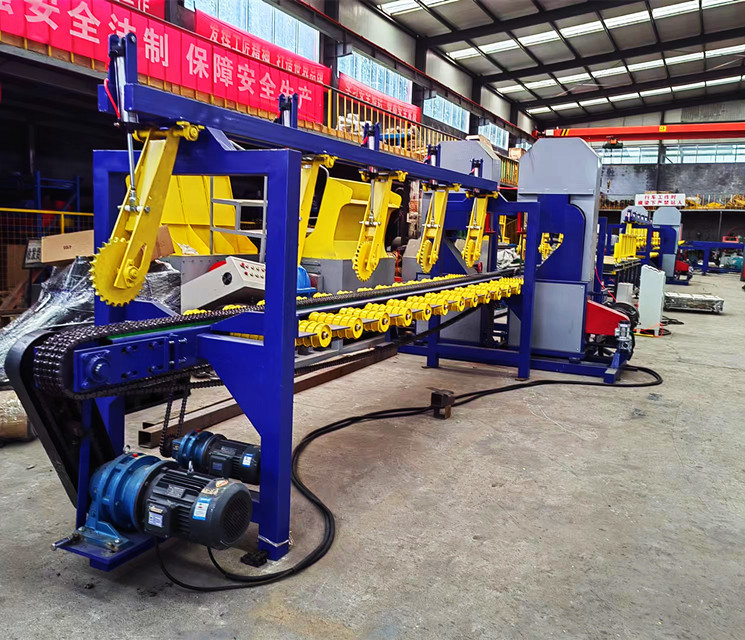

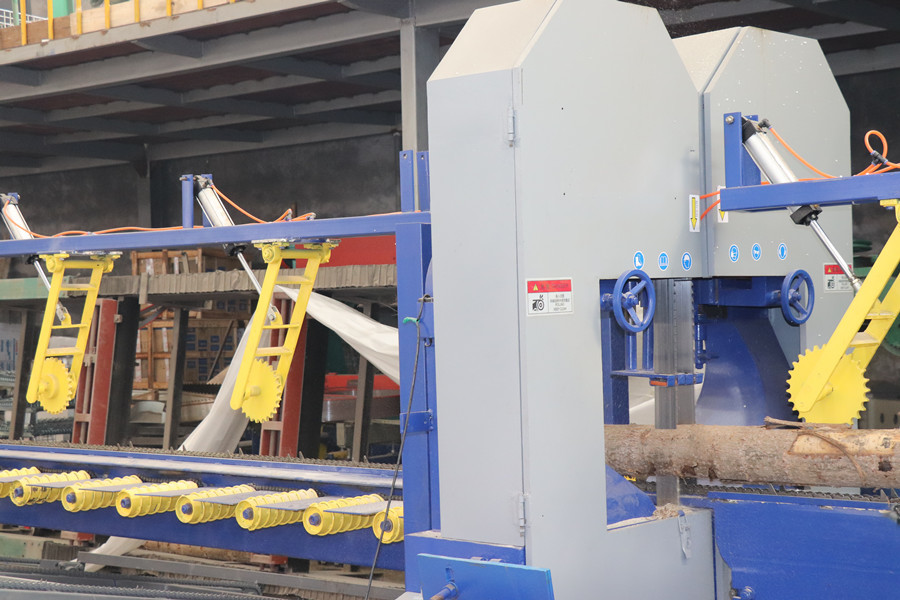

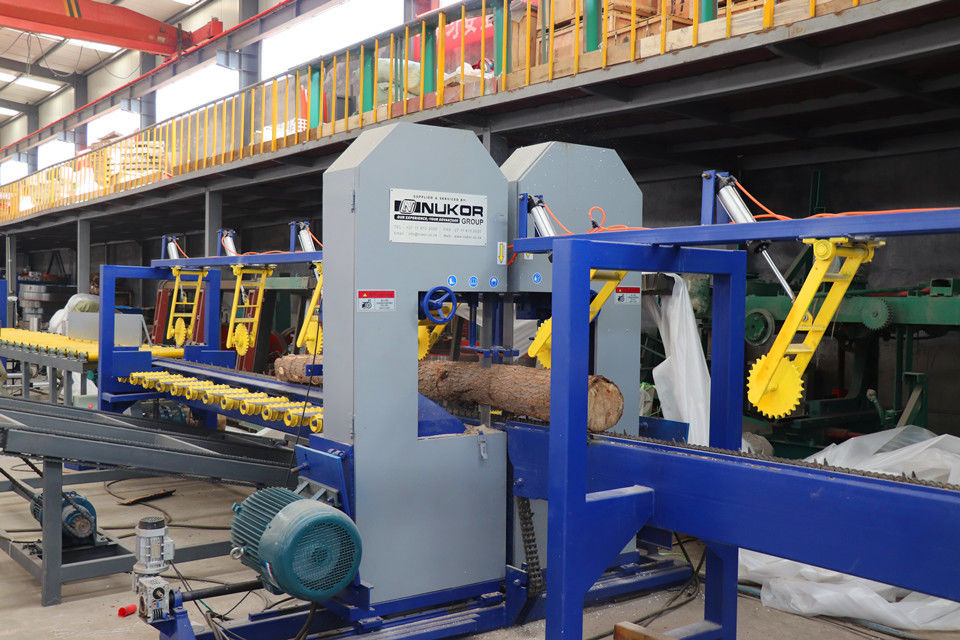

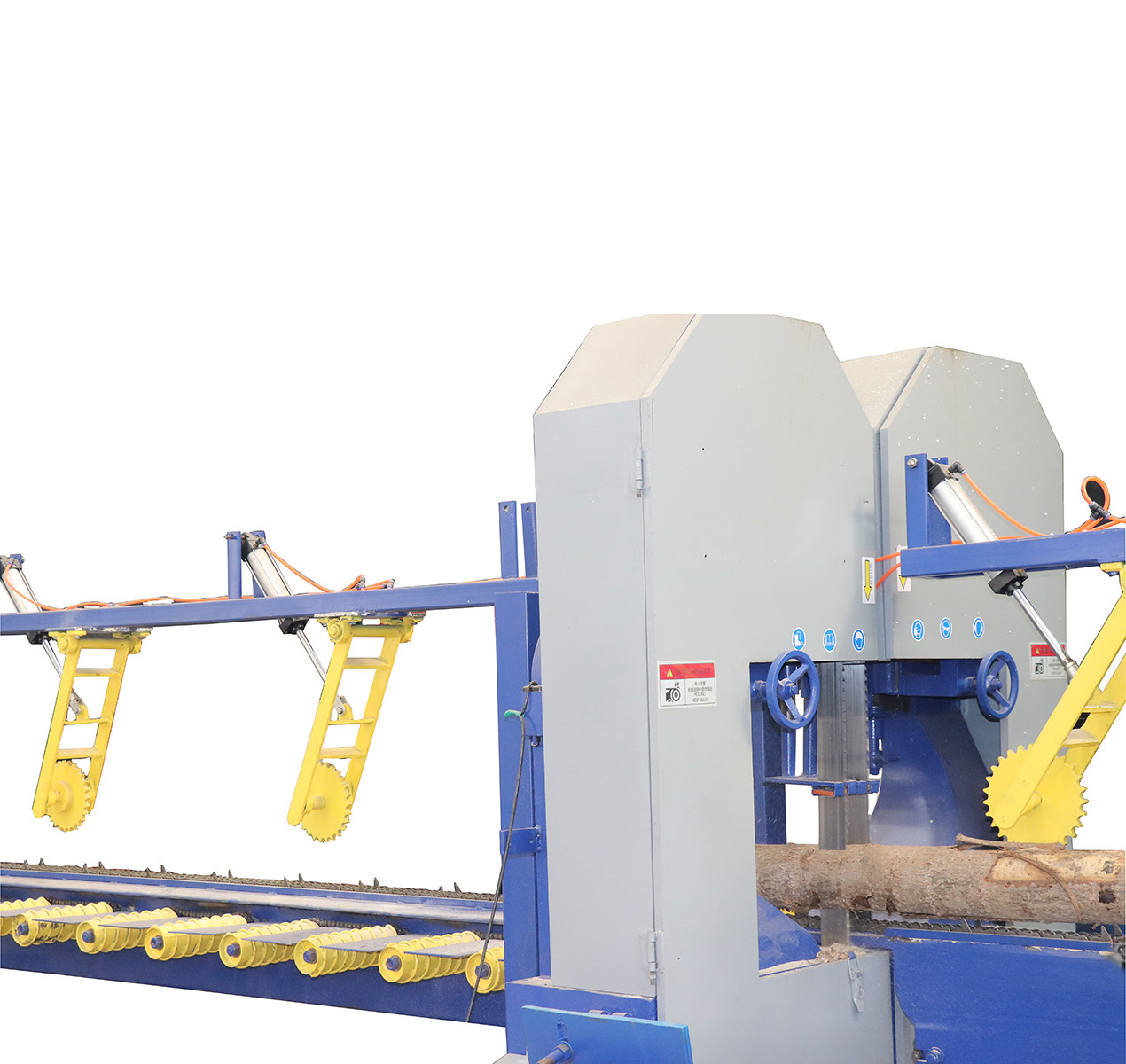

Photos
Optional - slabs slope conveyor
Optional - log loading deck
Complete Sawmill Line -design as customer needs
Multi Heads Band Resaw
Technical data
| Technical specifications | DT300-1 | DT300-2 | DT300-3 | DT300-5 | DT300-6 |
| Sawing width | 300mm | 300mm | 300mm | 300mm | 300mm |
| Minimum wood thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
| Maximum wood height | 260mm | 260mm | 260mm | 260mm | 260mm |
| Band wheel diameter | 700mm | 700mm | 700mm | 700mm | 700mm |
| Saw motor | 15kw | 15kw x 2 | 15kw x 3 | 15kw x 5 | 15kw x 6 |
| Saw machine length | 3500mm | 4500mm | 5800mm | 8500mm | 11000 |
| Weight | 900kg | 1500kg | 2200kg | 3500kg | 5000kg |
| Feeding | Variable frequency speed adjustable conveyor | ||||
| Operation | Touching screen auto setworks for sawn thickness | ||||
Detailed Image -6heads reaw equipment
Slabs Cutting Saw
Specifications:
|
Model Specifications |
BPJ200 | BPJ250 | BPJ300 |
| Cutting width (mm) | 200 | 250 | 300 |
| Motor power (KW) | 7.5kw x 2 | 7.5kw x 2 | 7.5kw x 2 |
| Feeding | Frequency variable auto feeding | ||
| Circular blade diameter (mm) | 300 | 355 | 405 |
| Weight (kg) | 200 | 220 | 250 |
Multi Blades Rip Saw
Technical data :
| Model | ZHW800-70 | ZHW800-80 | ZHW800-100 |
| Sawing wood height | 10-70mm | 10-80mm | 20-100mm |
| Sawing wood width | 800mm | 800mm | 800mm |
| Carbide blade diameter | 280mm | 305mm | 355mm |
| Main motor | 22KW | 30KW | 37KW |
| Blade quantity | 1P-10P | 1P-10P | 1P-10P |
| Rotation speed | 3500/min | 3500/min | 3500/min |
