Computer control twin blade vertical band sawmill for sale, Automatic saw equipment for log sawing

1 SET
MOQ
US $12,500 - 18,000 / Set
Price
Computer control twin blade vertical band sawmill for sale, Automatic saw equipment for log sawing
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Twin Vertical Band Saw Machine
Application: Cut Four Side Of Log,produce Timber
Saw Wheel Diameter: 700MM
Bandsaw Blade Width: 50mm To 80mm
Max. Sawing Wood Diameter: 500MM
Min Sawing Log Diameter: 100mm
Control: CNC Digital
Feeding Speed: Variable Frequency Speed Adjustable
Sawing Log Length: 1000mm To 3000mm Or As Customer Needs
Warranty: 12 Months
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: SLS350, SLS500
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 500sets/year
Product Description

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed



Technical Specifications:

Technical data SLS350 SLS500
Maximum log diameter 350mm 500mm
Minimum log diameter 100mm 100mm
Wood length 1000 to 3000mm 1000 to 3000mm
Feed speed 9-25m/min (inverter) 9-25m/min (inverter)
Conveyor length 7000mm 3500mm x 2
Band wheel diameter 700mm 760mm
Width of saw blade 50-80mm 50-100mm
Length of saw blade 4850 5200mm
Thickness of saw blade 0.9mm 0.9mm
Saw motor 2x18.5kw 2x22kw
Feed motor 5.5kw 4kw x 2
Sawn sizing control Touching screen auto setworks Touching screen auto setworks



Photos

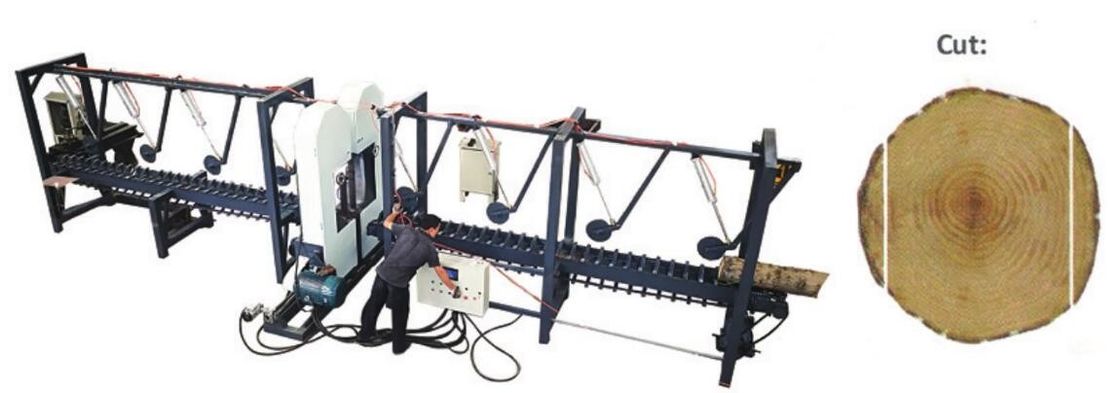

Computer control twin blade vertical band sawmill for sale, Automatic saw equipment for log sawing 0

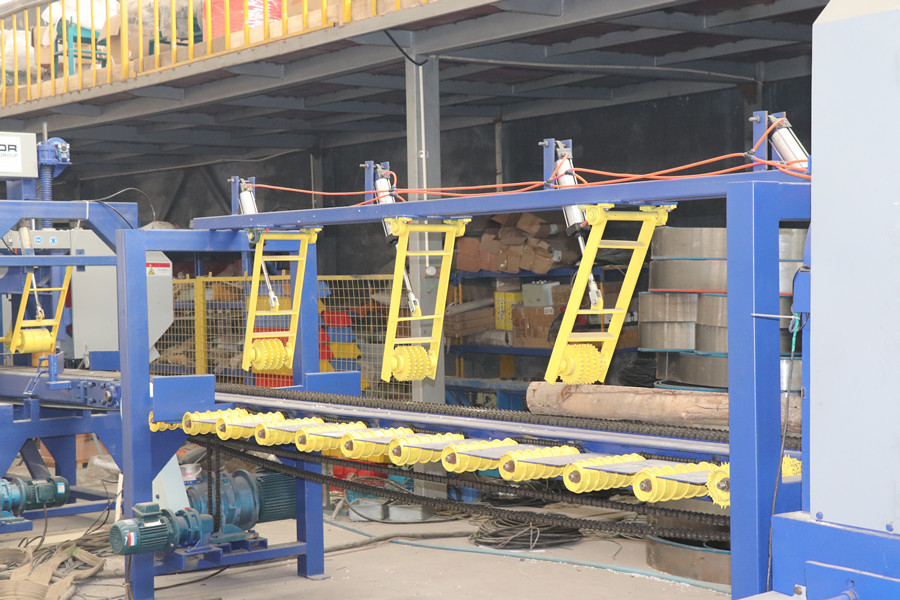

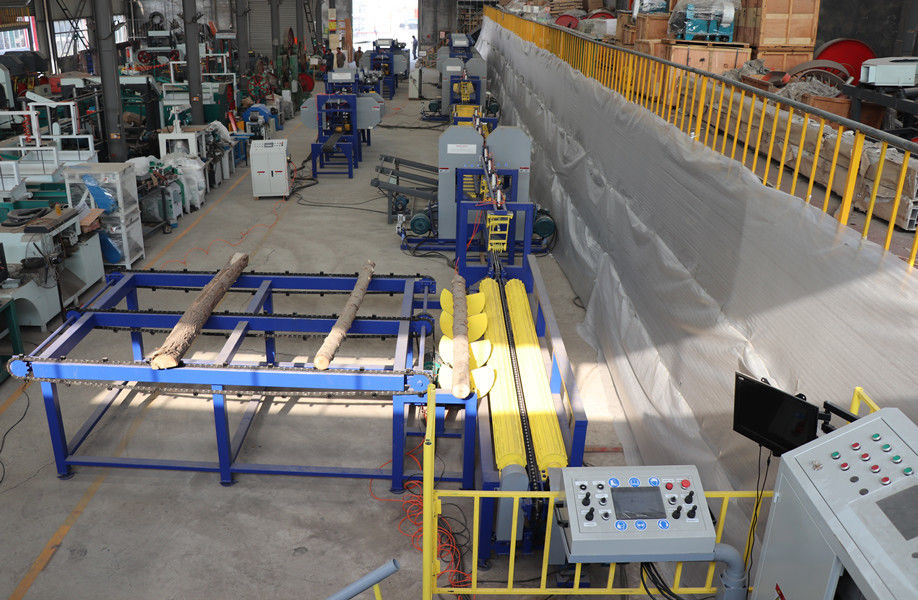

Computer control twin blade vertical band sawmill for sale, Automatic saw equipment for log sawing 1Computer control twin blade vertical band sawmill for sale, Automatic saw equipment for log sawing 2

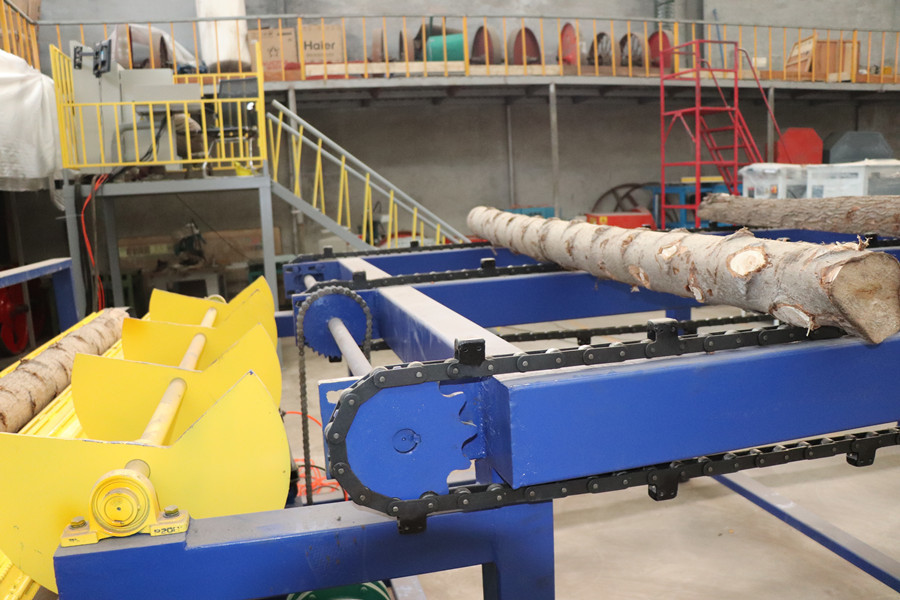

Computer control twin blade vertical band sawmill for sale, Automatic saw equipment for log sawing 3

Related Saw Machine



Block Bandsaw/ Twin Vertical Band Saw (Flat bottom)
Designed to receive logs with at least one straight bottom, making two vertical cuts, removing a slab from each side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· Block 100% Square

· High-production continuous feed system.

· Production up to 4,000 m³ per month.

· Highly efficient use of wood, with the thinnest kerf on the market.

· Motorization and automatic electric panel included.

· Automatic feeding, inverter speed adjustable .



Technical data :

Model SLSP400
Maximum log diameter 400mm
Minimum log diameter 100mm
Wood length 1000~3000mm
Feed speed 9~25m/min
Conveyor length 7000mm
Bandwheel diameter 700mm
Blade width 50~80mm
Saw motor 18.5KW X 2
Feed motor 5.5kw
Weight 2500kg



Deatiled Image

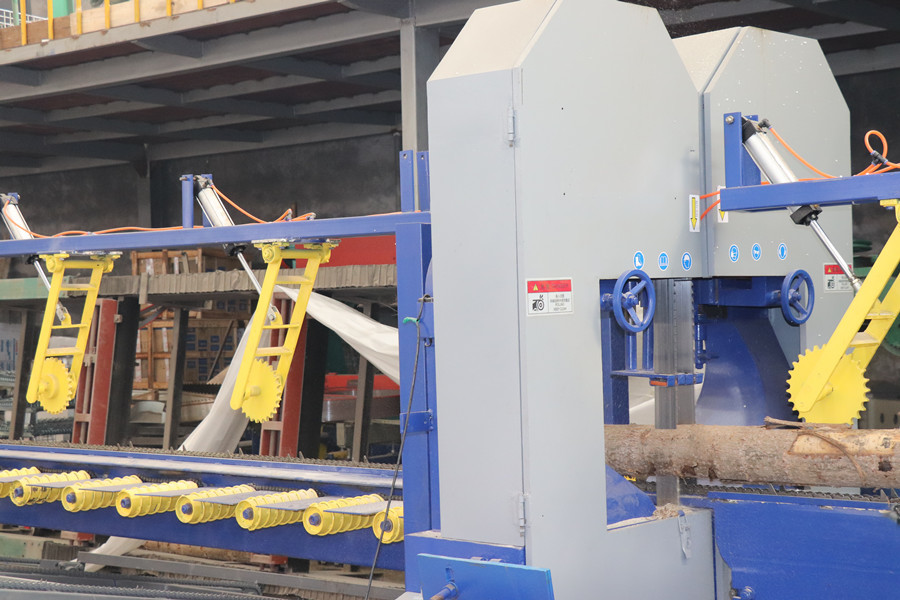

Computer control twin blade vertical band sawmill for sale, Automatic saw equipment for log sawing 4
