| Place of Origin: | shandong province, China |
| Brand Name: | SH |
| Certification: | ISO9001 |
| Model Number: | TVBS600, TVBS700, TVBS800 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $13,000 - 50,000 / Set |
| Packaging Details: | container loading |
| Delivery Time: | within 15 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 1Dual Blade Saw Wood Cutting Band Sawmill Tree Planks Cutting Machine Cut two side or four side of round log , Feeding by Chain Type Conveyor Touch Screen Setting Sawing Size And Digital Display Variable Frequency Speed Adjustable Feeding Speed Model TVB |
| Condition: | New | Type: | Band Saw |
|---|---|---|---|
| Style: | Vertical | Use: | Woodworking |
| Voltage: | 380V, 50HZ, 3PH Or As Customer Needs | Power(W): | 2*11KW-2*18.5KW |
| Dimension: | 12000*2300*3500mm | Weight: | 1500KG |
| Application: | Cut Four Side Of Log,produce Timber | Saw Wheel Diameter: | 700MM , 800MM |
| Max. Sawing Wood Diameter: | 600MM | Control: | CNC Digital |
| Feeding Speed: | Variable Frequency Speed Adjustab |

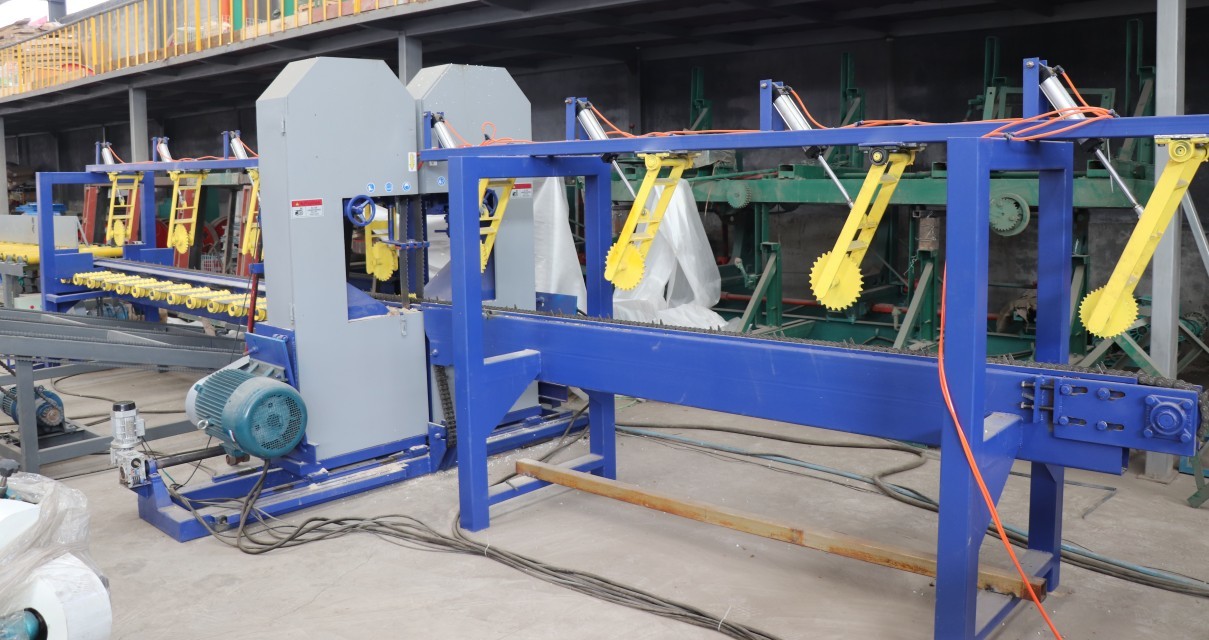

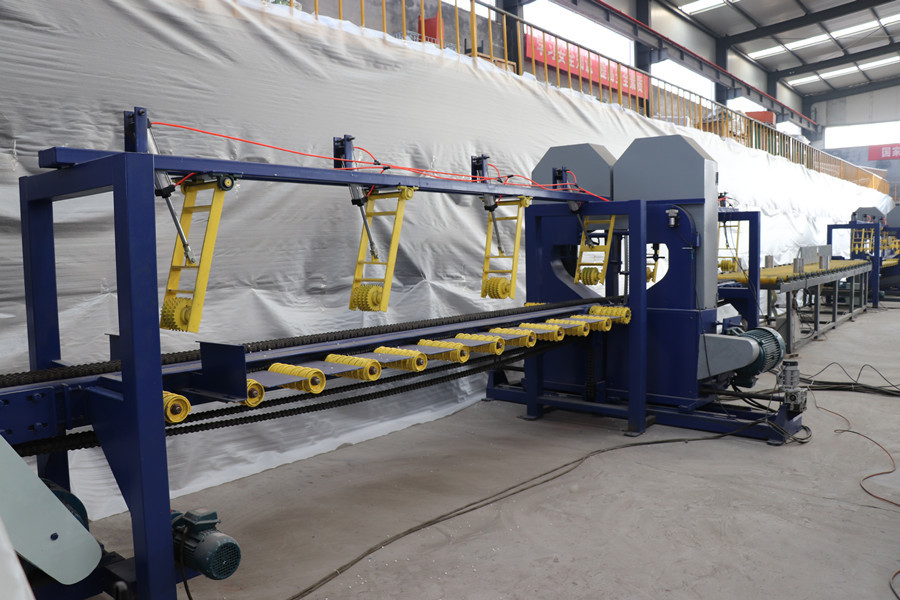

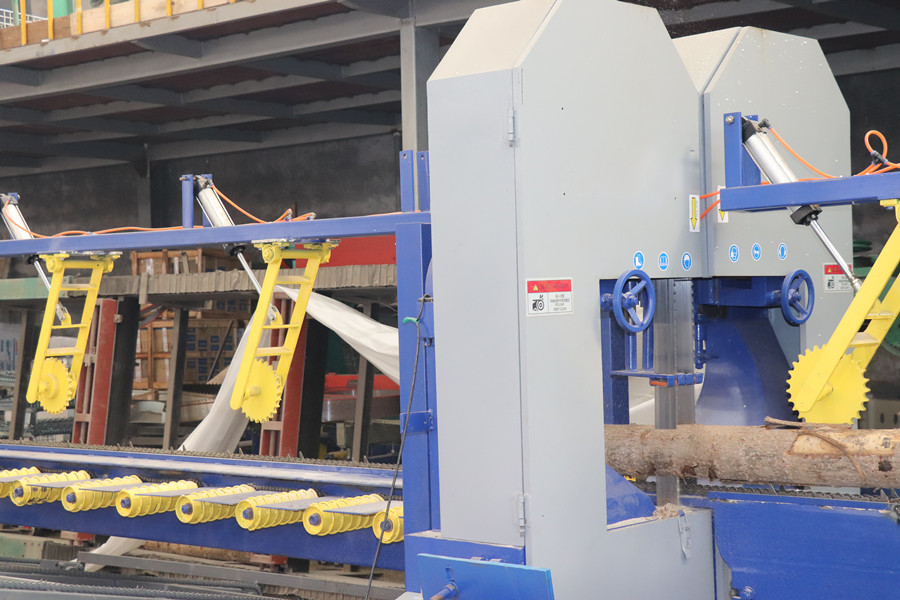

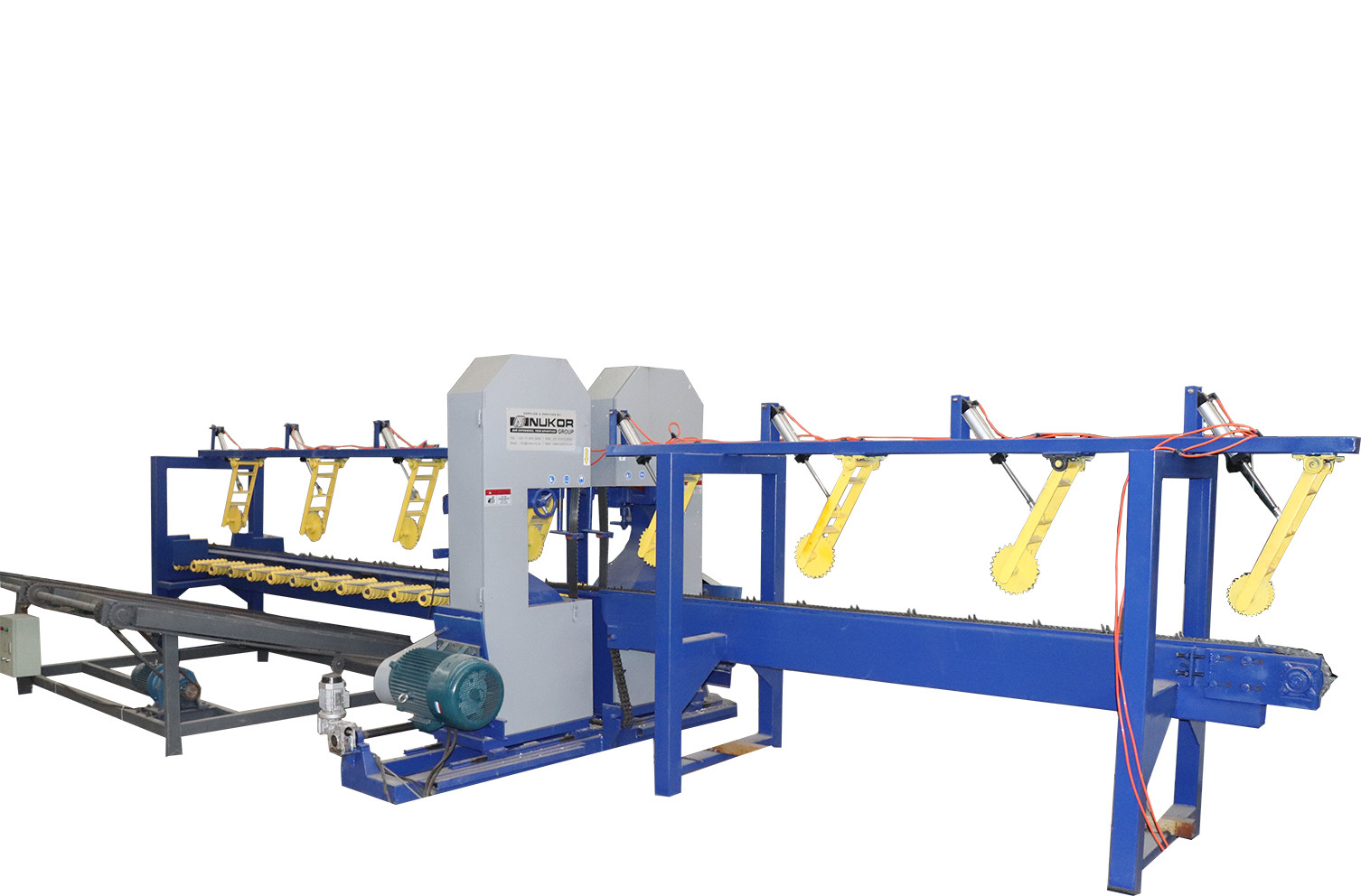

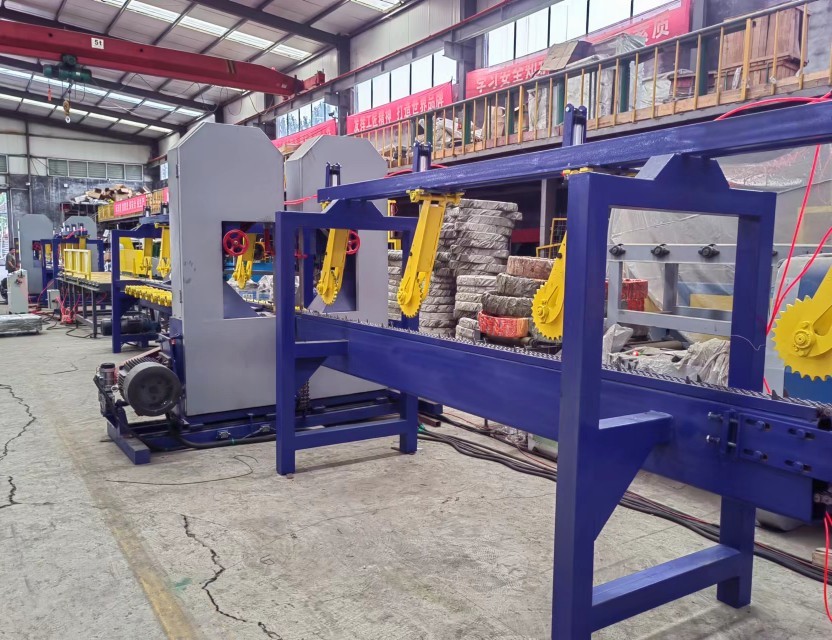

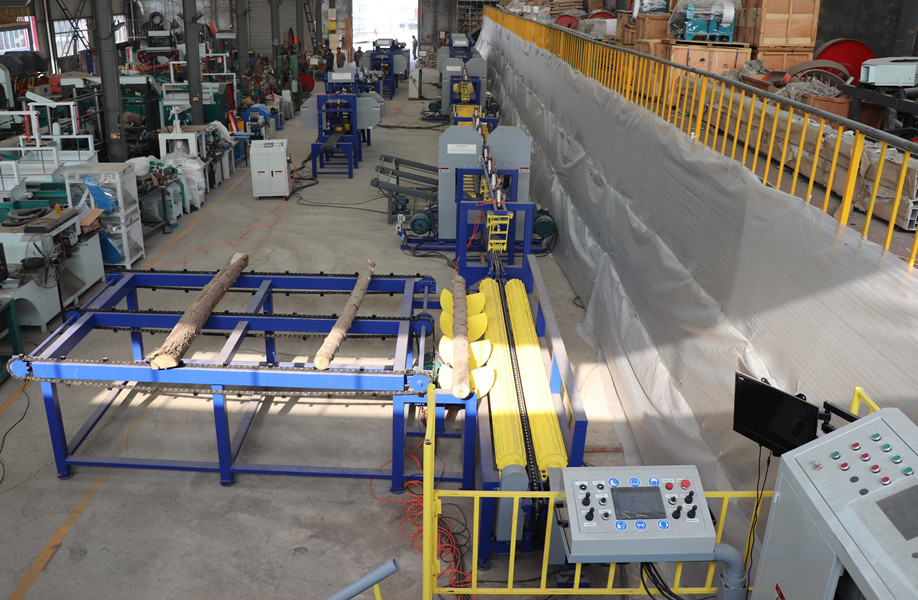

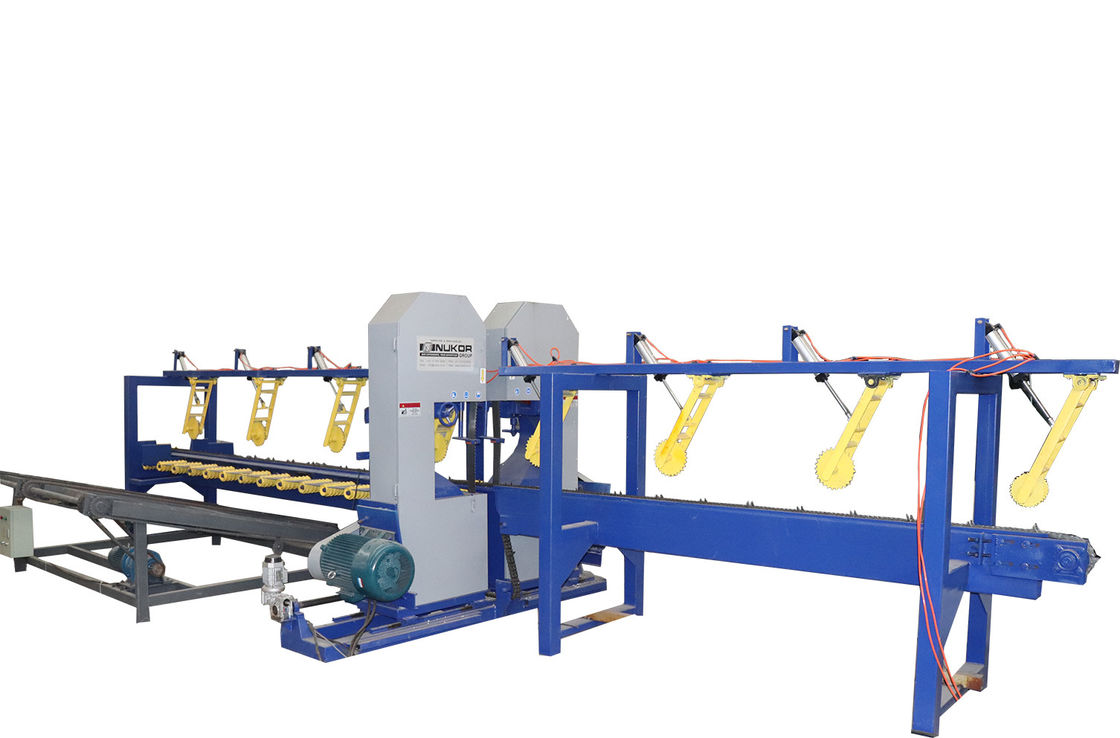

Dual Blade Saw Wood Cutting Band Sawmill Tree Planks Cutting MachineCut two side or four side of round log , Feeding by Chain Type Conveyor
Touch Screen Setting Sawing Size And Digital Display
Variable Frequency Speed Adjustable Feeding Speed
|
Model
|
TVBS600
|
TVBS700
|
TVBS800
|
|
Sawing Wood Diameter(MM)
|
100-350
|
100-450
|
100-600
|
|
Sawing Wood Length(MM)
|
1000-4200
|
1000-4200
|
1000-6000
|
|
Saw Wheel Diameter(MM)
|
700
|
700
|
800
|
|
Feeding Speed(M/Min)
|
14-20
|
||
|
Feeding Conveyor Length(MM)
|
3000
|
3000
|
3000
|
|
Outlet Conveyor Length(MM)
|
2000
|
2000
|
2000
|
|
Saw Motor(KW)
|
2*11
|
2*15
|
2*18.5
|
|
Feeding Motor(KW)
|
2.2
|
2.2
|
2.2
|
|
Saw Blade Width(MM)
|
75
|
75
|
100
|
|
Saw Blade Thickness(MM)
|
0.9-1.1
|
0.9-1.1
|
0.9-1.1
|
|
Touch Screen Setting Sawing Size And Digital Display
Variable Frequency Speed Adjustable Feeding Speed |
|||
Vertical Band Sawmill With CNC Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
| Technical Parameter | MJ3212-Z5000 | MJ3212-Z3000 | MJ3310-Z5000 | MJ3310-Z3000 |
| Saw Wheel Diameter (MM) | 1250 | 1250 | 1070 | 1000 |
| Saw Wheel Speed RPM | 650 | 650 | 650 | 650 |
| Saw Blade Length (MM) | 8600 | 8600 | 7400 | 7400 |
| Saw Blade Width(MM) | 150 | 150 | 150 | 150 |
| Saw Clip Movement Motor( KW) | 0.75 | 0.75 | 0.75 | 0.75 |
| Saw Wheel Movement Motor( KW) | 0.75 | 0.75 | 0.75 | 0.75 |
| Main Motor Power( KW) | 37 | 37 | 30 | 30 |
| Carriage Clip Stake Quantity | 4 | 4 | 4 | 3 |
| Carriage Wheel Quantity | 3 | 3 | 3 | 2 |
| forward and backward | Electric | Electric | Electric | Electric |
| Sawing Thickness Setting | Electric | Electric | Electric | Electric |
| Max Sawing Wood Diameter(MM) | 1200 | 1200 | 1000 | 1000 |
| Max Sawing Wood Length(MM) | 6000 | 4000 | 6000 | 4000 |
| Track Length(MM) | 16000 | 12000 | 16000 | 12000 |
| Weight (KG) | 7200 | 6500 | 4900 | 4200 |
