    Product Details:

    Place of Origin: Shandong province, China
    Brand Name: SH
    Certification: ISO9001
    Model Number: MJ3210-DD3000,MJ3210-DD5000,MJ3210-ZD5000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $6,000 - 50,000 / Set
    Packaging Details: container loading
    Delivery Time: within 15 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 1500sets/year
    Contact Now
    Detailed Product Description
    Name: Wood Cutting Band Saw Machine Condition: New
    Type: Band Saw Application: Wood Working,Furniture Factory
    Power(W): 22kw/3PH Or As Customer Needs Opertion: CNC Automatic Operation
    Saw Wheel Diameter: 1000mm Max. Sawing Log Diameter: 800mm
    Weight: 4000kgs Keyword: Band Sawing Machine | Band Saw Machine | Wood Cutting Band Saw Machine,Cnc Cut
    Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support

    1.MJ3210 Vertical band sawmill with electric log carriage

    • Manual log clamp or pneumatic log clamping
    • Electrical log feeding
    • Electrical setting sawn sizes
    • Cutting log max. diameter 800mm , cutting length 4meters, 6meters or as customer needs
    Technical data MJ3210-DD3000 MJ3210-DD5000
    Saw wheel diameter 1000mm 1000mm
    Maximum sawing log diameter 800mm 800mm
    Maximum sawing log length 4meters 6meters
    Main motor 22KW 22KW
    Carriage clip stake quantity 3sets 4sets
    Saw blade L*W*T 6850x125x1.05mm 6850x125x1.05mm
    Wood grasp mode Manual Manual
    Carriage walking/advance Electric Electric
    Setting sawn size Electric Electric
    Carriage length 3meters 5meters
    Rail length 10meters 18meters
    Weight 3000kgs 4000kgs

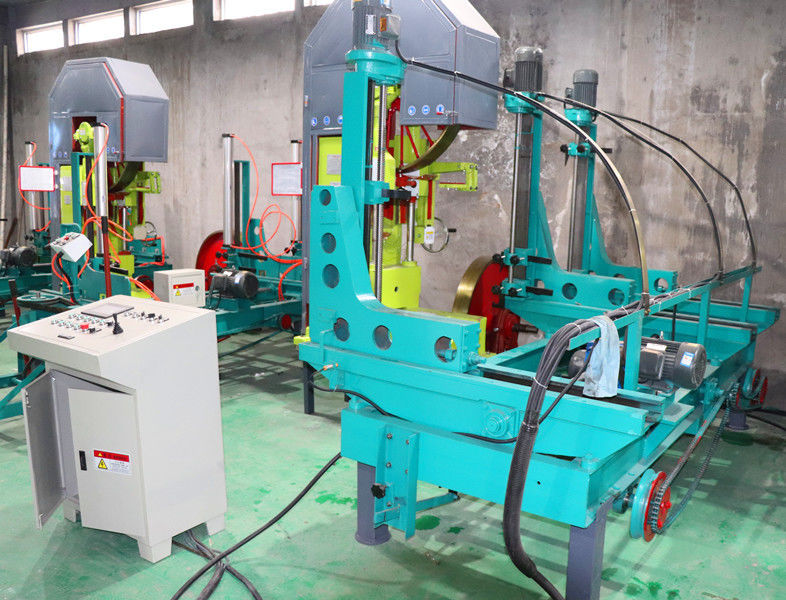

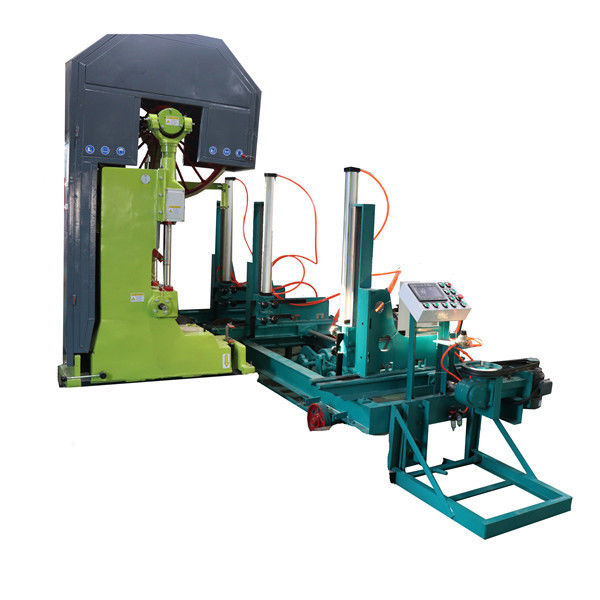

    MJ3210 40'' Automatic Wood Cutting Vertical Band Saw Sawmills Machine with Log Carrier

    2.MJ3210 Vertical band sawmill with CNC auto log carriage

    • Pneumatic log clamping
    • Automatic log feeding, frequency variable so speed adjustable
    • Touching screen setting sawn sizes
    • Cutting log max. diameter 800mm , cutting length 4meters, 6meters or as customer needs
    • Working video link: https://youtu.be/rX7VEPHzDxE
    Technical data MJ3210-ZD3000 MJ3210-ZD5000
    Saw wheel diameter 1000mm 1000mm
    Maximum sawing log diameter 800mm 800mm
    Maximum sawing log length 4meters 6meters
    Main motor 22KW 22KW
    Carriage clip stake quantity 3sets 4sets
    Saw blade L*W*T 6850x125x1.05mm 6850x125x1.05mm
    Wood grasp mode Electric Electric
    Carriage walking/advance Frequency converter Frequency converter
    Setting sawn size PLC touching screen PLC touching screen
    Carriage length 3meters 5meters
    Rail length 10meters 18meters
    Weight 3000kgs 4000kgs

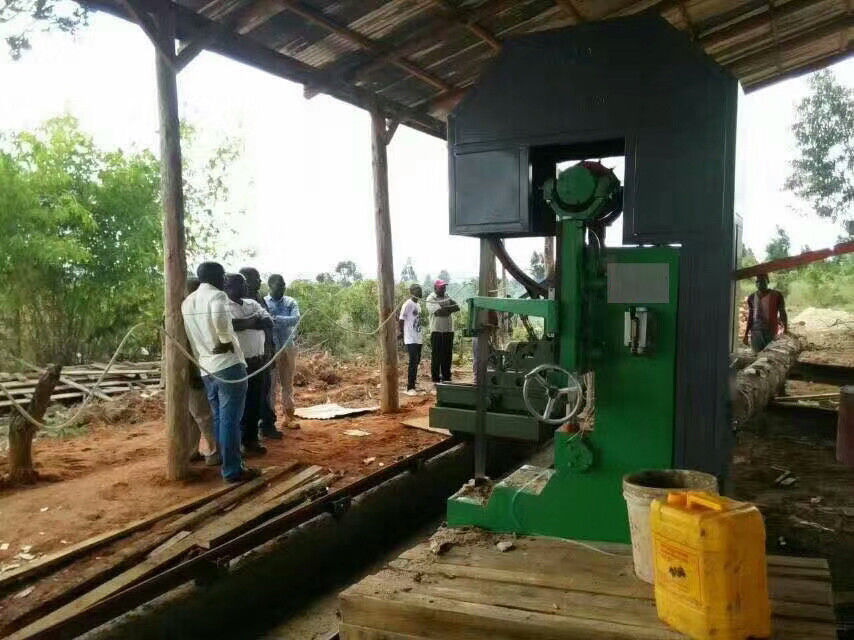

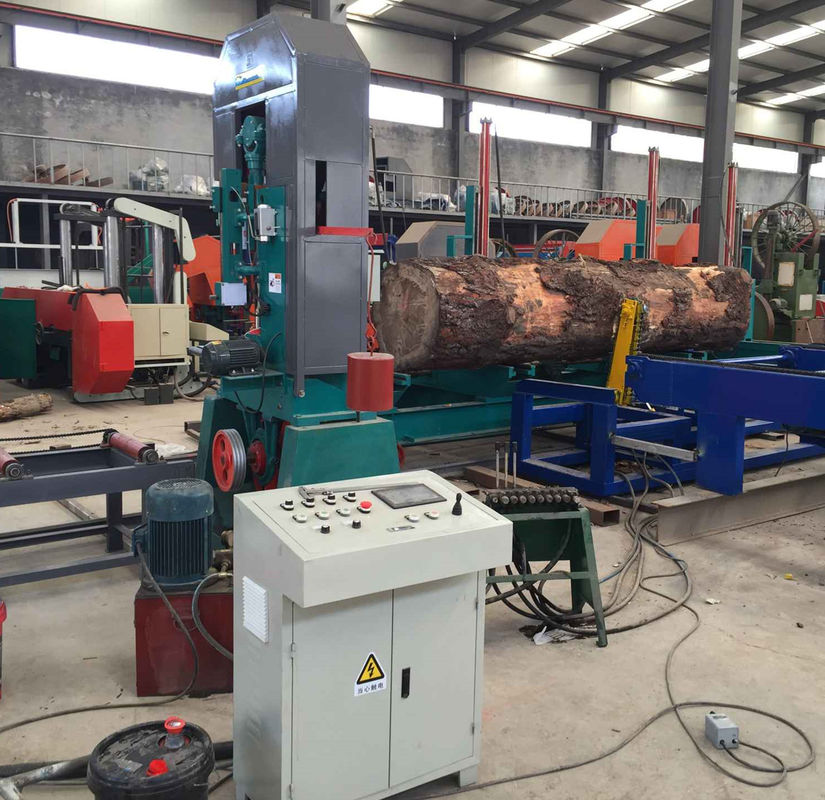

    MJ3210 40'' Automatic Wood Cutting Vertical Band Saw Sawmills Machine with Log Carrier

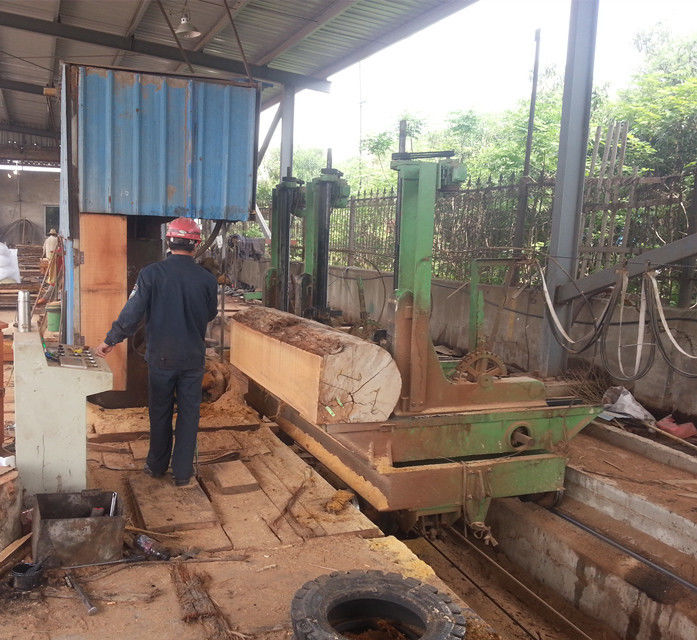

    MJ3210 40'' Automatic Wood Cutting Vertical Band Saw Sawmills Machine with Log Carrier

    MJ3210 40'' Automatic Wood Cutting Vertical Band Saw Sawmills Machine with Log Carrier

    Working video link : https://youtu.be/955DpvhpPtk

    Working video link : https://youtu.be/14SY_lef-Wc
