Vertical band sawmill with CNC carriage automatic wood cutting machine

Place of Origin shandong province
Brand Name SH
Certification ISO
Model Number MJ3212-Z5000,MJ3212-Z3000,MJ3210-Z5000,MJ3310-Z3000
Minimum Order Quantity 1 SET
Price US $5,000 - 50,000 / Set
Packaging Details container loading
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Vertical Band Saw
Use Woodworking Voltage 380v,50HZ/3phase Or As Requested
Power(W) 30kw To 50kw Warranty 12 Months
After-sales Service Provided Engineers Available To Service Machine Overseas Opertion Manual Or Electric Button Or CNC Digital Controlling
Leave a Message
Product Description

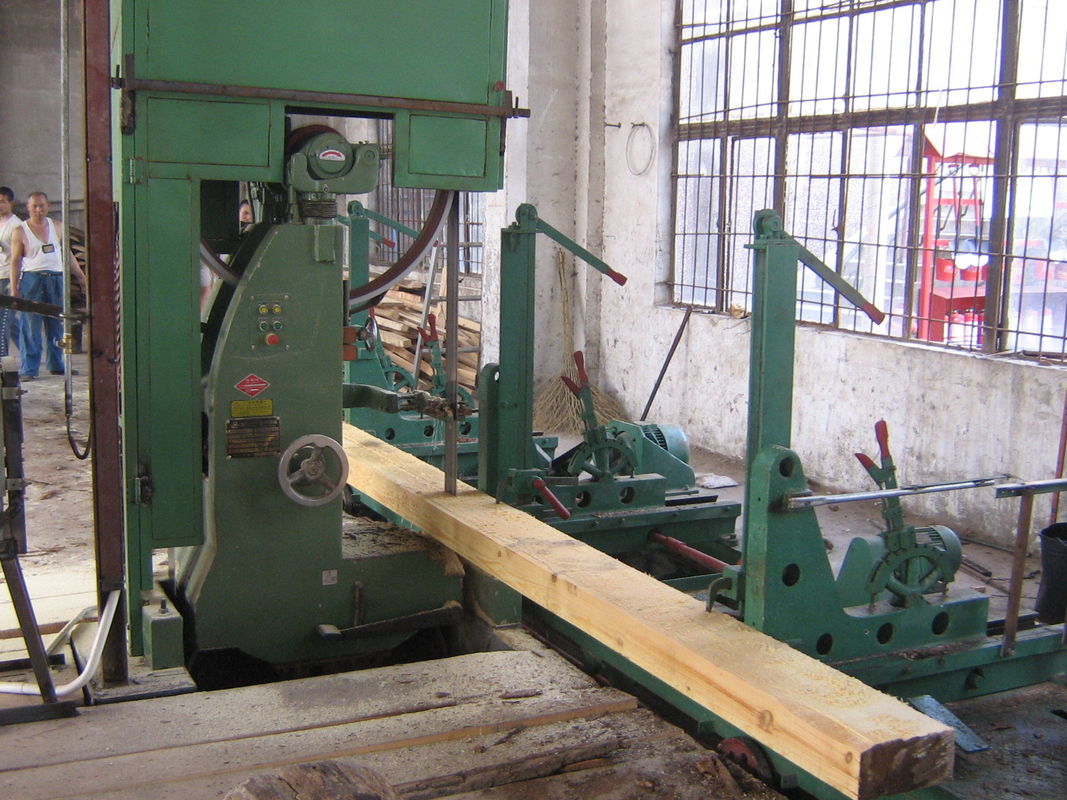

Vertical Band Sawmill With CNC Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

Technical ParameterMJ3212-Z5000MJ3212-Z3000MJ3310-Z5000MJ3310-Z3000
Saw Wheel Diameter (MM)1250125010701000
Saw Wheel Speed RPM650650650650
Saw Blade Length (MM)8600860074007400
Saw Blade Width(MM)150150150150
Saw Clip Movement Motor( KW)0.750.750.750.75
Saw Wheel Movement Motor( KW)0.750.750.750.75
Main Motor Power( KW)37373030
Carriage Clip Stake Quantity4443
Carriage Wheel Quantity3332
forward and backwardElectricElectricElectricElectric
Sawing Thickness SettingElectricElectricElectricElectric
Max Sawing Wood Diameter(MM)1200120010001000
Max Sawing Wood Length(MM)6000400060004000
Track Length(MM)16000120001600012000
Weight (KG)7200650049004200

Vertical band sawmill with CNC carriage automatic wood cutting machine 0
Vertical band sawmill with CNC carriage automatic wood cutting machine 1
Platform Woodwork Band Saw

Technical parametersMJ328MJ329MJ3210MJ3310MJ3212
Diameter of saw wheel800mm900mm1000mm1070mm1250mm
Width of saw wheel110mm120mm120mm120mm140mm
Rotational speed of saw wheel750r·p·m750r·p·m750r·p·m750r·p·m750r·p·m
saw wheel, saw clip elevationManualManualAutomaticAutomaticAutomatic
Length of blade5700mm6400mm6800mm7400mm8600mm
Max. diameter of log sawed650mm750mm900mm1000mm1200mm
Main motor power11kw15kw22kw30kw37kw
weight1000kg1300kg1600kg1800kg3200kg

1,include Main motor power
2,include band saw blade 1 Article
3,include Iron-made safe protective casing
4,include Manual lubrication system
5,include Foundry work platform



Vertical band sawmill with CNC carriage automatic wood cutting machine 2Vertical band sawmill with CNC carriage automatic wood cutting machine 3
