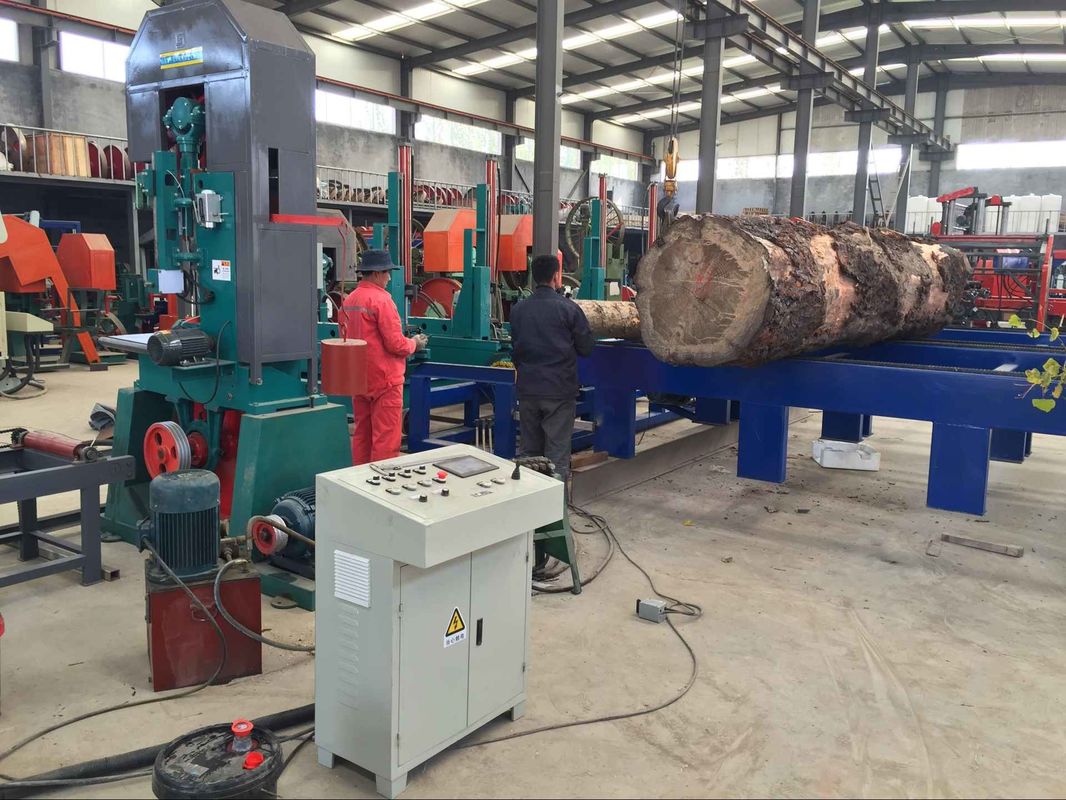

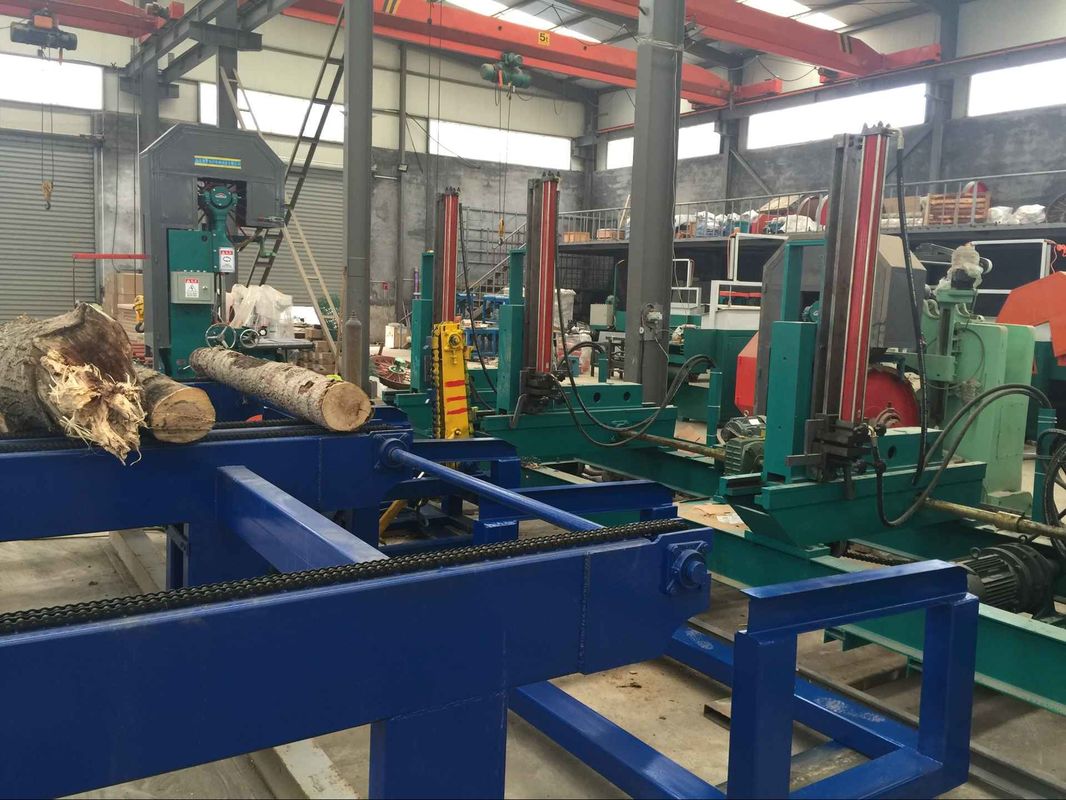

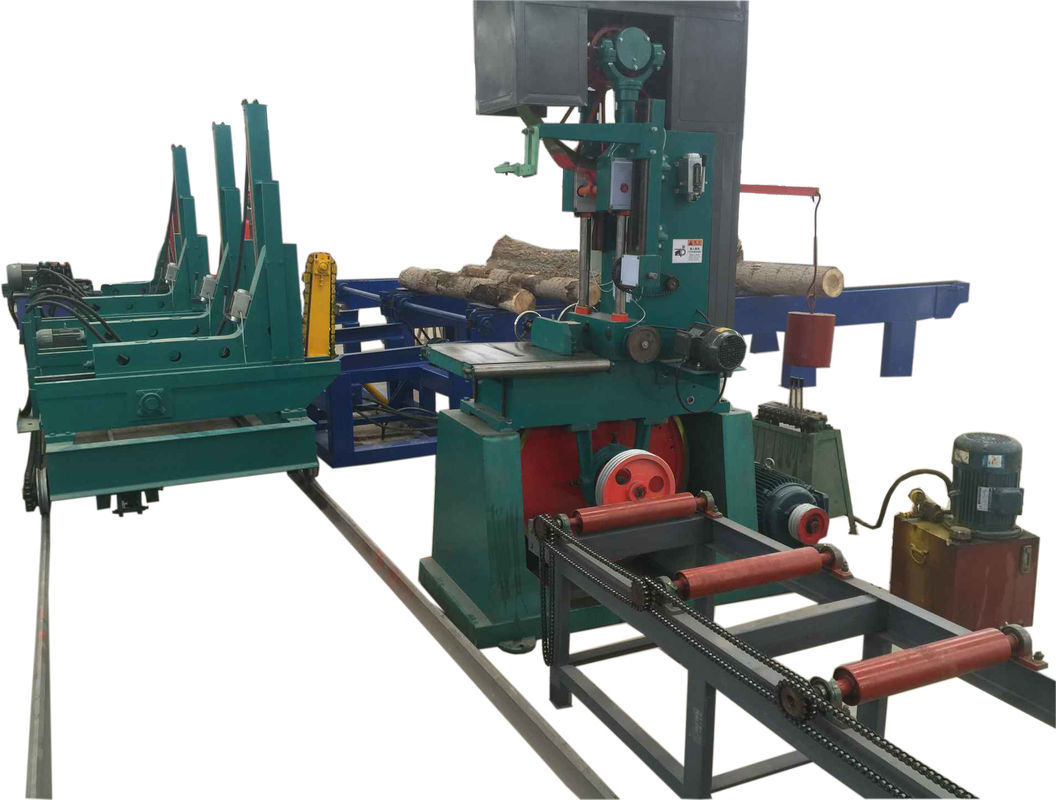

Vertical Band Sawmill With Hydraulic Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
| Technical data | MJ3310-H3000 | MJ3310-H5000 |
| Saw wheel diameter | 1060mm | 1060mm |
| Maximum log diameter | 800mm | 800mm |
| Maximum log length | 4meters | 6meters |
| Motor power | 30kw | 30kw |
| Carriage clip stake quantity | 3sets | 4sets |
| Carriage running wheel quantity | 2sets | 3sets |
| Carriage walking | Inverter | Inverter |
| Sawn sizes setting | CNC | CNC |
| Wood clamping mode | Electric | Electric |
| Wood rotation | Hydraulic roller on ground | Hydraulic roller on ground |
| Length of track | 10m | 18m |
| Weight | 5000kg | 6000kg |
| Technical data | MJ3212-H3000 | MJ3212-H5000 |
| Saw wheel diameter | 1250mm | 1250mm |
| Maximum log diameter | 1000mm | 1000mm |
| Maximum log length | 4meters | 6meters |
| Motor power | 45kw | 45kw |
| Carriage clip stake quantity | 3sets | 4sets |
| Carriage running wheel quantity | 2sets | 3sets |
| Carriage walking | Inverter | Inverter |
| Sawn sizes setting | CNC | CNC |
| Wood clamping mode | Electric | Electric |
| Wood rotation | Hydraulic roller on ground | Hydraulic roller on ground |
| Length of track | 10m | 18m |
| Weight | 9000kg | 10000kg |
