Place of Origin	Shandong Province, China
Brand Name	SH
Certification	ISO9001
Model Number	SHYM200,SHYM250, SHYM300, SHYM350,SHYM400,SHYM450
Minimum Order Quantity	1 SET
Price	USD5,000-USD1,5000/set
Packaging Details	iron frame packings
Delivery Time	within 15 days
Payment Terms	T/T or L/C at sight, Western Union
Supply Ability	1000sets/year

Name	Woodworking Rip Saw	Max. Sawing Log Diameter	500mm
Max. Sawing Log Length	No Limit	Main Motor Power	75kw X 2
Feeding	Frequency Auto Feeding And Speed Adjustable	Circular Blade Diameter	650mm
Sawing Wood Logs	Hardwood And Softwood Logs	Blade Cooling	Shaft Center Water Spraying
Weight	4100kgs	Overall Size	4900x 2750 X 1950mm
High Light	Woodworking Ripsaw Bandsaw Mill , Bandsaw Mill Multi Rip Saw Machine , Softwood Multi Rip Saw Machine

Model	SHYM150	SHYM200	SHYM240	SHYM260
Sawing log diameter	20-150mm	60-200mm	80-240mm	100-260mm
Min sawing log length	600mm	600mm	600mm	600mm
Main motor power	18.5KW X 2	22KW X2	30KW X2	30kw , 37kw
Feeding motor	1.5KW	1.5KW	1.5KW	1.5KW
Saw blade diameter	255mm	305mm	355mm	380mm
Weight	1570kg	1720kg	2200kgs	2300kgs
Model	SHYM285	SHYM300	SHYM330	SHYM340
Sawing log diameter	130-285mm	150-300mm	150-330mm	150-340mm
Min sawing log length	600mm	600mm	600mm	600mm
Main motor power	30kw, 37kw	37KW X 2	37KW X 2	45kw, 55kw
Feeding motor	2.2KW	2.2KW	2.2KW	2.2KW
Saw blade diameter	405mm	405mm	455mm	480mm
Weight	2350kg	2450kg	2550kg	2650kg
Model	SHYM360	SHYM400	SHYM430	SHYM480
Sawing log diameter	170-360mm	180-400mm	200-430mm	250-480mm
Min sawing log length	600mm	600mm	600mm	600mm
Main motor power	55KW X2	55KW X 2	75KW X 2	75KW X 2
Feeding motor	2.2KW	2.2KW	2.2KW	2.2KW
Saw blade diameter	500mm	550mm	600mm	650mm
Weight	2680kg	3500kg	3880kg	4100kg
Remarks: Main motor power can be changed as customer needs ; The multi ripsaw is with inverter auto feeding Blade cooling method: shaft center spraying water to cool

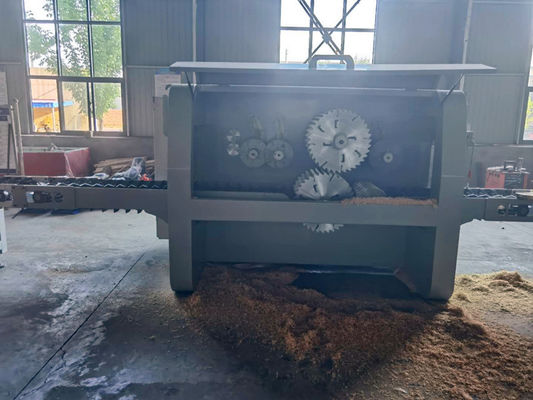

Woodworking Ripsaw Bandsaw Mill Multi Rip Saw Machine For Softwood Logs

Woodworking Ripsaw Bandsaw Mill
