Home /Products/Multi Rip Saw Machine/Multi End Trim Saw Machine Multi Blade Rip Saw Automatic Feeding

Multi End Trim Saw Machine Multi Blade Rip Saw Automatic Feeding

1 SET wood trim saw

MOQ

USD2800-6900/SET

Price

Multi End Trim Saw Machine Multi Blade Rip Saw Automatic Feeding

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Trim Saw

Max. Sawing Height: 100mm

Max. Sawing Length: 4000mm Or As Customer Needs

Circular Blade Diameter: 300mm

Main Motor Power: 3kw X 2, 3kw X 3, 3kw X 4sets Or As Customer Needs

Main Shaft Diameter: 30mm

Feeding: Automatic

Cutting Length: Adjusable

Guarantee: 1 Year

After-sales Service: Video Technical Support, Spare Parts

Highlight:

Multi End Trim Saw Machine

,

Trim Multi Blade Rip Saw

,

300mm Multi Blade Rip Saw

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: QT2000, QT3000, QT4000

Payment & Shipping Terms

Packaging Details: wooden pallet or iron frame packing

Delivery Time: within 10 days

Payment Terms: T/T, Western Union

Supply Ability: 100 Set/Sets per Month

Gallery

Multi End Trim Saw Machine Multi Blade Rip Saw Automatic Feeding

Product Description

Multi end trim saw, Trim Saws for wood panels multiple rip saw machine

Trim Saw

cutting both ends of the panels in same length
cutting length is adjustable
with auto feeding
chain drive

Technical data:

Multi blades cutting off circular saw - Trim Saw
Model	QT2000	QT3000	QT4000
Cutting height	100mm	100mm	100mm
Cutting width	2000mm	3000mm	4000mm
Circular blade diameter	300mm	300mm	300mm
Main motor power	3kw x2	3kw x3	3kw x4
weight	620kgs	820kgs	1020kgs
Overall size	3200x1800x1150mm	2200x1800x1150mm	4800x1800x1150mm

Photos:

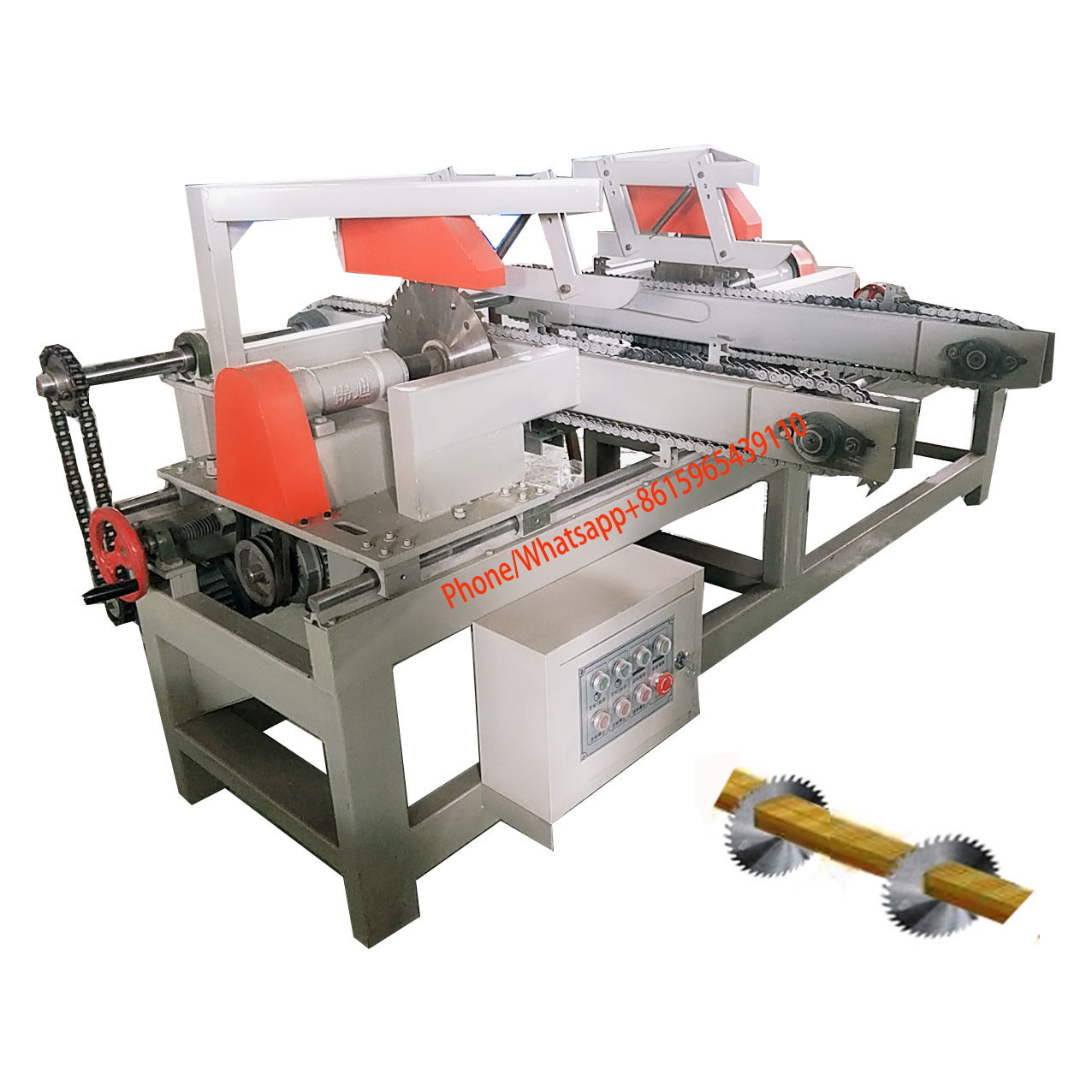

Multi End Trim Saw Machine Multi Blade Rip Saw Automatic Feeding 0

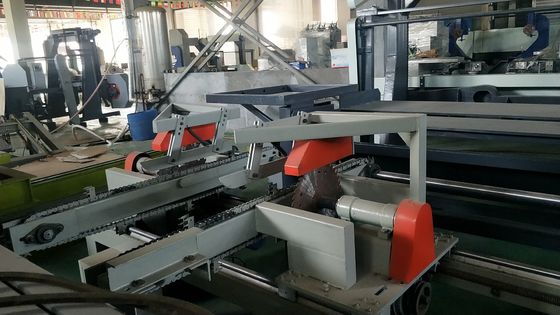

Multi End Trim Saw Machine Multi Blade Rip Saw Automatic Feeding 1

Multi Blades Ripsaw for Planks/Lumber Cutting

Double Spindle Panel Cutting Multiple Blades Rip Saw

1.Used for Lumber/Panels/Planks Cutting

2.Max. cutting depth/thciness is upto 160mm

3.Max. cutting width is upto 400mm

4.Big motor power, fit for hardwood cutting

5.Blades is placed on up/down abrod/spindle .

6.We present one set discs on your cutting thickness

Specifications:

Multi Blades Rip Saw- For wood panels/plank cutting

Model	SH60-300	SH80-300	SH100-300	SH120-300	SH150-300
Max. Sawing width	250-300mm	250-300mm	250-300mm	250-300mm	250-300mm
Max. Sawing thickness	60mm	30-80mm	40-100mm	50-120mm	60-150mm
Motor	18.5KW/22KW	22KW*2	22KW*2	22KW*2	30KW*2
Saw Blade Diameter	150MM	180mm	210mm	230mm	255mm
Spindle Diameter	50mm	50mm	50mm	50mm	50mm
Weight	1190kg	1260kg	1420kg	1560kg	1620kg

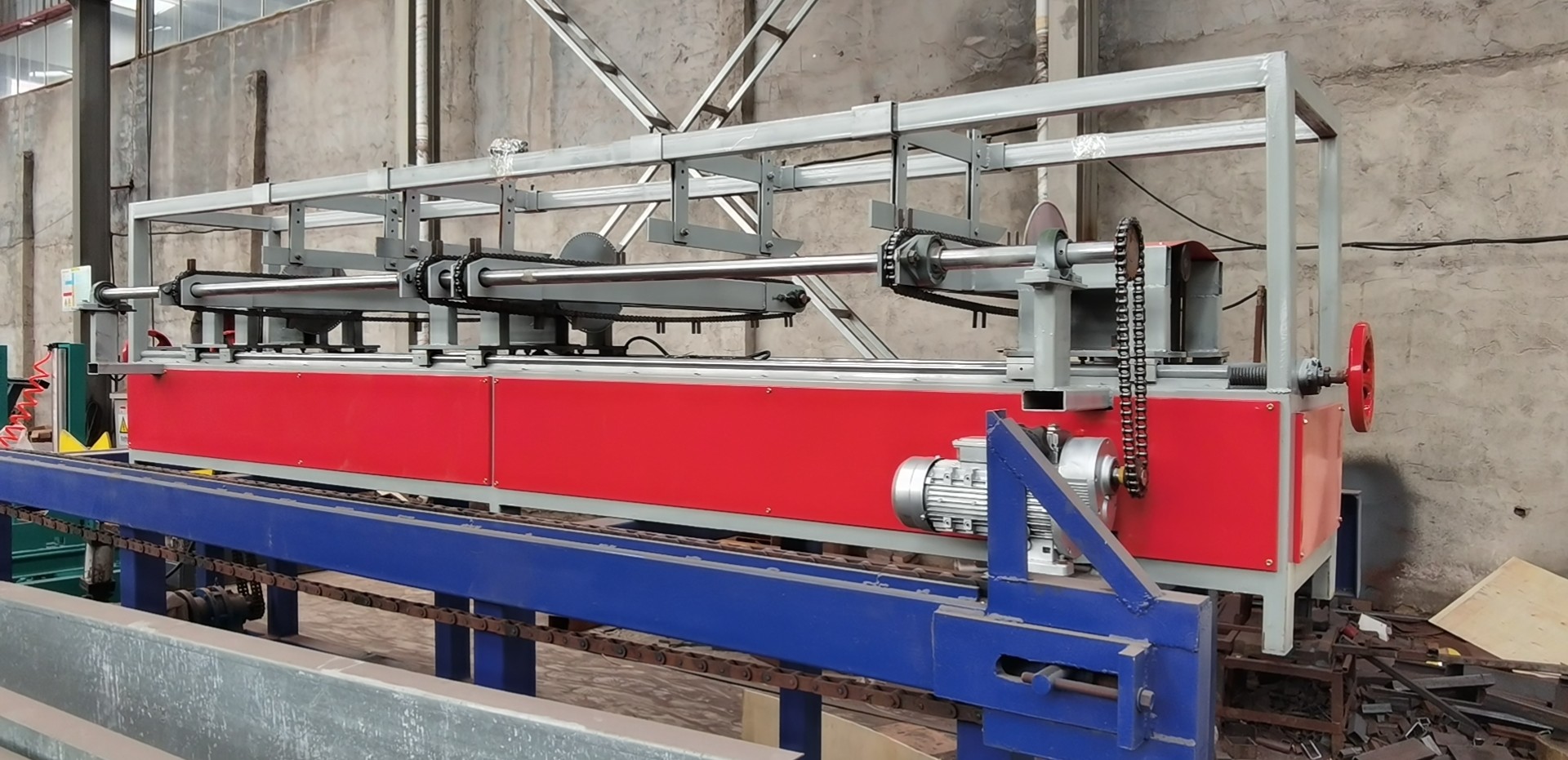

Multi End Trim Saw Machine Multi Blade Rip Saw Automatic Feeding 2

Multi End Trim Saw Machine Multi Blade Rip Saw Automatic Feeding 4

Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type

Model	SH100-400	SH120-400	SH160-400	SH200-400	SH250-400	SH270-400	SH290-400
Sawing width	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm
Sawing thickness	40-100mm	50-120mm	70-160mm	90-200mm	110-250mm	130-270mm	150-290mm
Motor	30kw*2	37kw*2	37/45kw	37/45kw	45kw*2	45/55kw	55KW*2
Saw Blade Diameter	180MM	230mm	255mm	230mm	280mm	280mm	380mm
Spindle Diameter	70mm	70mm	70mm	80mm	80mm	80mm	100mm
Weight	2330kg	2450kg	2480kg	2550kg	2580kg	2620kg	2700kg

Multi End Trim Saw Machine Multi Blade Rip Saw Automatic Feeding 5

Tag:

multi ripsaw

multi blade rip saw machine

multi rip saw machine
