Woodworking Multi Rip Saw Round Log Multi Blades Ripsaw Machine Production Line

  • Woodworking Multi Rip Saw Round Log Multi Blades Ripsaw Machine Production Line
  • Woodworking Multi Rip Saw Round Log Multi Blades Ripsaw Machine Production Line
  • Woodworking Multi Rip Saw Round Log Multi Blades Ripsaw Machine Production Line
  • Woodworking Multi Rip Saw Round Log Multi Blades Ripsaw Machine Production Line
  • Woodworking Multi Rip Saw Round Log Multi Blades Ripsaw Machine Production Line
  • Woodworking Multi Rip Saw Round Log Multi Blades Ripsaw Machine Production Line
Place of Origin shandong province
Brand Name SH
Certification ISO9001
Model Number SHYM350, SHYM450, SHBC160-300, SHBC160-250
Minimum Order Quantity 1 SET
Price USD6,000-USD15,000/set
Packaging Details wooden pallet or iron frame export pallet
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 100sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Usage Woodworking
Type Rip Saw Max. Sawing Log Diameter 450mm
Max. Sawing Width 400mm Cutting Length As Customer Needs
Conveyor Auto Feeding And Rolling Operation Automatic
Leave a Message
Product Description

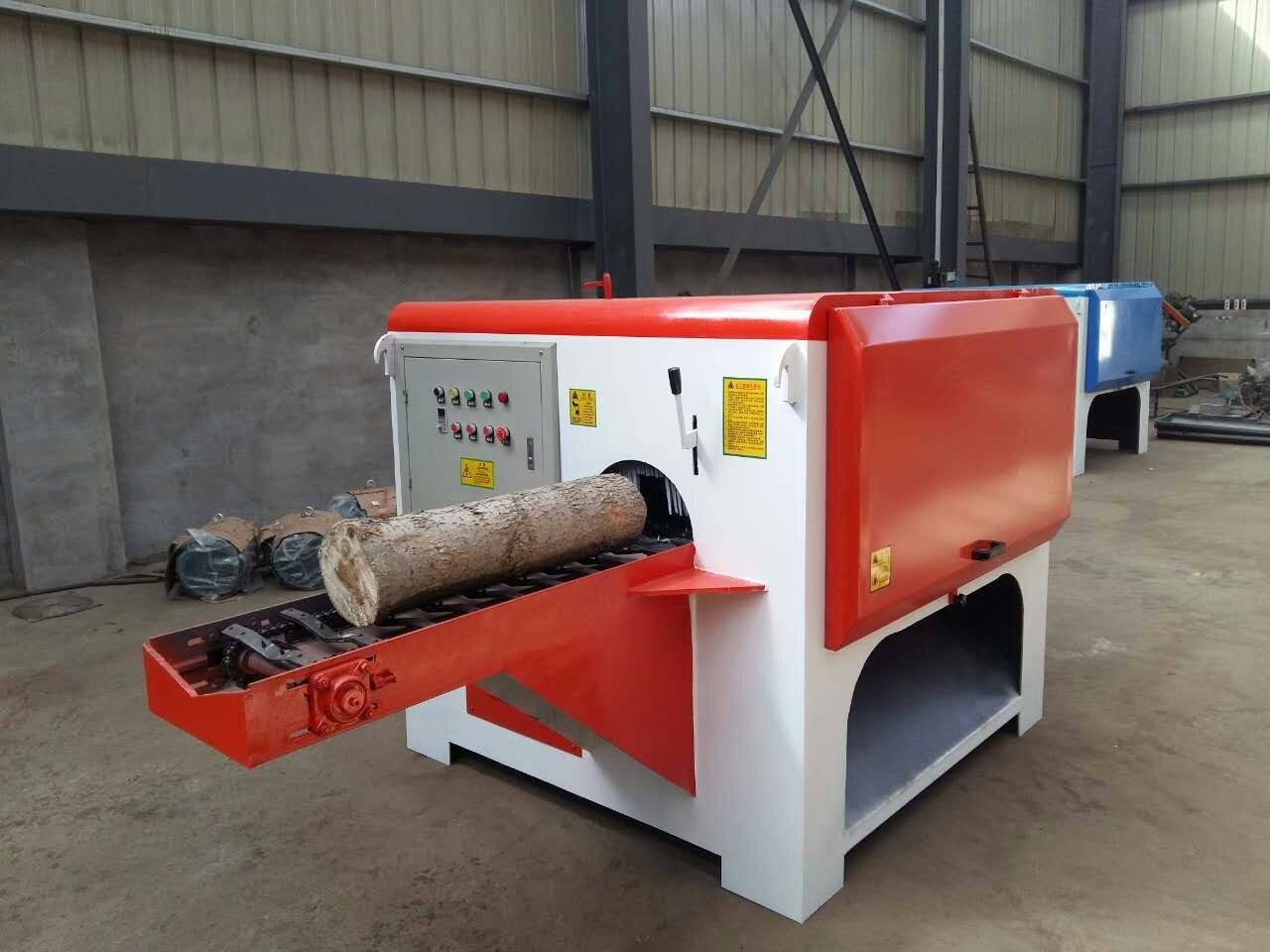

Log Cutting Multiple Blade Ripsaw

Woodworking Multi Rip Saw Round Log Multi Blades Ripsaw Machine Production Line 0

Specifications:

Model SHYM200 SHYM250 SHYM300
Sawing log diameter 80-200mm 120-250mm 150-300mm
Min sawing log length 600mm 600mm 600mm
Blade cooling Shaft center spraying water to cool
Main motor power 22KW X 2 30KW X2 37KW X2
Feeding motor 1.5KW 1.5KW 2.2KW
Saw blade diameter 305mm 355mm 405mm
Weight 2000kg 2500kg 2800kg
Model SHYM350 SHYM400 SHYM450
Sawing log diameter 200-350mm 250-400mm 300-450mm
Min sawing log length 600mm 600mm 600mm
Cooling method Shaft center spraying water to cool
Main motor power 45KW X2 55KW X 2 55KW X2
Feeding motor 2.2KW 2.2KW 2.2KW
Saw blade diameter 480mm 520mm 600mm
Weight 3200kg 3500kg 3800kg

Remarks:

Main motor power can be changed as customer needs ;

The multi ripsaw is with inverter auto feeding

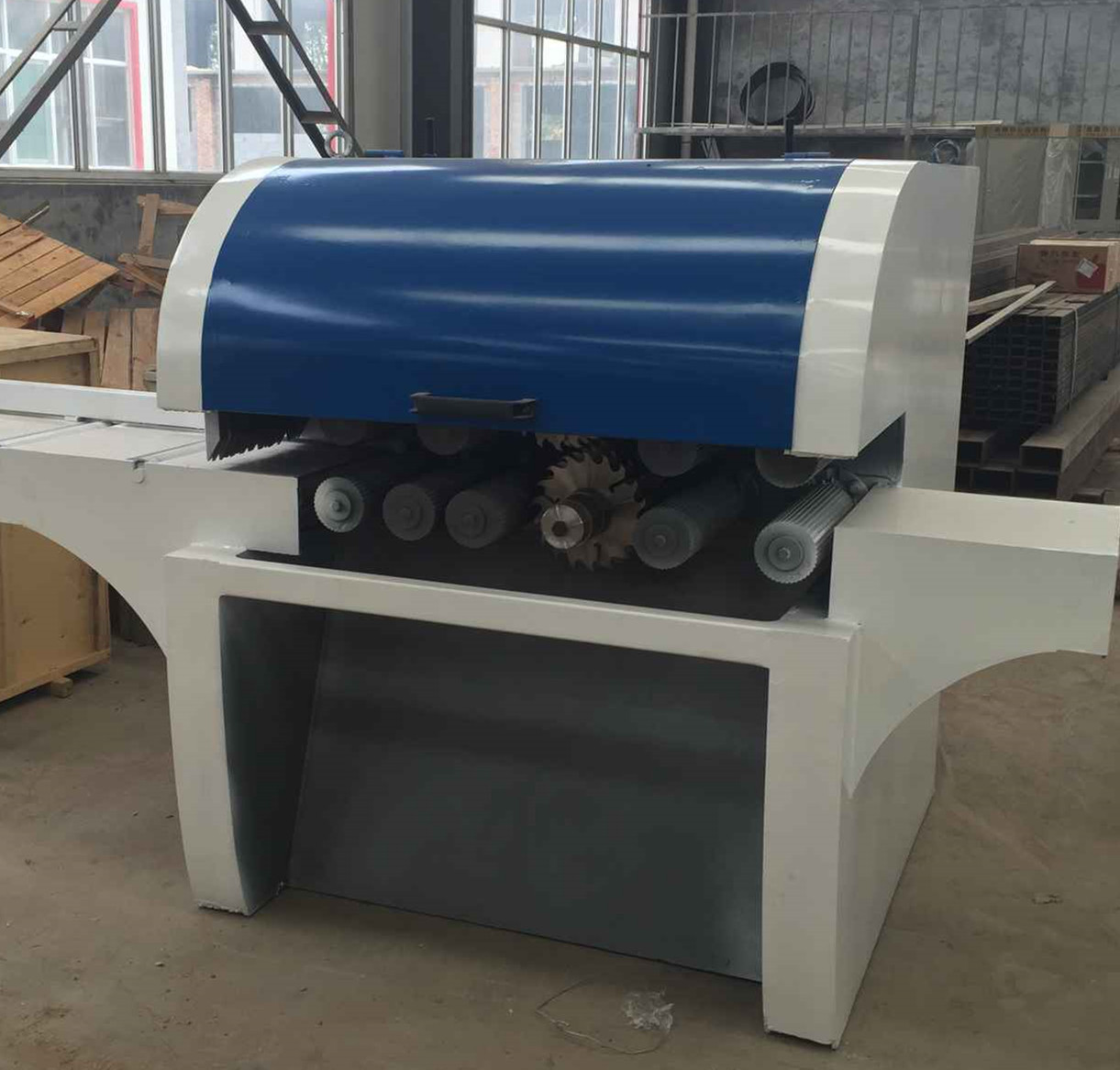

Double Spindle Panel Cutting Multiple Blade Rip Saw

Woodworking Multi Rip Saw Round Log Multi Blades Ripsaw Machine Production Line 1

Specifications:

Model SH80-300 SH120-250 SH160-250
Max. sawing width 300mm 250mm 250mm
Max. sawing thickness 80mm 120mm 160mm
Min sawing length 600mm 500mm 500mm
Motor power 15kw x2 22kw x2 30kw x2
Saw blade diameter 180mm 230mm 255mm
Machine weight 1200kg 1800kg 2000kg
Model SH120-300 SH160-300 SH160-400
Max. sawing width 300mm 300mm 400mm
Max. sawing thickness 120mm 160mm 160mm
Min sawing length 600mm 600mm 600mm
Motor power 22kw x2 30kw x2 37kw x2
Saw blade diameter 230mm 280mm 280mm
Machine weight 2500kg 2800kg 3000kg
Feeding Variable frequency speed adjustable automatic feeding
Cooling blade Spindle center water cooling blade

Woodworking Multi Rip Saw Round Log Multi Blades Ripsaw Machine Production Line 2

Woodworking Multi Rip Saw Round Log Multi Blades Ripsaw Machine Production Line 3Woodworking Multi Rip Saw Round Log Multi Blades Ripsaw Machine Production Line 4
