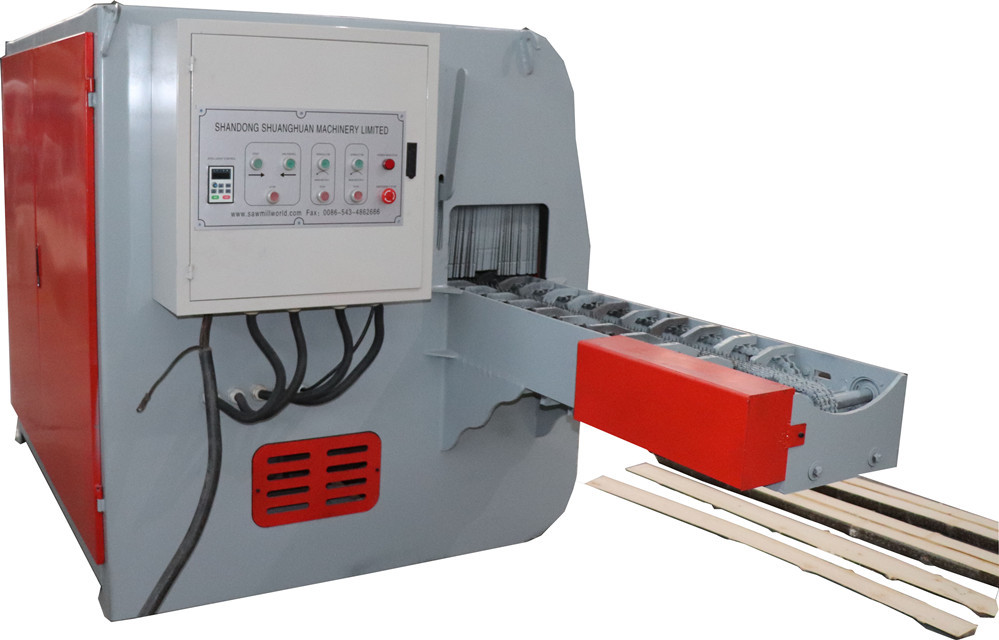

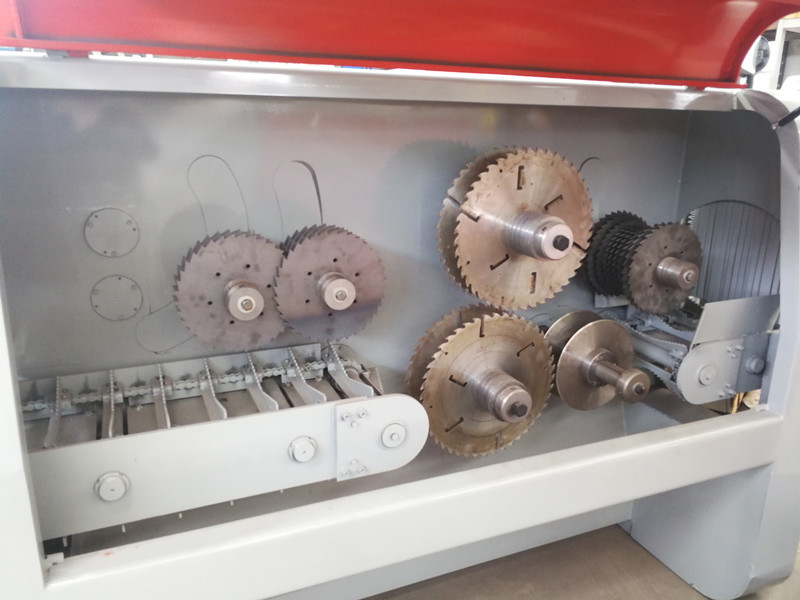

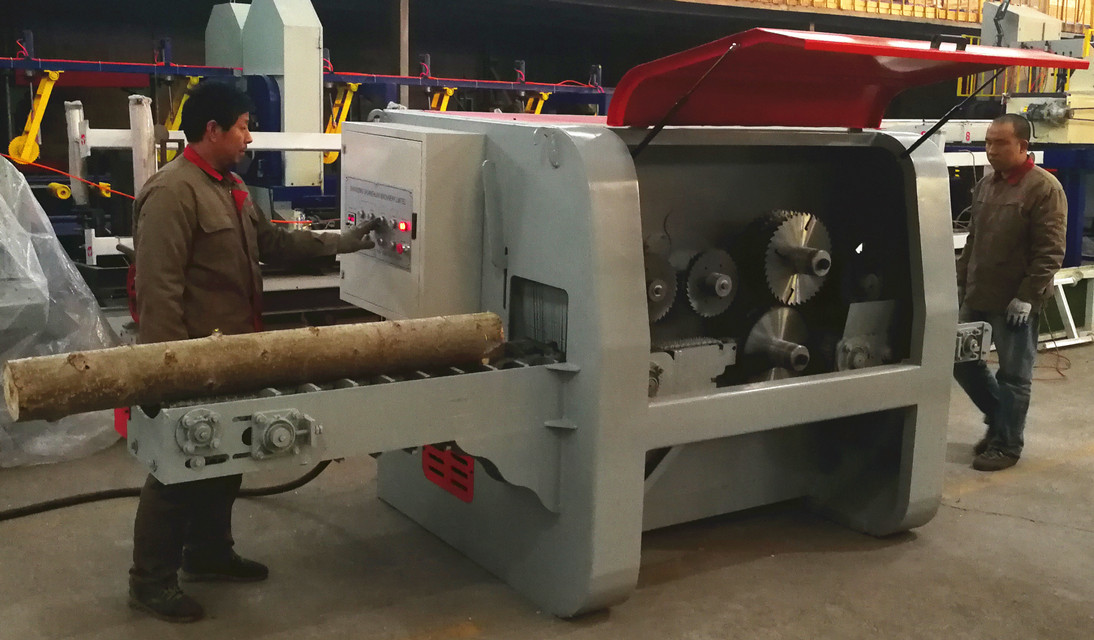

Log Cutting Multiple Blade Ripsaw
Specifications:
| Model | SHYM200 | SHYM250 | SHYM300 |
| Sawing log diameter | 80-200mm | 120-250mm | 150-300mm |
| Min sawing log length | 600mm | 600mm | 600mm |
| Blade cooling | Shaft center spraying water to cool | ||
| Main motor power | 22KW X 2 | 30KW X2 | 37KW X2 |
| Feeding motor | 1.5KW | 1.5KW | 2.2KW |
| Saw blade diameter | 305mm | 355mm | 405mm |
| Weight | 2000kg | 2500kg | 2800kg |
| Model | SHYM350 | SHYM400 | SHYM450 |
| Sawing log diameter | 200-350mm | 250-400mm | 300-450mm |
| Min sawing log length | 600mm | 600mm | 600mm |
| Cooling method | Shaft center spraying water to cool | ||
| Main motor power | 45KW X2 | 55KW X 2 | 55KW X2 |
| Feeding motor | 2.2KW | 2.2KW | 2.2KW |
| Saw blade diameter | 480mm | 520mm | 600mm |
| Weight | 3200kg | 3500kg | 3800kg |
|
Remarks: Main motor power can be changed as customer needs ; The multi ripsaw is with inverter auto feeding |
|||

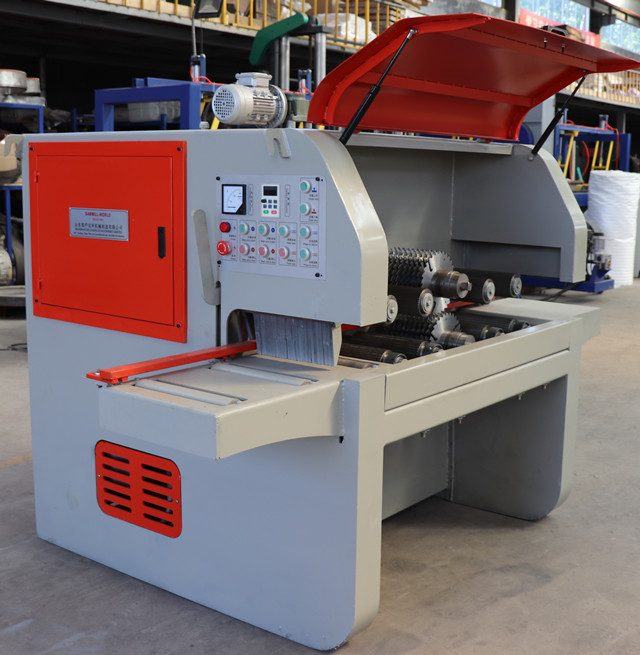

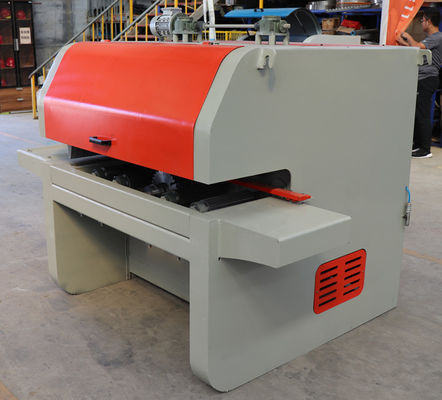

Double Spindle Panel Cutting Multiple Blade Rip Saw
Specifications:
| Model | SH80-300 | SH120-250 | SH160-250 |
| Max. sawing width | 300mm | 250mm | 250mm |
| Max. sawing thickness | 80mm | 120mm | 160mm |
| Min sawing length | 600mm | 500mm | 500mm |
| Motor power | 15kw x2 | 22kw x2 | 30kw x2 |
| Saw blade diameter | 180mm | 230mm | 255mm |
| Machine weight | 1200kg | 1800kg | 2000kg |
| Model | SH120-300 | SH160-300 | SH160-400 |
| Max. sawing width | 300mm | 300mm | 400mm |
| Max. sawing thickness | 120mm | 160mm | 160mm |
| Min sawing length | 600mm | 600mm | 600mm |
| Motor power | 22kw x2 | 30kw x2 | 37kw x2 |
| Saw blade diameter | 230mm | 280mm | 280mm |
| Machine weight | 2500kg | 2800kg | 3000kg |
| Feeding | Variable frequency speed adjustable automatic feeding | ||
| Cooling blade | Spindle center water cooling blade | ||
