| Place of Origin: | shandong province |
| Brand Name: | SH |
| Certification: | ISO |
| Model Number: | BC380 BC400 BC500,BC150,BC200,BC300 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $10,00-4,500 / Set |
| Packaging Details: | iron frame pallet |
| Delivery Time: | within 15 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 200 Set/Sets per Month |
| Condition: | New | Type: | Rip Saw |
|---|---|---|---|
| Use: | Woodworking | Style: | Vertical |
| Voltage: | 380V/3phase/50HZ Or As Customer Needs | Power(W): | 7.5-18.5KW |
| Warranty: | 1 Year | Max. Sawing Width: | 600mm |
| Max. Sawiing Thickness: | 65mm |
Single Spindle Multiple Blades Rip Saw Machine
|
Model Specifications |
BC150 | BC200 | BC300 |
| Max. cutting width (mm) | 150 | 200 | 300 |
| Cutting thickness (mm) | 2 to 65 | 2 to 65 | 2 to 65 |
| Min cutting length (mm) | 200 | 200 | 200 |
| Circular blade diameter | 250 | 250 | 250 |
| Motor power (kw) | 11 | 5 | 18.5 |
| Press model | Pneumatic press roller | ||
| Feeding mode | Variable frequency feeding | ||

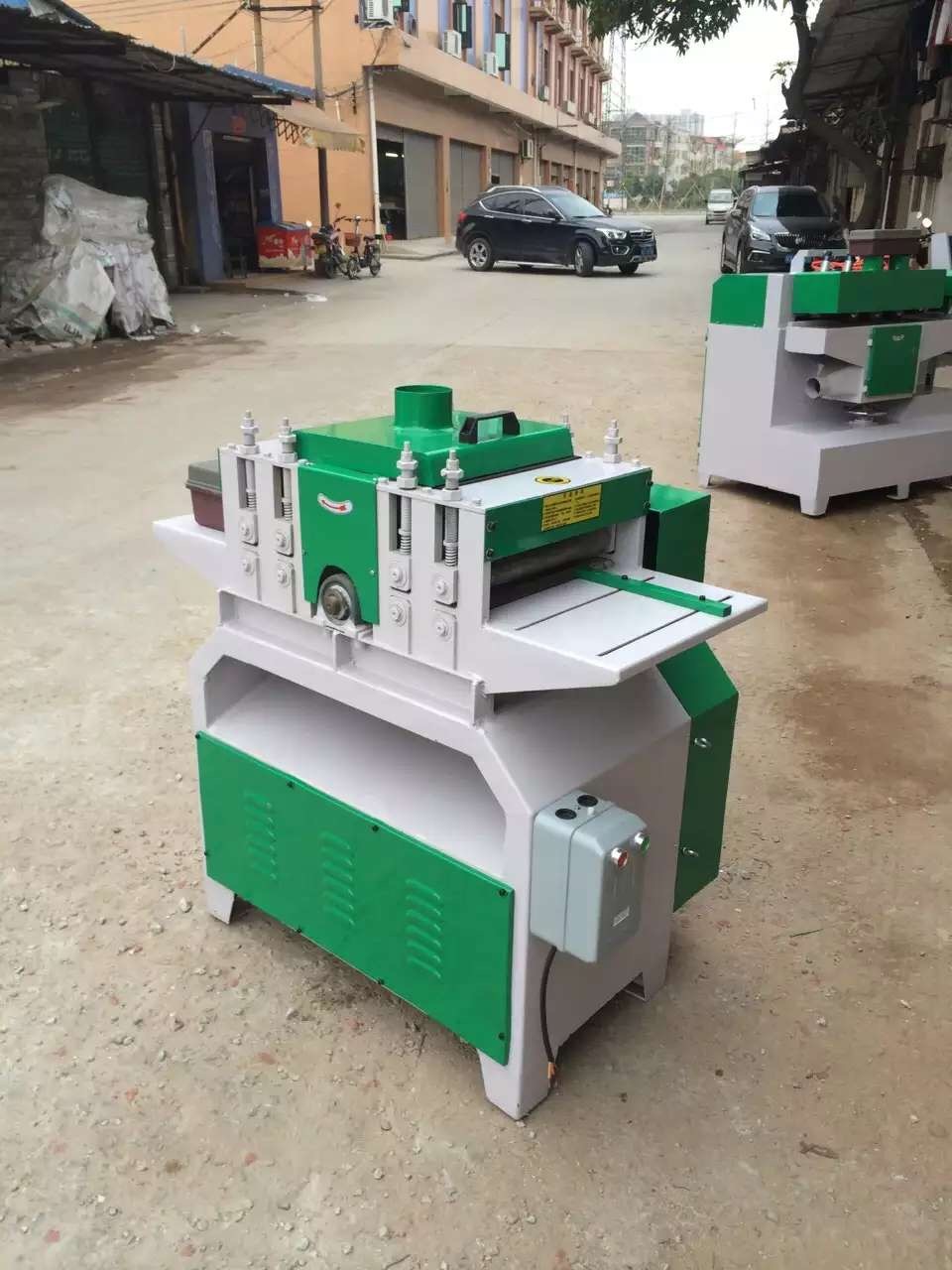

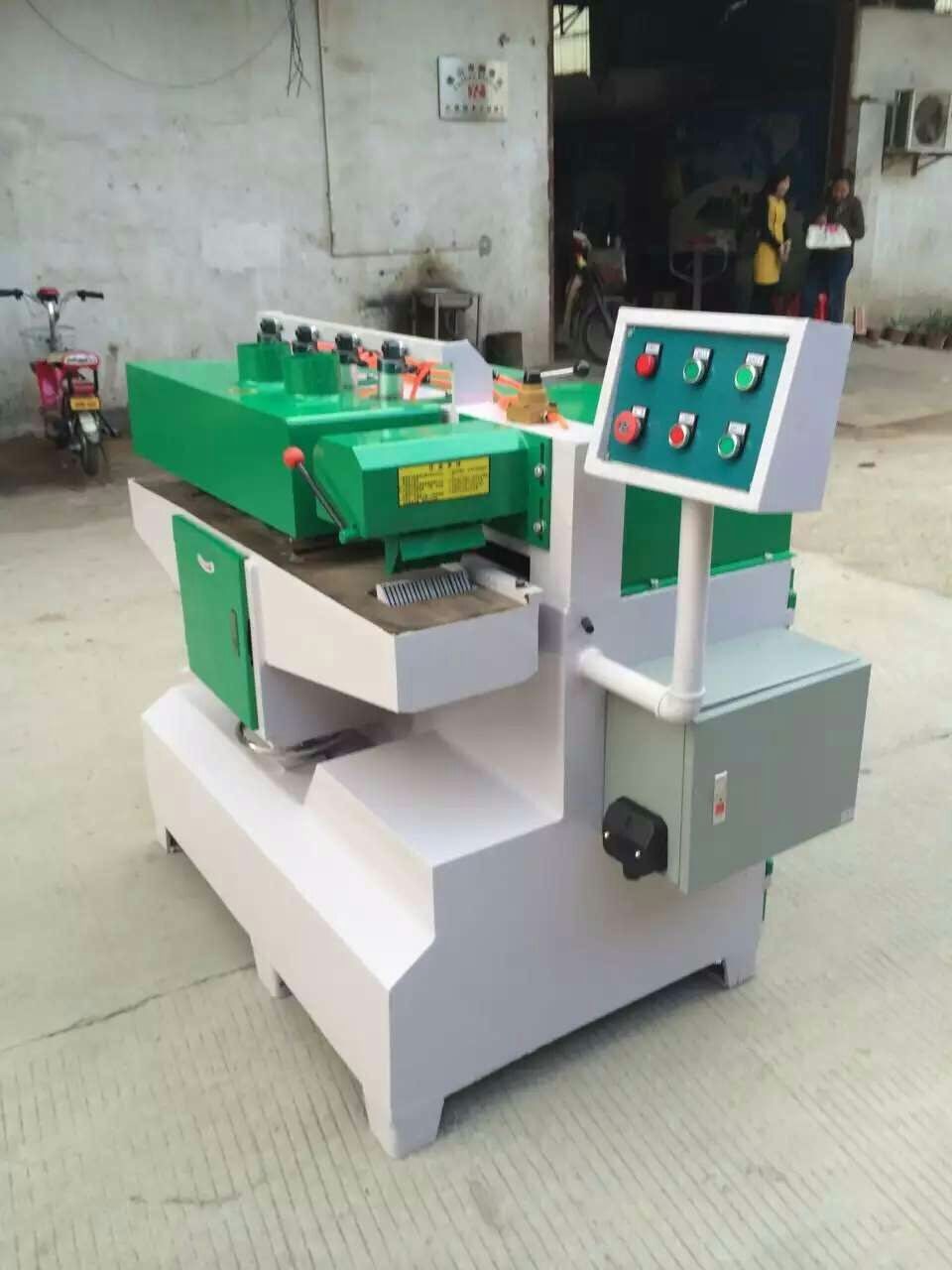

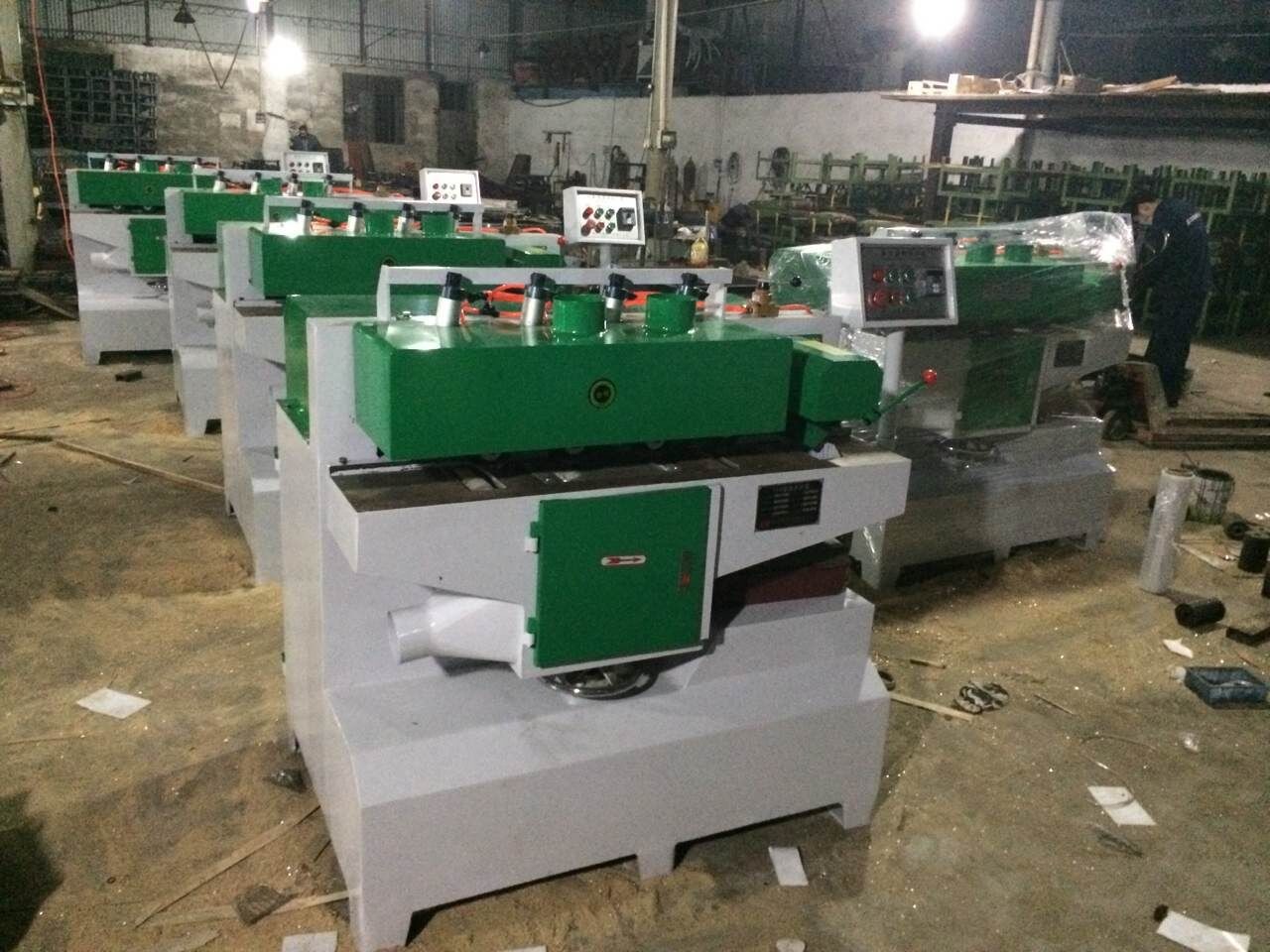

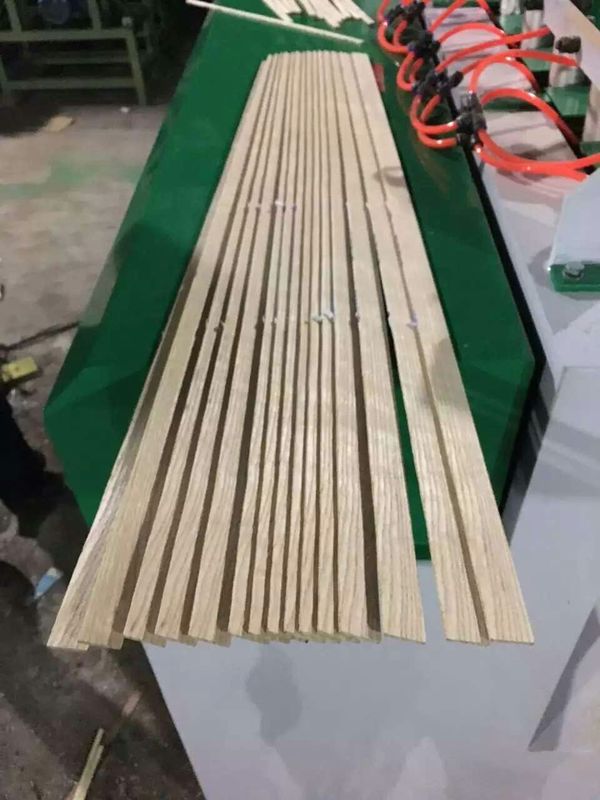

Photos:
| Specifications | BC380 | BC400 | BC600 |
| Max. cutting width (mm) | 380 | 400 | 600 |
| Cutting thickness (mm) | 15 to 50 | 8 to 30 | 15 to 50 |
| Min cutting length (mm) | 450 | 450 | 450 |
| Circular blade diameter | 230x50 | 150x35 | 230x60 |
| Motor power (kw) | 7.5 | 4 | 18.5 |
| Blade quantity (pcs) | 1-5 | 2-5 | 2-10 |
