1.Cut logs into planks at several pieces per time.
2.With log centering feeding conveyor
3.Automatic controlling
| Model | SHYM150 | SHYM200 | SHYM240 | SHYM260 |
| Sawing log diameter | 20-150mm | 60-200mm | 80-240mm | 100-260mm |
| Min sawing log length | 600mm | 600mm | 600mm | 600mm |
| Main motor power | 18.5KW X 2 | 22KW X2 | 30KW X2 | 30kw , 37kw |
| Feeding motor | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| Saw blade diameter | 255mm | 305mm | 355mm | 380mm |
| Weight | 1570kg | 1720kg | 2200kgs | 2300kgs |
| Model | SHYM285 | SHYM300 | SHYM330 | SHYM340 |
| Sawing log diameter | 130-285mm | 150-300mm | 150-330mm | 150-340mm |
| Min sawing log length | 600mm | 600mm | 600mm | 600mm |
| Main motor power | 30kw, 37kw | 37KW X 2 | 37KW X 2 | 45kw, 55kw |
| Feeding motor | 2.2KW | 2.2KW | 2.2KW | 2.2KW |
| Saw blade diameter | 405mm | 405mm | 455mm | 480mm |
| Weight | 2350kg | 2450kg | 2550kg | 2650kg |
| Model | SHYM360 | SHYM400 | SHYM430 | SHYM480 |
| Sawing log diameter | 170-360mm | 180-400mm | 200-430mm | 250-480mm |
| Min sawing log length | 600mm | 600mm | 600mm | 600mm |
| Main motor power | 55KW X2 | 55KW X 2 | 75KW X 2 | 75KW X 2 |
| Feeding motor | 2.2KW | 2.2KW | 2.2KW | 2.2KW |
| Saw blade diameter | 500mm | 550mm | 600mm | 650mm |
| Weight | 2680kg | 3500kg | 3880kg | 4100kg |
|
Remarks: Main motor power can be changed as customer needs ; The multi ripsaw is with inverter auto feeding Blade cooling method: shaft center spraying water to cool |
||||

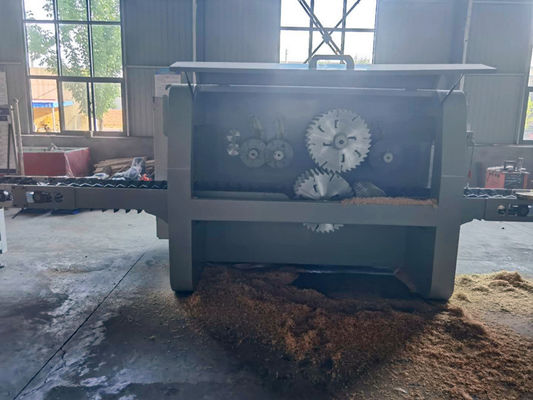

Multi Blades Ripsaw for Planks/Lumber Cutting
