Detail Information

Name:	Board Edger Rip Saw	Type:	Circular Blade Saw
Use:	Woodworking	Voltage:	380V/50HZ/3phase Or As Customer Needs
Power(W):	7.5kw X 2	Sawing Width:	50mm To 1000mm
Sawing Height:	10mm To 70mm	Blade Diameter:	350mm
Warranty:	1 Year
Highlight:	Double Blade Edge Trimming Saw , Edge Trimming Multi Rip Saw Machine , 50mm Multi Rip Saw Machine

Product Description

Double Blade Edge Trimming Saw Wood Ripping Saw Machine Circular Saw For Wood
Twin Blades Wood Board Edger/border cutting machine

1. Twin circular blades saw.
2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.
3. With tyres, moveable usage is workable

Technical data

Model	EG600E	EG800E	EG1000E
Sawing width	50-600MM	50-800MM	50-1000MM
Sawing height	10-70mm	10-70mm	10-70mm
Blade diameter	2*350MM	2*350MM	2*350MM
Feeding speed	20-25m/ minute	20-25m/ minute	20-25m/ minute
Main motor power	*7.5KW2**	*7.5KW2**	*7.5KW2**

Double Blade Edge Trimming Saw Multi Rip Saw Machine 50mm To 1000mm Width 0

Multi Blades Rip Saw
Introduction:

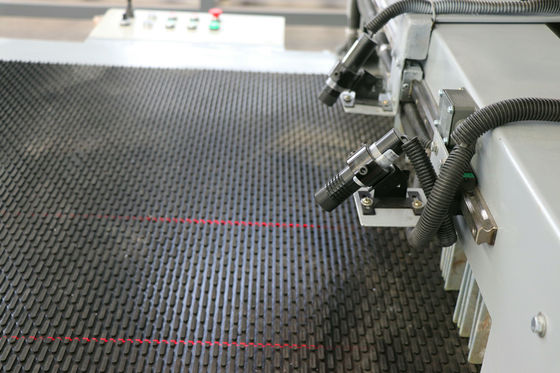

with Infrared positioning
for board edges cutting
sawing planks into small pcs
easy usage, no installation

Technical data :

Model	HW500	HW800
Sawing thickness	15-50mm	15-50mm
Sawing width	500mm	800mm
Circular blade diameter	210mm	210mm
Electric motor	15KW	18.5KW
Blade qty	1P-6P	1P-10P
Rotation speed	3500/min	3500/min

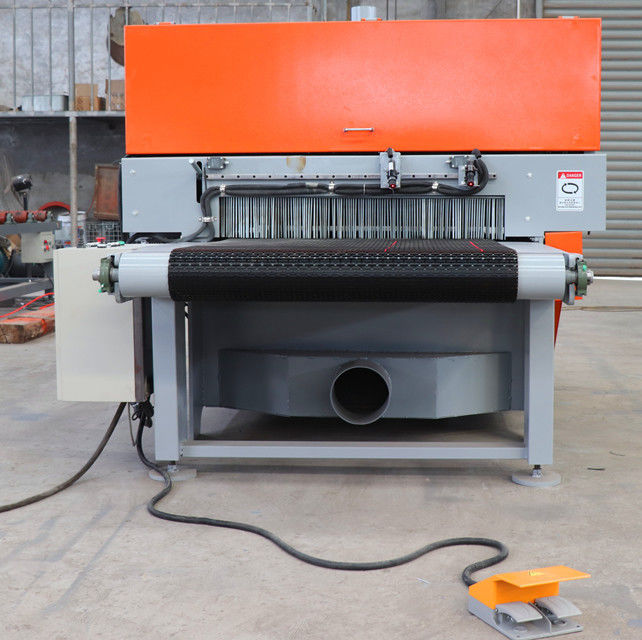

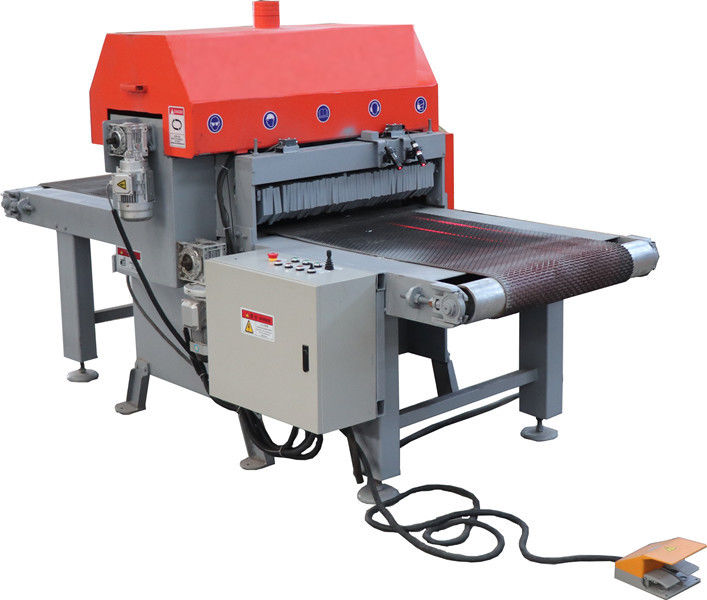

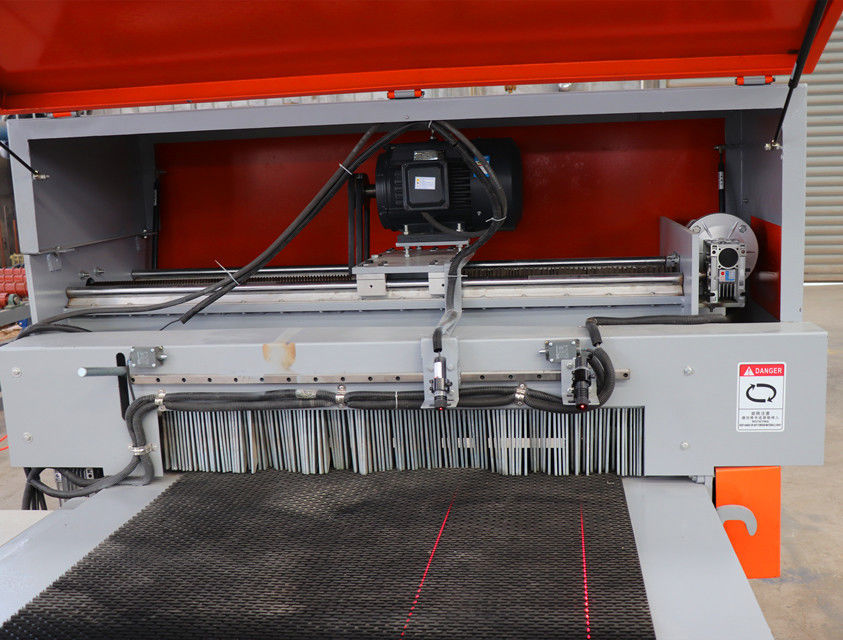

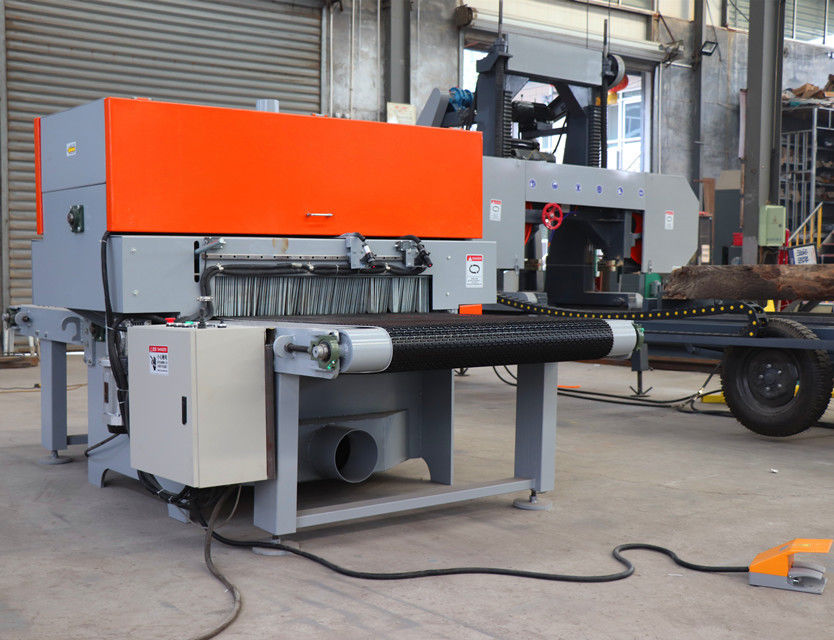

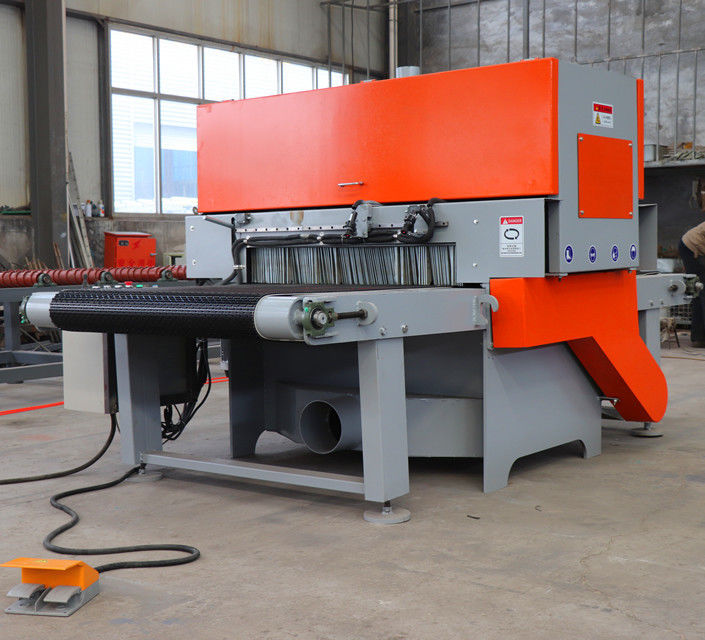

Photos:

Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:

with Infrared positioning
for big thickness board edger cutting
high working efficiency, low cost ,fulfil the max. value of the wood
easy usage, no installation

Technical data :

Model	ZHW800-70	ZHW800-80	ZHW800-100
Sawing wood height	10-70mm	10-80mm	20-100mm
Sawing wood width	800mm	800mm	800mm
Carbide blade diameter	280mm	305mm	355mm
Main motor	22KW	30KW	37KW
Blade quantity	1P-10P	1P-10P	1P-10P
Rotation speed	3500/min	3500/min	3500/min

Related Saw Machine:
Wood Slabs Cutting Circular Sawmill
Specifications:

Model Specifications	BPJ200	BPJ250	BPJ300
Cutting width (mm)	200	250	300
Motor power (KW)	7.5kw x 2	7.5kw x 2	7.5kw x 2
Feeding	Frequency variable auto feeding
Circular blade diameter (mm)	300	355	405
Weight (kg)	200	220	250

We can also do bigger model as customer needs .

Photos :

Tag:
multi ripsaw,

multi blade rip saw machine,

multi rip saw machine

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	EG600A, EG800, EG1000

Minimum Order Quantity:	1 SET
Price:	US $5,000 - 9,000 / Set
Packaging Details:	export iron frame packing
Delivery Time:	within 14 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	500sets/year

Double Blade Edge Trimming Saw Multi Rip Saw Machine 50mm To 1000mm Width
