| Place of Origin: | shandong province |
| Brand Name: | SH |
| Certification: | ISO |
| Model Number: | EG700A, EG700B, etc |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $5,000 - 9,000 / Set |
| Packaging Details: | export iron frame packing |
| Delivery Time: | within 14 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 500sets/year |
| Condition: | New | Type: | Circular Rip Saw |
|---|---|---|---|
| Use: | Woodworking | Style: | Horizontal |
| Voltage: | 380V/50HZ/3phase Or As Customer Needs | Power(W): | 11kw |
| Weight: | 500KG | Warranty: | 1 Year |

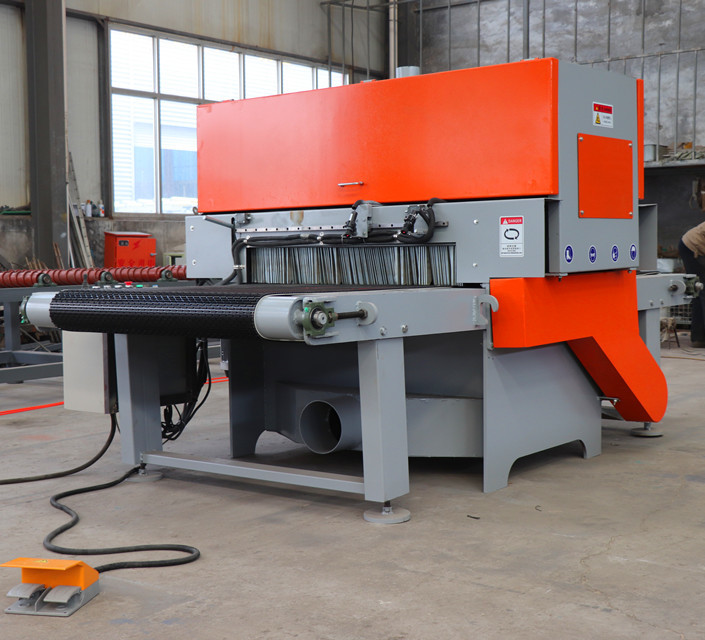

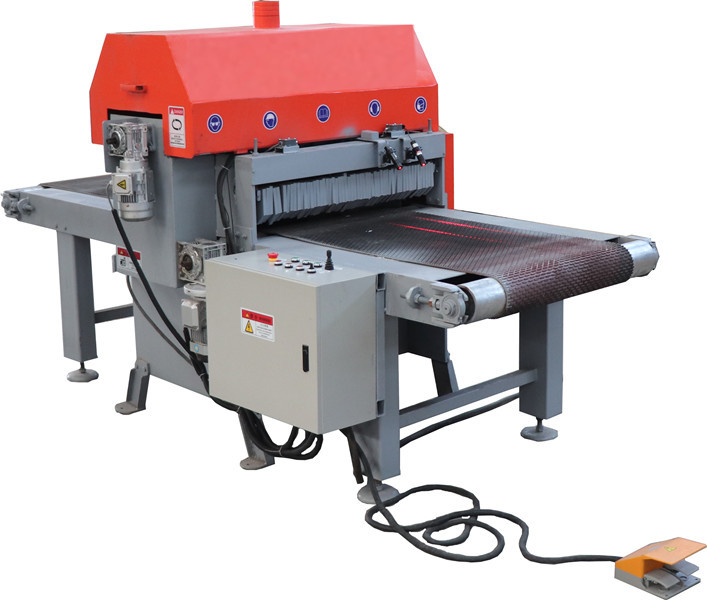

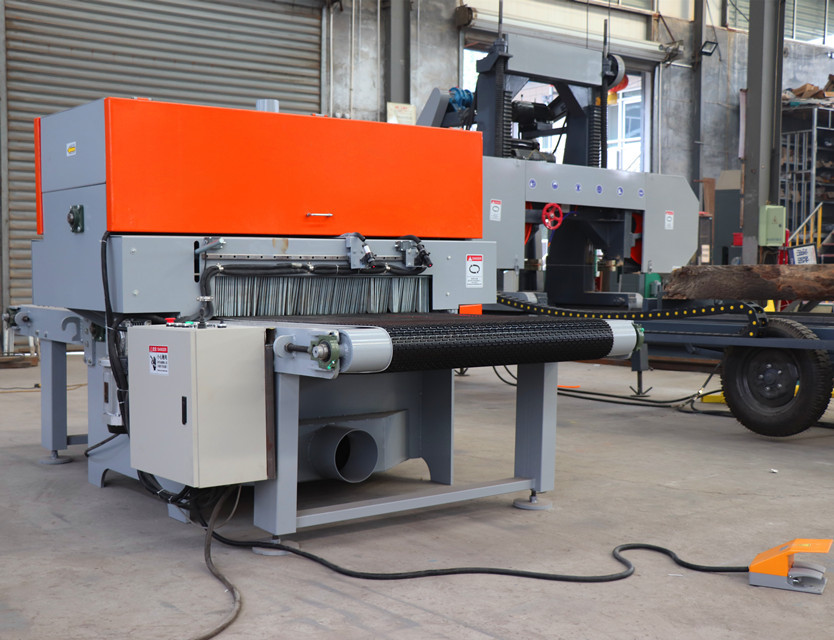

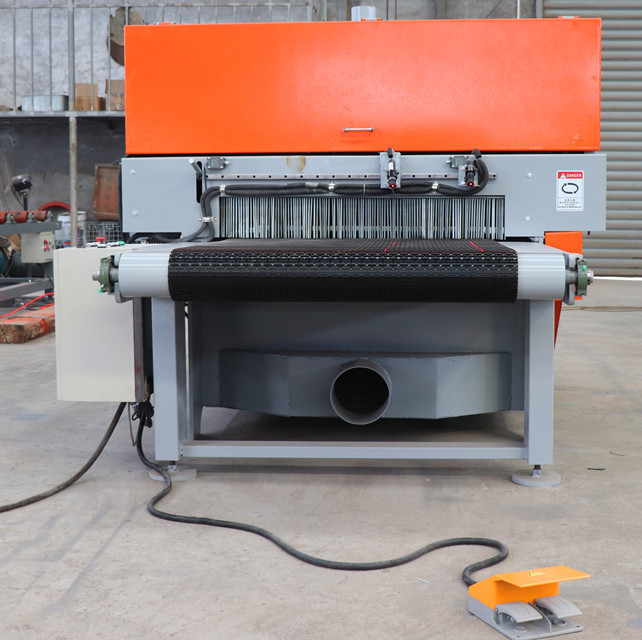

Twin Blades Wood Board Edger/border cutting machine
1. Twin circular blades saw.
2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.
3. With tyres, moveable usage is workable
| Technical parameters | EG700A | EG700B |
| cutting max. width | 700mm | 700mm |
| cutting min. width | 50mm | 50mm |
| sawn max. thickness | 100mm | 100mm |
| sawn min. thickness | 10mm | 10mm |
| Blade | 2*300mm | 2*300mm |
| Feeding method | Automatic | Automatic |
| Feed Rate | 20-25m/ minute | 20-25m/ minute |
| Power | 11KW electric motor | 22HP V-twin Diesel Engine |
| Machine weight | 500KG | 450KG |
1. multi blade saw for round log
|
parameter |
SHYM200 |
SHYM250 |
SHYM300 |
SHYM350 |
|
Sawing wood diameter |
200mm |
250mm |
300mm |
350mm |
|
Sawing wood length |
above 600mm |
above 600mm |
above 600mm |
above 600mm |
|
speed |
2800r/min |
2800 r/min |
2800 r/min |
2800 r/min |
|
Motor power |
22KW*2 |
22KW*2 |
30KW*2 |
37KW*2 |
|
Feed motor power |
1.5KW |
1.5KW |
2.2KW |
2.2KW |
|
Diameter of saw blade |
305mm |
366mm |
405mm |
480mm |
|
Quantity of saw blades |
2-10pieces |
2-10 pieces |
2-10 pieces |
2-10 pieces |
|
Saw blade arrangement |
Upper and down |
Upper and down |
Upper and down |
Upper and down |
|
Feed speed |
Frequency control |
Frequency control |
Frequency control |
Frequency control |
|
Cooling water pressure |
0.3-0.6PA |
0.3-0.6PA |
0.3-0.6PA |
0.3-0.6PA |
|
Type of cooling |
The axis of hydraulic |
The axis of hydraulic |
The axis of hydraulic |
The axis of hydraulic |
multi blade saw for square wood
|
Parameter |
SHBC120-250 |
SHBC160-250 |
SHBC200-250 |
SHBC160-350 |
|
Max. sawing wood width |
250mm |
250mm |
350mm |
350mm |
|
Max. sawing wood thickness |
120mm |
160mm |
200mm |
160mm |
|
Sawing wood length |
Above 500mm |
Above 500mm |
Above 500mm |
Above 600mm |
|
Speed of mainshaft |
2800 r/min |
2800 r/min |
2800 r/min |
2800 r/min |
|
Main motor power |
15KW*2 |
18.5KW*2 |
22KW*2 |
22KW*2 |
|
Feed motor power |
1.5KW |
1.5KW |
2.2KW |
2.2KW |
|
Diameter of saw blade |
212mm |
255mm |
305mm |
255mm |
|
Quantity of saw blade |
2-10 pieces |
2-10 pieces |
2-10 pieces |
2-10 pieces |
|
Arrangement of saw blade |
Upper and down |
Upper and down |
Upper and down |
Upper and down |
|
Feed speed |
Frequency control |
Frequency control |
Frequency control |
Frequency control |
|
Cooling water pressure |
0.3-0.6PA |
0.3-0.6PA |
0.3-0.6PA |
0.3-0.6PA |
|
Cooling method |
Axis spray water |
Axis spray water |
Axis spray water |
Axis spray water |
