    Product Details:

    Place of Origin: Shandong Province, China
    Brand Name: SH
    Certification: ISO9001
    Model Number: SHYM200,SHYM250, SHYM300, SHYM350,SHYM400,SHYM450

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $3,000 - 25,000 / Set
    Packaging Details: iron frame packing
    Delivery Time: within 25 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 1000sets/year
    Contact Now
    Detailed Product Description
    Condition: New Type: Circular Saw
    Use: Woodworking Warranty: 12 Months
    Usage: For Round Logs Or Planks Cutting Voltage: 380V/3PH/50HZ Or Customized
    Power: 22-37kw

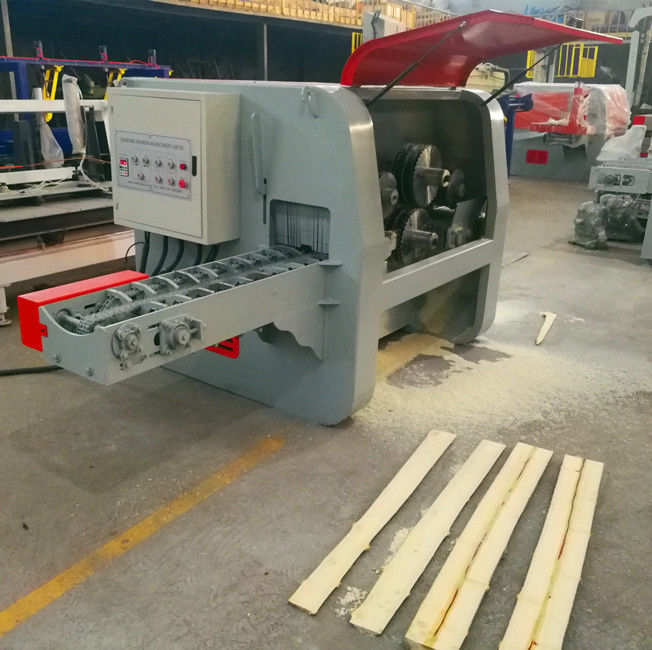

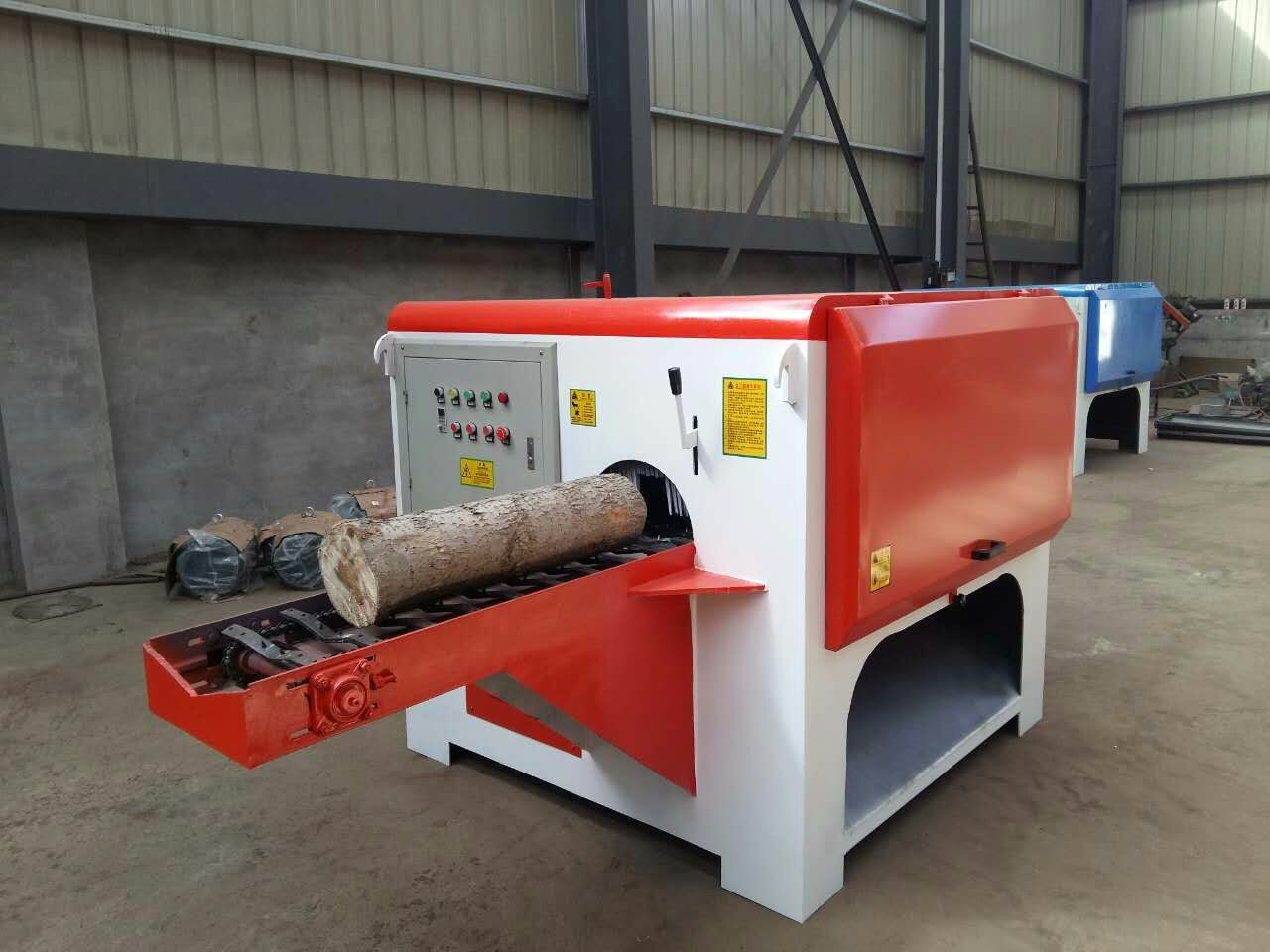

    Multi blades Ripsaw for Round Log Cutting

    1.Cut logs into planks at several pieces per time.

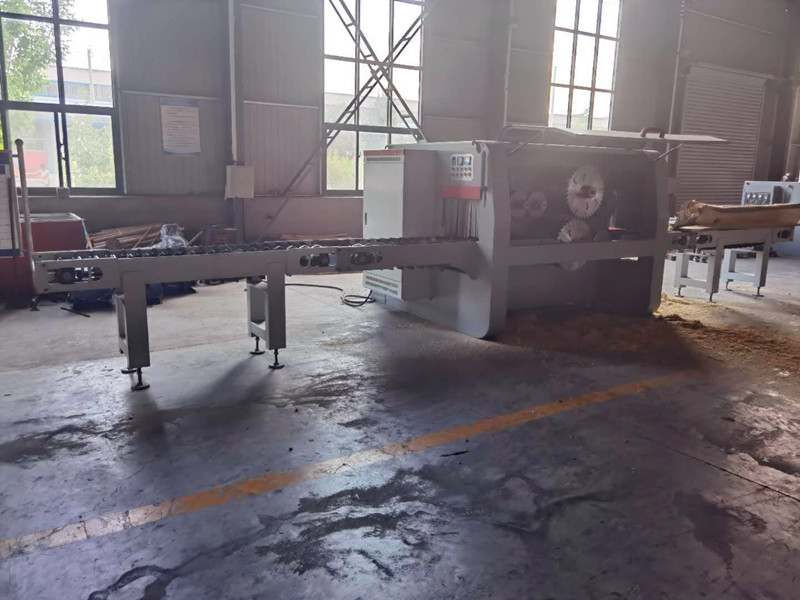

    2.With log centering feeding conveyor

    3.Automatic controlling



    Specifications:

    Model SHYM150 SHYM200 SHYM240 SHYM260
    Sawing log diameter 20-150mm 60-200mm 80-240mm 100-260mm
    Min sawing log length 600mm 600mm 600mm 600mm
    Main motor power 18.5KW X 2 22KW X2 30KW X2 30kw , 37kw
    Feeding motor 1.5KW 1.5KW 1.5KW 1.5KW
    Saw blade diameter 255mm 305mm 355mm 380mm
    Weight 1570kg 1720kg 2200kgs 2300kgs
    Model SHYM285 SHYM300 SHYM330 SHYM340
    Sawing log diameter 130-285mm 150-300mm 150-330mm 150-340mm
    Min sawing log length 600mm 600mm 600mm 600mm
    Main motor power 30kw, 37kw 37KW X 2 37KW X 2 45kw, 55kw
    Feeding motor 2.2KW 2.2KW 2.2KW 2.2KW
    Saw blade diameter 405mm 405mm 455mm 480mm
    Weight 2350kg 2450kg 2550kg 2650kg
    Model SHYM360 SHYM400 SHYM430 SHYM480
    Sawing log diameter 170-360mm 180-400mm 200-430mm 250-480mm
    Min sawing log length 600mm 600mm 600mm 600mm
    Main motor power 55KW X2 55KW X 2 75KW X 2 75KW X 2
    Feeding motor 2.2KW 2.2KW 2.2KW 2.2KW
    Saw blade diameter 500mm 550mm 600mm 650mm
    Weight 2680kg 3500kg 3880kg 4100kg

    Remarks:

    Main motor power can be changed as customer needs ;

    The multi ripsaw is with inverter auto feeding

    Blade cooling method: shaft center spraying water to cool



    Auto Feed log multi blade saw machine/Multiple blades ripsaw cutting mill for planks

    Auto Feed log multi blade saw machine/Multiple blades ripsaw cutting mill for planks

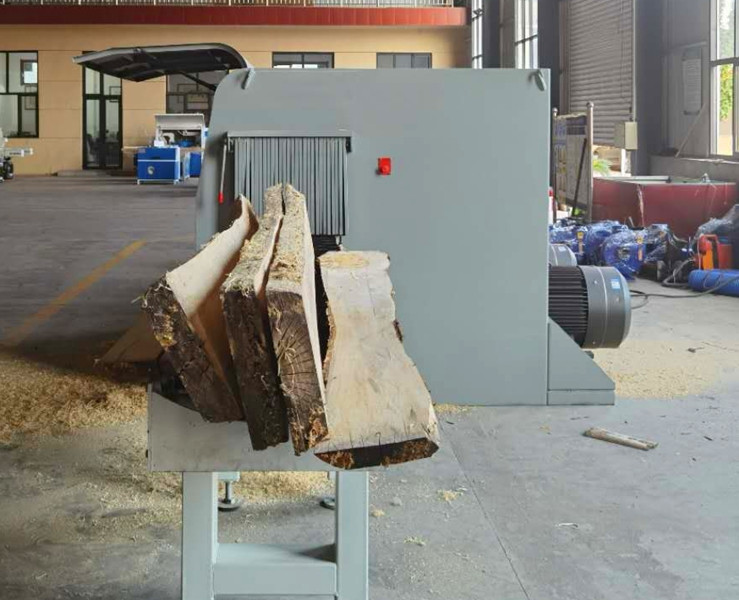

    Multi Blades Ripsaw for Planks/Lumber Cutting

    1.Cut planks into smaller wood boards at several pieces per time.

    2.Automatic controlling


    SHBC Model data
    120-250 160-250 120-300 160-300 120-400 160-400

    Cut max. width (mm)
    120 160 120 160 120 160

    Cut max. thickness (mm)
    250 250 300 300 400 400

    Cut length(mm)
    >500 >500 >500 >500 >500 >500

    Spindle speed(r/min)
    2800 2800 2800 2800 2800 2800

    Main motor power(kw)
    15 x2 18.5 x2 22 x2 22 x2 15 x2 22 x2

    Feeding motor(kw)
    1.5 1.5 2.2 2.2 2.2 2.2

    Blade diameter(mm)
    212 255 255 255 255 255

    Blade No.(pcs)
    2-10 2-10 2-10 2-10 2-10 2-10

    Blade arrangement
    up/down up/down up/down up/down up/down up/down

    Feeding mode
    Frequency variable feeding

    Cooling water pressure
    0.3-0.6PA

    Cooling type
    Axial center spraying

    Auto Feed log multi blade saw machine/Multiple blades ripsaw cutting mill for planks

    Auto Feed log multi blade saw machine/Multiple blades ripsaw cutting mill for planks
