Name: Full Automatic Log Cutting Vertical Twin Band Saw Multi Blades Ripsaw Production Line
Brand: Weifang Jiuyi Information technology co., LTD
SKU: SHYM500, SLS500, BPJ300, etc
Price: 65.00 USD
Availability: InStock

Detail Information

Name:	Log Cutting Saw Machine Production Line	Condition:	New
Processing Log Max. Diameter:	500mm	Cutting Log Length:	3meters
Usage:	Pallet Production Board	Voltage:	380V,3phase,50HZ Or As Cusmer Needs
Advange:	Automatic, High Working Efficiency And Wood Saving	Warranty:	12 Months
After-sale Service Provided:	Engineer Available To Service Machine Overseas	Others:	Can Do Design According To Customers' Requirements
Highlight:	full automatic log cutting band saw , vertical twin band saw machine , multi blade ripsaw production line

Product Description

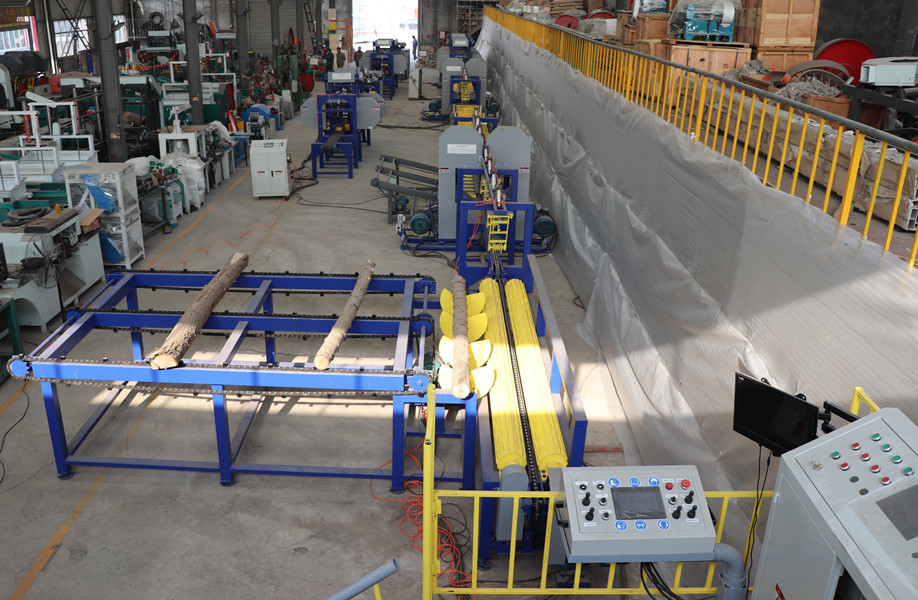

Log processing producton line of Twin Bandsaw + planks cutting Multiple Blades Ripsaw

(diameter 500mm, length 3meters)

Technical Parameter
Loading Deck
Log Length	4000mm
Width	2000mm
Feeding Speed	Variable Frequency Speed Adjustable
Motor	5.5KW
Feeding Speed	frequency speed adjustable
Feeding	Pneumatic
Feeding model	chain

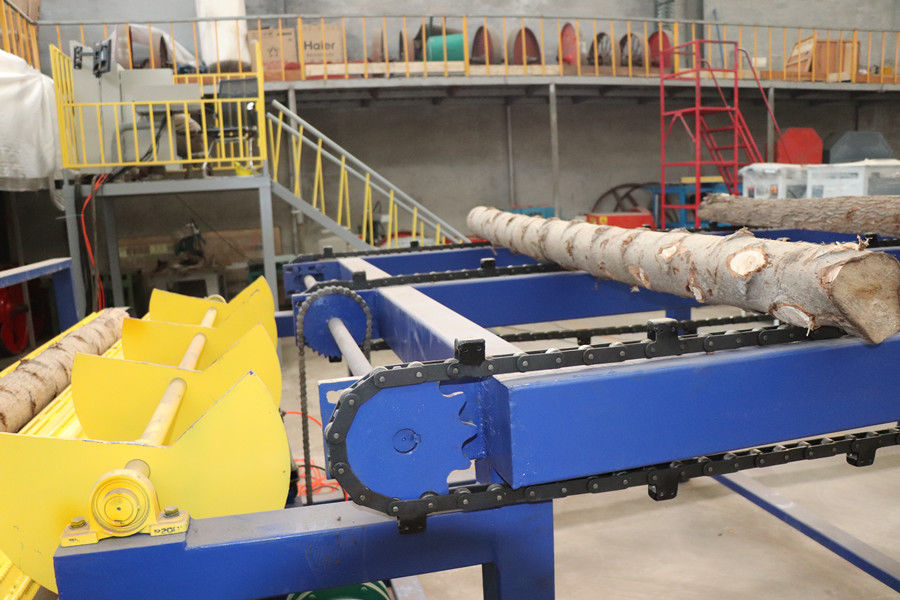

Log Rotation And Feeding Belt
Log Length	4000mm
Feeding Model	Variable Frequency Speed Adjustable
feeding speed	frequency speed adjustable
Motor Power	3KW*2
Control Model	Remote Control

SLS500 First Log Cutting Twin Vertical Band Saw
Max Cutting Log Diameter	500mm
Min Cutting Log Diameter	100mm
Log Length	800-3500mm
Saw Wheel Diameter	700mm
Cutting Speed	9-25m/min
Motor power	22KW *2
Centralise Model	Touch Screen Digital Control

Automatic Rotation Centralise Roller Conveyor
Conveyor Length	6000mm
Conveyor Width	1000mm
Motor Power	2.2KW
Centralise Model	Pneumatic

200-400 Heavy Duty Log Cutting Multiple Blades Sawmill
Sawing max. width	400mm
Sawing max. thickness	200mm
sawing speed	10-25m/min
Main Motor power	45KW*2
Feeding Motor	2.2KW
Sawing blade quantity	2-10 pieces
Saw Blade Diameter	355mm
Variable Frequency Speed Adjustable Feeding,
Axles Center Water Cooling System,

Slab Slop Conveyor
Length	3000mm
Width	2500mm
Motor	2.2KW

BP300 Heavy Slab Cutting Multiple Blades Horizontal Circular Saw
Max Cutting Width	300mm
Max. sawing thickness	80mm
Feeding Speed	frequency speed adjustable
Motor	15KW*2

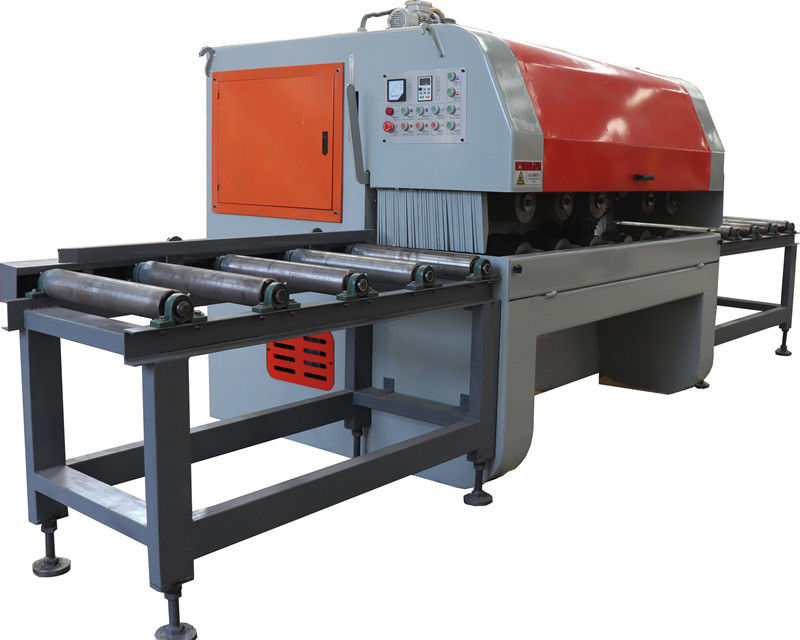

500 High Speed Multiple Blade Rip Sawmill
Max Cutting Plank Width	500mm
Max Cutting Plank Thickness	50mm
Circular Saw Blade Quantity	1-3 Pieces
Motor Power	22kw

Conveyor Belt
160-400 Conveyor Belt	600mm*8000mm,3KW
BP300 Conveyor Belt	600mm*12000mm,3KW

chain conveyor
length	20000mm
width	1800mm
Motor Power	5.5KW

Tag:

Place of Origin:	shandong province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SHYM500, SLS500, BPJ300, etc

Minimum Order Quantity:	1 SET
Price:	US $15,000 - 115,000 / Set
Packaging Details:	film wrapped container loading
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	100sets/year
