    Product Details:

    Place of Origin: Shandong Province, China
    Brand Name: SH
    Certification: ISO9001
    Model Number: AS1250- 3 ,AS1250- 4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $19,800 - 21,500 / Set
    Packaging Details: iron made frame packing
    Delivery Time: within 20 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Name: Pallet Nailing Machine Application: Make Wood Pallets
    Nailing Range: 800-1250mm Operation: PLC Touching Screen Auto Setworks
    Air Pressure: 0.8MPA Number Of Coil Nail Guns: 3pcs Or 4pcs
    Production Prodedure: Manual Feeding/automatic Nailing/automatic Palletizing Palletizer Equipment: With It ,automatic Working
    Pallet Type: American Tray After-sales Service Provided: Engineers Available To Service Machine Overseas

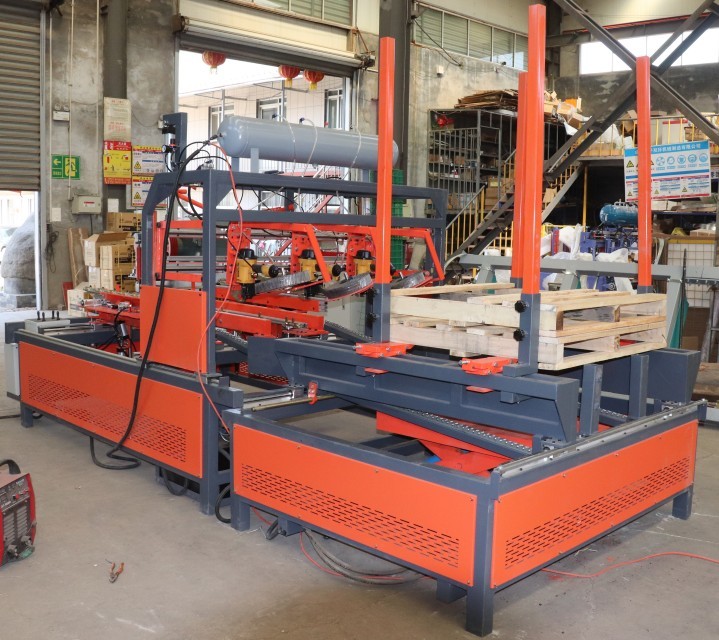

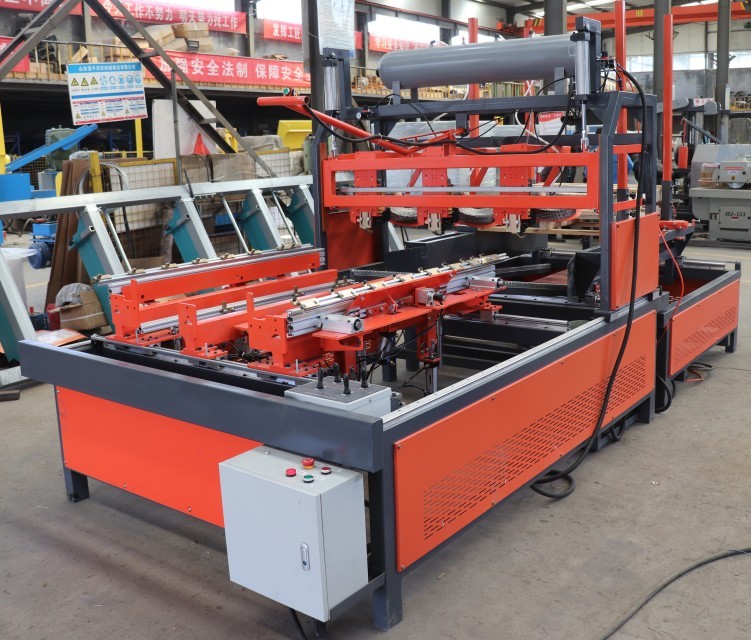

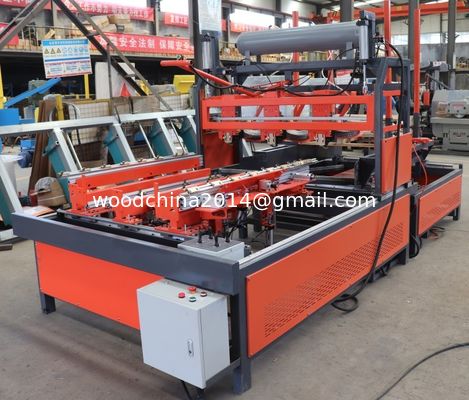

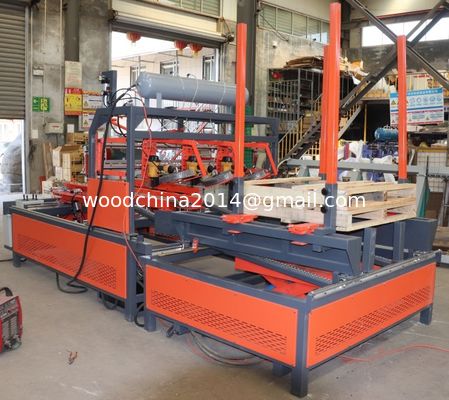

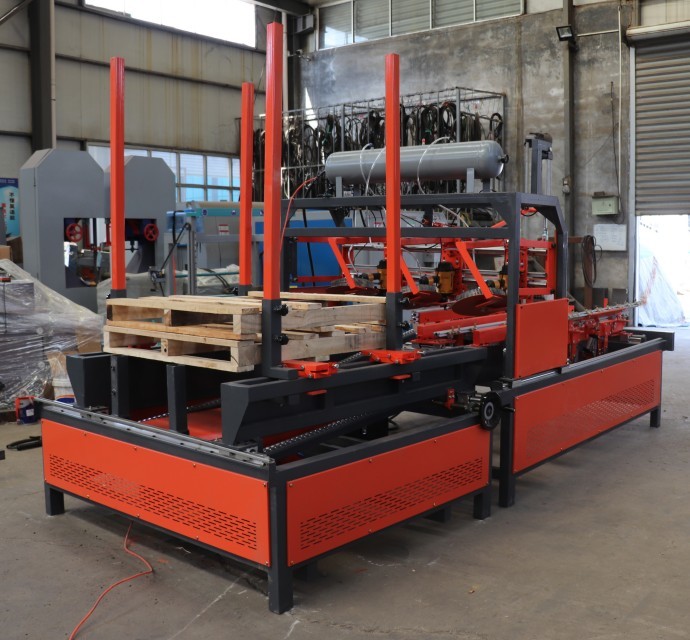

    Automatic Wood Pallet Nailing Machine with Automatic palletizer

    -- USA and National Style Wooden Pallets

    -- PLC & Touch Screen control,Pneumatic Operation
    -- Manual Feeding,Automatic Nailing and Automatic Stacking
    -- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
    -- After the nailing process,The pallets are turned over to the stacking platform automatically.
    -- Convenient for forklift transport.
    -- Save time and space.
    -- Technical data
    Model AS 1250- 3 nail guns type AS1250- 4 nail guns type
    Nailing Range 800—1250mm 800—1250mm
    Operation ,Automatic PLC touching screen PLC touching screen
    Nail capacity 3000 nails/large coil nails 3000 nails/large coil nails
    Number of Coil Nail Guns 3 4
    Air pressure 0.8MPA 0.8MPA
    Receiving Automatic palletizing (pneumatic) Automatic palletizing (pneumatic)
    Production prodedure Manual feeding/automatic nailing/automatic palletizing
    Pallet type American tray , European tray American tray, European tray
    Wight 1000kg 1200kg
    Palletizer equipment parameters
    Processing size 800-1250mm pallet nailing machine supporting
    Air compressure 0.8MPA
    working speed 4-8 seconds/each
    Motor power 1.5KW/3phase
    Controlling Integrated supporting of pallet nailing machine production line
    Production mode Automatic feeding of pallet nailing machine
