Detail Information

Name:	Twin Vertical Wood Resaw Band Saw	Use:	Woodworking
Application:	Removing A Slab From Each Side Of The Log	Max. Sawing Wood Diameter:	400mm
Sawing Wood Length:	1m -3meters	Main Motor Power:	18.5KW X 2
Feeding Motor:	5.5KW	Bandsaw Blade Width:	50-80mm
Feeding Speed:	9-25m/min, Frequency Speed Adjustable	Bandsaw Blade Width:	50mm To 80mm
Guarantee:	1year	After-sales Service:	Video Technical Support, Spare Parts
Highlight:	Bottom Cutting Wood Bandsaw Mill , 400mm Industrial Sawmill Equipment , 18.5KW Industrial Sawmill Equipment

Product Description

Double heads vertical band sawmill, Log bandsaw wood saw machine, Bottom cutting wood twin vertical sawmill

Block Bandsaw/ Twin Vertical Band Saw (Flat bottom)
Designed to receive logs with at least one straight bottom, making two vertical cuts, removing a slab from each side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· Block 100% Square

· High-production continuous feed system.

· Production up to 4,000 m³ per month.

· Highly efficient use of wood, with the thinnest kerf on the market.

· Motorization and automatic electric panel included.

· Automatic feeding, inverter speed adjustable .

Technical data :

Model	SLSP400
Maximum log diameter	400mm
Minimum log diameter	100mm
Wood length	1000~3000mm
Feed speed	9~25m/min
Conveyor length	7000mm
Bandwheel diameter	700mm
Blade width	50~80mm
Saw motor	18.5KW X 2
Feed motor	5.5kw
Weight	2500kg

Deatiled Image

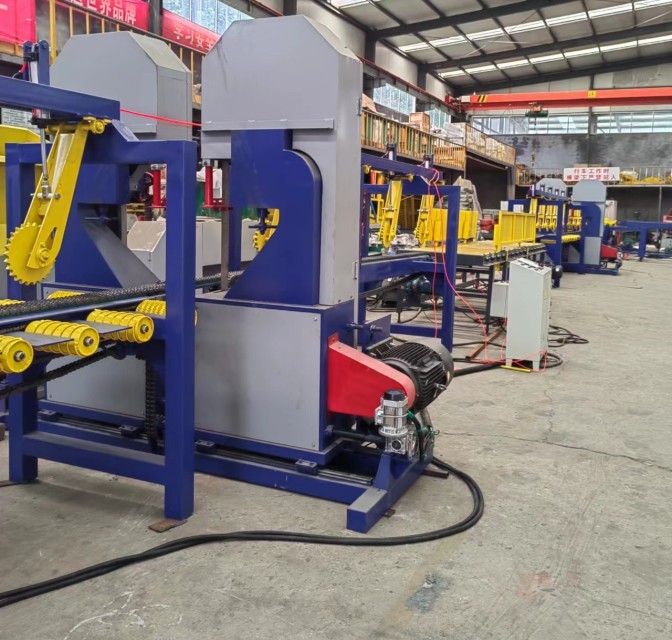

Twin vertical bandsaw Industrial Sawmill Equipment Bottom Cutting Wood Bandsaw Mill 0

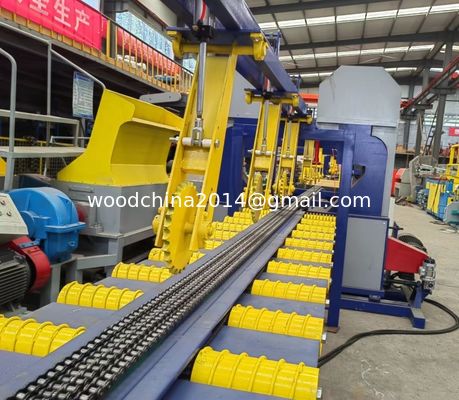

Twin vertical bandsaw Industrial Sawmill Equipment Bottom Cutting Wood Bandsaw Mill 1

Related Saw Machine

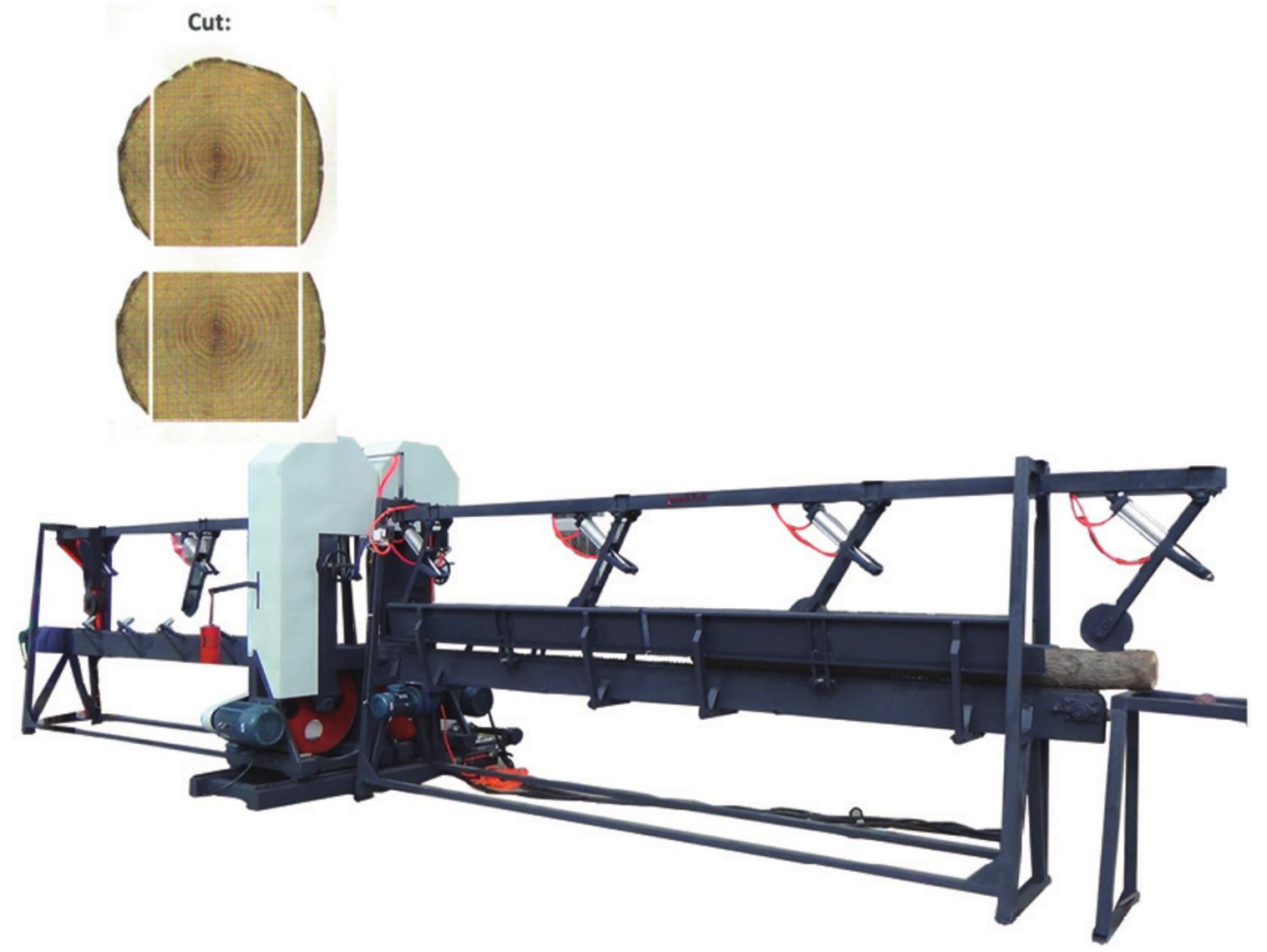

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical data	SLS350	SLS500
Maximum log diameter	350mm	500mm
Minimum log diameter	100mm	100mm
Wood length	1000 to 3000mm	1000 to 3000mm
Feed speed	9-25m/min (inverter)	9-25m/min (inverter)
Conveyor length	7000mm	3500mm x 2
Band wheel diameter	700mm	760mm
Width of saw blade	50-80mm	50-100mm
Length of saw blade	4850	5200mm
Thickness of saw blade	0.9mm	0.9mm
Saw motor	2x18.5kw	2x22kw
Feed motor	5.5kw	4kw x 2
Sawn sizing control	Touching screen auto setworks	Touching screen auto setworks

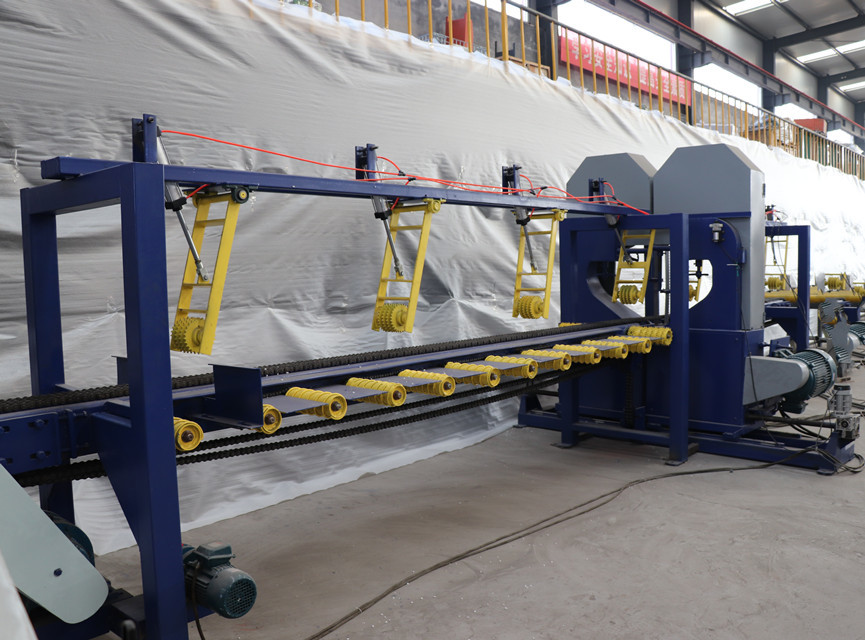

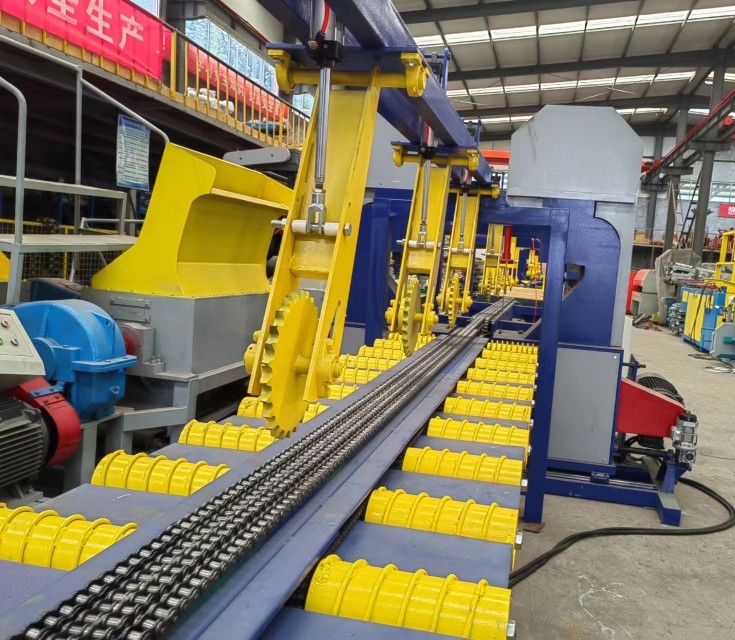

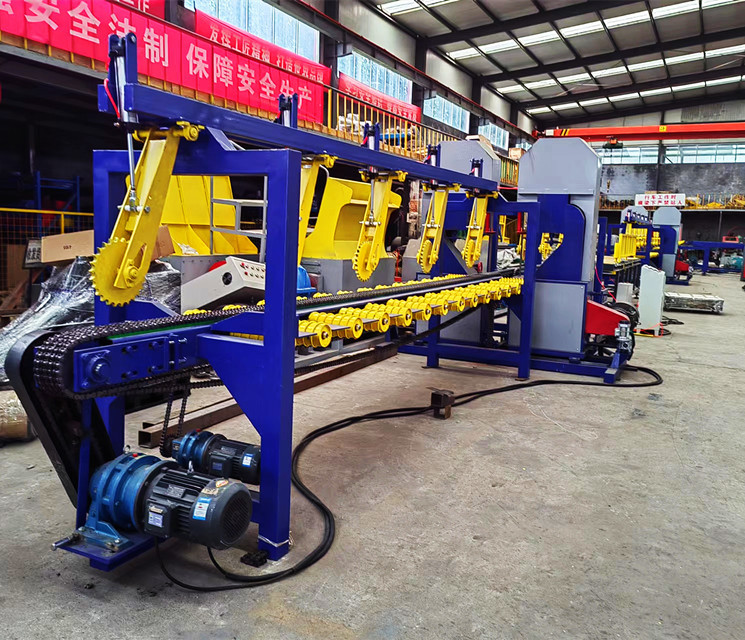

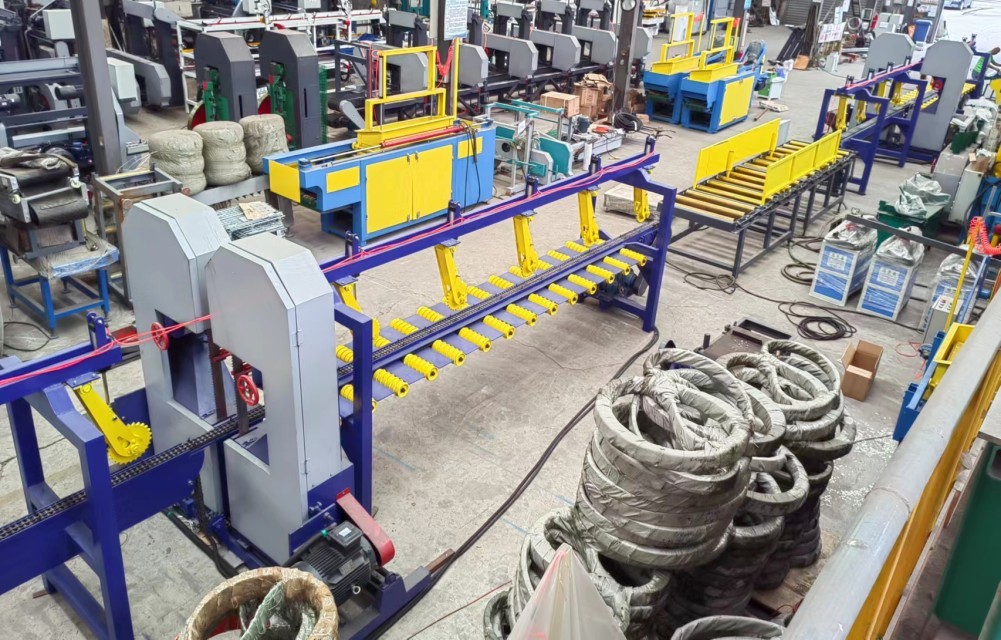

Photos

Optional - slabs slope conveyor

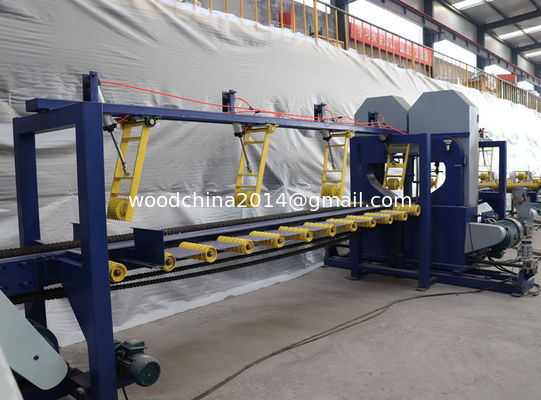

Twin vertical bandsaw Industrial Sawmill Equipment Bottom Cutting Wood Bandsaw Mill 4
Optional - log loading deck

Optional -Roller conveyor

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SLSP400, SLS350, SLS500

Minimum Order Quantity:	1 SET
Price:	negotiable
Packaging Details:	wooden pallet
Delivery Time:	within 7 days
Payment Terms:	T/T or L/C at sight
Supply Ability:	1000sets/month
