Log saw cutting Double Vertical Bandsaw Industrial Sawmill Equipment with 700mm Wheel Diameter

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SLS350, SLS500

Minimum Order Quantity:	1 SET
Price:	US $12,500 - 580,000 / Unit
Packaging Details:	container loading
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets/year

Get Best Price Contact Now

Detail Information

Condition:	New	Type:	Vertical Band Saw
Use:	Woodworking	Voltage:	380V, 50HZ, 3PH Or As Customer Needs
Power(W):	218.5KW-222KW	Application:	Cut Four Side Of Log,produce Cants Or Square Wood
Saw Wheel Diameter:	700mm, 760mm	Max. Sawing Wood Diameter:	500MM
Control:	CNC Digital	Feeding Speed:	Variable Frequency Speed Adjustable
Warranty:	12 Months
Highlight:	Double Vertical Bandsaw Sawmill , 760mm Diameter Industrial Sawmill , 760mm Industrial Sawmill Equipment

Product Description

Double Vertical Band Saw Wood Cutting Bandsaw Sawmill Machine Price

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical data	SLS350	SLS500
Maximum log diameter	350mm	500mm
Minimum log diameter	100mm	100mm
Wood length	1000 to 3000mm	1000 to 3000mm
Feed speed	9-25m/min (inverter)	9-25m/min (inverter)
Conveyor length	7000mm	3500mm x 2
Band wheel diameter	700mm	700mm
Width of saw blade	50-80mm	50-100mm
Length of saw blade	4850	5200mm
Thickness of saw blade	0.9mm	0.9mm
Saw motor	2x18.5kw	2x22kw
Feed motor	5.5kw	4kw x 2
Sawn sizing control	Touching screen auto setworks	Touching screen auto setworks

Photos

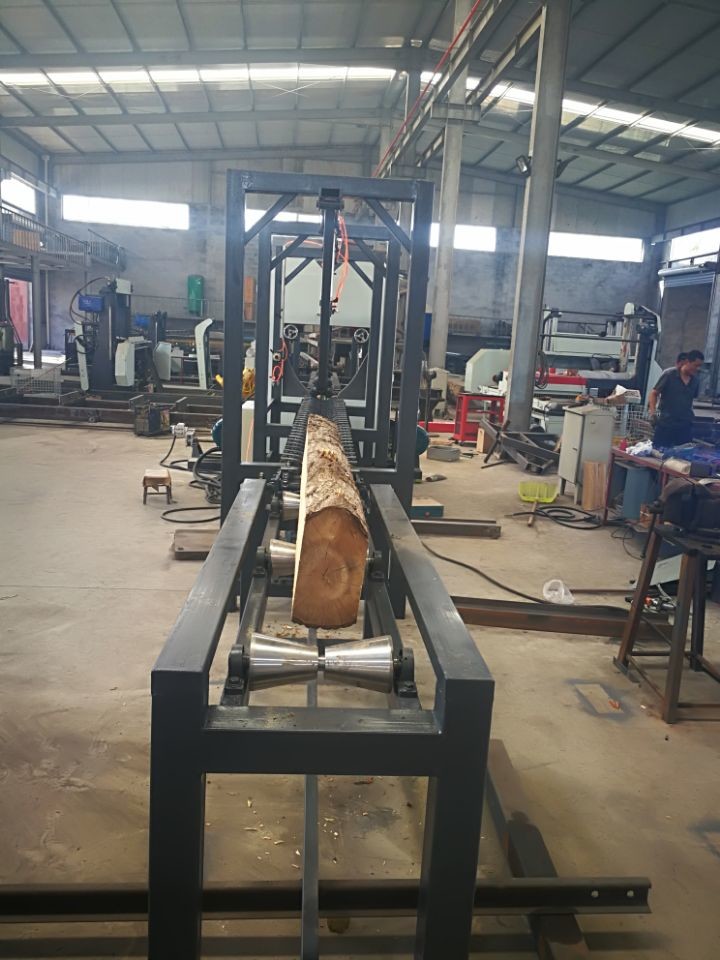

Log saw cutting Double Vertical Bandsaw Industrial Sawmill Equipment with 700mm Wheel Diameter 0

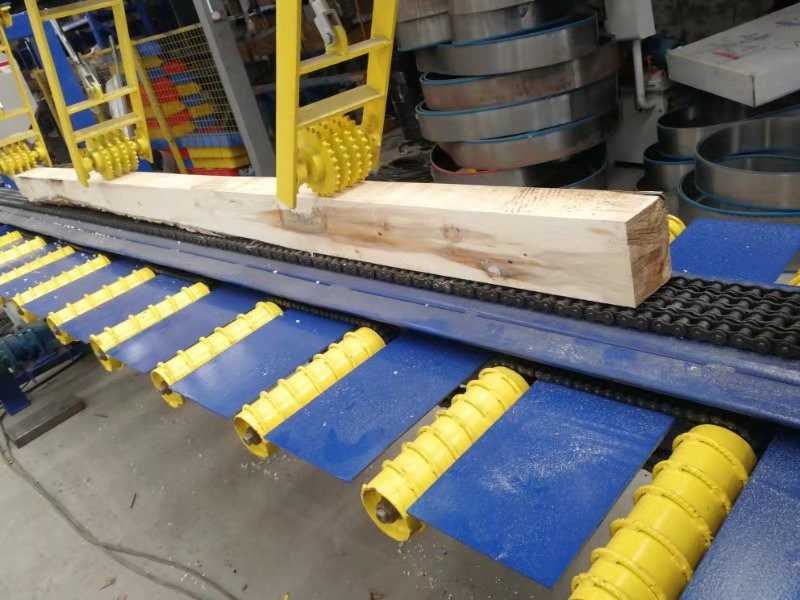

Log saw cutting Double Vertical Bandsaw Industrial Sawmill Equipment with 700mm Wheel Diameter 1

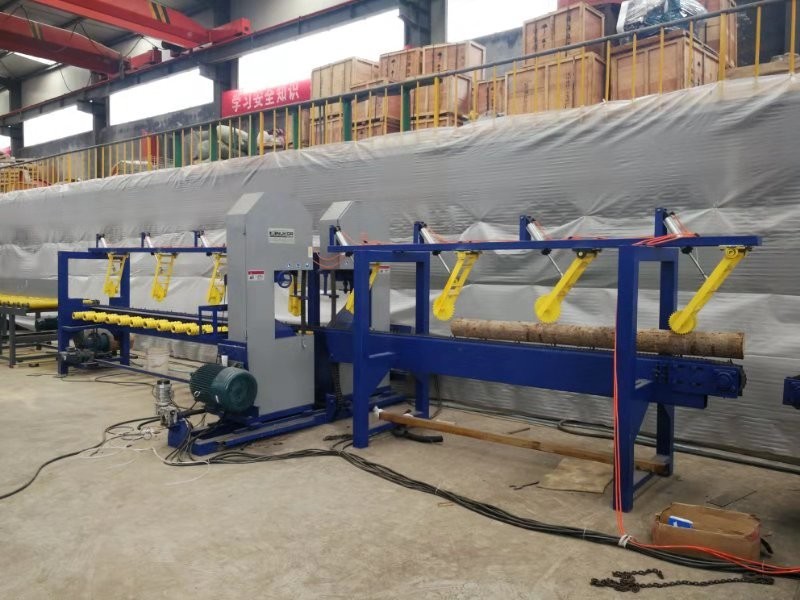

Log saw cutting Double Vertical Bandsaw Industrial Sawmill Equipment with 700mm Wheel Diameter 2
