Single Spindle Multiple Blades Rip Saw Machine
|
Model Specifications |
BC150 | BC200 | BC300 |
| Max. cutting width (mm) | 150 | 200 | 300 |
| Cutting thickness (mm) | 2 to 65 | 2 to 65 | 2 to 65 |
| Min cutting length (mm) | 200 | 200 | 200 |
| Circular blade diameter | 250 | 250 | 250 |
| Motor power (kw) | 11 | 5 | 18.5 |
| Press model | Pneumatic press roller | ||
| Feeding mode | Variable frequency feeding | ||

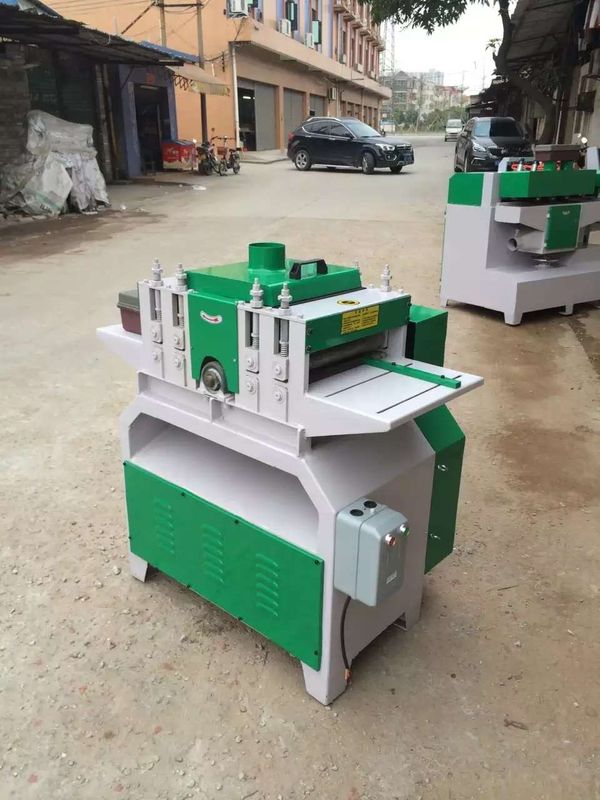

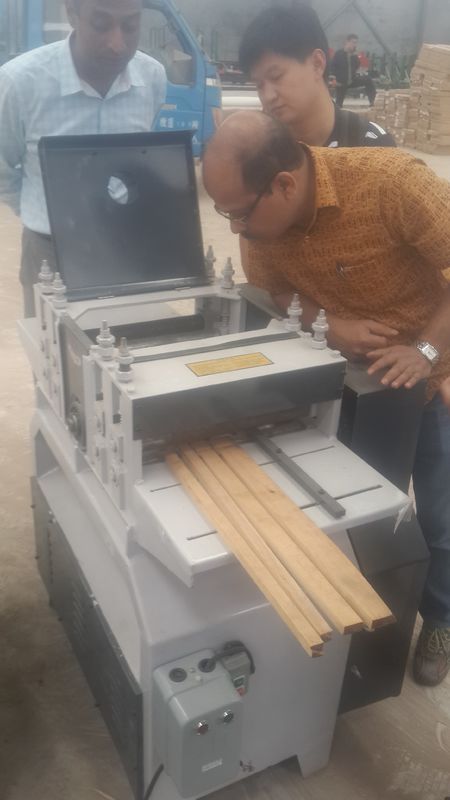

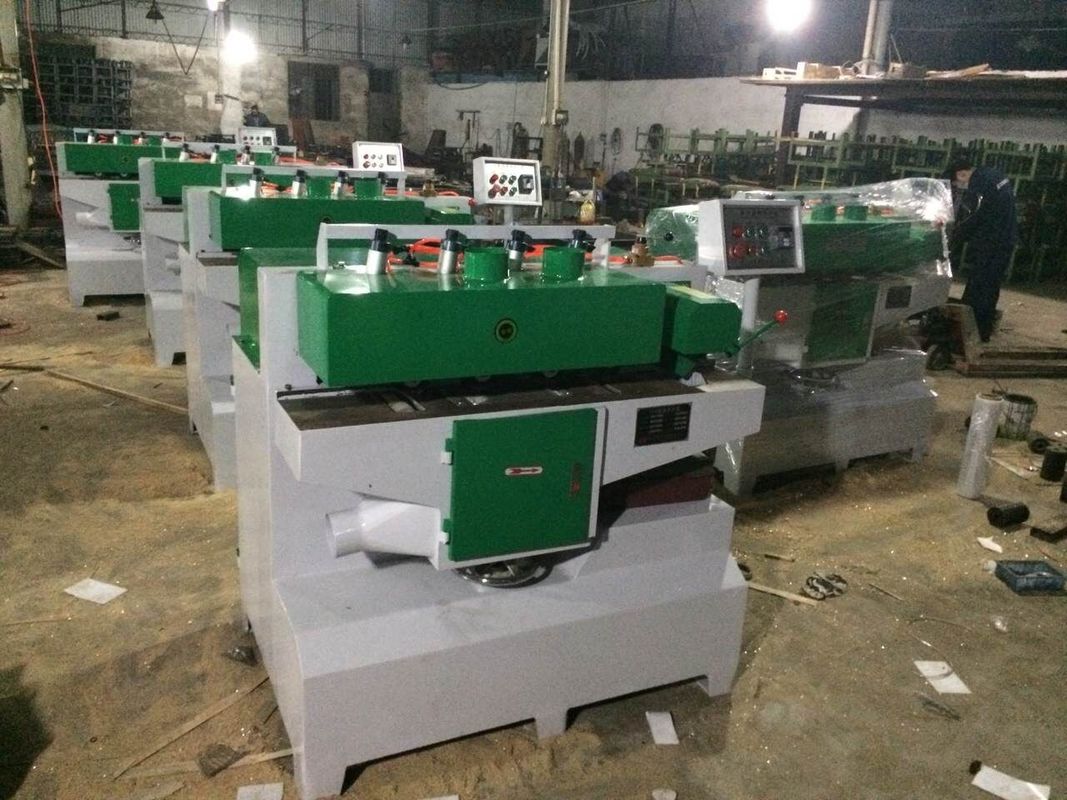

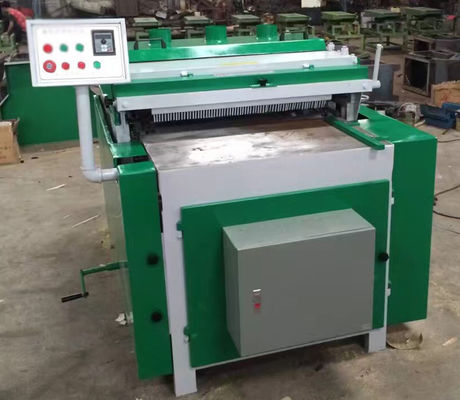

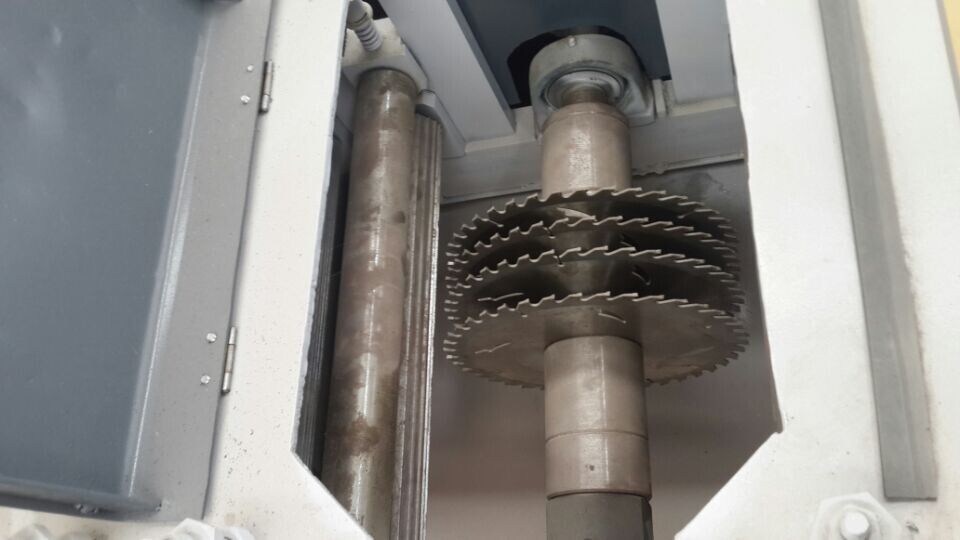

Photos:
Easy Usage Multi Blades Ripsaw
| Specifications | BC380 | BC400 | BC600 |
| Max. cutting width (mm) | 380 | 400 | 600 |
| Cutting thickness (mm) | 15 to 50 | 8 to 30 | 15 to 50 |
| Min cutting length (mm) | 450 | 450 | 450 |
| Circular blade diameter | 230x50 | 150x35 | 230x60 |
| Motor power (kw) | 7.5 | 4 | 18.5 |
| Blade quantity (pcs) | 1-5 | 2-5 | 2-10 |
