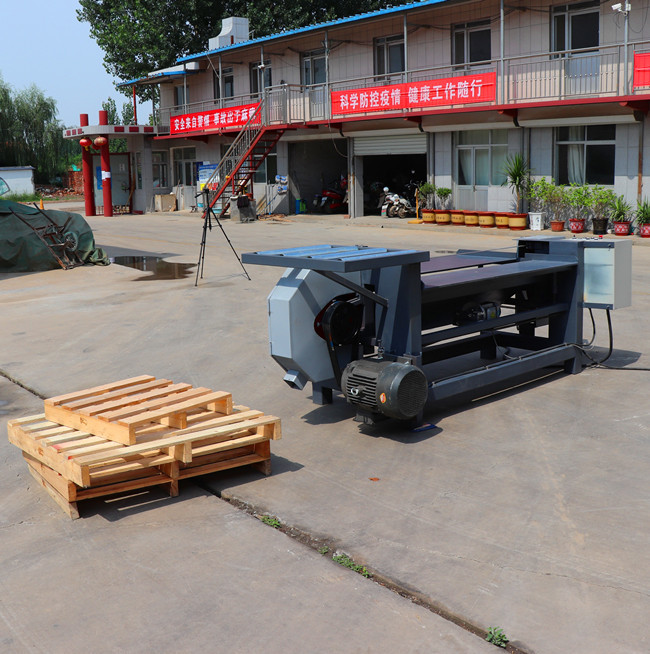

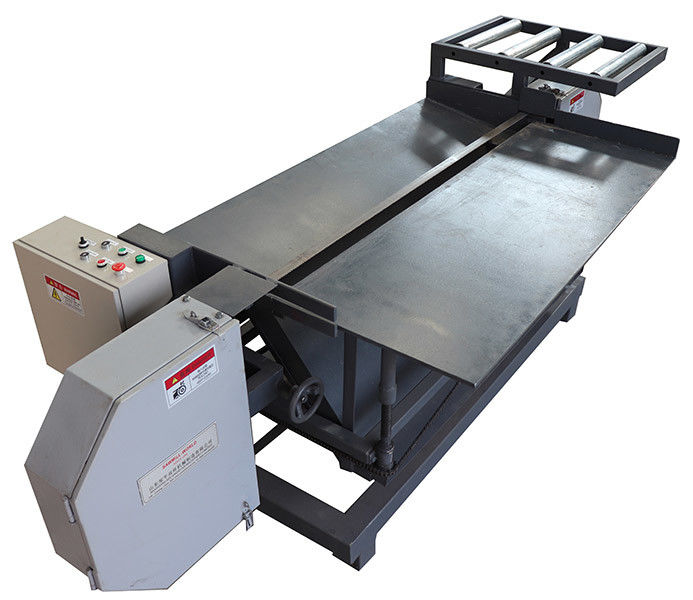

Wood Pallet Dismanling Sawmill
Technical data:
|
Model |
TP1400 |
|
Working Table Length |
1700mm |
|
Horizontal table width |
1400mm |
|
Cutting Thickness |
5mm-150mm |
|
Saw Wheel Diameter |
600mm |
|
Motor Power |
7.5KW |
|
Processing Pallet Efficiecy |
40-60 pcs/min |
|
Band Saw Blade Size |
USA Blade 6900*41*1.3 mm |
|
Overall Size |
3300*1500*1500mm |
| Weight | 800KG |
Detailed Image

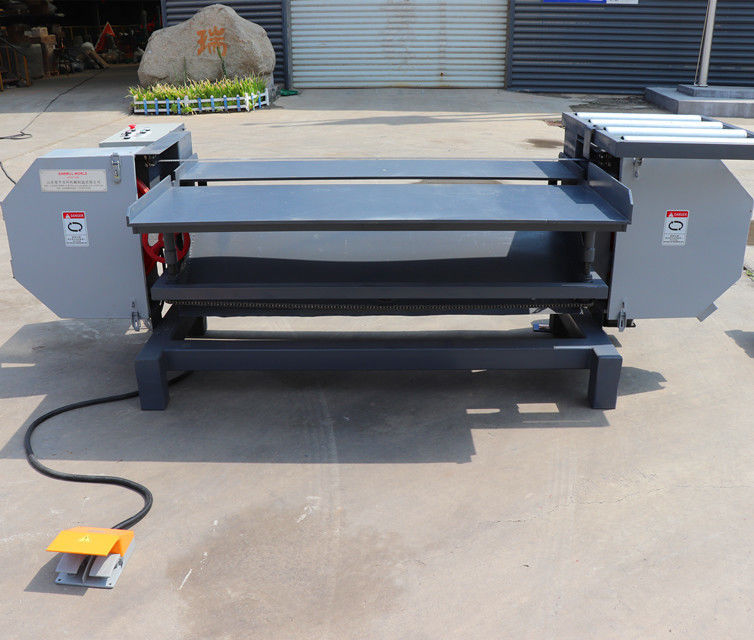

with foot switch to adjust working table height

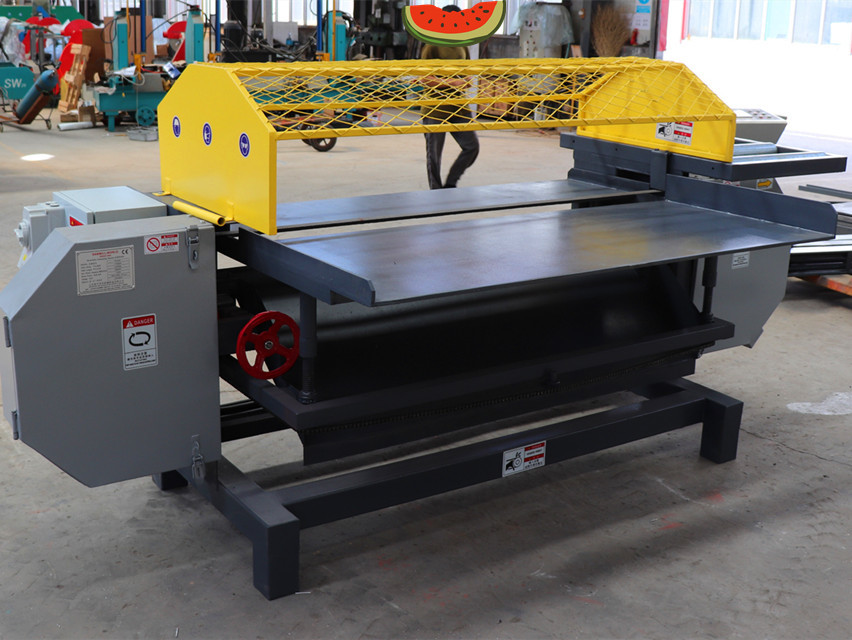

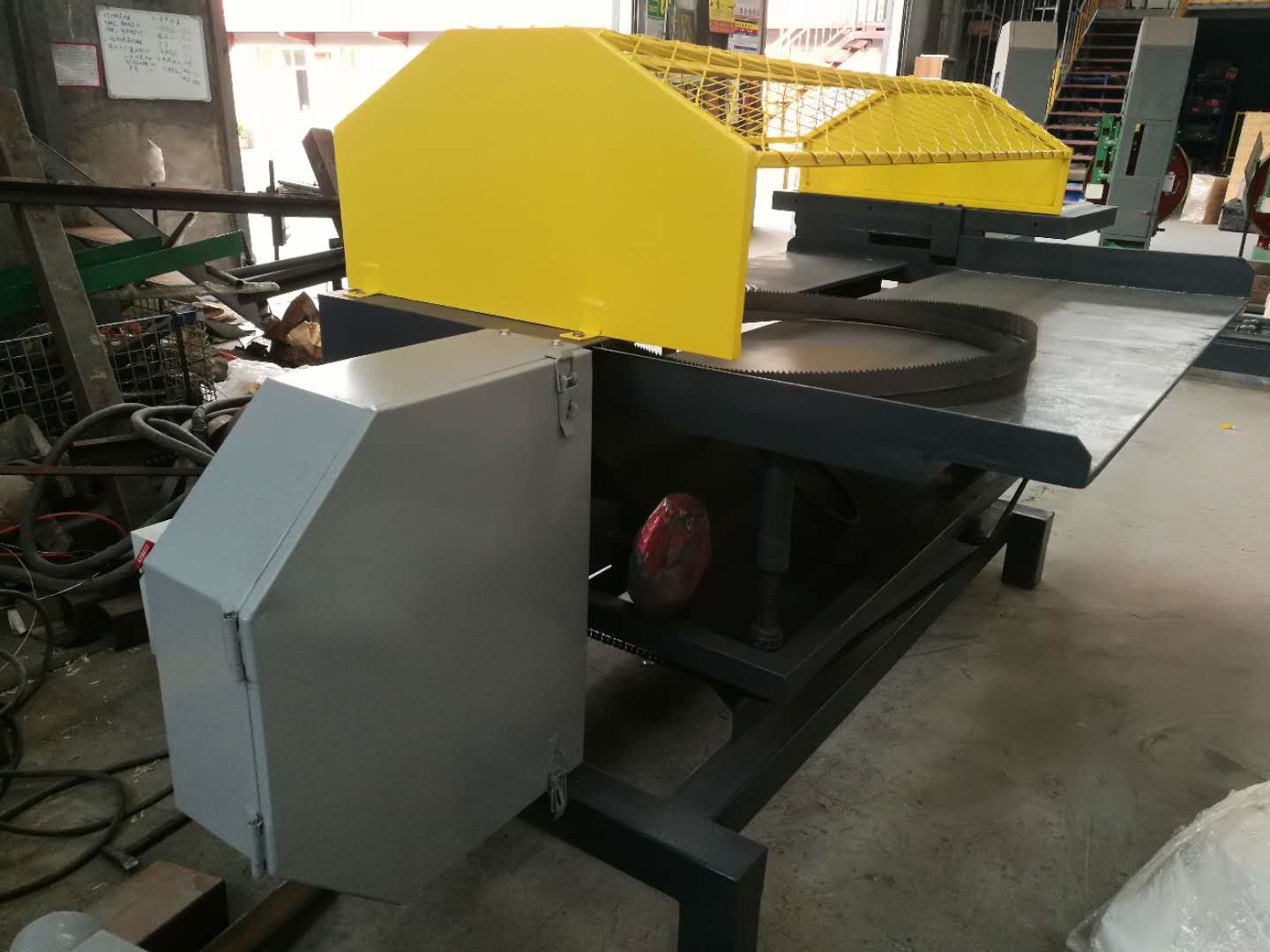

Optional : protective cover
Bi-Metal Woodworking Blade 6850mm*41mm*1.3mm
Optional : also make machine as customer needs
Optional- diesel engine type

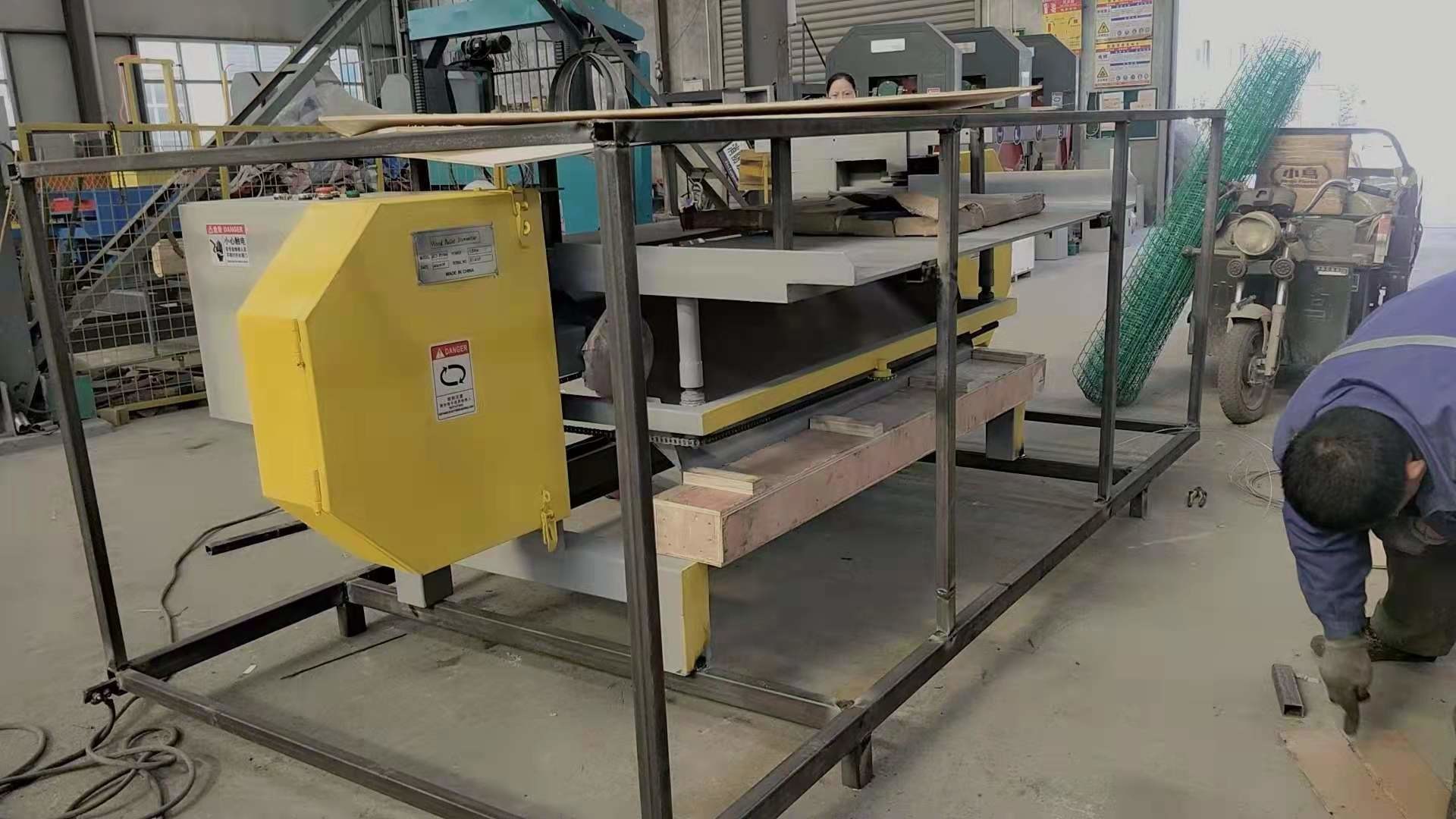

Export pallet packing
Related Products
Wooden Pallet Crusher Machine
| Model | TF1350 |
| Feeding Inlet | 1350*230mm |
| Blade Shaft Diameter | 450mm |
| Blade Quantity | 16 |
| Main Electric Motor Power | 37KW/3phase |
| Slope conveyor length | 3meters |
| Capacity | 60-100 Pallets/Hour |
| Weight | 3200KG |
| With magnetic machine for nails sucking out | |
Wood Sawdust Machine
|
Feeding inlet width |
1200MM |
|
Blade quantity |
84PCS |
|
Knife stick speed |
1850R/M |
|
Raw materials size |
20-50MM |
|
Main motor |
160KW |
|
Capacity |
5 Tons/Hour |
|
High pressure fan |
22KW |
|
motor of discharge machine |
4KW |
|
Feeding system |
1set,5.5KW,With strong magnetic stick |
|
Discharging system |
1set,5.5KW |
|
Bag dust collection |
1 unit(40bags, with Supports and pipes) |
|
Sacron Cyclone Dust Collector |
1unit(1200MM dia., with Supports and pipes) |
|
With Soft start inverter integrated control cabinet |
|
