Round log multi rip saw machines, Woodworking Multiple Blades Ripsaw for hardwoods cutting

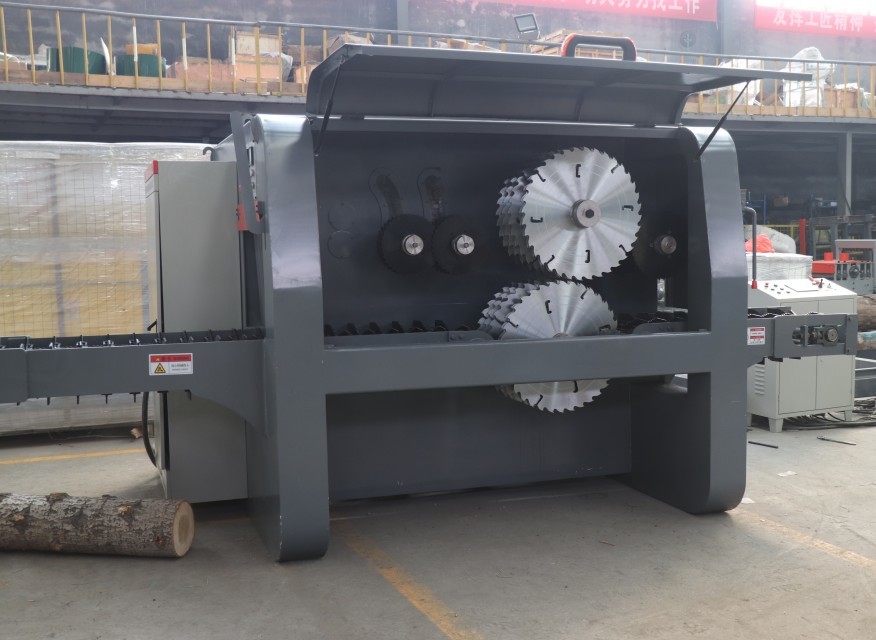

Round Log Cutting Multi Blade Rip Saw
Specifications:
| Model | SHYM150 | SHYM200 | SHYM240 | SHYM260 |
| Sawing log diameter | 20-150mm | 60-200mm | 80-240mm | 100-260mm |
| Min sawing log length | 600mm | 600mm | 600mm | 600mm |
| Main motor power | 18.5KW X 2 | 22KW X2 | 30KW X2 | 30kw , 37kw |
| Feeding motor | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| Saw blade diameter | 255mm | 305mm | 355mm | 380mm |
| Weight | 1570kg | 1720kg | 2200kgs | 2300kgs |
| Model | SHYM285 | SHYM300 | SHYM330 | SHYM340 |
| Sawing log diameter | 130-285mm | 150-300mm | 150-330mm | 150-340mm |
| Min sawing log length | 600mm | 600mm | 600mm | 600mm |
| Main motor power | 30kw, 37kw | 37KW X 2 | 37KW X 2 | 45kw, 55kw |
| Feeding motor | 2.2KW | 2.2KW | 2.2KW | 2.2KW |
| Saw blade diameter | 405mm | 405mm | 455mm | 480mm |
| Weight | 2350kg | 2450kg | 2550kg | 2650kg |
| Model | SHYM360 | SHYM400 | SHYM430 | SHYM480 |
| Sawing log diameter | 170-360mm | 180-400mm | 200-430mm | 250-480mm |
| Min sawing log length | 600mm | 600mm | 600mm | 600mm |
| Main motor power | 55KW X2 | 55KW X 2 | 75KW X 2 | 75KW X 2 |
| Feeding motor | 2.2KW | 2.2KW | 2.2KW | 2.2KW |
| Saw blade diameter | 500mm | 550mm | 600mm | 650mm |
| Weight | 2680kg | 3500kg | 3880kg | 4100kg |
|
Remarks: Main motor power can be changed as customer needs ; The multi ripsaw is with inverter auto feeding Blade cooling method: shaft center spraying water to cool |
||||
Edgers Cutting Multi Blade Rip Saw
Introduction:
Technical data :
| Model | HW500 | HW800 |
| Sawing thickness | 15-50mm | 15-50mm |
| Sawing width | 500mm | 800mm |
| Circular blade diameter | 210mm | 210mm |
| Electric motor | 15KW | 18.5KW |
| Blade qty | 1P-6P | 1P-10P |
| Rotation speed | 3500/min | 3500/min |

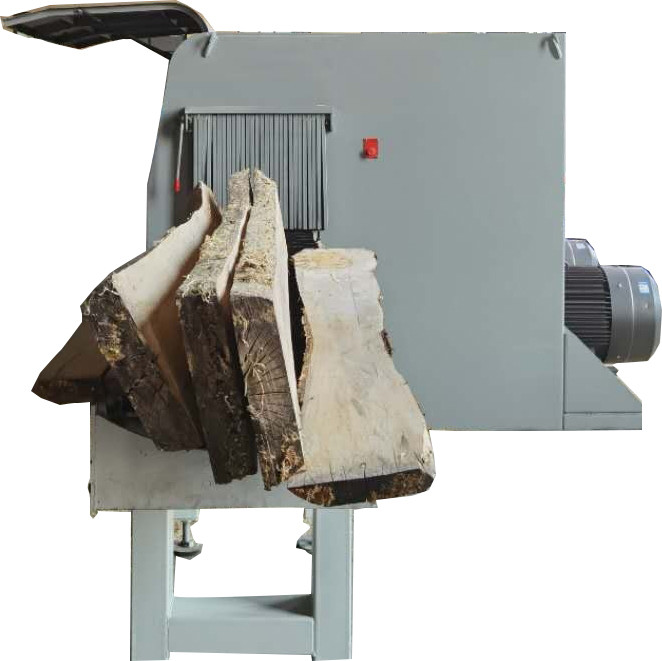

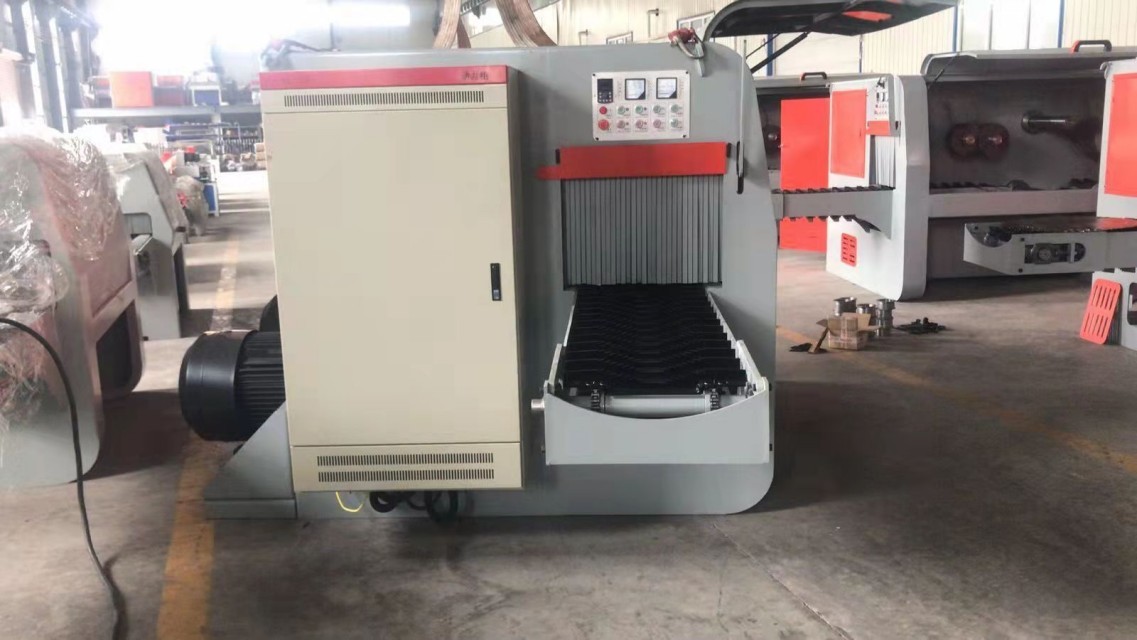

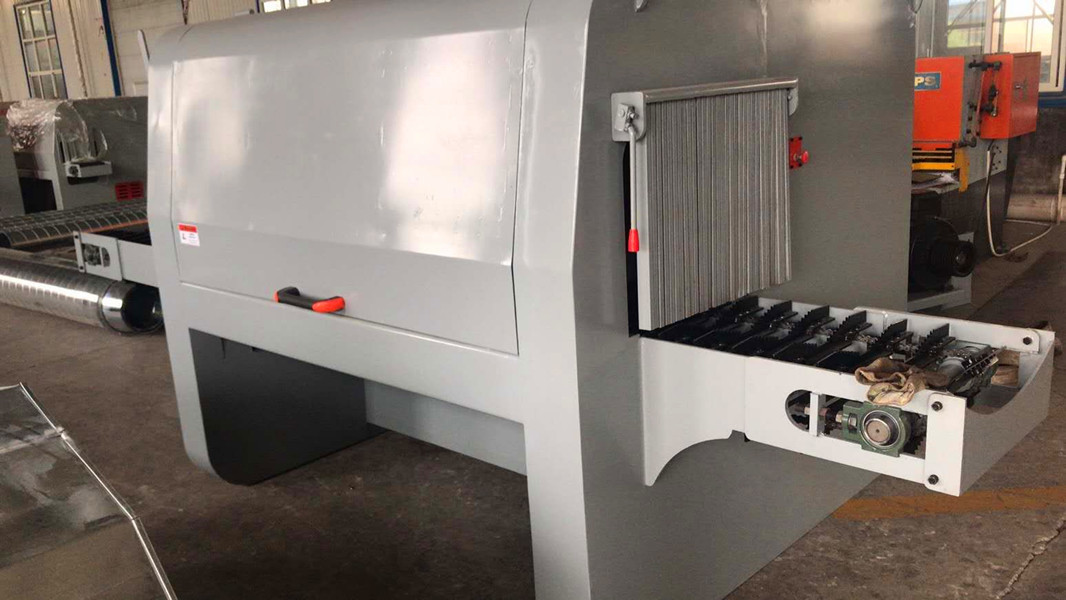

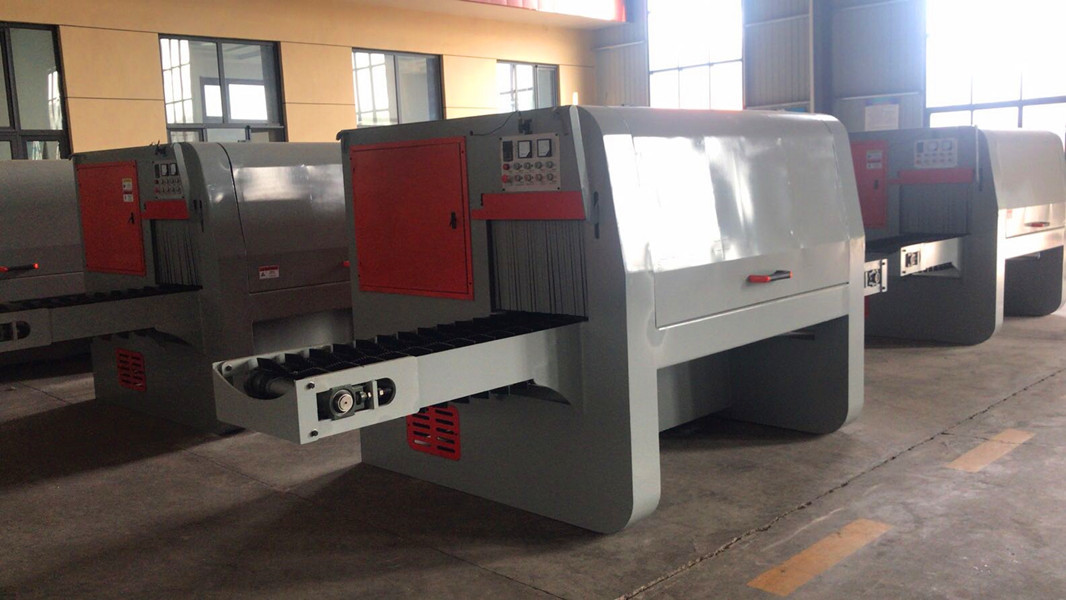

Photos:
Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:
Technical data :
| Model | ZHW800-70 | ZHW800-80 | ZHW800-100 |
| Sawing wood height | 10-70mm | 10-80mm | 20-100mm |
| Sawing wood width | 800mm | 800mm | 800mm |
| Carbide blade diameter | 280mm | 305mm | 355mm |
| Main motor | 22KW | 30KW | 37KW |
| Blade quantity | 1P-10P | 1P-10P | 1P-10P |
| Rotation speed | 3500/min | 3500/min | 3500/min |
Related Saw Machine:
Wood Slabs Cutting Circular Sawmill
Specifications:
|
Model Specifications |
BPJ200 | BPJ250 | BPJ300 |
| Cutting width (mm) | 200 | 250 | 300 |
| Motor power (KW) | 7.5kw x 2 | 7.5kw x 2 | 7.5kw x 2 |
| Feeding | Frequency variable auto feeding | ||
| Circular blade diameter (mm) | 300 | 355 | 405 |
| Weight (kg) | 200 | 220 | 250 |
We can also do bigger model as customer needs .

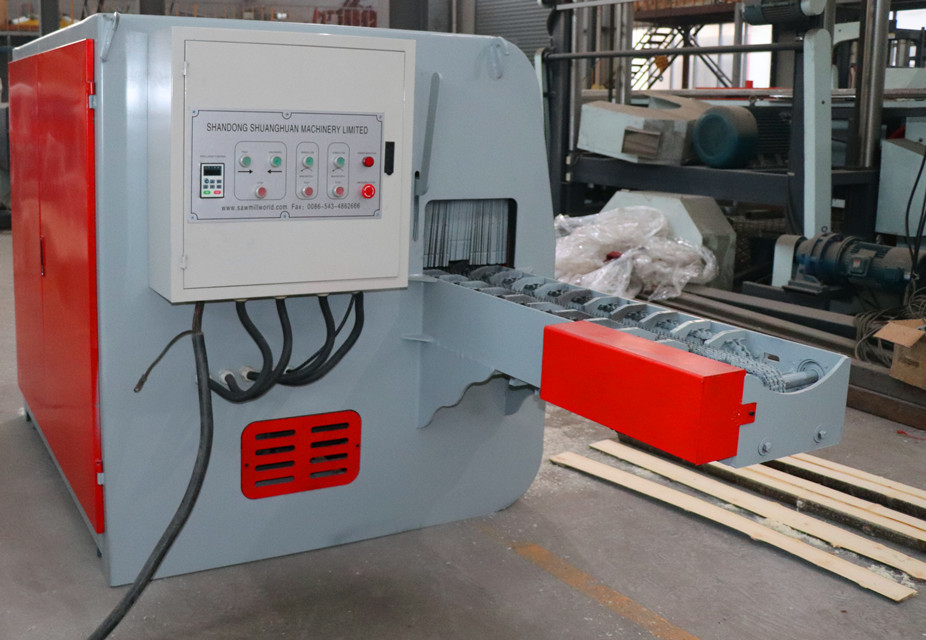

Photos :
