| Place of Origin: | shandong province |
| Brand Name: | SH |
| Certification: | ISO |
| Model Number: | MJ329-M3000, MJ329-M5000 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $6,000 - 50,000 / Set |
| Packaging Details: | container loading |
| Delivery Time: | within 15 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 500sets/year |
| Condition: | New | Type: | Band Saw |
|---|---|---|---|
| Use: | Woodworking | Voltage: | 380v,3phase, 50HZ Or As Requested |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support |
| Saw Wheel Diameter: | 900mm | Max. Sawing Log Diameter: | 600mm |

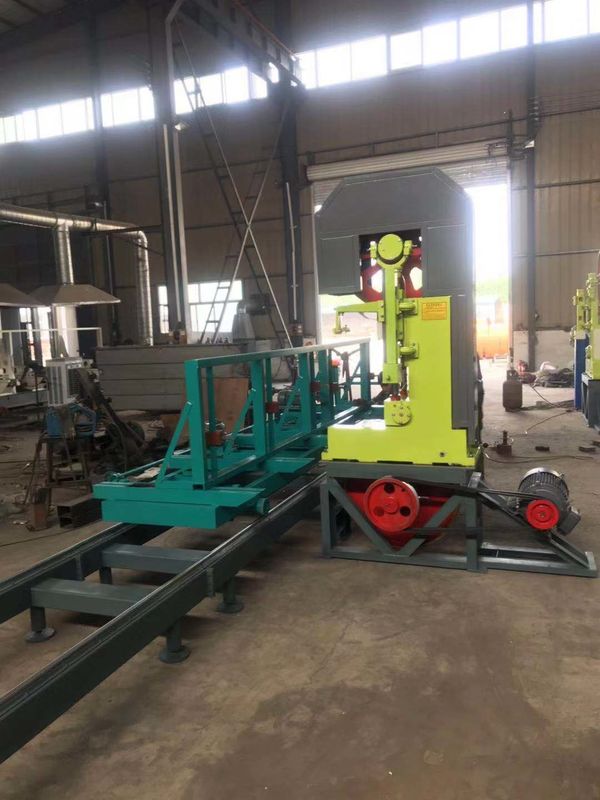

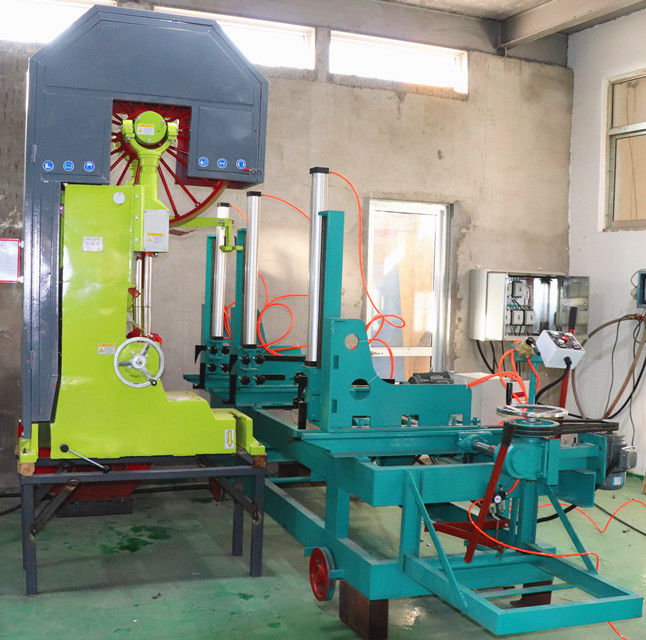

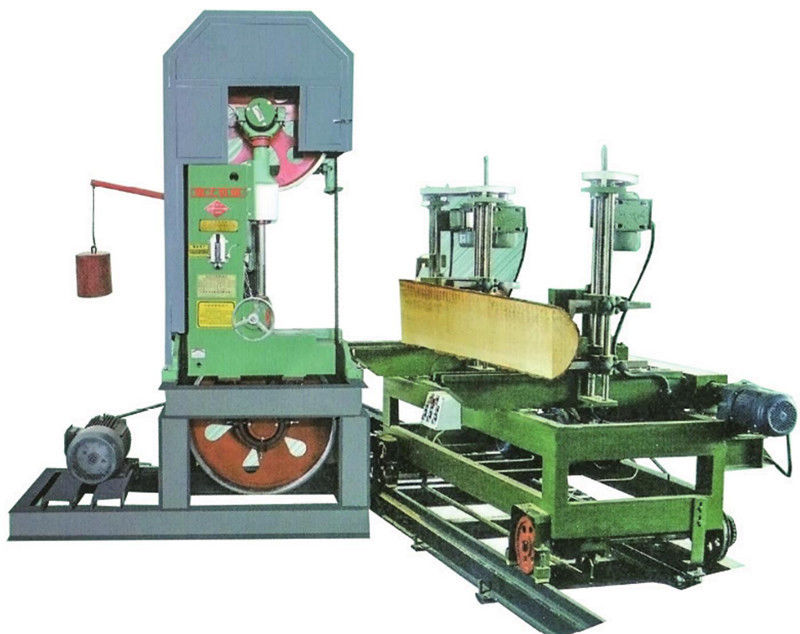

Vertical Band Saw with Carriage -With Foundation
1.Easy usage, no need to build working foundation .
2.Complete body transport, no nee installation .
3.Max. sawing wood diameter/width: 600mm
4.Max. sawing wood length: 6meters
5.Saw walking forward/back: Electric walking
Specifications:
| Technical data | MJ329-M3000 | MJ329-M5000 |
| Saw wheel diameter | 900mm | 900mm |
| Maximum sawing log diameter | 600mm | 600mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 18.5KW | 18.5KW |
| Carriage clip stake quantity | 3sets | 4sets |
| Carriage running wheel quantity | 2sets | 3sets |
| Carriage walking/advance | Electric | Electric |
| Setting sawn size | Electric | CNC |
| Log clamping mode | Electric | Electric |
| Rail length | 11meters | 15meters |
| Weight | 4000kgs | 5500kgs |
