Wood Edger Cutting Circular Blade Table Sawmill
Introduction:
1.Used to cut edges of wood boards in high efficiency or cut boards into small timbers.
2.Sawing max width is upto 1.5meters
3.The saw equipped with carbide blade for hardwood cutting .
4.The saw machine is with auto feeding .
5.Working video link : https://youtu.be/Uvvd12QXl4Q
Technical data:
| Model | BT3000-600 | BT3000-1000 | BT3000-1500 |
| Sawing thickness | 10-180mm | 10-180mm | 10-180mm |
| Sawing maximum length | 3000mm | 3000mm | 3000mm |
| Sawing maximum width | 600mm | 1000mm | 1500mm |
| Circular blade diameter | 500mm | 500mm | 500mm |
| Motor power | 11KW | 15KW | 15KW |
| Track length | 5800mm | 5800mm | 5800mm |
| Wood grasp type | Pneumatic | Pneumatic | Pneumatic |
| Feeding | Manual | Manual | Manual |
| Operation | Manual | Manual | Manual |
|
Optional parts: 1.Frequency variable auto feeding ; 2. Saw track can be extended ; 3. Manual operation can be changed to electric type or PLC touching screen auto setworks |
|||

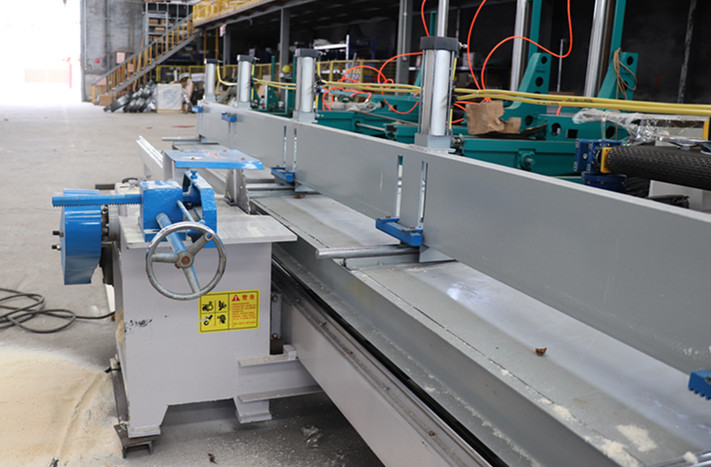

Photos:
